lamborghini countach 5000 qv (1985) engine supports parts diagram

012 - Engine Supports

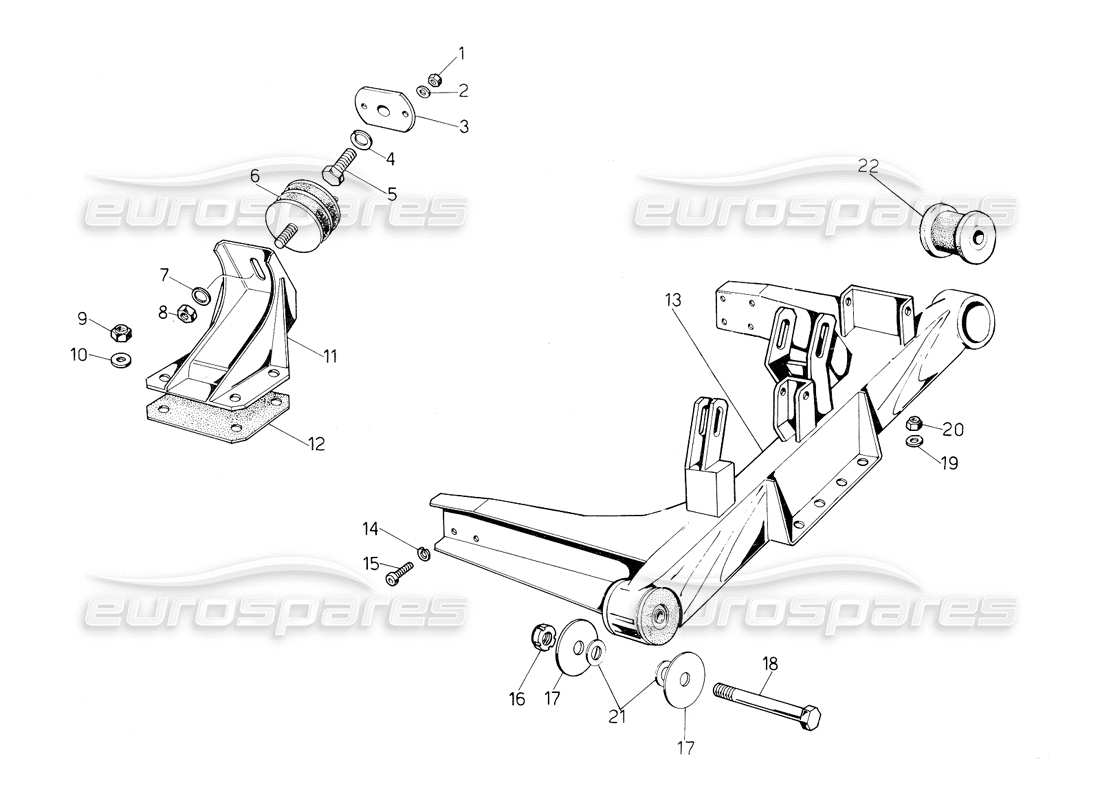

Lamborghini Countach 5000 QV (1985) Engine Supports Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 008200604
    NUT
    Dado M6UNI 5588/65/8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 002
    MPN: 008410603
    LOCK WASHER
    Bond. A6,4 UNI 1751 C72
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)

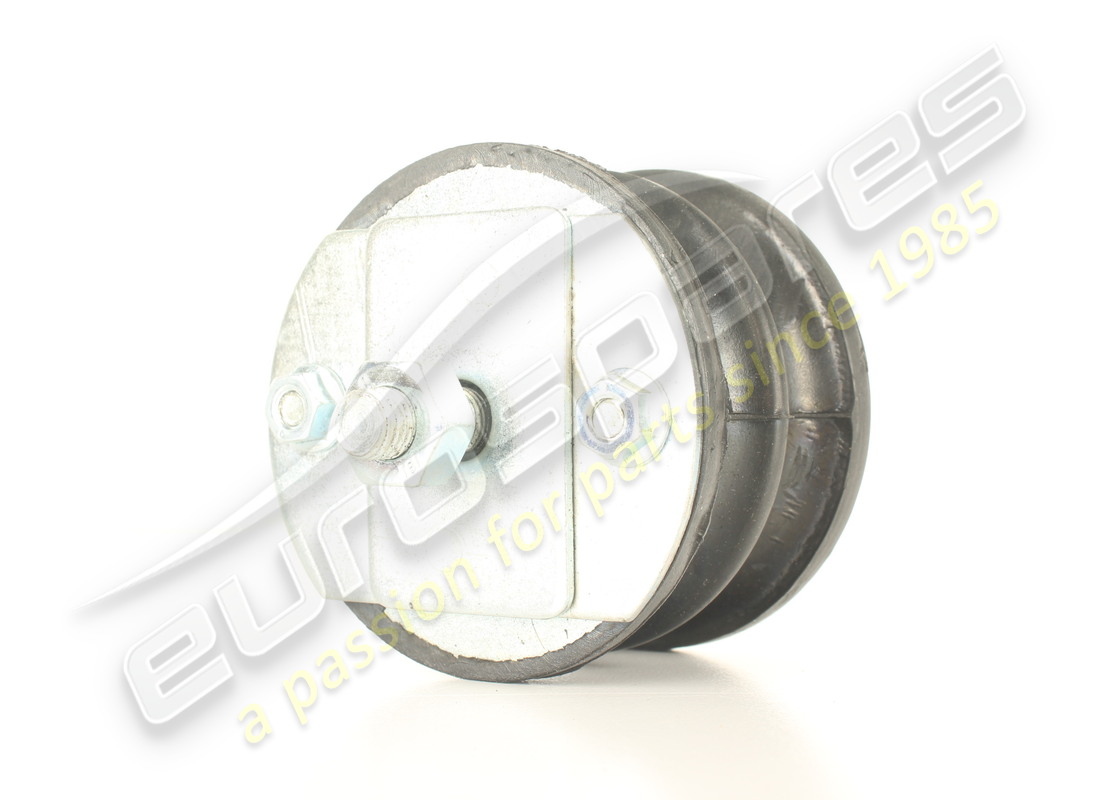

    # 003
    MPN: 001812606
    SUPPOR
    Supp. silbloc motore 1C
    from £77.22
    from £77.22
    ENGINE SILBLOC MOUNT Genuine Lamborghini - New (to order)
    # 004
    MPN: 008411502
    LOCK WASHER
    Bond. EL. A15 UNI 1751
    from £1.58
    from £1.58
    SNAP RING 24X15X3 UNI 1751 C72 /Z Genuine Lamborghini - New (to order)
    SNAP RING 24X15X3 UNI 1751 C72 /Z Genuine Lamborghini - New (other) In stock
    ROND. EL. A15 UNI 1751
    # 005
    MPN: 008101427
    BOLT
    Bull. M14x35 UNI 5739 8G
    from £11.53
    from £11.53
    SCREW M14X35 UNI 5739 8G Genuine Lamborghini - New (to order)
    # 006
    MPN: 008927601
    SUPPOR
    Supp. 4145981 art. 3502/1
    from £128.83
    from £128.83
    SUPPORT Genuine Lamborghini - New In stock
    # 007
    MPN: 008401006
    WASHER
    Bond. A10,5 UNI 1734
    from £0.53
    from £0.53
    WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New In stock
    # 008
    MPN: 008201006
    NUT
    Dado N/1 0/1 10x1, 25M
    from £4.73
    from £4.73
    M10 SELF LOCKING NUT Genuine Lamborghini - New (to order)

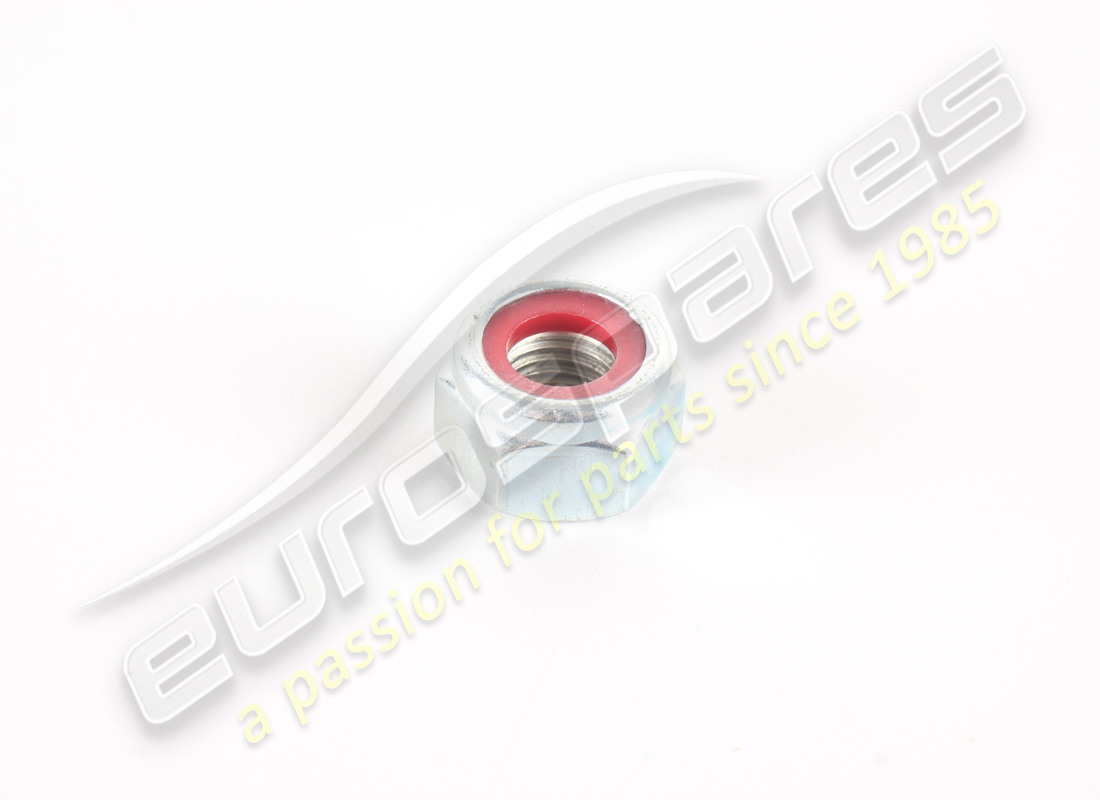

    # 009
    MPN: 008201010
    NUT
    DADO N/70/110M
    from £0.80
    from £0.80
    M10 SELF LOCKING NUT Genuine Lamborghini - New In stock
    # 010
    MPN: 008401006
    WASHER
    Bond. A10.5 UNI 1734
    from £0.51
    from £0.51
    WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New In stock

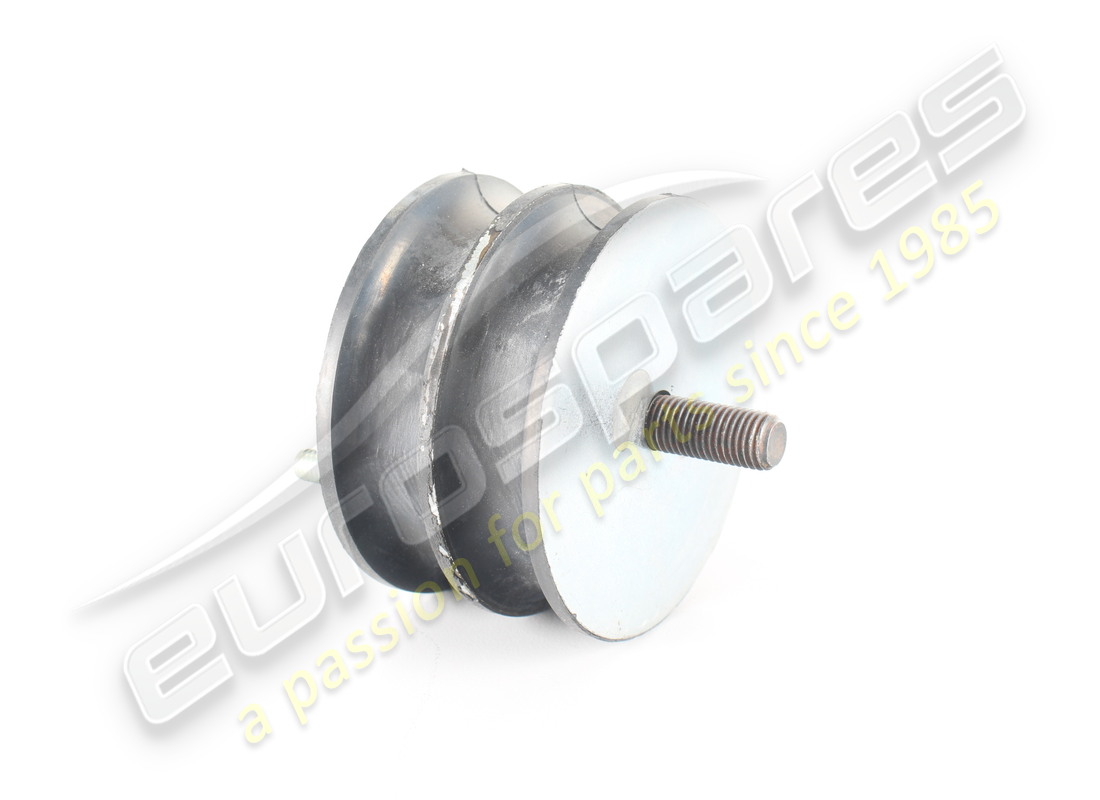

    # 011
    MPN: 001812605
    MOTOR SUPPORT
    Supporto motore 1C
    from £152.31
    from £152.31
    Engine Mount Genuine Lamborghini - New (to order)
    Engine Mount Genuine Lamborghini - Used In stock
    # 012
    MPN: 001811010
    MOTOR SUPPORT
    Spess. supp. motore 1C
    from £7.22
    from £7.22
    ENGINE MOUNT SHIM Genuine Lamborghini - New (to order)
    # 013
    MPN: 001819325
    SUPPORT
    Supporto motore al telaio lato poster.
    from £257.86
    from £257.86
    ENGINE MOUNT TO CHASSIS Genuine Lamborghini - New (to order)
    # 014
    MPN: 008410806
    LOCK WASHER
    Bond. EL. A8.4 UNI 1751
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 015
    MPN: 008700804
    SCREW
    Vite brugola 8x1 ,25x25
    from £1.03
    from £1.03
    SCREW 8X1.5X25 5931 8G ZG Genuine Lamborghini - New (to order)
    # 016
    MPN: 008251401
    BING NUT
    Ghiera autobl. gua 14MB
    from £15.23
    from £15.23
    M14X1.5X24 SELF-LOCKING RING N UT Genuine Lamborghini - New In stock
    # 017
    MPN: 008401415
    WASHER
    Bond, piana D. 14x58x3 8G
    from £10.37
    from £10.37
    FLAT WASHER D.14X58X3 8G Genuine Lamborghini - New In stock
    # 018
    MPN: 008101426
    BOLT
    Bull. M 14x1,5x82,5-10K
    from £60.78
    from £60.78
    SPECIAL SCREW M14X82.5 Genuine Lamborghini - New (to order)
    # 019
    MPN: N90179103
    WASHER
    Bond. 8,4 UNI 17348G
    from £0.98
    from £0.98
    This part replaces part number 008400801
    WASHER Genuine Lamborghini - New In stock
    # 020
    MPN: N0111849
    NUT
    DADO N/70/108M
    from £1.39
    from £1.39
    This part replaces part number 008200809
    HEX.HEAD CLAMPING NUT Genuine Lamborghini - New In stock
    # 021
    MPN: 008401413
    WASHER
    Bond. 14,4x26x3
    from £0.61
    from £0.61
    FLAT WASHER 14.3 UNI1750/Z Genuine Lamborghini - New In stock
    # 022
    MPN: 0B9501144
    SUPPORT MOUNT
    from £115.28
    from £115.28
    This part replaces part number 008921408 - and 1 more. Click to view details
    SILENTBLOC 14X56,5X52,5 Genuine Lamborghini - New (to order)
    SILENTBLOC 14X56,5X52,5 Eurospares Approved Part - New In stock
    # 022
    MPN: 0B9501144
    SUPPORT MOUNT
    from £115.28
    from £115.28
    This part replaces part number 008921408 - and 1 more. Click to view details
    SILENTBLOC 14X56,5X52,5 Genuine Lamborghini - New (to order)
    SILENTBLOC 14X56,5X52,5 Eurospares Approved Part - New In stock
