lamborghini countach 5000 qv (1985) differential parts diagram

015 - DIFFERENTIAL

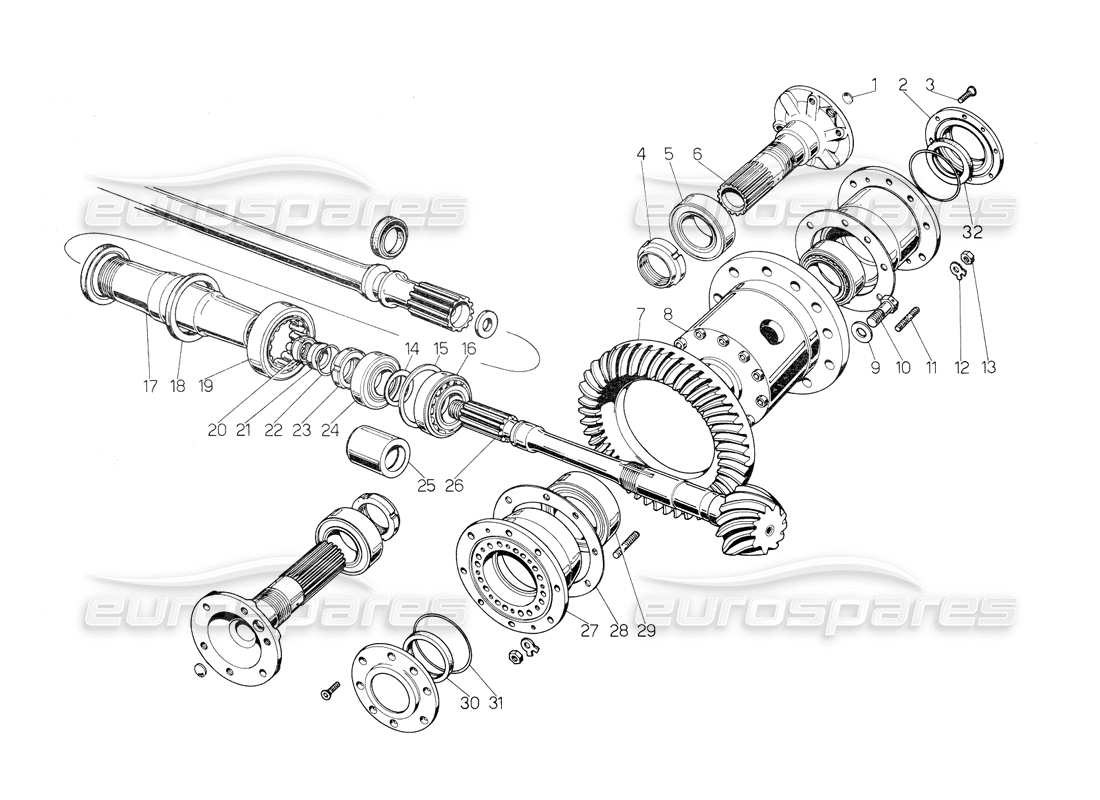

Lamborghini Countach 5000 QV (1985) Differential Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 008931401
    PLUG
    Tappo cone. C&C 1004
    from £3.70
    from £3.70
    PLUG C&C 1004 Genuine Lamborghini - New In stock
    # 002
    MPN: 002310225
    RING
    Anello fermo semiassi /C
    from £413.73
    from £413.73
    DRIVE SHAFT RETAINING RING Genuine Lamborghini - New (to order)
    # 003
    MPN: 008700610
    SCREW
    VITE VSP 6x22A
    from £0.48
    from £0.48
    SCREW 6X22 UNI 5933/8G/ZD Genuine Lamborghini - New In stock
    # 004
    MPN: 008254001
    RING NUT
    Ghiera autobl. GT 40x1 ,5
    from £23.43
    from £23.43
    GT 40X1.5 SELF-LOCKING RING NU T Genuine Lamborghini - New In stock
    # 005
    MPN: 01S409561
    BALL BEARING
    Cusc. riv 6208 Ex5A
    from £34.20
    from £34.20
    BEARING Genuine Lamborghini - New (to order)
    # 006
    MPN: 002310009
    FLANGE
    Flangia semiassi 1C
    from £2,769.23
    from £2,769.23
    DRIVE SHAFT FLANGE Genuine Lamborghini - New (to order)
    # 007
    MPN: 002308009
    RATIO
    Corona differ, rapp. 11 /45 1C
    Lamborghini PART 002308009 Genuine Lamborghini - New (to order)
    # 008
    MPN: 002310016
    DIFF. LOCK UN
    Differ, autoblocc. 4061608026/C
    from £2,935.46
    from £2,935.46
    SELF FRONT-LOCKING DIFFERENTIA L Genuine Lamborghini - New (to order)
    # 009
    MPN: 008411302
    LOCK WASHER
    Rondel. 13x24x1,2
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 010
    MPN: 008101231
    BOLT
    Bull. 12x1,25x25 10K
    from £14.98
    from £14.98
    SPECIAL SCREW M12X1.25X25 Genuine Lamborghini - New (to order)
    # 011
    MPN: 008300814
    BOLT
    Prig. M8x18 UNI 5914 8G
    from £4.15
    from £4.15
    STUD M8X18 UNI 5914 8G ZD Genuine Lamborghini - New (to order)
    # 012
    MPN: 008410807
    LOCK WASHER
    Piast. bull. alb. mot.
    from £3.53
    from £3.53
    CRANKSHAFT BOLT PLATE Genuine Lamborghini - New In stock
    # 013
    MPN: 008200806
    NUT
    DADO M8 UNI 5588-65/8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 014
    MPN: 002304870
    DIFF. SPACER
    Spess. reg. diff. 35x42x*
    from £19.80
    from £19.80
    DIFFERENTIAL ADJUSTMENT SHIM 3 5X42X* Genuine Lamborghini - New (to order)
    # 015
    MPN: 002304835
    DIFF. SPACER
    Spess. reg. diff. 67x82x*
    from £19.80
    from £19.80
    DIFFERENTIAL ADJUSTMENT SHIM 6 7X82X* Genuine Lamborghini - New (to order)
    # 016
    MPN: 008544101
    BEARING
    Cusc.M-802048/M-80201 1/7
    from £165.58
    from £165.58
    BEARING Genuine Lamborghini - New (to order)
    # 017
    MPN: 002308015
    HOSE
    Manic, albero trasmiss. 1C
    from £803.40
    from £803.40
    PROPELLER SHAFT SLEEVE Genuine Lamborghini - New (to order)
    # 017
    MPN: 002320596
    CLUTCH BEAR
    (Valid from chassis No. 582) Manicotto alb. trasm.
    from £742.89
    from £742.89
    PROPELLER SHAFT SLEEVE Genuine Lamborghini - New (to order)
    # 018
    MPN: 008615806
    RING
    Anello paraolio DPSM 58808
    from £22.76
    from £22.76
    OIL SEAL Genuine Lamborghini - New In stock
    # 019
    MPN: 008524003
    BEARING
    Cusc. SKF NU 2208 senza an. t
    from £59.93
    from £59.93
    BEARING SKF NU 2208 Genuine Lamborghini - New (to order)
    # 020
    MPN: 008252002
    RING NUT
    Ghiera autobl. GT 20x1
    from £11.21
    from £11.21
    M20X1X32 RING NUT Genuine Lamborghini - New (to order)
    # 021
    MPN: 008402006
    WASHER
    Rond. manicotto trasm. 1C
    from £7.22
    from £7.22
    TRANSMISSION SLEEVE WASHER Genuine Lamborghini - New (to order)
    # 022
    MPN: 008602902
    SEAL RING
    ANELLO OR 21 18
    from £1.11
    from £1.11
    RING 30 MM OR Genuine Lamborghini - New In stock
    # 023
    MPN: 01S409739A
    RING NUT
    from £118.03
    from £118.03
    BEARING SUPPORTING Genuine Lamborghini - New (to order)
    # 024
    MPN: 008543401
    BEARING
    CUSC.-HM-88649/HM-88610/7
    from £125.37
    from £125.37
    BEARING Genuine Lamborghini - New (to order)
    # 025
    MPN: 002304842
    DIFF. SPACER
    Dist. cusc. pignone
    from £416.76
    from £416.76
    SPACER Genuine Lamborghini - New (to order)
    # 026
    MPN: 002323648
    RATIO
    Pignone dif f erenz. rapp. 1 1 /45 /C
    from £7,665.06
    from £7,665.06
    ASS.COPPIA CONICA X DIFFE Genuine Lamborghini - New (to order)
    # 027
    MPN: 002310229
    SUPPORT RING
    Anello supp. CSN autobl. 1C
    from £482.55
    from £482.55
    O-RING Genuine Lamborghini - New (to order)
    # 028
    MPN: 002310228
    SPACER
    Spess. reg. corona diff. 1C
    from £12.98
    from £12.98
    DIFFERENTIAL CROWN ADJUSTMENT SHIM Genuine Lamborghini - New (to order)
    # 029
    MPN: 008545502
    BEARING
    Cusc. JM 207049/JM 207010
    from £266.97
    from £266.97
    BEARING Genuine Lamborghini - New (to order)
    # 030
    MPN: 008615006
    SEAL RING
    Paraolio 50x65x7 destro
    from £2.74
    from £2.74
    OIL SEAL 50X65X8 MM Genuine Lamborghini - New In stock
    # 031
    MPN: 008607501
    SEAL RING
    ANELLO OR 4300
    from £0.53
    from £0.53
    RING 76 MM OR Genuine Lamborghini - New In stock
    # 032
    MPN: 008615008
    SEAL RING
    Paraolio 50x65x7 sinistro
    from £87.87
    from £87.87
    LH OIL SEAL 50X65X7 MM Genuine Lamborghini - New (to order)
