lamborghini countach 5000 qv (1985) gear shift lever parts diagram

016 - Gear shift lever

Lamborghini Countach 5000 QV (1985) Gear Shift Lever Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 002410655
      LEVER BADGE
      Fregio indie, marce
      from £47.21
      from £47.21
      GEAR SELECTOR BADGE Genuine Lamborghini - New In stock
      # 002
      MPN: 002410654
      KNOB
      Pomello leva cambio
      from £346.72
      from £346.72
      This part replaces part number 002410134 which we have in stock
      KNOB WITHOUT GEM Genuine Lamborghini - New (to order)
      # 003
      MPN: 002410653
      RING NUT
      from £27.28
      from £27.28
      GEAR LEVER KNOB RINGNUT Genuine Lamborghini - New (to order)
      # 004
      MPN: 002410440
      LEVER
      Compl. leva com. cambio
      from £458.26
      from £458.26
      SHIFT LEVER ASSEMBLY Genuine Lamborghini - New (to order)
      # 005
      MPN: 008700635
      SELECT GEARBOX SCREW
      Vite selettore marce
      from £14.38
      from £14.38
      GEAR SELECTOR SCREW M6X1X30 Genuine Lamborghini - New (to order)
      # 006
      MPN: 002410634
      SCREW
      Fermo leva in R.M./V/C
      from £53.31
      from £53.31
      REVERSE LEVER STOP Genuine Lamborghini - New (to order)
      # 007
      MPN: 002403369
      SPRING
      Molla arr. leva in R.M.
      from £20.81
      from £20.81
      REVERSE LEVER LOCK SPRING Genuine Lamborghini - New (to order)
      # 008
      MPN: 008410602
      WASHER
      ROSETTA
      from £28.66
      from £28.66
      WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
      # 009
      MPN: 008200606
      NUT
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)

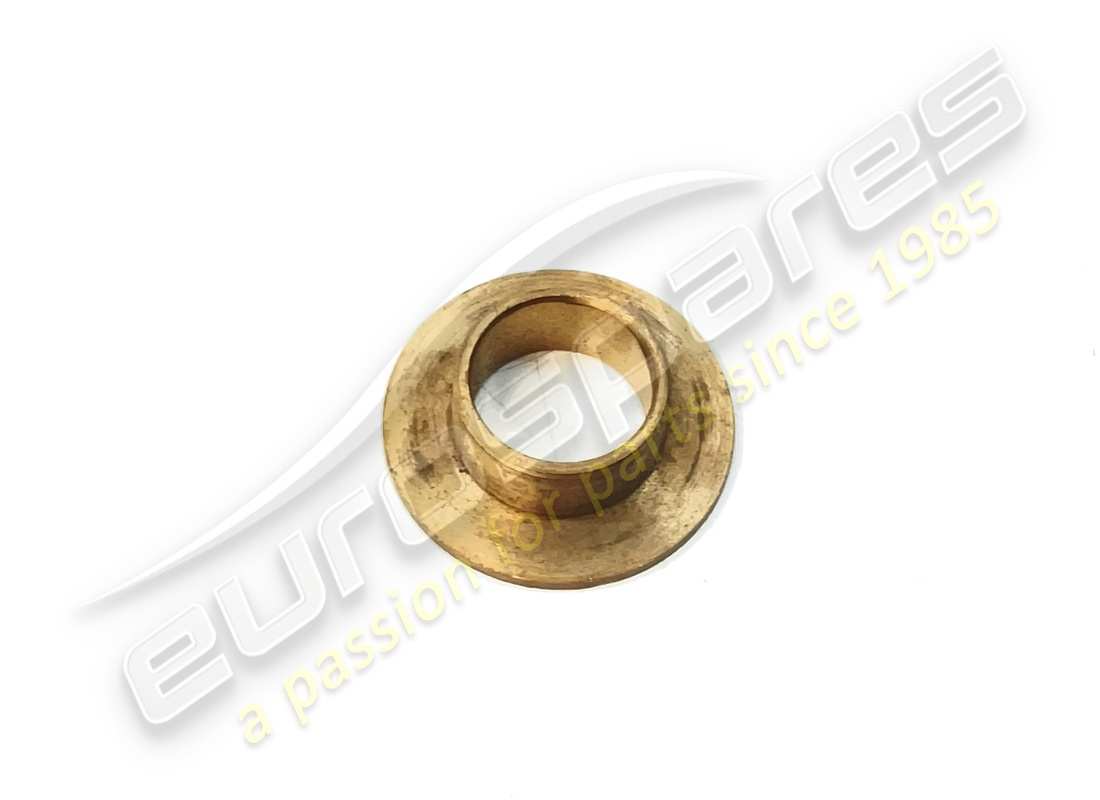

      # 010
      MPN: 002403702
      BUSH
      Boccola guida leva cambio
      from £41.09
      from £41.09
      GEAR LEVER GUIDE BUSHING Genuine Lamborghini - New In stock
      # 011
      MPN: 002409875
      SHIFT BALL
      Sfera leva com. cambio
      from £111.94
      from £111.94
      GEAR LEVER BALL Genuine Lamborghini - New (to order)
      # 012
      MPN: 008700634
      SCREW
      Vite fiss. selettore marce
      from £22.97
      from £22.97
      GEAR SELECTOR FASTENING SCREW Genuine Lamborghini - New (to order)
      # 013
      MPN: 002409437
      SELECTOR
      Selettore com. cambio/c.
      from £281.08
      from £281.08
      GEAR SELECTOR / SLICK SHIFT GATE Genuine Lamborghini - New (to order)
      # 014
      MPN: 008700506
      KNIP SCREW
      Vite knip
      from £0.53
      from £0.53
      SCREW KNIP 4.8X16DIN7971 BLACK STEEL Genuine Lamborghini - New In stock
      # 015
      MPN: 002409438
      CAP RING
      Anello di fermo x cuffia
      from £8.96
      from £8.96
      LEVER OUTER BOOT RING Genuine Lamborghini - New (to order)
      # 016
      MPN: 002409922
      LEVER CLAMP
      ANELLO FISS. CUFFIA CAMBIO
      from £55.97
      from £55.97
      GEARBOX BOOT RING Genuine Lamborghini - New (to order)
      # 017
      MPN: 002412243
      SPRING NUT
      Dado a molla
      from £2.12
      from £2.12
      PLATE Genuine Lamborghini - New In stock
      # 018
      MPN: 002410638
      GEARBOX CA
      Cuffia est. supp. cambio
      from £44.27
      from £44.27
      GEAR MOUNT OUTER BOOT Genuine Lamborghini - New (to order)
      # 019
      MPN: 002410637
      LEVER RING
      Anello x cuffia int. leva
      from £12.15
      from £12.15
      LEVER INNER BOOT RING Genuine Lamborghini - New (to order)
      # 020
      MPN: 002412784
      SHIFT COVER
      Cuffia sup. leva cambio
      from £39.35
      from £39.35
      GEAR LEVER UPPER BOOT Genuine Lamborghini - New In stock
      # 021
      MPN: 002412670
      CAP RING
      Anello el. cuffia cambio
      from £15.25
      from £15.25
      TRANSMISSION BOOT SNAP RING Genuine Lamborghini - New (to order)
      # 022
      MPN: 002412672
      SHIFT
      CUFFIA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 023
      MPN: 002412671
      CAP RING
      Anello rit. cuffia cambio
      from £14.38
      from £14.38
      GEARBOX CAP RETAINING SEGMENT Genuine Lamborghini - New (to order)
      # 024
      MPN: 002409896
      BUSH
      Bussola sfere arr, cambio
      from £196.92
      from £196.92
      ROD RETAINING BALL SLEEVE Genuine Lamborghini - New (to order)
      # 025
      MPN: 086311249
      SPRING
      Molla scatto aste
      from £3.07
      from £3.07
      This part replaces part number 002402242 - and 1 more. Click to view details
      ROD SNAP SPRING Genuine Lamborghini - New In stock
      # 026
      MPN: 008910701
      SPHERE
      SFERA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 027
      MPN: 002407979
      PIN
      Puntalino aste lat.
      from £19.37
      from £19.37
      GEARBOX SIDE PIN ROD Genuine Lamborghini - New (to order)
      # 028
      MPN: 002409897
      PIN ROD
      Puntalino arr. asta centrale
      from £173.80
      from £173.80
      CENTRAL PIN STOP ROD Genuine Lamborghini - New (to order)
      # 029
      MPN: 002422165
      ROD
      Asta com. 2a-3a velocita
      from £597.79
      from £597.79
      2ND/3RD SPEED ROD Genuine Lamborghini - New (to order)
      # 030
      MPN: 002422164
      ROD
      Asta com. 1 e R.M.
      from £533.95
      from £533.95
      1ST SPEED/REVERSE ROD Genuine Lamborghini - New (to order)
      # 031
      MPN: 008200806
      NUT
      DADO
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 032
      MPN: 008410806
      WASHER
      RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 033
      MPN: 002402934
      SCREW
      Vite leva com. cambio
      from £18.17
      from £18.17
      GEAR LEVER SCREW Genuine Lamborghini - New (to order)
      # 034
      MPN: 002409876
      NUT
      Perno centr. con aste
      from £236.30
      from £236.30
      ROD CENTRAL PIN Genuine Lamborghini - New (to order)
      # 035
      MPN: 002422166
      ROD
      Asta com. 4a-5a velocita
      from £517.37
      from £517.37
      4TH/5TH SPEED ROD Genuine Lamborghini - New (to order)
      # 036
      MPN: 002420397
      FORK
      Forcella com. 4a-5a velocita
      from £406.27
      from £406.27
      4TH/5TH SPEED FORK Genuine Lamborghini - New (to order)
      # 037
      MPN: 002401765
      BUSH
      Boccola sfera aste cambio
      from £10.95
      from £10.95
      GEAR LEVER BALL BUSHING Genuine Lamborghini - New (to order)
      # 038
      MPN: 008410603
      WASHER
      RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 039
      MPN: 008410628
      BOLT
      BULLONE
      BOLT Genuine Lamborghini - New (to order)
      # 040
      MPN: 002420396
      FORK
      Forcella com. 2a-3a velocita
      from £500.78
      from £500.78
      2ND/3RD SPEED FORK Genuine Lamborghini - New (to order)
      # 041
      MPN: 002420395
      FORK
      Forcella com. 1a e R.M.
      from £398.81
      from £398.81
      1ST SPEED/REVERSE FORK Genuine Lamborghini - New (to order)
      # 042
      MPN: 002403246
      ROD SPRING
      Molla sfera
      from £3.62
      from £3.62
      GEARBOX SHAFT BALL SPRING Genuine Lamborghini - New (to order)
      # 043
      MPN: 002403245
      BUSH
      Boccola sfera
      from £33.74
      from £33.74
      GEARBOX SHAFT BALL BUSHING Genuine Lamborghini - New (to order)
      # 044
      MPN: 002410314
      SUPPORT
      Supp. leva com. cambio
      from £344.91
      from £344.91
      GEAR LEVER BRACKET Genuine Lamborghini - New (to order)
      # 045
      MPN: 008403302
      WASHER
      Ron. ras. molla leva cambio
      from £9.66
      from £9.66
      GEAR LEVER SPRING WASHER Genuine Lamborghini - New (to order)
      # 046
      MPN: 002410451
      LEVER SPRING
      Molla rit. leva cambio
      from £30.55
      from £30.55
      GEAR LEVER RETURN SPRING Genuine Lamborghini - New (to order)
      # 047
      MPN: 008402601
      WASHER
      RONDELLA
      from £14.98
      from £14.98
      FLAT WASHER D.26X3.3X40 3 TH. Genuine Lamborghini - New (to order)

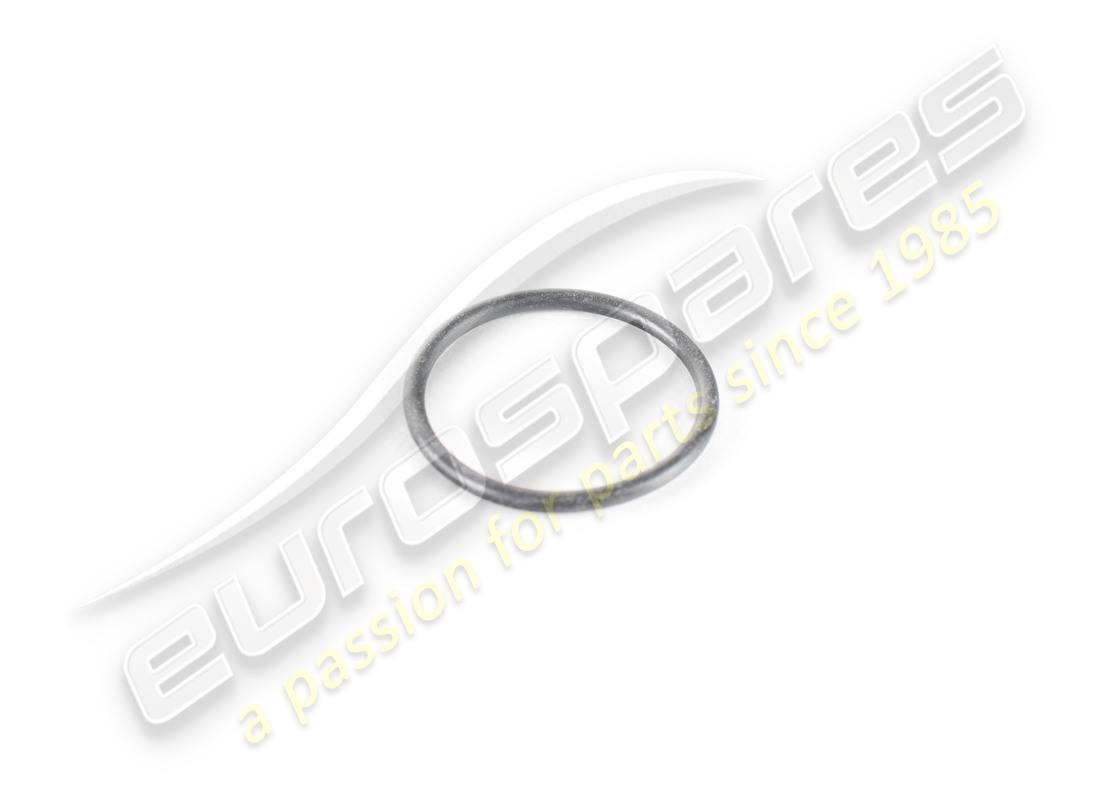

      # 048
      MPN: 008601705
      SEAL RING
      ANELLO DI TENUTA
      from £0.51
      from £0.51
      OR RING Genuine Lamborghini - New In stock
      OR RING Genuine Lamborghini - New (other) In stock
      ANELLO TENUTA

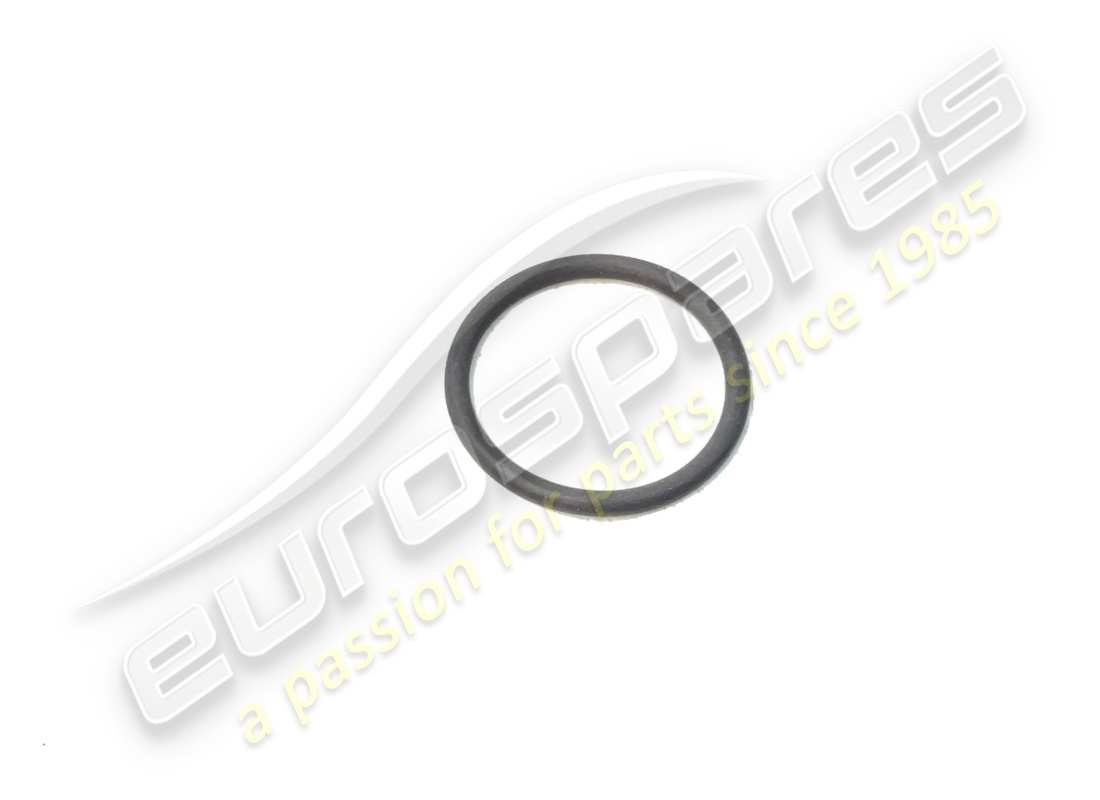

      # 049
      MPN: 008602101
      SEAL RING
      ANELLO DI TENUTA
      from £1.71
      from £1.71
      RING 22 MM OR Genuine Lamborghini - New In stock
      # 050
      MPN: 008402602
      WASHER
      RONDELLA
      from £6.97
      from £6.97
      WASHER 26X35X2-2.1-2.2-2.3 Genuine Lamborghini - New (to order)
      # 051
      MPN: 008582601
      SEEGER RING
      Anello a seeger
      from £3.65
      from £3.65
      O-RING E 26 UNI 7435-75 Genuine Lamborghini - New (to order)
      # 052
      MPN: 002409791
      SPACER
      Distanz. supp. asta com.
      from £232.99
      from £232.99
      GEARBOX ROD UPPER SHIM Genuine Lamborghini - New (to order)
      # 053
      MPN: 002409887
      SHIFT CONTROL
      Leva selez. marce
      from £531.47
      from £531.47
      GEAR LEVER Genuine Lamborghini - New (to order)
