lamborghini countach 5000 qv (1985) air polution system parts diagram

030 - Air Polution System

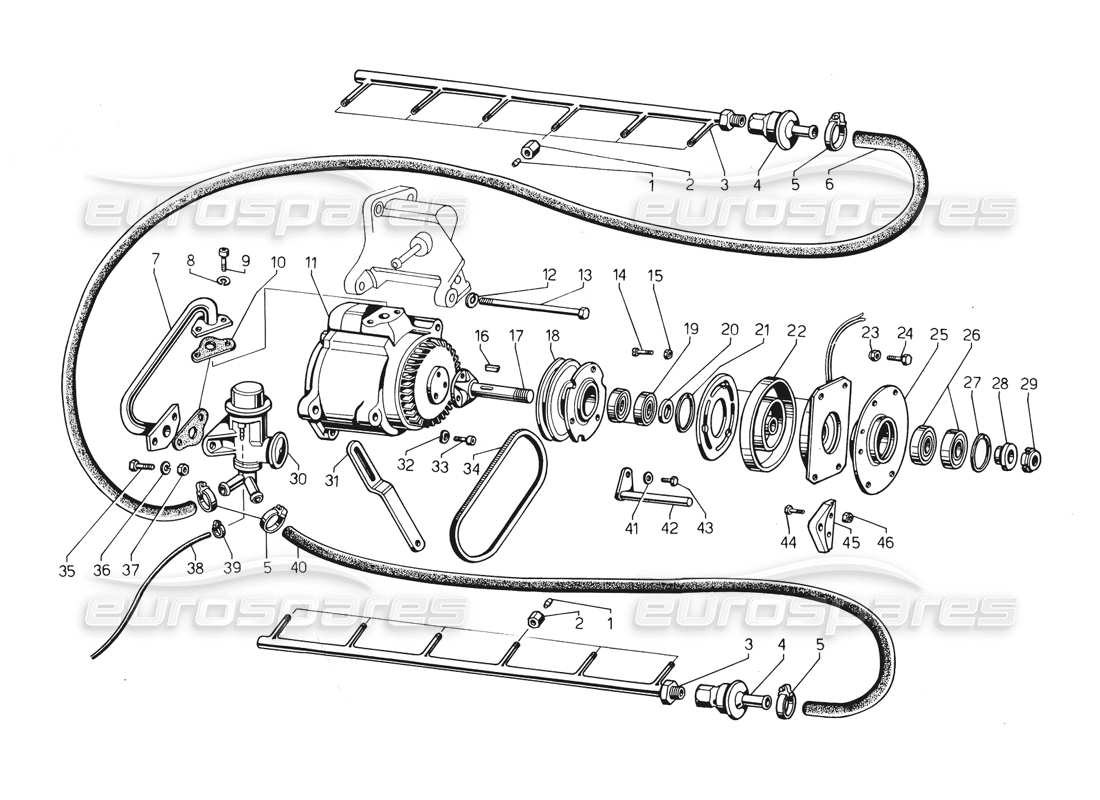

Lamborghini Countach 5000 QV (1985) Air Polution System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 004607188
EICON
Biconi 2956 GT
from £9.33
from £9.33
DOUBLE TAPERS Genuine Lamborghini - New (to order)
# 002
MPN: 004607189
NUT
Dado race. 2971 GT
from £9.33
from £9.33
UNION NUT Genuine Lamborghini - New (to order)
# 003
MPN: 004620278
EX MANIFOLD
Collettore aria x testa d/s
from £281.08
from £281.08
RH HEAD AIR MANIFOLD Genuine Lamborghini - New (to order)
# 004
MPN: 004607187
VALVE CER
CEK VALVE VS. 1/5354987
from £140.55
from £140.55
CHECK VALVE Genuine Lamborghini - New (to order)
# 005
MPN: 008830206
CLAMP RING
Fascetta royal 00/12 18/30
from £12.56
from £12.56
CLAMP Genuine Lamborghini - New In stock
# 006
MPN: 004622553
PIPE
Tubo da diverter valve a coll. aria sx
Lamborghini PART 004622553 Genuine Lamborghini - New (to order)
# 007
MPN: 004622551
PIPE
Tubo coll. pompa aria a diverter. valve
from £45.94
from £45.94
AIR PUMP/DIVERTER PIPE ASSEMBL Y Genuine Lamborghini - New (to order)
# 008
MPN: 008410806
LOCK WASHER
Rond. EL A8,4 UNI 1751
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 009
MPN: 008700819
SCREW
ViteTCCE 8x1,25x16
from £0.53
from £0.53
SCREW M8X16 UNI 5931/8G/Z Genuine Lamborghini - New (to order)
# 010
MPN: 004607438
GASKET
Guarniz. flangia diverter
from £4.28
from £4.28
DIVERTER FLANGE SEAL Genuine Lamborghini - New (to order)
# 011
MPN: 004607184
AIR PUMP
Pompa aria
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 012
MPN: 008411005
WASHER
Rondel. A 10,5 UNI 1751
from £0.54
from £0.54
WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
# 013
MPN: 008101034
BOLT
Bull. M 10x1 30 UNI 5737 1 0K
from £43.41
from £43.41
SCREW M10X130 UNI 5737 10K Genuine Lamborghini - New (to order)
# 014
MPN: 008700504
SCREW
ViteM5x12 UNI 5931 8G
from £0.53
from £0.53
SCREW M5X12 UNI 59318G Genuine Lamborghini - New (to order)
# 015
MPN: N0211963
NUT
DADO N/70/105M
from £0.52
from £0.52
HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
HEX. NUT - M5 Genuine Porsche Part - New (to order)
# 016
MPN: 008860502
WOODRUFF KEY
Linguetta 5x5x18
from £0.79
from £0.79
TAB 5X5X18 Genuine Lamborghini - New In stock
# 017
MPN: 004622624
AIR PUMP SHAFT
Alberino x pompa aria
from £310.93
from £310.93
COUPLING SPINDLE Genuine Lamborghini - New (to order)
# 018
MPN: 004622622
PULLEY
Puleggia su frizione
from £250.76
from £250.76
ELECTROMAGNETIC COUPLING PULLE Y Genuine Lamborghini - New (to order)
# 019
MPN: 008501703
BALL BEARIN
Cuscinetto riv. 6003-2RS
from £117.60
from £117.60
Lamborghini PART 008501703 Genuine Lamborghini - New In stock
# 020
MPN: 004622626
SPACER
Distanziale tra cusc. e frizione
from £15.47
from £15.47
SPACER Genuine Lamborghini - New (to order)
# 021
MPN: 07M109381
LOCK RING
Seeger 35
from £1.16
from £1.16
This part replaces part number 008573501 - and 1 more. Click to view details
SEEGER Ring I 35 UNI 3654 Genuine Lamborghini - New In stock
# 022
MPN: 004622621
clutch
Frizione monodisco x pompa aria
from £644.23
from £644.23
ELECTROMAGNETIC COUPLING Genuine Lamborghini - New (to order)
# 023
MPN: N0211963
NUT
DadoN/70/105M
from £0.51
from £0.51
HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
HEX. NUT - M5 Genuine Porsche Part - New (to order)
# 024
MPN: N01020717
BOLT
Bull. 65x12 UNI 5739/5S
from £0.53
from £0.53
This part replaces part number 008100504
HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
screw, hex. hd. - M5 X 12 - D - MJ 1973>> Genuine Porsche Part - New (to order)
# 025
MPN: 004622623
RING
Anello x supp. e centr. su frizione
from £444.41
from £444.41
CENTRAL COUPLING RING Genuine Lamborghini - New (to order)
# 026
MPN: 008502503
BALL BEARIN
CSN 6005-2RS EX10L24
from £76.48
from £76.48
BEARING Genuine Lamborghini - New In stock
BEARING Genuine Lamborghini - New (to order)
BEARING Eurospares Approved Part - New In stock
# 027
MPN: 008575001
LOCK RING
SEEGER AA 47 I
from £0.57
from £0.57
O-RING I 47 UNI 3654 Genuine Lamborghini - New In stock
# 028
MPN: 004622625
FERRULE
Boccola x alberino tenuta cusc.
from £18.04
from £18.04
BUSHING Genuine Lamborghini - New (to order)
# 029
MPN: 008251702
RING NUT
GhieraGUK 17 MC BG
from £2.41
from £2.41
This part replaces part number 008251701
M17X1X28 SELF-LOCKING RING NUT Genuine Lamborghini - New In stock
# 030
MPN: 004621116
DIVER VALVE
Diverter calce (2 uscite)
from £281.08
from £281.08
2-WAY DIVERTER VALVE Genuine Lamborghini - New (to order)
# 031
MPN: 004622079
BRACKET
Staffa x registro pompa aria
SUPPORT Genuine Lamborghini - New (to order)
# 032
MPN: 008410603
LOCK WASHER
Rond. A6,4 UNI 1751 C72
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 033
MPN: 008700644
SCREW
Vite fiss. alberino alia pompa aria
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 034
MPN: 004622064
COG BELT
Cinghia gates poliflex vs. 7M 775
from £58.95
from £58.95
AIR PUMP BELT Genuine Lamborghini - New (to order)
# 035
MPN: 008100618
BOLT
Bull. M6x20 UNI 5739-8G
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 036
MPN: 008410603
LOCK WASHER
Rond. A6.4 UNI 1751 C72
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 037
MPN: 008200601
NUT
DADO M6 UNI 5588-65/A
from £2.24
from £2.24
M6 UNI 5588-8G/Z NUT Genuine Lamborghini - New (to order)
# 038
MPN: 004622555
PIPE
Tubo x depr. da diverter a race, su coll. asp.
PIPE Genuine Lamborghini - New (to order)
# 039
MPN: 008830204
CLAMP RING
Fascetta royal 0000 A/5 7/11
from £5.43
from £5.43
CLAMP Genuine Lamborghini - New (to order)
# 040
MPN: 004622554
PIPE
Tubo da diverter a coll. aria testa dx
Lamborghini PART 004622554 Genuine Lamborghini - New (to order)
# 041
MPN: 008401006
WASHER
Rond. A1 0,5 UNI 1734
from £0.54
from £0.54
WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New In stock
# 042
MPN: 004622630
JOINT LOCK
Fermo x giunto elettromagnetico
from £60.02
from £60.02
ELECTROMAGNETIC COUPLING RETAI NER Genuine Lamborghini - New (to order)
# 043
MPN: 008101014
BOLT
Bull. M 10x20 UNI 5739/8G
from £7.61
from £7.61
SCREW M10X20 UNI 5739/8G Genuine Lamborghini - New (to order)
# 044
MPN: 008100514
BOLT
Bull. M5x18 UNI 5739
from £1.67
from £1.67
SCREW M5X0.8X18 UNI 5739/5 Genuine Lamborghini - New (to order)
# 045
MPN: 004623328
MAGNETIC ASSEM. STOP
Arresto x gruppo magnetico
from £266.97
from £266.97
MAGNETIC COUPLING RETAINER Genuine Lamborghini - New (to order)
# 046
MPN: N0211963
NUT
DADO N/70/105M
from £0.53
from £0.53
HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
HEX. NUT - M5 Genuine Porsche Part - New (to order)
