lamborghini countach 5000 qv (1985) fuel system parts diagram

037 - fuel system

Lamborghini Countach 5000 QV (1985) Fuel System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 008830903
        PIPE CLIP
        Fascetta x tubazioni benzina
        from £7.55
        from £7.55
        CLAMP Genuine Lamborghini - New (to order)
        # 002
        MPN: 006220228
        PIGTAIL
        Coda di porco x scarico ges serb. benz.
        from £22.68
        from £22.68
        EXHAUST GAS PIGTAIL Genuine Lamborghini - New (to order)
        # 003
        MPN: 008200606
        NUT
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 004
        MPN: 008400606
        WASHER
        Rond. 6,4 UNI 1734
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 005
        MPN: 008830111
        JUBILEE CLIP
        Fascetta tub. cilindri
        Lamborghini PART 008830111 Genuine Lamborghini - New (to order)
        # 006
        MPN: 008100625
        BOLT
        Bull. M6x16 UNI 5739/8G
        from £86.29
        from £86.29
        SCREW M6X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
        # 007
        MPN: 008832401
        CLAMP RING
        Fascelta royal AO/12 24/36
        from £4.73
        from £4.73
        CLAMP Genuine Lamborghini - New (to order)
        # 008
        MPN: 006221556
        PIPE
        Tubo metallo x colleg.to sup. serb.
        from £50.58
        from £50.58
        TANK UPPER METAL PIPE Genuine Lamborghini - New (to order)
        # 009
        MPN: 006221557
        SLEEVE
        Manicotto coll. tubo in metallo ai serb.
        from £55.80
        from £55.80
        RUBBER PIPE Genuine Lamborghini - New (to order)
        # 010
        MPN: 007011112
        PIPE INTR. ASS.
        Complessivo x introduzione bocchettone ben.
        from £176.94
        from £176.94
        FUEL FILLER ASSEMBLY Genuine Lamborghini - New (to order)
        FUEL FILLER ASSEMBLY Genuine Lamborghini - Used In stock
        Damaged - see photo
        # 011
        MPN: 006205360
        GASKET
        Guam, reost. gall. 39094601
        from £34.14
        from £34.14
        FLOAT DIMMER SEAL Genuine Lamborghini - New (to order)
        FLOAT DIMMER SEAL Eurospares Approved Part - New In stock
        # 012
        MPN: 008410402
        LOCK WASHER
        Rond. a. 4,3 UNI 1751 C72
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 013
        MPN: 008100402
        BOLT
        Bull M4x16 UNI 5739/65A8G
        from £0.52
        from £0.52
        SCREW M4X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
        # 014
        MPN: 006211033
        HOSE
        Bocchett. serb. benz./C
        from £203.63
        from £203.63
        FUEL TANK FILLER Genuine Lamborghini - New (to order)
        # 015
        MPN: 006220985
        FUEL CAP
        Tappo serb. benzina con chiave vs. 062184
        from £32.96
        from £32.96
        FUEL FILLER CAP & KEY Genuine Lamborghini - New (to order)
        # 016
        MPN: 008830901
        CLAMP RING
        Fasc. royal 0000/9
        from £4.07
        from £4.07
        CLAMP Genuine Lamborghini - New (to order)
        # 017
        MPN: 006222413
        PIPE
        Tubo x chiusura tubetto sul serbatoio dx
        from £3.90
        from £3.90
        TANK METAL PIPE RUBBER HOSE Genuine Lamborghini - New (to order)
        # 018
        MPN: 006222414
        CAP
        Tappo x chiusura tubetto sul serbatoio dx
        from £25.08
        from £25.08
        ALUMINIUM PLUG Genuine Lamborghini - New (to order)
        # 019
        MPN: N01100412
        NUT
        DADO M4 UNI 5587-65/5S
        from £0.82
        from £0.82
        HEX.NUT M4 Genuine Lamborghini - New In stock
        6KT-MU M 4 I 4032 8 R645 Genuine Porsche Part - New (to order)
        # 020
        MPN: 008410404
        LOCK WASHER
        ROND. EL. 4 UNI 3704
        from £0.52
        from £0.52
        CORRUGATED WASHER D.4.1 UNI370 4/Z Genuine Lamborghini - New In stock
        # 021
        MPN: 006205411
        LEVER FUEL
        Misuratore livello benzina
        from £96.84
        from £96.84
        This part replaces part number 006203181
        INDICATORE LIV.BENZINA 03-295 Genuine Lamborghini - New In stock
        # 022
        MPN: 006205360
        GASKET
        Guam, reost. gall. 39094601
        from £34.14
        from £34.14
        FLOAT DIMMER SEAL Genuine Lamborghini - New (to order)
        FLOAT DIMMER SEAL Eurospares Approved Part - New In stock
        # 023
        MPN: 006213226
        SPACER
        Spess. fra serb-passar./C
        from £19.41
        from £19.41
        TANK/WHEELHOUSE SHIM Genuine Lamborghini - New (to order)
        # 024
        MPN: 006222423
        PIPE
        Tubo collegamento 3 vie al filtro benzina
        from £39.09
        from £39.09
        THREE-WAY UNION PIPETO FUEL FI LTER Genuine Lamborghini - New (to order)
        # 025
        MPN: 008410603
        LOCK WASHER
        Rond. A 6,4 UNI 1751 C72
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 026
        MPN: 008200604
        NUT
        DADO M6 UNI 5588-65/8G
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 027
        MPN: 006222424

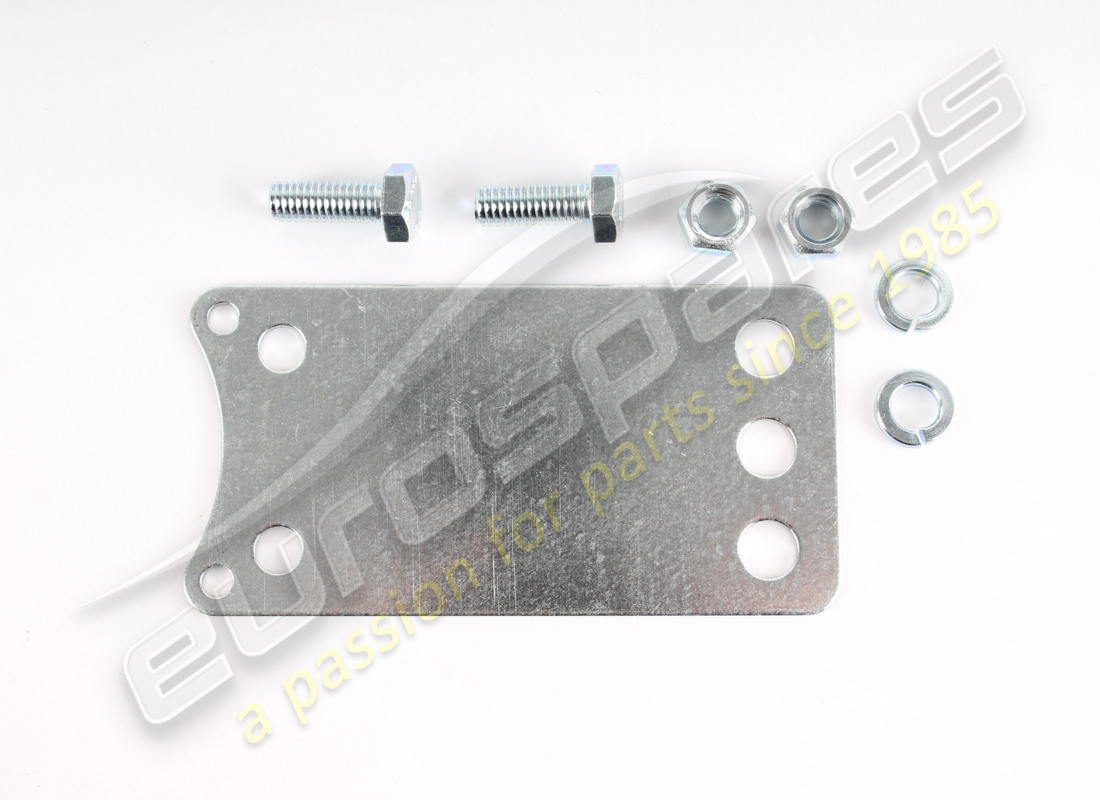

        BRACKET
        Staffa fiss. filtro benz. al telaio
        from £89.96
        from £89.96
        FUEL FILTER BRACKET Genuine Lamborghini - New (to order)
        # 029
        MPN: 006222425
        PIPE
        Compless. tubo dal filtro ai carburatori
        from £26.08
        from £26.08
        FILTER CONNECTING PIPE ASSEMBL Y TO FUEL Genuine Lamborghini - New (to order)
        # 030
        MPN: 006220748
        PIPE
        Tubo sfiato dalla coda di porco a terra
        from £16.63
        from £16.63
        BREATH PIPE FROM PIGTAIL Genuine Lamborghini - New (to order)
        # 031
        MPN: 006210599
        CLIP
        Fasc. sup. fiss. serb./C
        from £69.23
        from £69.23
        TANK UPPER CLAMP Genuine Lamborghini - New (to order)
        # 032
        MPN: 006222415
        FUEL TANK
        SERBATOIO BENZINA SINISTRO
        from £3,109.16
        from £3,109.16
        LH FUEL TANK Genuine Lamborghini - New (to order)
        # 033
        MPN: WHT003362
        WASHER
        Rond. d. 12x22x1,5 rame
        from £0.91
        from £0.91
        COPPER WASHER D.12X22X1.5 Genuine Lamborghini - New In stock
        # 034
        MPN: 008931203
        CAP
        Tappo d. 12x1,25x9 CH 19SS
        from £9.44
        from £9.44
        PLUG D.12X1.25X9 CH 19SS Genuine Lamborghini - New (to order)
        PLUG D.12X1.25X9 CH 19SS Genuine Lamborghini - Used In stock
        # 035
        MPN: 006210601
        CLIP
        Fasc. ant. fiss. serb./C
        from £109.86
        from £109.86
        TANK FRONT CLAMP Genuine Lamborghini - New (to order)
        # 036
        MPN: 008931804
        CAP
        Tappo chiusura foro inf. serb. dx
        from £14.14
        from £14.14
        PLUG Genuine Lamborghini - New (to order)
        # 037
        MPN: 008401804
        WASHER
        ROND. RAME 18,2x30x1
        from £2.53
        from £2.53
        ANNEALED COPPER WASHER 18.2X30 X1 Genuine Lamborghini - New In stock
        # 038
        MPN: 006221066
        FUEL TANK
        Serbatoio benzina dx
        from £2,843.86
        from £2,843.86
        RH FUEL TANK Genuine Lamborghini - New (to order)
        # 039
        MPN: 006212798
        TUBE
        Tubo scar, vasch. bocchet/C
        from £4.23
        from £4.23
        FILLER TANK BREATHERPIPE Genuine Lamborghini - New (to order)
        # 040
        MPN: 006210600
        CLIP
        Fasc. post. fiss. serb./C
        from £69.26
        from £69.26
        TANK REAR CLAMP Genuine Lamborghini - New (to order)
        # 041
        MPN: 006203084
        FUEL TANK
        TIRANTE FISS. SERBATOIO
        from £42.70
        from £42.70
        TANK TIEROD Genuine Lamborghini - New (to order)
        # 042
        MPN: 006222422
        T UNION
        Tre vie in metallo
        from £114.83
        from £114.83
        THREE-WAY UNION BETWEEN FUEL P UMP & FIL Genuine Lamborghini - New (to order)
        # 043
        MPN: 006203081
        TANK PIN
        Perno fasc. serb. benzina
        from £14.30
        from £14.30
        FUEL TANK CLAMP PIN Genuine Lamborghini - New (to order)
        # 044
        MPN: 008820201
        SPLINT PIN
        Coppigl. 2x15 UNI 1336
        from £4.11
        from £4.11
        SPLIT PIN 1.8X15 UNI 1336A Genuine Lamborghini - New (to order)
        # 045
        MPN: 008835004
        CLAMP RING
        Fascetta royal A/12 32/52
        from £6.14
        from £6.14
        This part replaces part number 008830201
        CLAMP Genuine Lamborghini - New In stock
        # 046
        MPN: 420201143C
        PIPE
        Tubo collegante tubo inf. ai 2 serb.
        from £49.89
        from £49.89
        This part replaces part number 006221562
        CONNECTING HOSE Genuine Lamborghini - New In stock
        # 047
        MPN: 006210598
        CLIP
        Fasc. inf. fiss. serb./C
        from £36.90
        from £36.90
        TANK LOWER CLAMP Genuine Lamborghini - New (to order)
        # 049
        MPN: 006222419
        UNION
        Raccordo a 90° con portagomma
        from £23.76
        from £23.76
        90° UNION & HOLDER Genuine Lamborghini - New (to order)
        # 050
        MPN: 006222418
        NIPPLE
        Nipplo sulle pompe benz.
        Lamborghini PART 006222418 Genuine Lamborghini - New (to order)
        # 051
        MPN: 006222416

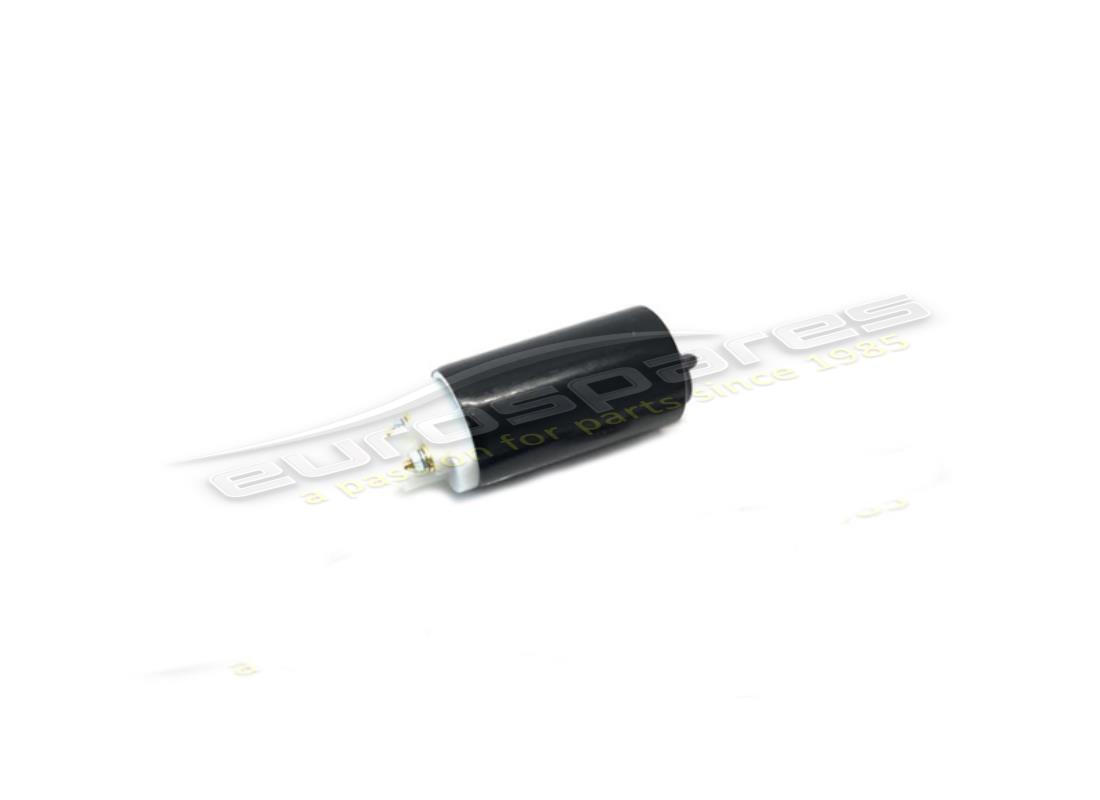

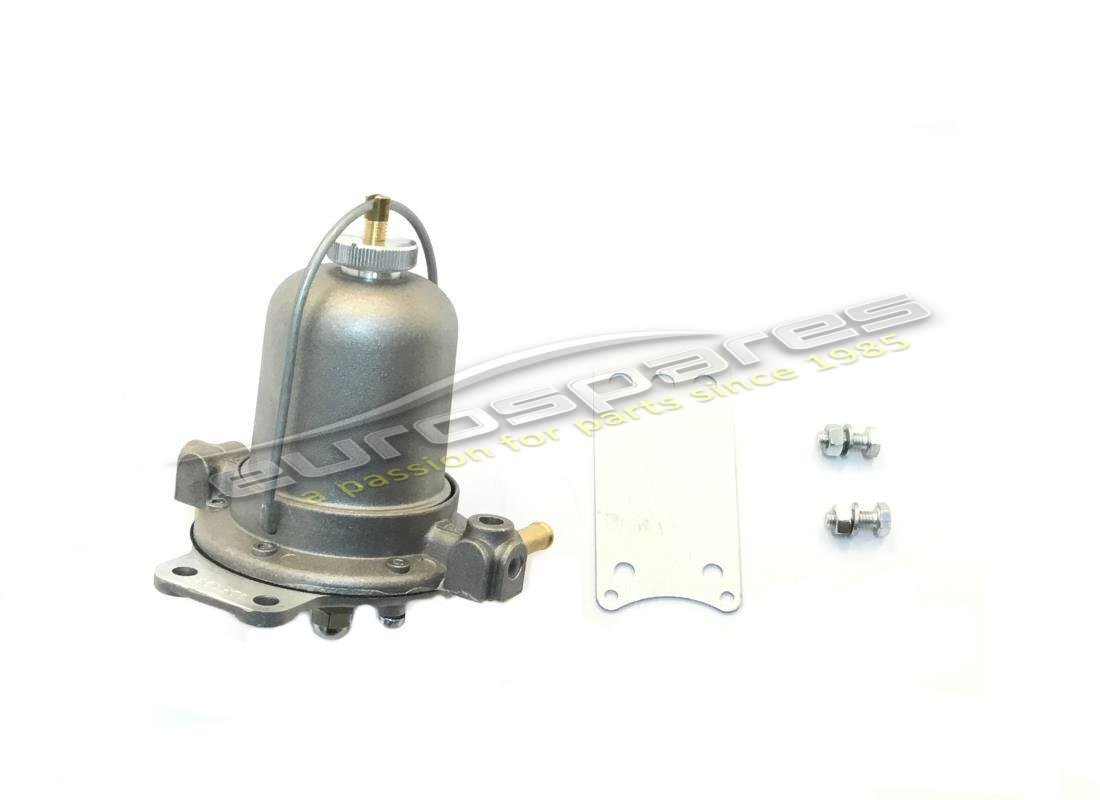

        fuel pump
        Pompe benz. sommerse
        from £269.04
        from £269.04
        fuel pump Genuine Lamborghini - New (to order)
        fuel pump Eurospares Approved Part - New In stock
        # 052
        MPN: 006222420
        PIPE
        Tubo colleg. raccordo a 90° al 3 vie
        from £35.80
        from £35.80
        TUBO COLLEG.RACC.90O AL 3 Genuine Lamborghini - New (to order)
        # 053
        MPN: 008200606
        NUT
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 054
        MPN: 008400620
        WASHER
        Rondella fiss. rise, serrat. cofano
        from £0.95
        from £0.95
        WASHER 6.5 UNI 1734/5S/B Genuine Lamborghini - New (to order)
        # 055
        MPN: 006222427
        RING
        Fascetta post. fiss. serb. sx
        from £24.67
        from £24.67
        LH TANK REAR CLAMP Genuine Lamborghini - New (to order)
        # 056
        MPN: 006222421
        PIPE
        Tubo colleg. race, a 90° al 3 vie
        from £32.34
        from £32.34
        90° UNION CONNECTIONTO THREE-W AY Genuine Lamborghini - New (to order)
        # 057
        MPN: 008700601
        SCREW
        Vite TCEI M6x30 UNI 5931 8G
        from £3.65
        from £3.65
        SCREW M6X30 UNI 59318G/Z Genuine Lamborghini - New In stock
        # 058
        MPN: 001719347
        TUBE
        Cavallotto fiss. tubo dal rad. dx al sx
        from £166.45
        from £166.45
        PIPE U-BOLT FROM RH RADIATOR Genuine Lamborghini - New (to order)
        # 059
        MPN: 006221609
        GASKET
        Guarniz. fiss. tubo colleg. serbatoi
        from £43.58
        from £43.58
        TANK PIPE FASTENING SEAL Genuine Lamborghini - New (to order)
        # 060
        MPN: 008800607
        SPACER
        Distanz. x cavall fiss. Tubi acqua rad.
        from £7.55
        from £7.55
        BUSHING 6.5X14X11 MM Genuine Lamborghini - New (to order)
        # 061
        MPN: 006203080
        TANK PIN
        Perno fil. fasc. serb.
        from £14.30
        from £14.30
        TANK CLAMP FILTER PIN Genuine Lamborghini - New (to order)
        # 062
        MPN: 006203079
        TANK PIN
        Perno pass. fasc. serb.
        from £29.71
        from £29.71
        TANK CLAMP PIN Genuine Lamborghini - New (to order)
        # 063
        MPN: 006220556
        TIE ROD
        Tirante fiss. serb. benzina
        from £36.90
        from £36.90
        FUEL TANK TIEROD Genuine Lamborghini - New (to order)
        # 064
        MPN: 006223339
        PIPE
        Tubo inf. coll. serbatoi
        from £75.45
        from £75.45
        FUEL TANK UNION PIPE Genuine Lamborghini - New (to order)
        # 065
        MPN: 007011146
        GUARD
        Protezione post, x tubazioni benz.
        from £72.63
        from £72.63
        FUEL PIPE PROTECTION Genuine Lamborghini - New In stock
        # 066
        MPN: WHT003040
        WASHER
        RONDELLA PORE/S
        from £4.55
        from £4.55
        WASHER Genuine Lamborghini - New (to order)
        # 067
        MPN: N0211963
        NUT
        DADO N/70/105M
        from £0.51
        from £0.51
        HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
        HEX. NUT - M5 Genuine Porsche Part - New (to order)
        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
