lamborghini countach 5000 qv (1985) headlamps and direction indicators parts diagram

038 - Headlamps and direction indicators

Lamborghini Countach 5000 QV (1985) Headlamps and Direction Indicators Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 000
    MPN: RHCOULAMP
    RH HEADLIGHT POD
    RH TUB/FRAME
    RH HEADLIGHT POD Genuine Lamborghini - New (to order)
    # 001
    MPN: 007043001
    Frame
    Cornice fan. post. sin. 1C C
    from £184.51
    from £184.51
    REAR LH HEADLAMP BEZEL Genuine Lamborghini - New In stock
    REAR LH HEADLAMP BEZEL Genuine Lamborghini - Used In stock
    # 001
    MPN: 007043002
    Frame
    Cornice fan. post. des./C
    from £124.95
    from £124.95
    REAR RH HEADLAMP BEZEL Genuine Lamborghini - New In stock
    REAR RH HEADLAMP BEZEL Genuine Lamborghini - Used In stock
    # 002
    MPN: 007043003
    PANEL
    Lam. riflett. fan. post. sin.
    from £26.17
    from £26.17
    LH REAR HEADLIGHT REFL. PANEL Genuine Lamborghini - New (to order)
    LH REAR HEADLIGHT REFL. PANEL Genuine Lamborghini - Used In stock
    # 002
    MPN: 007043004
    PANEL
    Lam. riflett. fan. post. des.
    from £26.17
    from £26.17
    RH REAR HEADLIGHT REFL. PANEL Genuine Lamborghini - New (to order)
    RH REAR HEADLIGHT REFL. PANEL Genuine Lamborghini - Used In stock
    # 003
    MPN: 007090012
    REAR GASKET
    Guam. fan. posteriore
    from £15.22
    from £15.22
    REAR HEADLAMP WEATHER STRIP Genuine Lamborghini - New In stock
    # 004
    MPN: 006310489
    LH REAR LAMP
    from £624.75
    from £624.75
    LH REAR LAMP Genuine Lamborghini - New (to order)
    LH REAR LAMP Genuine Lamborghini - Used In stock
    LH REAR LAMP Genuine Lamborghini - New (other) In stock
    # 004
    MPN: 006310490
    RH REAR LAMP
    from £624.75
    from £624.75
    RH REAR LAMP Genuine Lamborghini - New (to order)
    RH REAR LAMP Genuine Lamborghini - New (other) In stock
    # 004
    MPN: 006310490/L
    REAR LIGHT LENS
    from £42.00
    from £42.00
    REAR LIGHT LENS Genuine Lamborghini - New (to order)
    REAR LIGHT LENS Eurospares Approved Part - New In stock
    REAR LIGHT LENS Genuine Lamborghini - Used In stock
    ORIGINAL CARELLO
    # 004
    MPN: 006310491
    REAR LIGHT LENSES KIT
    (both side)
    REAR LIGHT LENSES KIT Genuine Lamborghini - New (to order)
    # 005
    MPN: 006617091
    LAMP
    Lamp, bay 15 D/1 2499 5/21 W
    from £7.30
    from £7.30
    21W BULB Genuine Lamborghini - New (to order)
    # 006
    MPN: 006617094
    LAMP
    Lamp, ba 15S/1 2498 21 W
    from £5.35
    from £5.35
    BULB Genuine Lamborghini - New (to order)
    # 007
    MPN: 006319367
    DOME LAMP
    Plafoniera 08422002 basse e nere
    from £45.03
    from £45.03
    LOW ENERGY CEILING LIGHT Genuine Lamborghini - New (to order)
    # 008
    MPN: 006309758
    LAMP
    Lamp. 6411/12V lOWsiluro
    from £6.39
    from £6.39
    CYLINDER BULB 6411/12V 10W Genuine Lamborghini - New In stock
    # 009
    MPN: 006319022
    LIGHT
    Catarifrangente 34390718
    from £93.82
    from £93.82
    REFLECTOR Genuine Lamborghini - New (to order)
    # 010
    MPN: 006319330
    LIGHT P.
    Plafoniera bagagliaio e abitacolo
    Lamborghini PART 006319330 Genuine Lamborghini - New (to order)
    # 011
    MPN: 006310496
    HEAD LIGHT
    Proiett. anab. ds. 03276000
    from £270.29
    from £270.29
    RH LOW BEAM HEADLIGHT Genuine Lamborghini - New (to order)
    # 011
    MPN: 006310605
    EXTERN HEAD
    (Valid for GB - January 1984) Proiett. anab. des. 05276000
    from £78.10
    from £78.10
    RH LOW BEAM HEADLIGHT Genuine Lamborghini - New (to order)
    # 011
    MPN: 006329512
    HEAD LIGHT
    (Valid for FRANCE - January 1984) Proiet. anab. des. 03280000
    from £94.93
    from £94.93
    RH LOW BEAM HEADLIGHT DECORATE D FRAME Genuine Lamborghini - New (to order)
    # 012
    MPN: 006310493
    HEAD LIGHT
    Proiett. abb. sn. 03278000
    from £349.32
    from £349.32
    LH HIGH BEAM HEADLIGHT Genuine Lamborghini - New (to order)
    # 012
    MPN: 006329513
    HEAD LIGHT
    (Valid for FRANCE - January 1984) Proiet. ab. sin. 03282000
    from £92.45
    from £92.45
    LH HIGH BEAM HEADLIGHT DECORAT ED FRAME Genuine Lamborghini - New (to order)
    # 013
    MPN: 006310494
    HEAD LIGHT
    Proiett. abb. ds. 03279000
    Lamborghini PART 006310494 Genuine Lamborghini - New (to order)
    # 013
    MPN: 006329514
    HEAD LIGHT
    (Valid for FRANCE - January 1984) Proiet. abb. des. 03283000
    from £92.45
    from £92.45
    RH HIGH BEAM HEADLIGHT DECORAT ED FRAME Genuine Lamborghini - New (to order)
    # 014
    MPN: 007044041
    FAN
    Lamierino fiss. fanalino posiz. ant.
    Lam f lamp Genuine Lamborghini - New (to order)
    # 015
    MPN: 006617098
    LAMP
    Lamp, p 14,55/12258 55W
    from £44.86
    from £44.86
    55W BULB Genuine Lamborghini - New (to order)
    # 016
    MPN: 006310495
    HEAD LIGHT
    Proiett. anab. sn. 03277000
    from £270.29
    from £270.29
    LH LOW BEAM HEADLIGHT Genuine Lamborghini - New (to order)
    # 016
    MPN: 006310604
    EXTERN HEAD
    (Valid for GB - January 1984) Proiett. anab. sin. 05277000
    from £78.10
    from £78.10
    LH LOW BEAM HEADLIGHT Genuine Lamborghini - New (to order)
    # 016
    MPN: 006329511
    HEAD LIGHT
    (Valid for FRANCE - January 1984) Proiet. anab. sin. 03281000
    from £94.93
    from £94.93
    LH LOW BEAM HEADLIGHT DECORATE D FRAME Genuine Lamborghini - New (to order)
    # 017
    MPN: 006617094
    LAMP
    Lamp, ba 15S/1249821W
    from £5.35
    from £5.35
    BULB Genuine Lamborghini - New (to order)
    # 018
    MPN: 008300505
    BOLT
    Prig. M5x20 UNI 591 1-66 5S
    from £23.88
    from £23.88
    STUD M5X20 UNI 5911-66 5S Genuine Lamborghini - New (to order)
    # 019
    MPN: 007044013
    LID FRAME
    Cornice palpebra mob. des.
    from £194.44
    from £194.44
    RH LID FRAME Genuine Lamborghini - New In stock
    # 020
    MPN: 006310497
    BEAM TRIM
    Guam. ant. proiett. 07250512
    Lamborghini PART 006310497 Genuine Lamborghini - New In stock
    # 021
    MPN: 006617092
    LAMP
    Lamp. ba9S/123843W
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 022
    MPN: 006335225
    WING REPEATER
    from £79.84
    from £79.84
    SIDE DIRECTION INDICATOR Genuine Lamborghini - New In stock
    # 023
    MPN: 007090011
    GASKET
    Guam. fan. posiz. ant.
    from £11.95
    from £11.95
    FRONT HEADLAMP WEATHER STRIP Genuine Lamborghini - New (to order)
    # 024
    MPN: 007044040
    FAN
    Lamierino fiss. fan. posizione ant.
    Lamborghini PART 007044040 Genuine Lamborghini - New (to order)
    # 025
    MPN: 007044012
    LIGHT SPRIN
    Molla fiss. fan. ant. direz.
    from £44.53
    from £44.53
    F TURN IND.LIGHT MOUNT.SPRING Genuine Lamborghini - New (to order)
    # 026
    MPN: 008300510
    BOLT
    Prig. M5x14 UNI 5911 5S
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 027
    MPN: WHT001187
    WASHER
    Rond. 5,3 UNI 1734 5S
    from £0.50
    from £0.50
    This part replaces part number 008400502
    WASHER 10X5.3X1 UNI 6952 CAT-A Genuine Lamborghini - New In stock
    # 028
    MPN: 008200501
    NUT
    DADO WI5 UNI 5588/-65/8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 029
    MPN: 007044045
    LIGHT
    Parabola fanale luce di posizione sin.
    from £426.27
    from £426.27
    P. HEADLIGHT REFLECTOR Genuine Lamborghini - New (to order)
    # 030
    MPN: 006617093
    LAMP
    Lamp, ba 15S/12821 5W
    from £10.95
    from £10.95
    12V 5W BULB Genuine Lamborghini - New (to order)
    # 031
    MPN: 006318973
    RH LIGHT
    Fanale ant. pos. 1 1 29000
    from £326.72
    from £326.72
    RH FRONT INDICATOR LAMP Genuine Lamborghini - New (to order)
    # 032
    MPN: 007044014
    LID FRAME
    Cornice palpebra mob. sin.
    from £194.44
    from £194.44
    LH LID FRAME Genuine Lamborghini - New In stock
    # 033
    MPN: 008700413
    SCREW
    Vite knipp. 0.4,2x12,7
    from £3.65
    from £3.65
    LOCK SCREW 4.2X12.7DIN798 Genuine Lamborghini - New (to order)
    # 034
    MPN: 006721234
    LIGHT BUTT
    Puls. luci porte art. 418
    from £23.47
    from £23.47
    DOOR LIGHT BUTTON Genuine Lamborghini - New (to order)
    # 035
    MPN: 006309411
    FOG LIGHT
    Fendinebbia 06311000 /U
    from £275.82
    from £275.82
    FOGLIGHT Genuine Lamborghini - New (to order)
    # 036
    MPN: 007017029
    R. LIGHT FRA
    Compl. cornice fanale ant. luci di posiz. d
    from £379.58
    from £379.58
    RH FRONT HEADLAMP BEZEL Genuine Lamborghini - New (to order)
    # 037
    MPN: 006319504
    SHIELD
    Protez. fan. ant. direz. 1C
    from £226.55
    from £226.55
    RH FRONT LIGHT GUARD Genuine Lamborghini - New (to order)
    # 037
    MPN: 006319504
    LIGHT
    (Valid for GERMANY - January 1984) Protezione x fanal. ant. des. di direz.
    from £226.55
    from £226.55
    RH FRONT LIGHT GUARD Genuine Lamborghini - New (to order)
    # 038
    MPN: 007044044
    LIGHT
    Parabola fanale luce di posizione d.
    from £426.27
    from £426.27
    P. HEADLIGHT REFLECTOR Genuine Lamborghini - New (to order)
    # 039
    MPN: 008200501
    SCREW
    Dado M 5
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 040
    MPN: 007005008
    LIGHT PLATE
    Staffa fiss. fan. posiz.
    from £32.99
    from £32.99
    POSIT.LIGHT FIX.BRACKET Genuine Lamborghini - New (to order)
    # 041
    MPN: 006319503
    SHIELD
    Protez. fan. ant. direz./C
    from £286.21
    from £286.21
    LH FRONT LIGHT GUARD Genuine Lamborghini - New (to order)
    # 041
    MPN: 006319503
    LIGHT-
    (Valid for GERMANY - January 1984) Protezione x fanal. ant. sin. di direz.
    from £286.21
    from £286.21
    LH FRONT LIGHT GUARD Genuine Lamborghini - New (to order)
    # 042
    MPN: 008700409
    SCREW
    Vite TGS4X16UNI 6110
    from £3.65
    from £3.65
    SCREW TGS 4X16 UNI 6110 Genuine Lamborghini - New (to order)
    # 043
    MPN: 006617093
    LAMP
    Lamp. BA 15S/1 2821 5W
    from £10.95
    from £10.95
    12V 5W BULB Genuine Lamborghini - New (to order)
    # 044
    MPN: 006310492
    PLATE LIGHT
    Fanal. targa 10440000 1C
    from £30.34
    from £30.34
    NUMBER PLATE LIGHT Genuine Lamborghini - New (to order)
    NUMBER PLATE LIGHT Genuine Lamborghini - Used In stock
    # 045
    MPN: 006921236
    CAP
    Cappuccio puts, luci
    from £7.60
    from £7.60
    LAMP BUTTON CAP Genuine Lamborghini - New (to order)
    # 046
    MPN: 006318972
    LH LIGHT
    Fanale ant. posiz. 1 1 298000
    from £326.72
    from £326.72
    LH FRONT INDICATOR LAMP ASSY Genuine Lamborghini - New (to order)
    # 047
    MPN: 008200604
    NUT
    DADO M6 UNI 5588-65/8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 048
    MPN: 008100605
    BOLT
    Bull. M6x40 UNI 5739-65A 5S
    from £0.53
    from £0.53
    SCREW M6X40 UNI 5739-65A 5 Genuine Lamborghini - New (to order)
    # 049
    MPN: 007017030
    L. LIGHT FRA
    Compl. cornice fanale ant. luci di posiz. s
    from £379.58
    from £379.58
    LH FRONT HEADLAMP BEZEL Genuine Lamborghini - New (to order)
    # 050

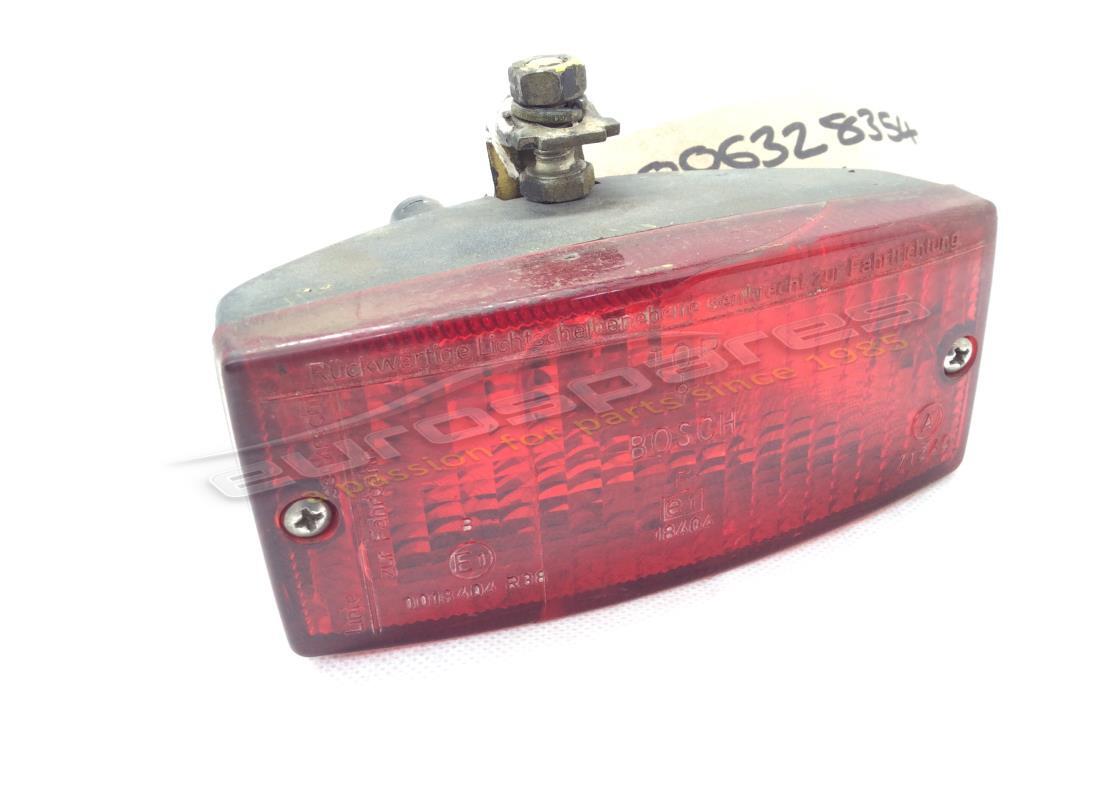

    MPN: 006328354
    LIGHT
    (Valid for GB - January 1984) Fanalino retronebbia vs. 03670001
    from £309.75
    from £309.75
    PART Genuine Lamborghini - New (to order)
    PART Genuine Lamborghini - Used In stock
    # 050
    MPN: 006328354
    LIGHT
    (Valid for BELGIUM - January 1984) Fanalino retronebbia vs. 03670001
    from £309.75
    from £309.75
    PART Genuine Lamborghini - New (to order)
    PART Genuine Lamborghini - Used In stock
    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
