lamborghini countach 5000 qv (1985) glasses, gaskets and controls parts diagram

040 - Glasses, gaskets and controls

Lamborghini Countach 5000 QV (1985) Glasses, Gaskets and Controls Parts Diagram

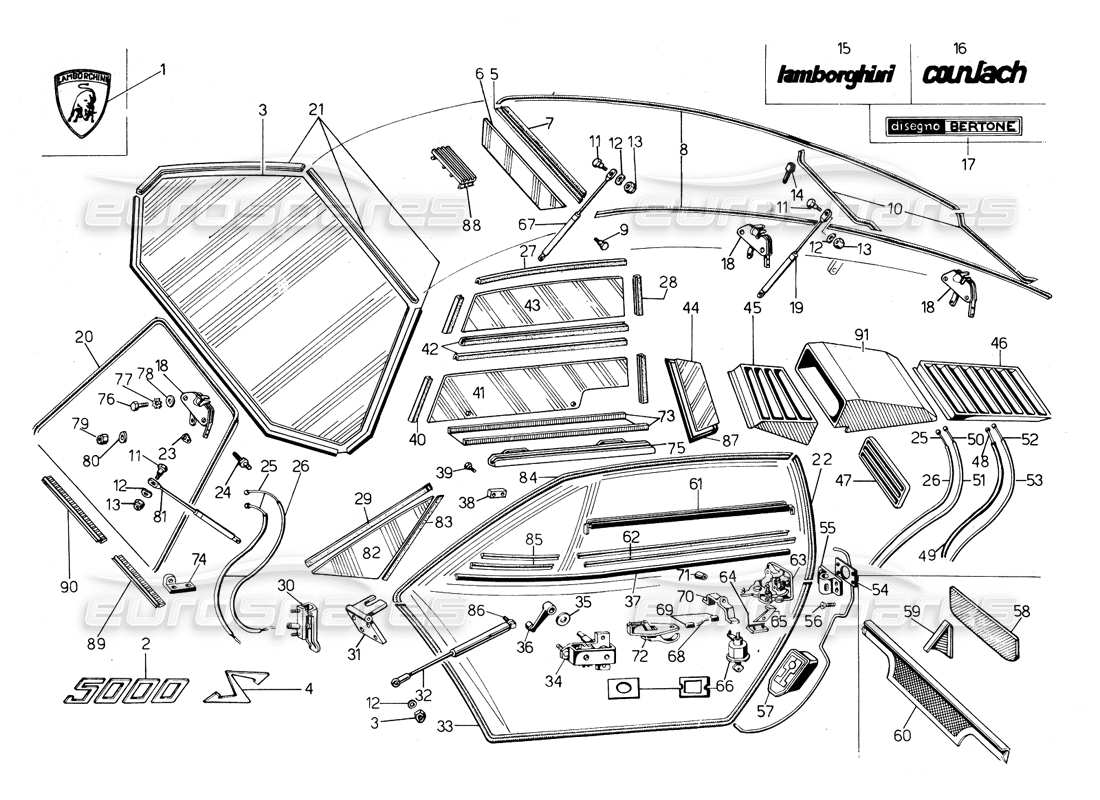

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 001
                MPN: 006102515
                BONNET BADGE
                from £574.99
                from £574.99
                This part replaces part number 006119379
                BONNET BADGE Genuine Lamborghini - New In stock
                # 002
                MPN: 006119922

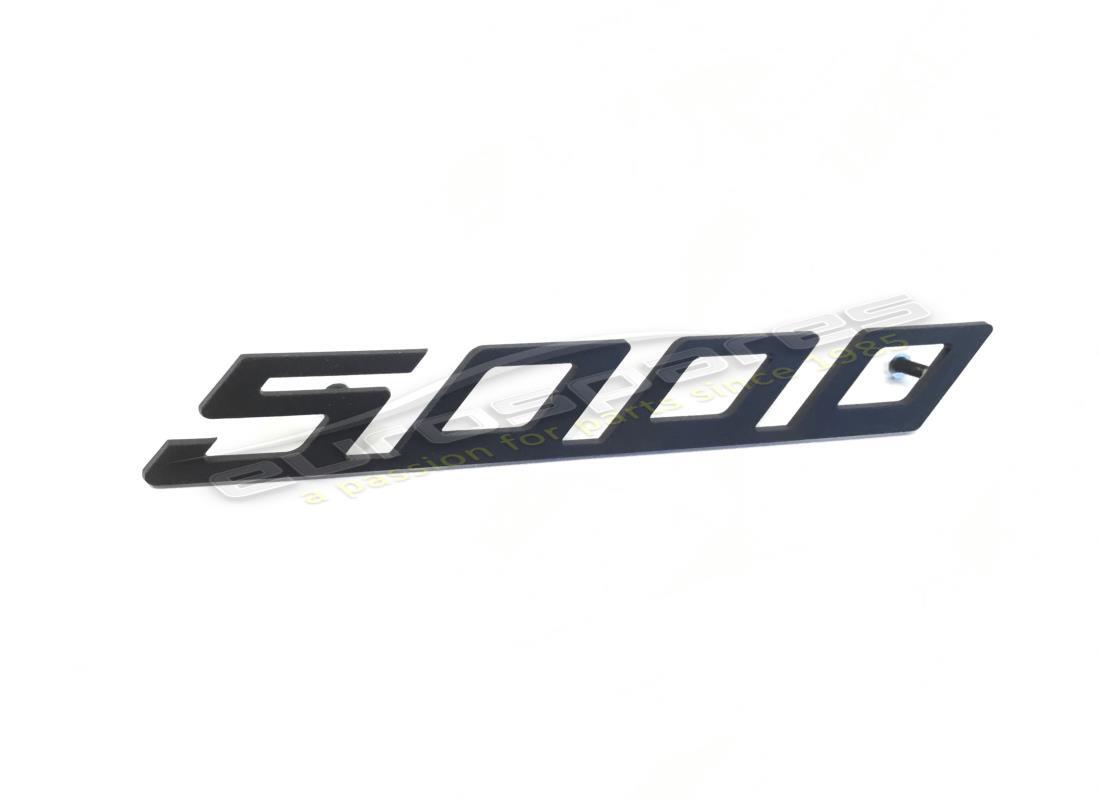

                NAME 5000
                Targhette 5000 in ottone
                from £30.45
                from £30.45
                BRASS PLATE 5000 Genuine Lamborghini - New In stock
                # 003
                MPN: 007015017
                WINDSCREEN
                from £2,094.75
                from £2,094.75
                COUNTACH WIND SCREEN SIZE: 1490 X 945 Genuine Lamborghini - New (to order)
                WINDSCREEN Eurospares Approved Part - New (to order)
                COUNTACH WIND SCREEN SIZE: 1490 X 945 Genuine Lamborghini - Used In stock
                ORIGINAL SIGLA
                WINDSCREEN Eurospares Approved Part - New (other) In stock
                Clear with green top tint

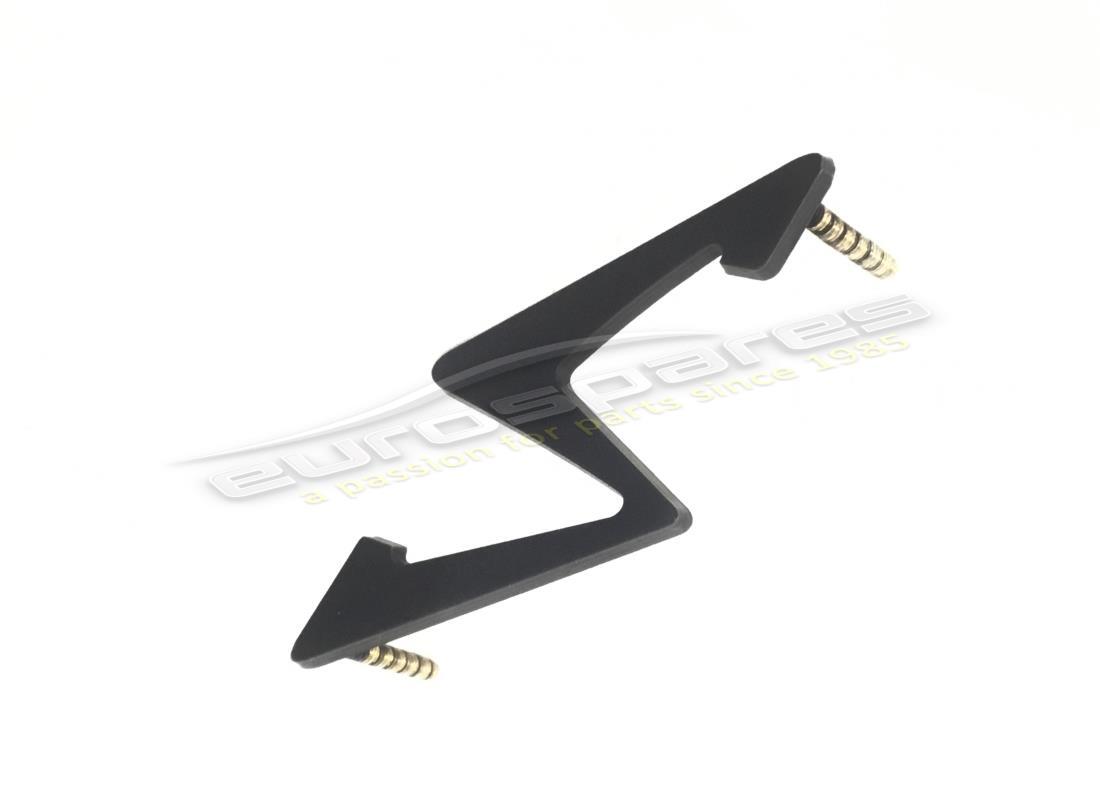

                # 004
                MPN: 006106008
                S BLACK BADGE
                from £44.63
                from £44.63
                S PLATE Genuine Lamborghini - New In stock
                # 005
                MPN: 007090074
                GASKET
                Guarni fra cofano motore e padiglione
                GASKET Genuine Lamborghini - New (to order)
                # 006
                MPN: 007018001
                REAR WINDOW
                Lunotto inf. abitacolo /c
                from £351.55
                from £351.55
                PASSEMBLYCOMP. LOWERREARWINDOW Genuine Lamborghini - New (to order)
                # 007
                MPN: 007090033
                GASKET
                Guam, x paratia cofano motore e lunotto
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 008
                MPN: 007090086
                GASKET
                Guam. lat. per cof. motore
                Lamborghini PART 007090086 Genuine Lamborghini - New (to order)
                # 009
                MPN: 007059027
                PIN
                Perno x ammortizz. a gas apert. cofano
                from £78.68
                from £78.68
                GAS SHOCK ABSORB. PIN Genuine Lamborghini - New In stock
                # 010
                MPN: 007090071
                GASKET
                Guam, x cofano motore
                Lamborghini PART 007090071 Genuine Lamborghini - New (to order)
                # 011
                MPN: 007059027
                PIN
                Perno x ammortizz. a gas apert. cofano
                from £78.68
                from £78.68
                GAS SHOCK ABSORB. PIN Genuine Lamborghini - New In stock
                # 012
                MPN: 008410602
                LOCK WASHER
                Ros. el. 6,4 x 12x0,5
                from £27.52
                from £27.52
                WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
                # 013
                MPN: 008200606
                NUT
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 014
                MPN: 007060005
                SHOCK
                Paracolpi cof a no mot. 4942
                from £45.11
                from £45.11
                ENGINE COVER BUMPER Genuine Lamborghini - New (to order)
                # 015
                MPN: 006111397
                Lamborghini NAME PLATE
                SCRITTA Lamborghini /C BLACK - FOR FLATE CHROME USE: 006128566
                from £78.75
                from £78.75
                Lamborghini BLACK PLATE Genuine Lamborghini - New In stock
                # 016
                MPN: 006111345
                NAME PLATE
                Scritta countach
                from £81.90
                from £81.90
                COUNTACH BLACK MATTEPLATE Genuine Lamborghini - New In stock
                # 017
                MPN: 006111447
                NAME PLATE
                Targh. dino 308 GT4 /c
                from £150.00
                from £150.00
                This part replaces part number 006108347

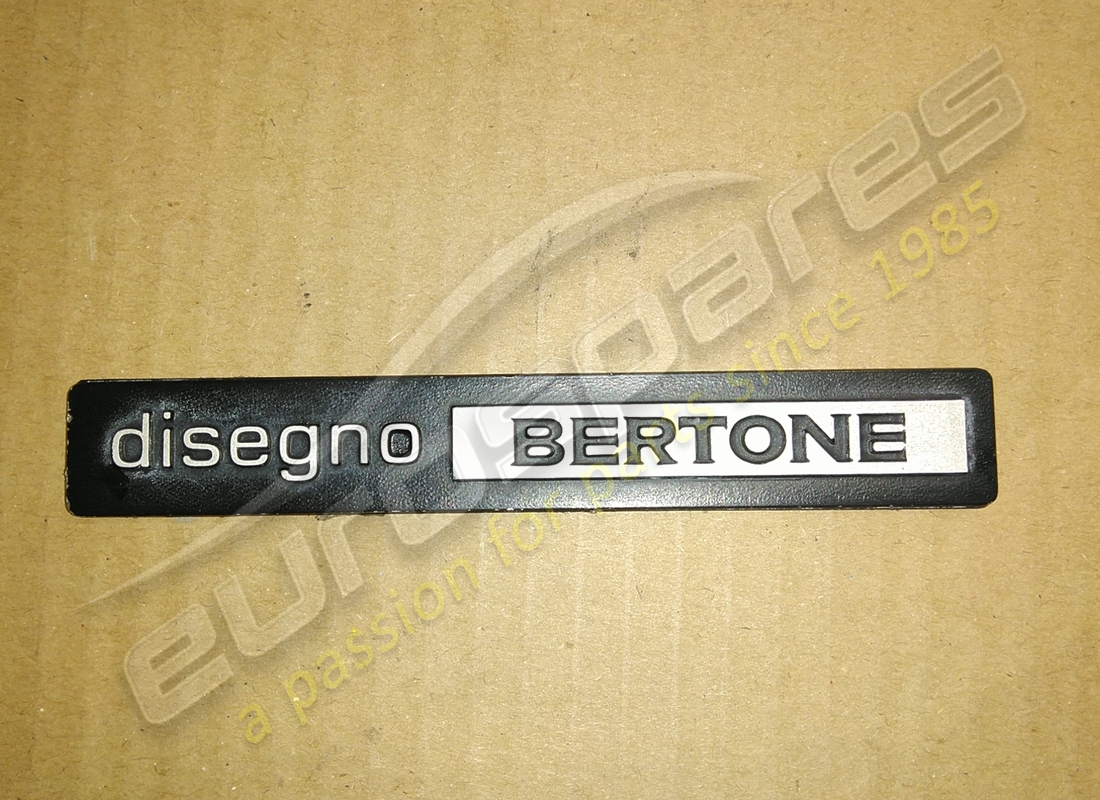

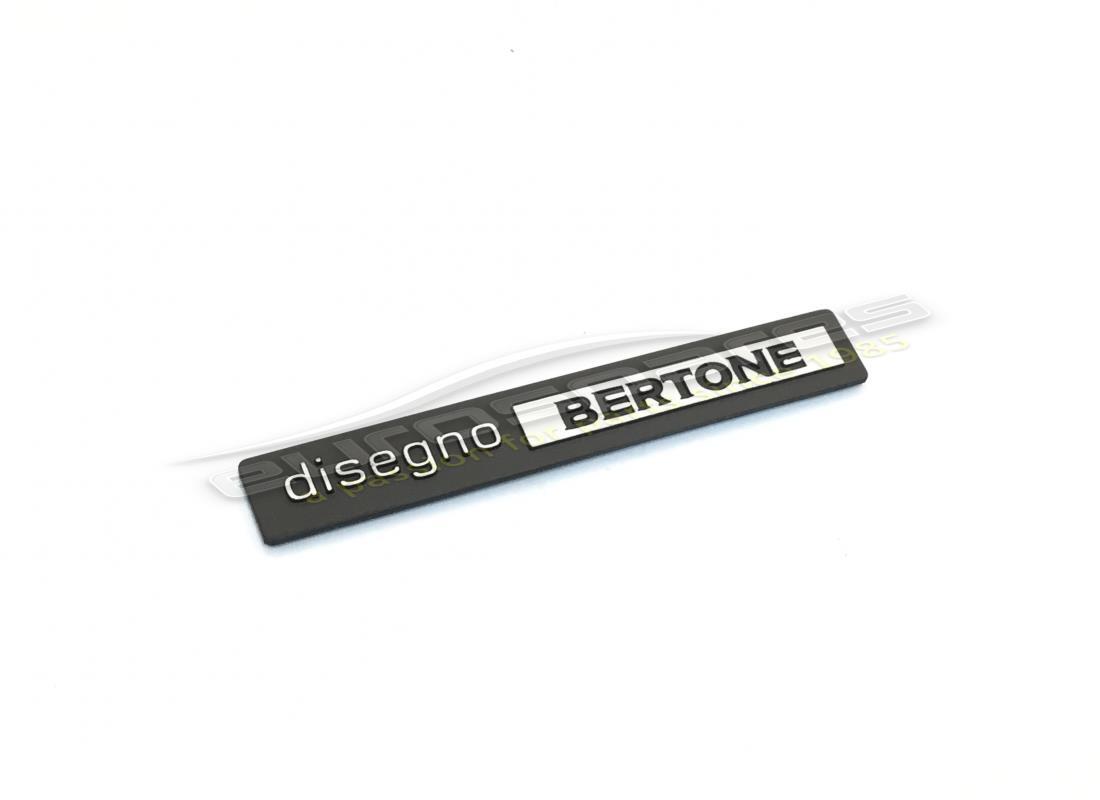

                DISEGNO BERTONE PLATE Genuine Lamborghini - New (to order)
                FREGIO DISEGNO DI BERTONE Genuine Ferrari Part - New (to order)
                FREGIO DISEGNO DI BERTONE Genuine Ferrari Part - Used In stock
                # 018
                MPN: 007059024
                lock
                Serratura con ferma cavo
                Lamborghini PART 007059024 Genuine Lamborghini - New (to order)
                # 019
                MPN: 007029005
                SHOCK ABS
                SOLLEVATORE BAULE
                from £62.11
                from £62.11
                BONNET LIFTER (boot lid) Genuine Lamborghini - New (to order)
                # 019
                MPN: 007029006
                ENGINE COVER STRUT
                Ammortizzatore cofano rinforzato post.
                from £48.09
                from £48.09
                TRUNK LIFTER WITH STAB. Genuine Lamborghini - New In stock
                # 020
                MPN: 007090072
                GASKET
                Guar. x cofano anteriore
                from £59.80
                from £59.80
                Lamborghini PART 007090072 Genuine Lamborghini - New (to order)
                FRONT BONNET SEAL RUBBER Eurospares Approved Part - New (to order)
                # 021
                MPN: 007015002
                GARNIS
                Molura sigilic parabrezza
                Lamborghini PART 007015002 Genuine Lamborghini - New (to order)
                # 022
                MPN: 007090080
                GASKET
                Guarniz. x porta
                from £31.12
                from £31.12
                CM 55 SEAL Genuine Lamborghini - New (to order)
                # 023
                MPN: 007059012
                BONNET CABL.
                Rond. fiss. cavi cofani
                from £13.14
                from £13.14
                BONNET CABLE FIX.WASHER Genuine Lamborghini - New (to order)
                # 024
                MPN: 006959298
                PIN
                Perno fiss. cavo serr. cofano
                from £18.91
                from £18.91
                BONNET LOCK CABLE FIX.PIN Genuine Lamborghini - New In stock
                # 025
                MPN: 007059015
                BONNET CABL
                Cavo cofano ant. e mot.
                from £79.20
                from £79.20
                FR BONNET AND ENGINECABLE Genuine Lamborghini - New (to order)
                # 026
                MPN: 007059016
                BONNET CABL
                Guaina cavi cof. ant. — mot.
                Lamborghini PART 007059016 Genuine Lamborghini - New (to order)
                # 027
                MPN: 007021110
                SIDE LENT
                Canalina veil. sup. x vetro fisso
                Lamborghini PART 007021110 Genuine Lamborghini - New (to order)
                # 028
                MPN: 007021108
                SIDE LENT
                Canalina veil, post x vetro fisso
                Lamborghini PART 007021108 Genuine Lamborghini - New (to order)
                # 029
                MPN: 007021112
                SIDE CHANNEL RUBBER
                from £121.05
                from £121.05
                VELOUR CHANNEL Genuine Lamborghini - New (to order)
                # 030
                MPN: 006405010
                BONNET HAND
                Manigi. cofano ant. art. 204
                from £61.69
                from £61.69
                FRONT BONNET HANDLE Genuine Lamborghini - New (to order)
                # 031
                MPN: 007021012
                UNIT DOOR
                Compl. cerniera porta dex.
                from £90.06
                from £90.06
                Lamborghini PART 007021012 Genuine Lamborghini - New (to order)
                # 031
                MPN: 007021013
                UNIT DOOR
                Compl. cerniera porta sin.
                Lamborghini PART 007021013 Genuine Lamborghini - New (to order)
                # 032
                MPN: 007021195

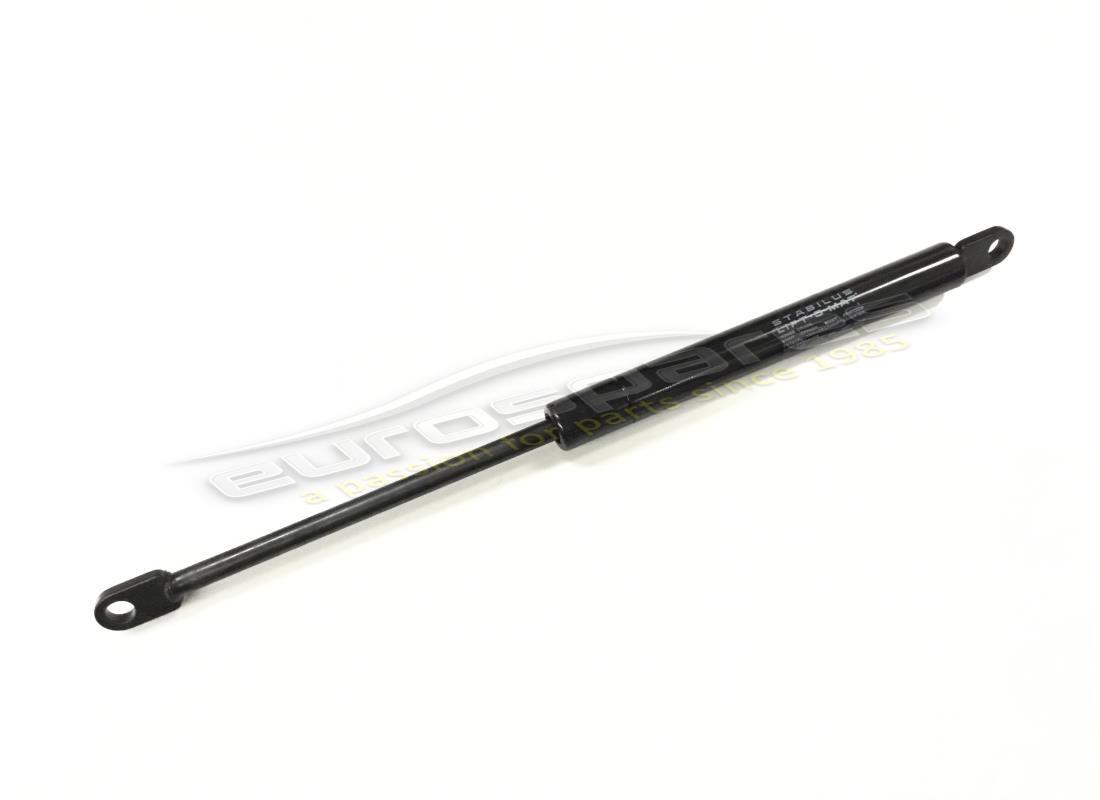

                DOOR STRUT
                Ammortizzatore a gas x porte
                from £53.38
                from £53.38
                SHOCK ABSORBER Genuine Lamborghini - New In stock
                SHOCK ABSORBER Original Equipment - New In stock
                # 033

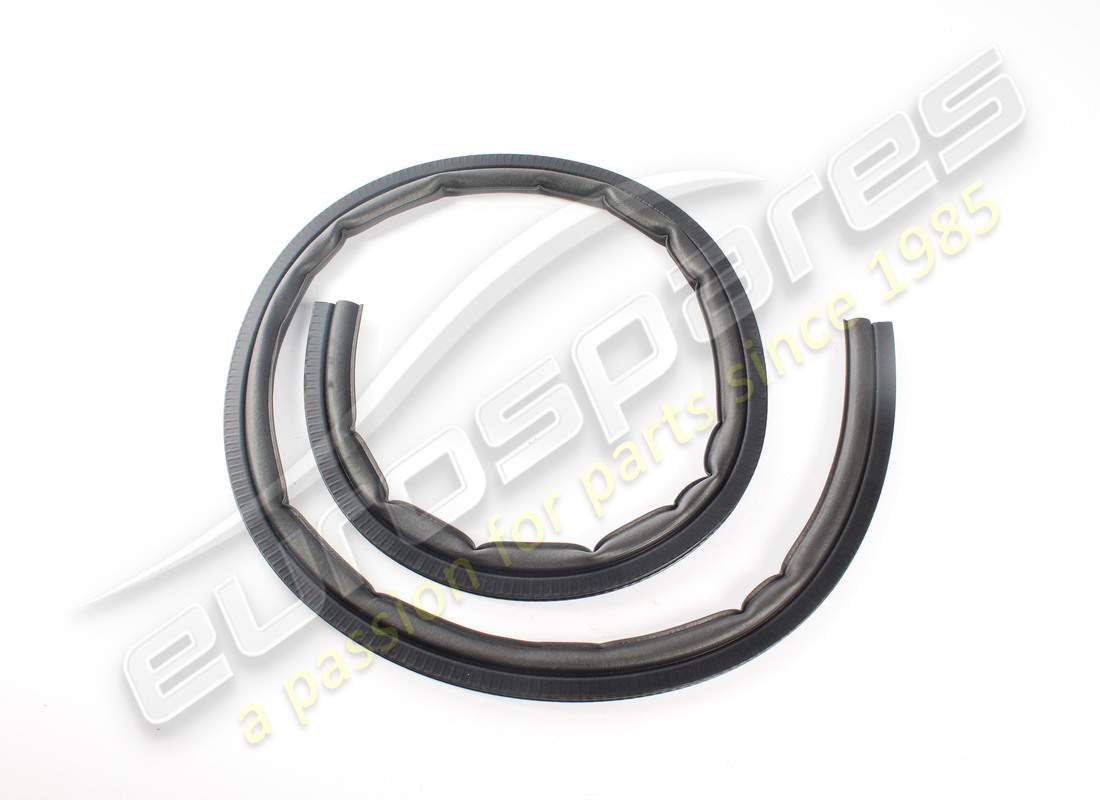

                MPN: 007090073
                GASKET
                Guam, x porta parte inf.
                from £52.83
                from £52.83
                190 CM SEAL Genuine Lamborghini - New In stock
                # 034
                MPN: 007017014
                WINDOW MOTO
                Disp. alzacrist. art. 12 mod.
                Lamborghini PART 007017014 Genuine Lamborghini - New (to order)
                # 035
                MPN: 007021148
                NUT
                ROSONE
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 036
                MPN: 007021134
                HINGE
                Manigi. x alzacr. compl. p. 8251
                Lamborghini PART 007021134 Genuine Lamborghini - New (to order)
                # 037
                MPN: 007021092
                REAR MONT
                Molura crist. mobile porta dex.
                from £372.28
                from £372.28
                WINDOW FRAME MOLDING Genuine Lamborghini - New (to order)
                # 037
                MPN: 007021093
                REAR MONT
                Molura crist. mobile porta sin.
                from £372.28
                from £372.28
                WINDOW FRAME MOLDING Genuine Lamborghini - New (to order)
                # 038
                MPN: 007021035
                CABLE PLATE
                Piastr. cavo alzavetro
                from £46.85
                from £46.85
                WINDOW LIFT.CABLE PLATE Genuine Lamborghini - New (to order)
                # 039
                MPN: 008100506
                BOLT
                Bull. m5x14 UNI 5739-65/A8G
                from £6.43
                from £6.43
                SCREW M5X14 UNI 5739 Genuine Lamborghini - New (to order)
                # 040
                MPN: 007021041
                GASKET
                Guarnizione x supporto vetro mobile
                Lamborghini PART 007021041 Genuine Lamborghini - New (to order)
                # 041
                MPN: 007017005
                Door Glass
                Scendente sin. /c
                from £2,762.53
                from £2,762.53
                LH DOOR GLASS Genuine Lamborghini - New (to order)
                # 041
                MPN: 007017006
                Door Glass
                Scendente des./c
                from £2,762.53
                from £2,762.53
                RH DOOR GLASS Genuine Lamborghini - New (to order)
                # 042
                MPN: 007021007
                PIN
                Perno supp. carr. mobile
                from £36.59
                from £36.59
                MOVABLE Genuine Lamborghini - New (to order)
                # 043
                MPN: 007017003
                UPPER GLASS
                Vetro sup. sin. /c
                from £657.49
                from £657.49
                LH UPPER GLASS Genuine Lamborghini - New (to order)
                # 043
                MPN: 007017004
                UPPER GLASS
                Vetro sup. des./c
                from £657.49
                from £657.49
                RH UPPER GLASS Genuine Lamborghini - New (to order)
                # 044
                MPN: 007017007
                REAR WINDOW
                Voletto lat. post. sin. /c
                from £296.00
                from £296.00
                RL SIDE BUTT.WINDOW Genuine Lamborghini - New In stock
                # 044
                MPN: 007017008
                REAR WINDOW
                Voletto lat. post, des./c
                from £296.00
                from £296.00
                RR SIDE BUTT.WINDOW Genuine Lamborghini - New (to order)
                # 045
                MPN: 006111688
                RADIAT VENT
                Presa aria rad. inf. sin. /c
                from £465.97
                from £465.97
                INNER RADIATOR AIR INTAKE GRIL LE Genuine Lamborghini - New In stock
                # 045
                MPN: 006111688A
                RH Raditor Vent
                RH Raditor Vent Genuine Lamborghini - New (to order)
                # 046
                MPN: 006111684

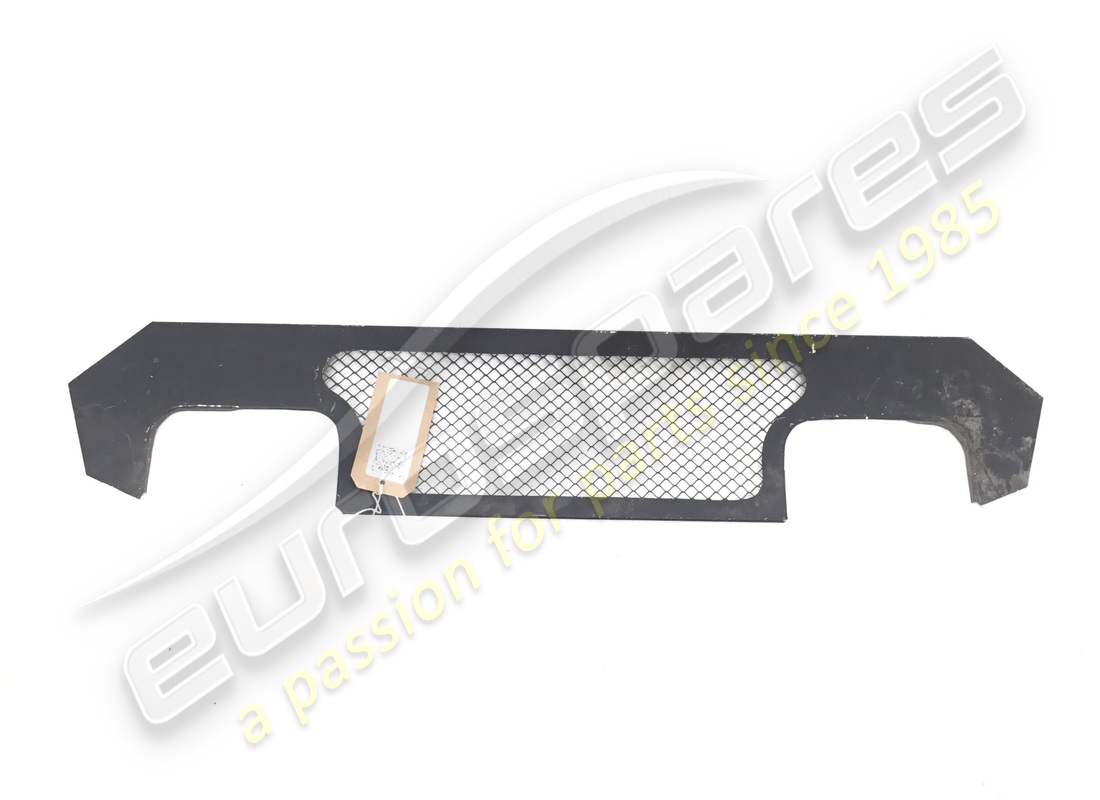

                RADIAT GRID
                Griglia scar, aria rad. /c
                from £607.75
                from £607.75
                RADIATOR AIR OUTLET GRILLE Genuine Lamborghini - New (to order)
                # 047
                MPN: 006111686
                RADIAT VENT
                Presa aria rad. inf. des. /c
                from £356.60
                from £356.60
                LH UPPER AIR INTAKE GRILLE Genuine Lamborghini - New (to order)
                LH UPPER AIR INTAKE GRILLE Genuine Lamborghini - Used In stock
                # 047
                MPN: 006111687
                Radiat.vent
                Presa aria rad. sup. sin. /c
                Radiat.vent Genuine Lamborghini - New (to order)
                Radiat.vent Genuine Lamborghini - Used In stock
                # 048
                MPN: 007059013
                BONNET CABL
                Cavo cofano motore
                from £72.47
                from £72.47
                ENGINE COVER CABLE Genuine Lamborghini - New (to order)
                # 049
                MPN: 007059014
                BONNET CABL
                Guaina cavo cofano motore
                GUAINA Genuine Lamborghini - New (to order)
                # 050
                MPN: 007059017
                BONNET CABI
                Cavo cofano baule
                from £79.20
                from £79.20
                BONNET CABLE Genuine Lamborghini - New (to order)
                # 051
                MPN: 007059018
                CABLE SHEAT
                Guaina cavo sic. baule
                from £23.43
                from £23.43
                TRUNK SEC. CABLE SHEATH Genuine Lamborghini - New In stock
                # 052
                MPN: 007059019
                CABLE
                Cavo apert. cofano baule
                from £156.51
                from £156.51
                TRUNK RELEASE CABLE Genuine Lamborghini - New (to order)
                # 053
                MPN: 007059020
                CABLE SHEAT
                Guaina cavo cof. baule
                Lamborghini PART 007059020 Genuine Lamborghini - New (to order)
                # 054
                MPN: 007021002
                CLAMP PLATE
                Piastr. f iss. riscontro
                from £33.95
                from £33.95
                STRIKER FIX.PLATE Genuine Lamborghini - New (to order)
                # 055
                MPN: 410831407A
                LEFT LOCK STRIKER
                from £163.12
                from £163.12
                HINGE HALF LEFT Genuine Lamborghini - New (to order)
                HINGE HALF LEFT Genuine Lamborghini - Used In stock
                # 055
                MPN: 410831408A
                RIGHT LOCK STRIKER
                from £287.71
                from £287.71
                HINGE HALF RIGHT Genuine Lamborghini - New (to order)
                HINGE HALF RIGHT Genuine Lamborghini - Used In stock
                # 056
                MPN: 008700632
                SCREW
                Vite m6x30 UNI 5933-8G
                from £0.51
                from £0.51
                SCREW M6X30 UNI 59338G/ZD Genuine Lamborghini - New In stock
                # 057
                MPN: 007060006
                HANDLE
                Manigi. cofani x1/9
                from £187.39
                from £187.39
                BONNETS HANDLE Genuine Lamborghini - New (to order)
                # 058
                MPN: 007066001
                UP. PLATE
                Portatarga posteriore /c
                from £281.08
                from £281.08
                REAR PLATE CARR. Genuine Lamborghini - New (to order)
                # 059
                MPN: 007030006
                SHIELD
                Angolare ds. x masch. rip. marmitta
                from £93.69
                from £93.69
                SILENCER GUARD RH BRACKET Genuine Lamborghini - New (to order)
                # 059
                MPN: 007030007
                SHIELD
                Angolare sin.x masch. rip. marmitta
                from £127.10
                from £127.10
                SILENCER GUARD LH BRACKET Genuine Lamborghini - New (to order)
                # 060
                MPN: 007030005
                SHIELD
                Mascherina rip. marmitta
                from £468.45
                from £468.45
                MUFFLER GUARD GRILL Genuine Lamborghini - New In stock
                # 061
                MPN: 007021096
                SPACER
                Trav. fra crist. mobile e crist. fiss.
                from £194.13
                from £194.13
                QUARTER LIGHT BEAM ASSEMBLY Genuine Lamborghini - New (to order)

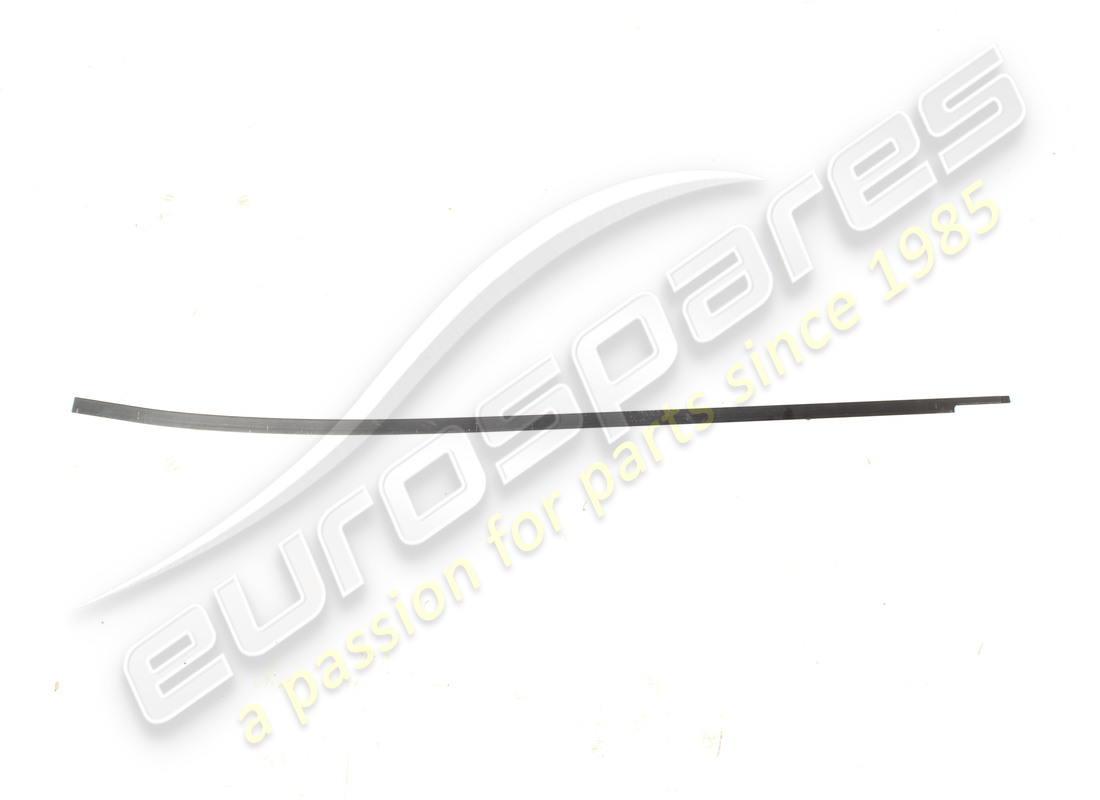

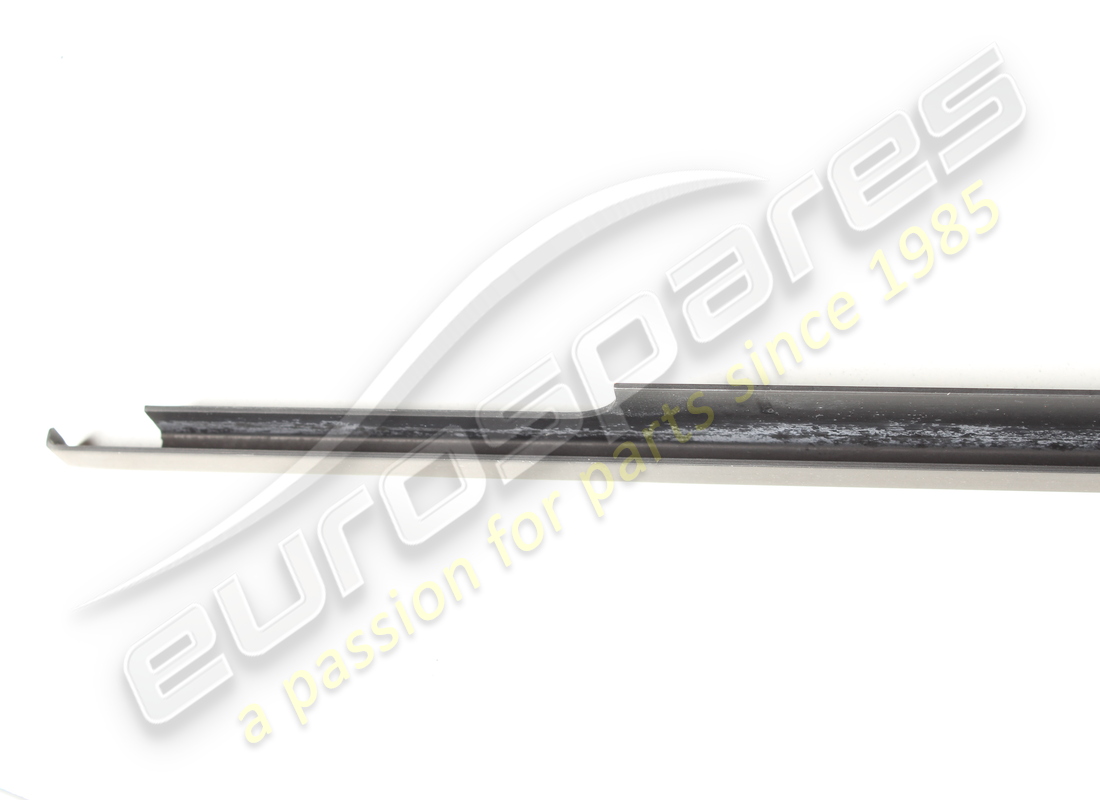

                # 062
                MPN: 007021114
                WINDOW
                Velluto x vetro mobile
                from £65.50
                from £65.50
                Lamborghini PART 007021114 Genuine Lamborghini - New (to order)
                SLIDE GLASS SCRAPER KIT Eurospares Approved Part - New (to order)

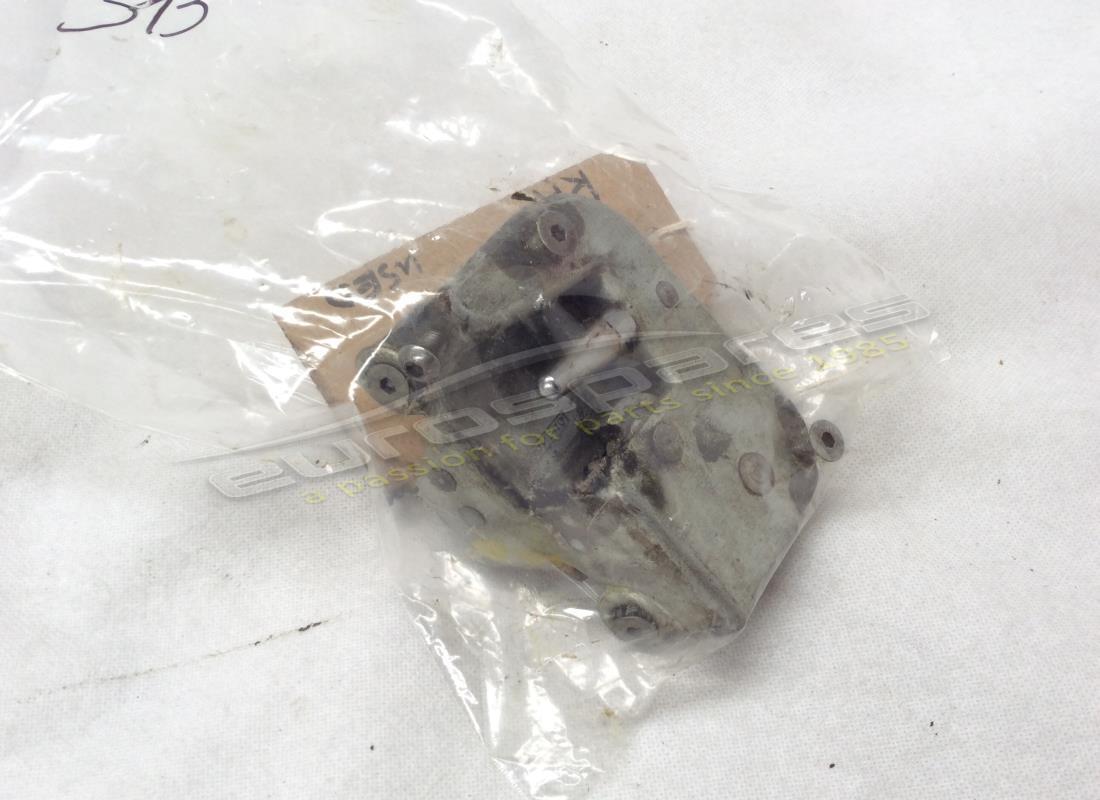

                # 063
                MPN: 007021191
                TANK LOCK
                Blocchetto serr. compl. porta dex.
                from £624.75
                from £624.75
                RIGHT DOOR LOCKS Genuine Lamborghini - New In stock
                RIGHT DOOR LOCKS Genuine Lamborghini - Used In stock

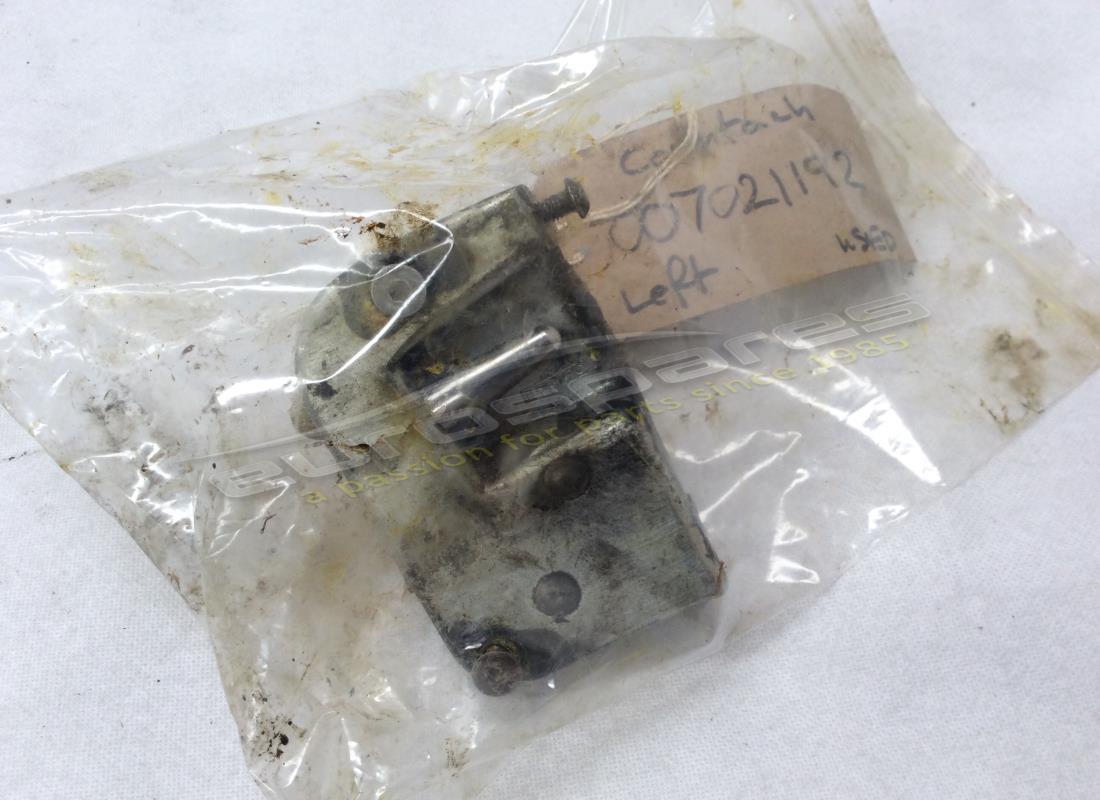

                # 063
                MPN: 007021192
                TANK LOCK
                Blocchetto serr. compl. porta sin.
                from £624.75
                from £624.75
                LEFT DOOR LOCKS Genuine Lamborghini - New In stock
                LEFT DOOR LOCKS Genuine Lamborghini - Used In stock
                # 064
                MPN: 007021129
                CNTRL LEV P
                Piast. leva com. ap. blocc. serr. porta d.
                from £74.37
                from £74.37
                BLOCK UNLOCK CONTROLLEVERPLATE Genuine Lamborghini - New In stock
                # 064
                MPN: 007021132
                OP CNTRL LE
                Piastra x leva com. ap. bloc. serr. p.s.
                from £37.19
                from £37.19
                BL OPEN.CONTROL LEVERPLATE Genuine Lamborghini - New (to order)
                # 065
                MPN: 007021130
                OPEN CNTRL
                Leva com. apert. blocc. serrat. porta s.
                from £50.85
                from £50.85
                OPENING LOCK CONTROLLEVER Genuine Lamborghini - New (to order)
                OPENING LOCK CONTROLLEVER Genuine Lamborghini - Used In stock
                # 065
                MPN: 007021131
                OPEN CNTRI
                Leva com. apert. blocc. serrat. porta d.
                from £61.57
                from £61.57
                OPEN LOCK CONTROL LEVER Genuine Lamborghini - New (to order)
                OPEN LOCK CONTROL LEVER Genuine Lamborghini - Used In stock
                # 066
                MPN: 007021190
                SPAC. DOOR
                Impariglio serr. porte
                PART Genuine Lamborghini - New (to order)
                # 067
                MPN: 007060018
                SHOCK ABS
                USE 007060026
                from £93.69
                from £93.69
                ENGINE BONN.LIFTER Genuine Lamborghini - New In stock
                # 068
                MPN: 007021040
                TIE ROD
                Tirante sicura est. porte
                from £32.99
                from £32.99
                OUTS.DOOR SAF.LOCK TIE ROD Genuine Lamborghini - New (to order)
                # 069
                MPN: 007021016
                BALL JOINT
                Testina com. serr. 78926/c
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 070
                MPN: 007021031
                LOCK SUPPOR
                Supp. leva serratura sin.
                from £188.21
                from £188.21
                L LOCK LEVER SUPPORT Genuine Lamborghini - New (to order)
                # 071
                MPN: 006558588
                KNOB
                Pomello sic. porte 4108831
                from £9.26
                from £9.26
                DOOR SAFETY LOCK Genuine Lamborghini - New (to order)
                # 072
                MPN: 007021181
                UNION DOOR
                Compl. maniglia int. aper. porta
                Lamborghini PART 007021181 Genuine Lamborghini - New (to order)
                # 073
                MPN: 007021041
                GASKET
                Guarnizione x supporto vetro mobile
                Lamborghini PART 007021041 Genuine Lamborghini - New (to order)
                # 074
                MPN: 007059004
                BONNET HING
                Cerniera sin. cofani /c
                from £99.01
                from £99.01
                BONNET LEFT HINGE Genuine Lamborghini - New (to order)
                # 075
                MPN: 007021034
                GLASS SUPPO
                Supporto vetro mobile
                from £234.64
                from £234.64
                MOV.GLASS SUPPORT Genuine Lamborghini - New (to order)
                # 076
                MPN: 008100601
                BOLT
                Bull. m6x18 UNI 5739 8G
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 077
                MPN: 008410601
                WASHER
                Rond. el. rde — 6
                from £0.52
                from £0.52
                WASHER 12X6.1X0.6 C72 Genuine Lamborghini - New (to order)
                # 078
                MPN: 008400606
                WASHER
                Rond. 6,4 UNI 1734
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 079
                MPN: 008200604
                NUT
                Dado m6 uni 5588— 65/8G
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 080
                MPN: WHT001187
                WASHER
                Rond. 5,3 UNI 1734 5S
                from £0.54
                from £0.54
                This part replaces part number 008400502
                WASHER 10X5.3X1 UNI 6952 CAT-A Genuine Lamborghini - New In stock

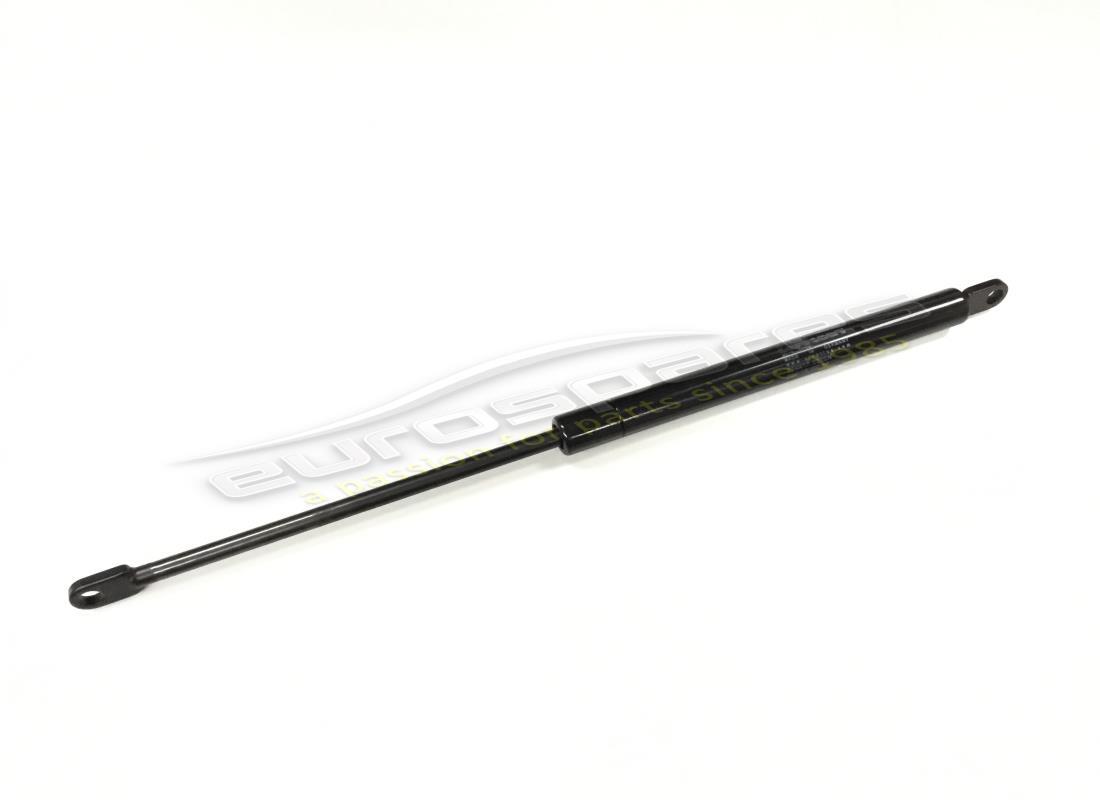

                # 081
                MPN: 007059026
                FRONT COVER STRUT
                Ammortizzatore a gas apert. cofano anter.
                from £37.73
                from £37.73
                FRONT HOOD DAMPER Genuine Lamborghini - New In stock
                FRONT HOOD DAMPER Original Equipment - New In stock
                # 082
                MPN: 007017001
                SIDE WINDOW
                Voletto fisso sin. /c
                from £438.61
                from £438.61
                LH FIXED BUTT.WINDOW Genuine Lamborghini - New (to order)
                # 082
                MPN: 007017002
                SIDE WINDOW
                Voletto fisso des./c
                from £438.61
                from £438.61
                RH FIXED BUTT.WINDOW Genuine Lamborghini - New (to order)
                # 083
                MPN: 007021113
                DEFR
                Canalina veil. post, x deflettore
                from £62.69
                from £62.69
                REAR VELOUR CHANNEL Genuine Lamborghini - New (to order)
                # 084
                MPN: 007090069
                GASKET
                Guam, x porta parte sup.
                from £45.31
                from £45.31
                150 CM SEAL Genuine Lamborghini - New In stock
                # 085
                MPN: 007021115
                WINDOW
                Velluto x vetro deflettore
                Lamborghini PART 007021115 Genuine Lamborghini - New (to order)
                # 086
                MPN: 007021193
                PINS
                Perni x ammortizzatori
                from £19.15
                from £19.15
                DOOR STRUT SHOCKS Genuine Lamborghini - New In stock
                # 087
                MPN: 007017016
                SPACER
                Cornice x vetro lat. post, dex
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 087
                MPN: 007017017
                SPACER
                Cornice x vetro fat. post. sin.
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 088
                MPN: 006958530
                AIR VENT TR
                Mostr. 4246179 abitacolo
                from £20.20
                from £20.20
                PASSEMBLY TRIM Genuine Lamborghini - New (to order)
                # 089
                MPN: 007090075
                GASKET
                Guam, x cofano ant. inf. laterals
                from £76.12
                from £76.12
                FRONT BONNET SEAL Genuine Lamborghini - New (to order)
                # 090
                MPN: 007090067
                GASKET
                Guam, x cofano ant. inf. centrale
                from £66.24
                from £66.24
                BONNET SEAL Genuine Lamborghini - New (to order)
                # 091
                MPN: 007010011
                RH AIR INTAKE
                from £1,513.13
                from £1,513.13
                RH AIR INTAKE Genuine Lamborghini - New (to order)
                # 091
                MPN: 007010012
                LH AIR INTAKE
                from £1,513.13
                from £1,513.13
                LH AIR INTAKE Genuine Lamborghini - New (to order)
                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
