lamborghini countach 5000 qv (1985) fibreglass inner coverings parts diagram

042 - Fibreglass Inner Coverings

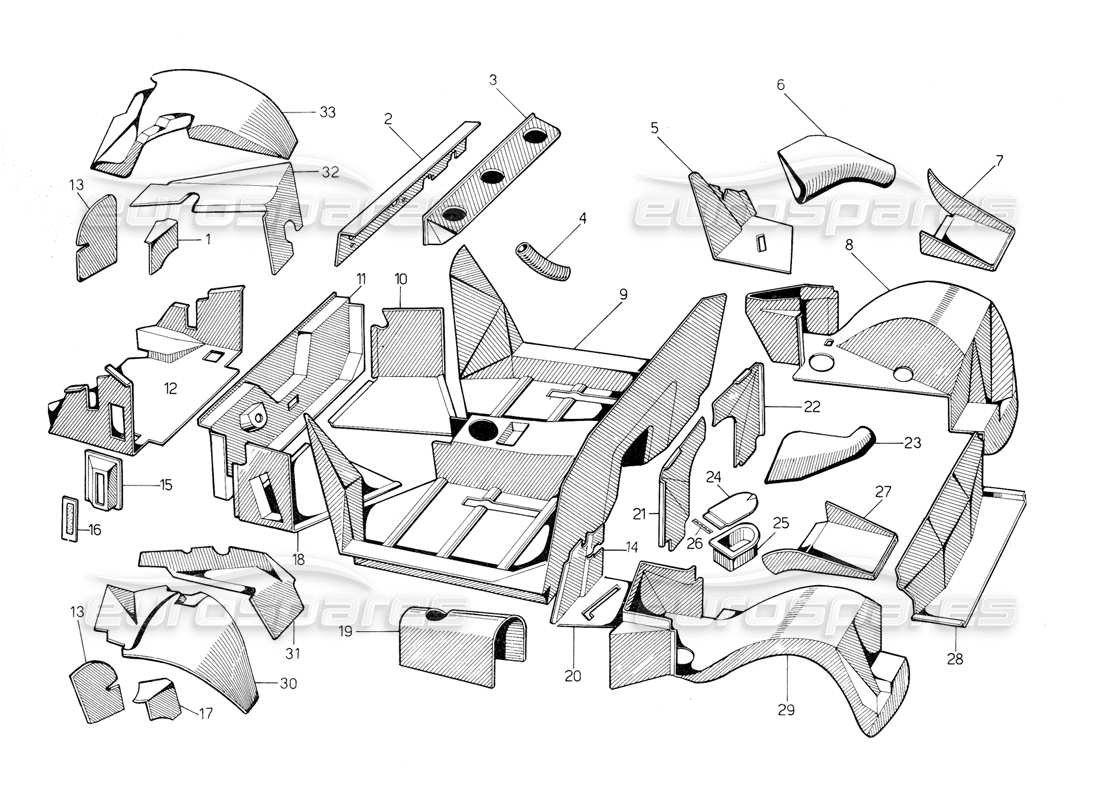

Lamborghini Countach 5000 QV (1985) Fibreglass Inner Coverings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 007009074
BULK HEAD
Paratia passa ruota des.
Lamborghini PART 007009074 Genuine Lamborghini - New (to order)
# 002
MPN: 007011026
GUARD
Parafiamma ant. sup.
from £636.76
from £636.76
UPPER FRONT FIRE GUARD Genuine Lamborghini - New (to order)
# 003
MPN: 007011030
AIR DUCT
Convogl. aria palpebra
from £1,660.12
from £1,660.12
Lamborghini PART 007011030 Genuine Lamborghini - New (to order)
# 004
MPN: 004711726
TUBE
Tubo corrug. mand. aria
from £26.63
from £26.63
AIR DELIVERY CORRUGATED PIPE Genuine Lamborghini - New (to order)
# 005
MPN: 007011033
PANEL
Rivest. vano motore des.
Lamborghini PART 007011033 Genuine Lamborghini - New (to order)
# 006
MPN: 007053011
AIR
Presa aria super, dex.
AIR Genuine Lamborghini - New (to order)
# 007
MPN: 007011079
AIR INLET
Convogliatore aria des.
from £542.14
from £542.14
RIGHT AIR DUCT Genuine Lamborghini - New (to order)
# 008
MPN: 007011113
UNIT WHEEL
Compless. passaruota post. dex.
Lamborghini PART 007011113 Genuine Lamborghini - New (to order)
# 009
MPN: 007011008
PANEL
Pianale countach
PIANALE Genuine Lamborghini - New (to order)
# 010
MPN: 007011028
RIGHT PANEL
Fianchetto int. des.
from £1,882.08
from £1,882.08
RIGHT INT.SIDE PANEL Genuine Lamborghini - New In stock
# 010
MPN: 007011130
FIBER GLASS
(Valid for GB - January 1984) Fianchetto in vetroresina vano piedi lato dex.
from £118.56
from £118.56
FOOT COMP.SIDE PANEL Genuine Lamborghini - New (to order)
# 011
MPN: 007011027
GUARD
Parafiamma ant. inf.
from £1,173.15
from £1,173.15
BULKHEAD GUARD Genuine Lamborghini - New (to order)
# 012
MPN: 007011001
SPARE WHEEL
Contenitore ruota scorta
from £3,851.99
from £3,851.99
Spare wheel container Genuine Lamborghini - New (to order)
# 013
MPN: 007009045
SHIELD
Paratia sul passaruota ant. des.
Lamborghini PART 007009045 Genuine Lamborghini - New (to order)
# 014
MPN: 007009104
SPACER
Paratia prot. serb. benz. sup. sin.
from £1,330.72
from £1,330.72
FUEL TANK GUARD UPPER BULKHEAD Genuine Lamborghini - New (to order)
# 015
MPN: 007011004
GUARD
Protez. des. cremagliera
Lamborghini PART 007011004 Genuine Lamborghini - New (to order)
# 015
MPN: 007011005
GUARD
Protez. sin. cremagliera
Lamborghini PART 007011005 Genuine Lamborghini - New (to order)
# 016
MPN: 007011108
UNIT WHEEL
Compl. paratia scatl. x pass, asta cremagliera dex e sin.
from £444.43
from £444.43
COMPLES.PARAT.PASS.ASTA C Genuine Lamborghini - New (to order)
# 017
MPN: 007009075
BULK HEAD
Paratia passa ruota sin.
from £569.61
from £569.61
FRONT WHEELHOUSE ASSEMBLY Genuine Lamborghini - New (to order)
# 018
MPN: 007011029
LEFT PANEL
Fianchetto int. sin.
from £1,019.80
from £1,019.80
LEFT INT.SIDE PANEL Genuine Lamborghini - New In stock
# 019
MPN: 007011009
COVER
Rivest. tunnel x isolamento
from £1,193.93
from £1,193.93
INSULT. TUNNEL COVER. Genuine Lamborghini - New (to order)
# 020
MPN: 007009098
SPACER
Paratia fra AB e vano motore lat. sin.
from £1,330.72
from £1,330.72
PASSEMBLYCOMP OMP.BULKHEAD Genuine Lamborghini - New (to order)
# 021
MPN: 007011035
PANEL
Rivest. zona sin. frizione
from £416.22
from £416.22
CLUTCH RIGHT SIDE COVER. Genuine Lamborghini - New (to order)
# 022
MPN: 007011034
PANEL
Rivest. zona des. frizione
from £416.22
from £416.22
CLUTCH RIGHT SIDE COVER. Genuine Lamborghini - New (to order)
# 023
MPN: 007053012
UNIT AIR
Presa aria super, sin.
UNIT AIR Genuine Lamborghini - New (to order)
# 024
MPN: 006211538
FILLER CAP
Port, bocchett. benz./C
from £17.75
from £17.75
FILLER FLAP Genuine Lamborghini - New (to order)
# 025
MPN: 007011015
HOUSIN
Caren. bocchett. benzina
Lamborghini PART 007011015 Genuine Lamborghini - New (to order)
# 026
MPN: 006211537
HINGE
Cerniera port. benz./C
from £21.56
from £21.56
FUEL FLAP HINGE Genuine Lamborghini - New (to order)
# 027
MPN: 007011078
AIR INLET
Convogliatore aria sin.
from £461.82
from £461.82
LEFT AIR DUCT Genuine Lamborghini - New (to order)
# 028
MPN: 007011024
GUARD
Paratia vano mot/baule
from £2,134.96
from £2,134.96
ENGINE COMP./BOOT BULKHEAD Genuine Lamborghini - New (to order)
# 029
MPN: 007011114
UNIT REAR
Compl. passaruota post. sin.
from £4,008.75
from £4,008.75
REAR WHEELHOUSE ASSEMBLY Genuine Lamborghini - New (to order)
# 030
MPN: 007011089
FRONT PANEL
Passaruota ant. sin.
from £974.20
from £974.20
LF WHEELHOUSE Genuine Lamborghini - New (to order)
# 031
MPN: 007011083
PIPE GUARD
Protez. Tubi passaruota ant.
from £692.31
from £692.31
FRONT WHEELH PIPE GUARD Genuine Lamborghini - New (to order)
# 032
MPN: 007011082
PIPE GUARD
Protez. Tubi passaruota ant.
from £692.31
from £692.31
FRONT WHEELH PIPE GUARD Genuine Lamborghini - New In stock
# 033
MPN: 007011088
FRONT .PANEL
Passaruota ant. des.
from £974.20
from £974.20
RF WHEELHOUSE Genuine Lamborghini - New (to order)
