lamborghini countach 5000 qvi (1989) electrical system parts diagram

006 - electrical system

Lamborghini Countach 5000 QVi (1989) Electrical System Parts Diagram

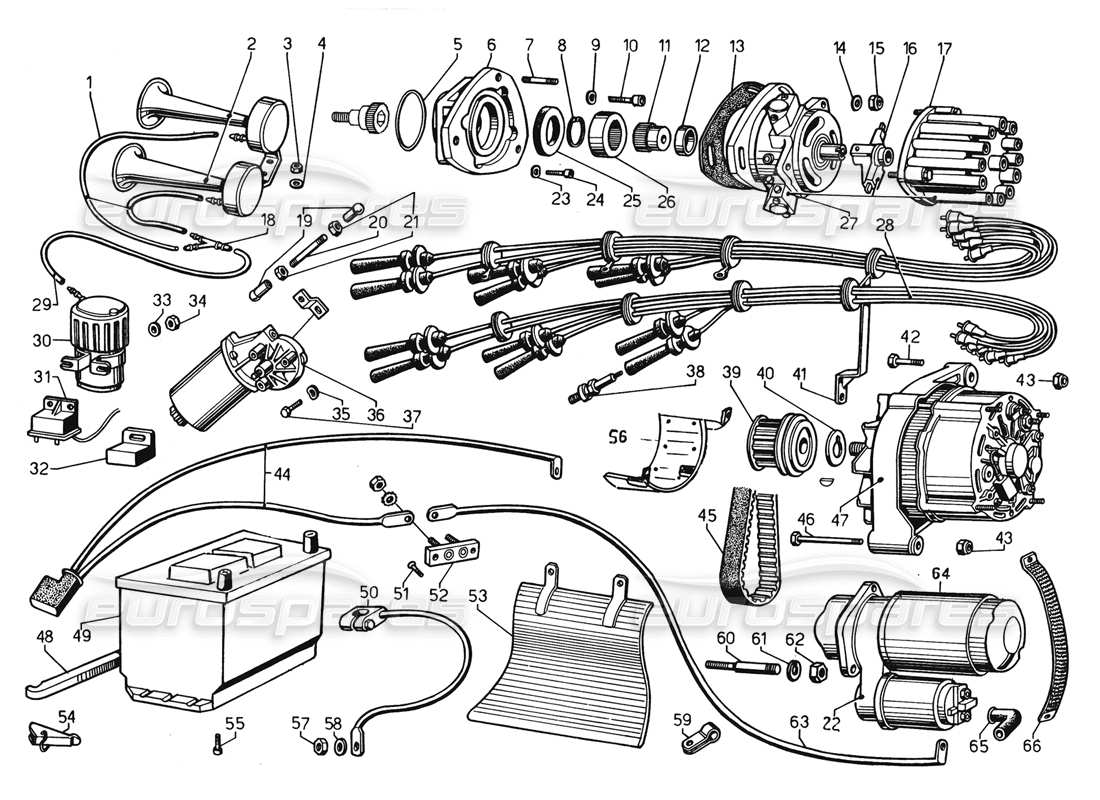

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 006111138
        TUBE
        Tubo dal tre vie alia tromba
        from £3.03
        from £3.03
        THREE-WAY/HORN PIPE Genuine Lamborghini - New (to order)
        # 002
        MPN: 005935553
        CLAXON
        Avvis. elettropn. fiamm TA/OGT 165.707.02
        from £49.71
        from £49.71
        HORN Genuine Lamborghini - New (to order)
        HORN Genuine Lamborghini - Used In stock
        # 003
        MPN: N0111849
        NUT
        DADO N/70/108M
        from £1.47
        from £1.47
        This part replaces part number 008200809
        HEX.HEAD CLAMPING NUT Genuine Lamborghini - New In stock
        # 004
        MPN: N90179103
        WASHER
        Rond. 8,4 UNI 1/34 8G
        from £1.04
        from £1.04
        This part replaces part number 008400801
        WASHER Genuine Lamborghini - New (to order)
        # 005
        MPN: 008605803
        O RING
        ANELLO OR RIF. 162
        from £0.54
        from £0.54
        OR RING Genuine Lamborghini - New In stock
        # 006
        MPN: 001621009
        SUPPORT
        SUPPORTO SPINTEROGENO
        from £196.50
        from £196.50
        DISTRIBUTOR BRACKET Genuine Lamborghini - New (to order)
        # 007
        MPN: 008300818
        BOLT
        Prig. M8x30UNI 5911 8G
        from £2.85
        from £2.85
        STUD M8X30 UNI 5911 8G ZD Genuine Lamborghini - New (to order)
        # 008
        MPN: 008573202
        LOCK RING
        SEEGER AA 30 I
        from £3.48
        from £3.48
        O-RING I 30 UNI 3654 Genuine Lamborghini - New (to order)
        # 009
        MPN: 008410810
        LOCK WASHER
        RONDELLA DI FERMO DIN 137/4
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 010
        MPN: N10518402
        SCREW M8X30
        from £3.85
        from £3.85
        12-POINT SOCKET Genuine Lamborghini - New In stock
        # 011
        MPN: 001619338
        DRAFT GEAR
        Traino per distributore di accensione
        from £242.94
        from £242.94
        SPARK DISTRIBUTOR GEAR Genuine Lamborghini - New (to order)
        # 012
        MPN: 001612737
        RING
        ANELLO PARAOLIO
        from £17.59
        from £17.59
        OIL SEAL RING Genuine Lamborghini - New (to order)
        # 013
        MPN: 001600371
        SPACER
        Spess. supp. spinterogeno
        from £50.17
        from £50.17
        DISTRIBUTOR MOUNT SHIM Genuine Lamborghini - New (to order)
        # 014
        MPN: N90179103
        WASHER
        Rond. 8,4 UNI 1734 8G
        from £1.01
        from £1.01
        This part replaces part number 008400801
        WASHER Genuine Lamborghini - New (to order)
        # 015
        MPN: 008200809
        NUT
        DADO B/70/208M
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 017
        MPN: 001613316
        CAP
        Calotta x spinterogeno
        CAP Genuine Lamborghini - New (to order)
        # 018
        MPN: 006108392
        PIPE UNION
        Race, a 3 vie trombe/compr.
        from £2.27
        from £2.27
        THREE-WAY UNION Genuine Lamborghini - New In stock
        # 019
        MPN: 007044005
        JOINT
        Giunto AS 10 DIN 71802/C
        Lamborghini PART 007044005 Genuine Lamborghini - New (to order)
        # 020
        MPN: 008300629
        BOLT
        PRIG. M6x1x58 8G
        from £14.43
        from £14.43
        SPECIAL STUD M6X40 Genuine Lamborghini - New (to order)
        # 021
        MPN: 008200602
        NUT
        DADO M6 UNI 5588 5S
        from £0.53
        from £0.53
        M6 UNI 5588 5S/F NUT Genuine Lamborghini - New In stock
        # 023
        MPN: 008410602
        LOCK WASHER
        RONDELLA DI FERMO DIN 137/B
        from £27.52
        from £27.52
        WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
        # 024
        MPN: 008700612
        SCREW
        VITE 6x1 UNI 5931
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 025
        MPN: 008613504
        OIL RETAIN
        ANELLO DPSM 35527 AP
        from £7.31
        from £7.31
        OIL SEAL 35X52X7 MM Genuine Lamborghini - New (to order)
        # 026
        MPN: 001600376
        DISTR. JOINT
        Cannotto PDF Spinterogeno
        from £274.10
        from £274.10
        DISTRIBUTOR P.T.O. SLEEVE Genuine Lamborghini - New In stock
        # 027
        MPN: 001619332
        DISTRIBUTOR
        Distributore d'accensione vs. 5158E
        from £6,324.85
        from £6,324.85
        SPARK DISTRIBUTOR Genuine Lamborghini - New (to order)
        # 028
        MPN: 001623453
        CABLES
        Spark plug wire assembly
        from £1,019.80
        from £1,019.80
        DISTRIBUTOR/SPARK PLUG WIRE AS SEMBLY Genuine Lamborghini - New (to order)
        # 029
        MPN: 006111139
        TUBE
        Tubo dal compressore al tre vie
        from £8.25
        from £8.25
        THREE-WAY/COMPRESSORPIPE Genuine Lamborghini - New (to order)
        # 030
        MPN: 006119514
        CLAXON COM
        Elettrocompress. M/1 2000 vs. 163.707.00
        from £68.07
        from £68.07
        COMPRESSOR Genuine Lamborghini - New (to order)
        # 031
        MPN: 001619270
        RELAY
        Relais x trombe con pulsan. com. sul posit
        from £11.11
        from £11.11
        HORN RELAY & BUTTON Genuine Lamborghini - New (to order)
        # 032
        MPN: 006311152
        RELAY
        Relais 0332204150 fari
        from £74.88
        from £74.88
        LIGHT RELAY Genuine Lamborghini - New (to order)
        # 033
        MPN: N90179103
        WASHER
        Rond. 8,4 UNI 1734 8G
        from £1.04
        from £1.04
        This part replaces part number 008400801
        WASHER Genuine Lamborghini - New (to order)
        # 034
        MPN: N0111849
        NUT
        DADO N/70/108M
        from £1.47
        from £1.47
        This part replaces part number 008200809
        HEX.HEAD CLAMPING NUT Genuine Lamborghini - New In stock
        # 035
        MPN: 008410603
        LOCK WASHER
        Rond. A6,4 UN I 1751 C72
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 036
        MPN: 006990050
        LIGHT MOTOR
        Mot. alzafari ds. 401400/C
        from £2,111.46
        from £2,111.46
        RH HEADLAMP ADJUSTMENT MOTOR Genuine Lamborghini - New In stock
        RH HEADLAMP ADJUSTMENT MOTOR Genuine Lamborghini - Used In stock
        # 036
        MPN: 006990051
        LIGHT MOTOR
        Mot. alzafari sn. 401401/C
        from £3,449.10
        from £3,449.10
        LH HEADL. ADJUSTMENTMOTOR Genuine Lamborghini - New (to order)
        # 037
        MPN: 008100601
        BOLT
        Bull. M6x18 UNI 5739 8G
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 038
        MPN: 001630009
        Spark Plugs
        from £14.95
        from £14.95
        This part replaces part number 001625635
        SPARK PLUG Genuine Lamborghini - New In stock
        SPARK PLUG Original Equipment - New In stock
        # 039
        MPN: 001613761
        PULLEY
        Comples. puleggia traino alt. e pompa aria
        from £70.23
        from £70.23
        ALTERNATOR DRIVE PULLEY ASSEMB LY Genuine Lamborghini - New (to order)
        # 040
        MPN: 001619952
        SPACER
        distanz. puleggia e alternatore
        SPACER Genuine Lamborghini - New (to order)
        # 041
        MPN: 001621931
        SUPPORT
        Gancio passafili candele
        from £6.26
        from £6.26
        SPARK PLUGS WIRE HOOKS Genuine Lamborghini - New In stock
        # 042
        MPN: 008101019
        BOLT
        Bull. M10x45 UNI 5737 10K
        from £2.83
        from £2.83
        SCREW M10X1.5X45 UNI5737/ Genuine Lamborghini - New (to order)
        # 043
        MPN: 008201008
        NUT
        DADO B/70/21OM
        from £0.56
        from £0.56
        NUT Genuine Lamborghini - New In stock
        # 044
        MPN: 001610771
        BATTER CABL
        Cavo batt./mot. avv./C
        from £150.45
        from £150.45
        BATTERY/STARTER MOTOR WIRE Genuine Lamborghini - New (to order)
        # 045
        MPN: 001613915
        BELT
        Cinghia traino altern. 210LP100
        from £560.30
        from £560.30
        ALTERNATOR DRIVE BELT Genuine Lamborghini - New (to order)
        # 046
        MPN: 008101045
        BOLT
        Bull. M10x85 UNI 5737 8G
        from £0.64
        from £0.64
        SCREW M10X1.5X85 5737 8GZG Genuine Lamborghini - New (to order)
        # 047
        MPN: 001620643
        ALTERNATOR
        Altern. compl. di vent. vs. 0120469667
        ALTERNATOR Genuine Lamborghini - New (to order)
        # 048
        MPN: 001624065
        SPACER
        Battery fixing bracket
        from £45.74
        from £45.74
        BATTERY BRACKET Genuine Lamborghini - New (to order)
        # 049
        MPN: 001624066
        Battery
        Batteria
        Battery Genuine Lamborghini - New (to order)
        # 050
        MPN: 001604746
        BATTER CABL
        CAVO NEGAT. BATTERIA
        from £240.44
        from £240.44
        BATTERY NEGATIVE WIRE Genuine Lamborghini - New (to order)
        # 051
        MPN: 008700801
        SCREW
        Vite M8x16 UNI 5933-67/A
        from £0.53
        from £0.53
        SCREW M8X16 UNI 5933/5S/Z Genuine Lamborghini - New (to order)
        # 052
        MPN: 001606170
        BAT. CABLE A
        Mors. colleg. cavi batt.
        from £35.33
        from £35.33
        BATTERY WIRE TERMINALS Genuine Lamborghini - New (to order)
        # 053
        MPN: 001621814
        BULK HEAD
        Paratia mot. avviamento
        from £234.93
        from £234.93
        STARTER MOTOR BULKHEAD Genuine Lamborghini - New (to order)
        STARTER MOTOR BULKHEAD Genuine Lamborghini - Used In stock
        # 054
        MPN: 001611380
        BA RETAIN
        Gancio batteria USM 325D
        Lamborghini PART 001611380 Genuine Lamborghini - New (to order)
        # 055
        MPN: 008700512
        SCREW
        Allen screw 5x0,8 x 10 8G
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 056
        MPN: 001624013
        BULK HEAD
        Alternate thermal protection bulkhead assembly.
        BULK HEAD Genuine Lamborghini - New (to order)
        # 057
        MPN: N01100845
        NUT
        DADO M8 UNI 5587-65/8G
        from £0.47
        from £0.47
        This part replaces part number 008200801 - and 2 more. Click to view details
        HEX.NUT Genuine Lamborghini - New In stock
        HEXAGON NUT Genuine Porsche Part - New (to order)
        # 058
        MPN: N90179103
        WASHER
        Rond. 8,4 UNI 1734 8G
        from £1.06
        from £1.06
        This part replaces part number 008400801
        WASHER Genuine Lamborghini - New (to order)
        # 059
        MPN: 008830114
        CLAMP RING
        Fascetta passacavo
        from £65.89
        from £65.89
        GROMMET CLAMP Genuine Lamborghini - New (to order)
        # 060
        MPN: 008301215
        BOLT
        Prig. 12x1,75x75
        from £11.61
        from £11.61
        STARTER MOTOR SPECIAL STUD Genuine Lamborghini - New In stock
        # 061
        MPN: 008411303
        LOCK WASHER
        Rond. el. a 13 UNI 1751
        from £1.91
        from £1.91
        SNAP RING 21X13X2.5 UNI 175 1 C72/Z Genuine Lamborghini - New (to order)
        # 062
        MPN: 008201211
        NUT
        DADO M12 UNI 5588-65/8G
        from £5.19
        from £5.19
        M12X1.75X10 UNI 5588/ 8G/Z NUT Genuine Lamborghini - New (to order)
        # 063
        MPN: 001605790
        BATTER CABL
        Cavo batt. mot./avv. corto
        CABLE Genuine Lamborghini - New (to order)
        # 064
        MPN: 001604460
        STARTER MOTOR
        from £1,995.00
        from £1,995.00
        STARTER MOTOR Genuine Lamborghini - New (to order)
        STARTER MOTOR Genuine Lamborghini - Reconditioned In stock
        # 065
        MPN: 001606173
        CABLE CAP
        Pipetta cavo mot. avv.to
        from £0.83
        from £0.83
        STARTER MOTOR WIRE PIPETTE Genuine Lamborghini - New (to order)
        # 066
        MPN: 001604328
        ST MOTOR CA
        Cavo massa mot/telaio e marmitte
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
