lamborghini countach 5000 qvi (1989) water pump and system parts diagram

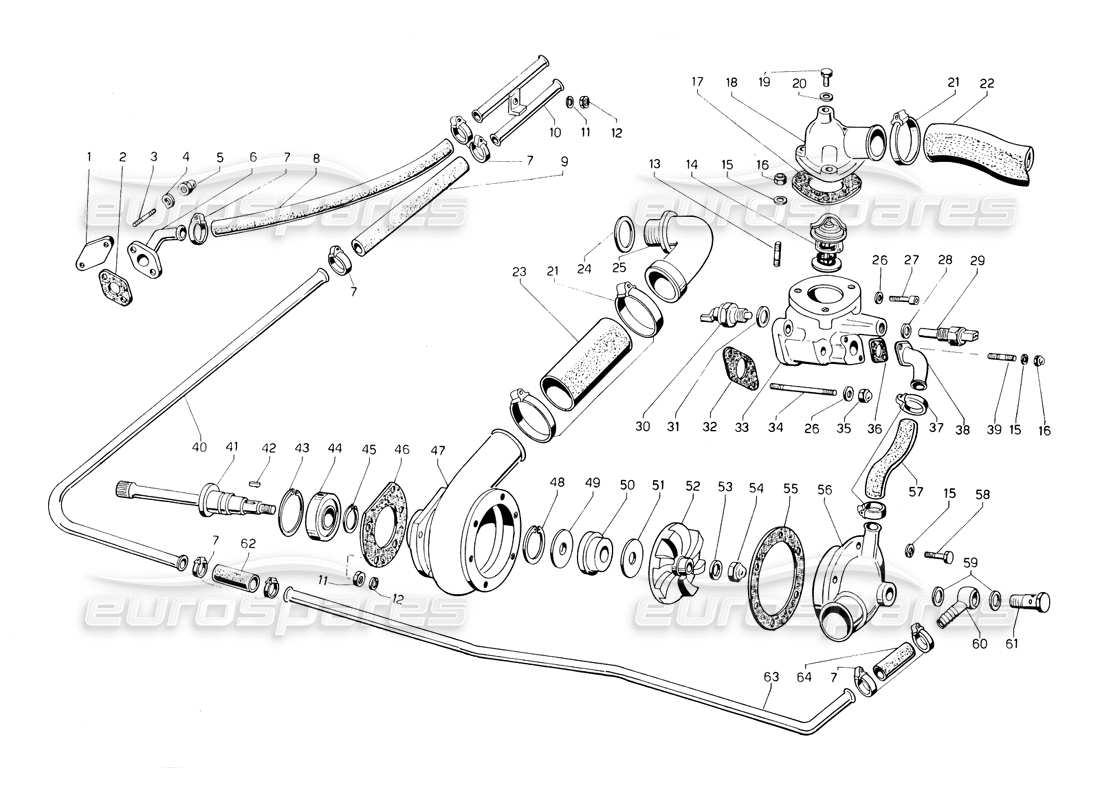

008 - water pump and system

Lamborghini Countach 5000 QVi (1989) Water Pump and System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 001
            MPN: 001121252
            FLANGE
            Flangia chius. fori uscita acq. da testa P
            from £17.17
            from £17.17
            OUTLET HOLE CLOSING FLANGE Genuine Lamborghini - New (to order)
            # 002
            MPN: 001121254
            GASKET
            GUARNIZIONE x FLANGIA
            from £5.41
            from £5.41
            FLANGE SEAL Genuine Lamborghini - New In stock
            # 003
            MPN: 008300610
            BOLT
            PRIG. 6x1x16 8G
            from £15.96
            from £15.96
            STUD 6X1X16 8G UNI5911 Z. Genuine Lamborghini - New (to order)
            # 004
            MPN: 008410603
            LOCK WASHER
            Rond. A6,4 UNI 1751 C72
            Supersession
            Supersession
            Genuine Lamborghini (no longer available to order)
            # 005
            MPN: 008200605
            NUT
            Dado orig. Drama vs. rif. NCM70 106M
            from £1.82
            from £1.82
            M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
            # 006
            MPN: 001722783
            FLANGE
            ASSIEME FLANGIA USCITA ACQUA
            Lamborghini PART 001722783 Genuine Lamborghini - New (to order)
            # 007
            MPN: 008830206
            CLAMP RING
            FASC. ROYAL 00/12 18/30
            from £12.93
            from £12.93
            CLAMP Genuine Lamborghini - New (to order)
            # 008
            MPN: 001722787
            TUBE
            Tubo dall'ass. sulla testa sin. alia giunz.
            from £24.96
            from £24.96
            LH HEAD ASSEMBLY PIPE Genuine Lamborghini - New (to order)
            # 009
            MPN: 001722898
            TUBE
            Tubo dalla giunz. interm. a use. pompa H20
            from £12.35
            from £12.35
            PIPE FROM INTERMEDIATE JOINT T O OUTLET Genuine Lamborghini - New (to order)
            # 010
            MPN: 001726817
            PIPE JOINT
            Giunto Tubi riscald./C
            from £144.69
            from £144.69
            HEATER PIPE UNION Genuine Lamborghini - New (to order)
            # 011
            MPN: 008400606
            WASHER
            Rond. 6,4 UNI 1734
            Supersession
            Supersession
            Genuine Lamborghini (no longer available to order)
            # 012
            MPN: 008200606
            NUT
            Supersession
            Supersession
            Genuine Lamborghini (no longer available to order)
            # 013
            MPN: 008300615
            STUD
            PRIG. 6x1x22 8G
            from £13.11
            from £13.11
            STUD 6X22 UNI 5911/8G/Z Genuine Lamborghini - New (to order)
            # 014
            MPN: 001726199
            THERMOSTAT
            from £105.30
            from £105.30
            SAVARA THERMOSTAT Genuine Lamborghini - New In stock
            # 015
            MPN: 008410602
            LOCK WASHER
            RONDELLA DI FERMO DIN 137/B
            from £27.79
            from £27.79
            WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
            # 016
            MPN: 008200605
            NUT
            Dado orig. Urama vs. rif. NCM70 106M
            from £1.77
            from £1.77
            M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
            # 017
            MPN: 001721917
            GASKET
            Guarniz. tra corpo x term, e coperchio
            from £4.23
            from £4.23
            THERMOSTAT CASING & COVER SEAL Genuine Lamborghini - New (to order)
            # 018
            MPN: 001721862
            COVER
            Coperchio sul corpo x termostato
            from £1,600.19
            from £1,600.19
            THERMOSTAT CASING COVER Genuine Lamborghini - New (to order)
            # 019
            MPN: 008100864
            BOLT
            BULLONE
            from £2.37
            from £2.37
            SPECIAL SCREW M8X10 Genuine Lamborghini - New (to order)
            # 020
            MPN: 008400802
            WASHER
            Rond. 8x16x1,5 rame
            from £1.08
            from £1.08
            COPPER WASHER 8.4X16X1.5 Genuine Lamborghini - New In stock
            # 021
            MPN: 008830801
            CLAMP RING
            Cable ties
            CLAMP RING Genuine Lamborghini - New (to order)
            # 022
            MPN: 001722217
            SLEEVE
            Manicotto orig. 96682
            from £159.96
            from £159.96
            SLEEVE Genuine Lamborghini - New (to order)
            # 023
            MPN: 001701983
            PIPE UNION
            MANICOTTO POMPA ACQUA
            from £39.95
            from £39.95
            COOLANT PUMP SLEEVE Genuine Lamborghini - New (to order)
            # 024
            MPN: 001701783
            GASKET
            Rond. 32x380,5-1-1,5
            from £6.18
            from £6.18
            WASHER 32X38 0.5-1-1.5 Genuine Lamborghini - New In stock
            # 025
            MPN: 001704506
            PIPE
            Tubo entr. acqua
            from £754.84
            from £754.84
            COOLANT INLET PIPE Genuine Lamborghini - New (to order)
            # 026
            MPN: 008410810
            LOCK WASHER
            RONDELLA DI FERMO DIN 137/4
            Supersession
            Supersession
            Genuine Lamborghini (no longer available to order)
            # 027
            MPN: 008700815
            SCREW
            Vite 8x1, 25x19 UNI 5931 8G
            from £0.53
            from £0.53
            SCREW M8X20 UNI 5931/8G/ZD Genuine Lamborghini - New In stock
            # 028
            MPN: 008401425
            WASHER
            RONDELLA
            Supersession
            Supersession
            Genuine Lamborghini (no longer available to order)
            # 029
            MPN: 002021143
            SWITCH
            Interruttori termici vs. cod. 02880L30214
            from £507.55
            from £507.55
            THERMOSTAT SWITCH Genuine Lamborghini - New (to order)
            # 030
            MPN: 001801333
            TERMOS SEND
            Termocop. temp, olio e acqua 082405.02
            from £87.32
            from £87.32
            OIL & COOLANT TEMPERATURE THER MOCOUPLE Genuine Lamborghini - New (to order)
            # 031
            MPN: 008401610
            WASHER
            RONDELLA
            from £6.53
            from £6.53
            ANNEALED COPPER WASHER 16X22X0 .5 Genuine Lamborghini - New In stock
            # 032
            MPN: 001721922
            GASKET
            Guarniz. fra le teste e II corpo x termos
            from £6.70
            from £6.70
            SEALS BETWEEN CASING& HEADS Genuine Lamborghini - New In stock
            # 033
            MPN: 001724005
            VALVE
            Corpo x termost. con collett. uscita H20
            from £305.95
            from £305.95
            THERMOSTAT /MANIFOLDHOUSING Genuine Lamborghini - New (to order)
            # 034
            MPN: 008300806
            BOLT
            Prig. M8x70 UNI 5911-66A 8G
            from £3.62
            from £3.62
            STUD M8X70 UNI 5911 9G Z Genuine Lamborghini - New (to order)
            # 035
            MPN: 008200816
            NUT
            DADO NCM 70 108M 8G
            from £2.99
            from £2.99
            SPECIAL NUT Genuine Lamborghini - New In stock
            # 036
            MPN: 001723758
            GASKET
            Guarniz. x tubo use. H20 dal corpo x term.
            from £2.18
            from £2.18
            COOLANT OUTLET PIPE SEAL Genuine Lamborghini - New In stock
            # 037
            MPN: 008832401
            CLAMP RING
            Fasc. royal AO/12 24/36
            from £4.90
            from £4.90
            CLAMP Genuine Lamborghini - New (to order)
            # 038
            MPN: 001723756
            TUBE
            Compl. tubo uscita H20 dal corpo x termos
            from £36.37
            from £36.37
            COOLANT OUTLET PIPE Genuine Lamborghini - New (to order)
            # 039
            MPN: 008300610
            BOLT
            PRIG. 6x1x16 8G
            from £15.96
            from £15.96
            STUD 6X1X16 8G UNI5911 Z. Genuine Lamborghini - New (to order)
            # 040
            MPN: 001723215
            TUBE
            Tubo coll. manic, inter, a giunz. int. x rise.
            from £88.19
            from £88.19
            SLEEVE FROM HOSE TO JOINT Genuine Lamborghini - New (to order)
            # 041
            MPN: 001700395
            PUMP SHAFT
            Alberino com. pompa acqua
            from £233.45
            from £233.45
            COOLANT PUMP DRIVE SHAFT Genuine Lamborghini - New (to order)
            # 042
            MPN: 008860401
            Key
            Linguetta 4x4x12
            from £18.29
            from £18.29
            TAB 4X4X12 Genuine Lamborghini - New (to order)
            # 043
            MPN: 008574301
            LOCK RING
            Seeger 40 I
            from £1.74
            from £1.74
            O-RING I 40 UNI 3654 Genuine Lamborghini - New In stock
            # 044
            MPN: 008501705
            BALL BEARIN
            Cusc. 6203-2RS EXALN17
            from £20.96
            from £20.96
            BEARING Genuine Lamborghini - New (to order)
            BEARING Eurospares Approved Part - New In stock
            # 045
            MPN: 008581501
            LOCK RING
            Seeger 17 E
            from £0.54
            from £0.54
            O-RING E 17 UNI 7435-75 Genuine Lamborghini - New In stock
            # 046
            MPN: 001700391
            GASKET
            Guam, pompa acqua
            from £7.63
            from £7.63
            COOLANT PUMP SEAL Genuine Lamborghini - New In stock
            # 047
            MPN: 001713339
            PUMP UNIT
            Corpo pompa acqua/C
            from £1,815.75
            from £1,815.75
            COOLANT PUMP CASING Genuine Lamborghini - New (to order)
            # 048
            MPN: 07M109381
            LOCK RING
            Seeger 35 I
            from £1.16
            from £1.16
            This part replaces part number 008573501 - and 1 more. Click to view details
            SEEGER Ring I 35 UNI 3654 Genuine Lamborghini - New (to order)
            # 049
            MPN: 001712753
            WASHER
            Rond. ras. pompa acqua/E
            from £122.81
            from £122.81
            This part replaces part number 001700369 - and 1 more. Click to view details
            COOLANT PUMP SHIM ADJUSTMENT WASHER Genuine Lamborghini - New (to order)
            # 050
            MPN: 008611703
            WATER PUMP SEAL
            from £148.56
            from £148.56
            WATER PUMP SEAL Genuine Lamborghini - New (to order)
            WATER PUMP SEAL Eurospares Approved Part - New In stock
            # 051
            MPN: 001712752
            WASHER
            Rond. spallam. tenuta acqua/E
            from £21.40
            from £21.40
            This part replaces part number 001700397
            COOLANT SEAL SHOULDER WASHER Genuine Lamborghini - New In stock
            # 052
            MPN: 001712750
            ROTOR
            Girante pompa acqua/C
            from £226.55
            from £226.55
            This part replaces part number 001709854
            COOLANT PUMP IMPELLER Genuine Lamborghini - New (to order)
            # 053
            MPN: WHT000768
            LOCK WASHER
            from £1.36
            from £1.36
            This part replaces part number 008410806 - and 1 more. Click to view details
            SPRING WASHER Genuine Lamborghini - New In stock
            # 054
            MPN: 008201005
            NUT
            DADO M10 UNI 5721-65/OTT
            from £7.92
            from £7.92
            M10 UNI 5721-65 SPECIAL NUT Genuine Lamborghini - New (to order)
            # 055
            MPN: 001704578
            GASKET
            from £11.81
            from £11.81
            CASING/COVER SEAL Genuine Lamborghini - New In stock
            # 056
            MPN: 001721992
            COVER
            COPERCHIO POMPA ACQUA
            from £3,385.08
            from £3,385.08
            COOLANT PUMP COVER Genuine Lamborghini - New (to order)
            # 057
            MPN: 001723085
            SLEEVE
            Race rubber hose, on the water pump body
            from £114.42
            from £114.42
            RUBBER HOSE FROM UNION ON CASI NG Genuine Lamborghini - New (to order)
            # 058
            MPN: 008100625
            BOLT
            Bull. M6x16 UNI 5739/8G
            from £86.04
            from £86.04
            SCREW M6X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
            # 059
            MPN: 008401804
            WASHER
            ROND. RAME 18,2x30x1
            from £2.61
            from £2.61
            ANNEALED COPPER WASHER 18.2X30 X1 Genuine Lamborghini - New In stock
            # 060
            MPN: 001723284
            UNION
            RACCORDO AD OCCHIO PORTA-GOMMA
            from £12.56
            from £12.56
            EYE UNION Genuine Lamborghini - New (to order)
            # 061
            MPN: 001723285
            SCREW
            Vite forata x race, sulla pompa acqua
            from £19.94
            from £19.94
            UNION DRILLED SCREW ON PUMP Genuine Lamborghini - New (to order)
            # 062
            MPN: 001723214
            TUBE
            Manic, x tubaz. fra pompa H20 e giunz. int.
            TUBE Genuine Lamborghini - New (to order)
            # 063
            MPN: 001723213
            TUBE
            Tubo coll.to pompa acqua al manic, interm.
            from £172.50
            from £172.50
            UNION PIPE TO COOLANT PUMP Genuine Lamborghini - New (to order)
            # 064
            MPN: 001722226
            TUBE
            Manic, colleg. tubo dalla giunz. al cop. pom
            from £14.98
            from £14.98
            SLEEVE FROM PIPE TO JOINT Genuine Lamborghini - New (to order)
