lamborghini countach 5000 qvi (1989) gearbox casting parts diagram

019 - Gearbox Casting

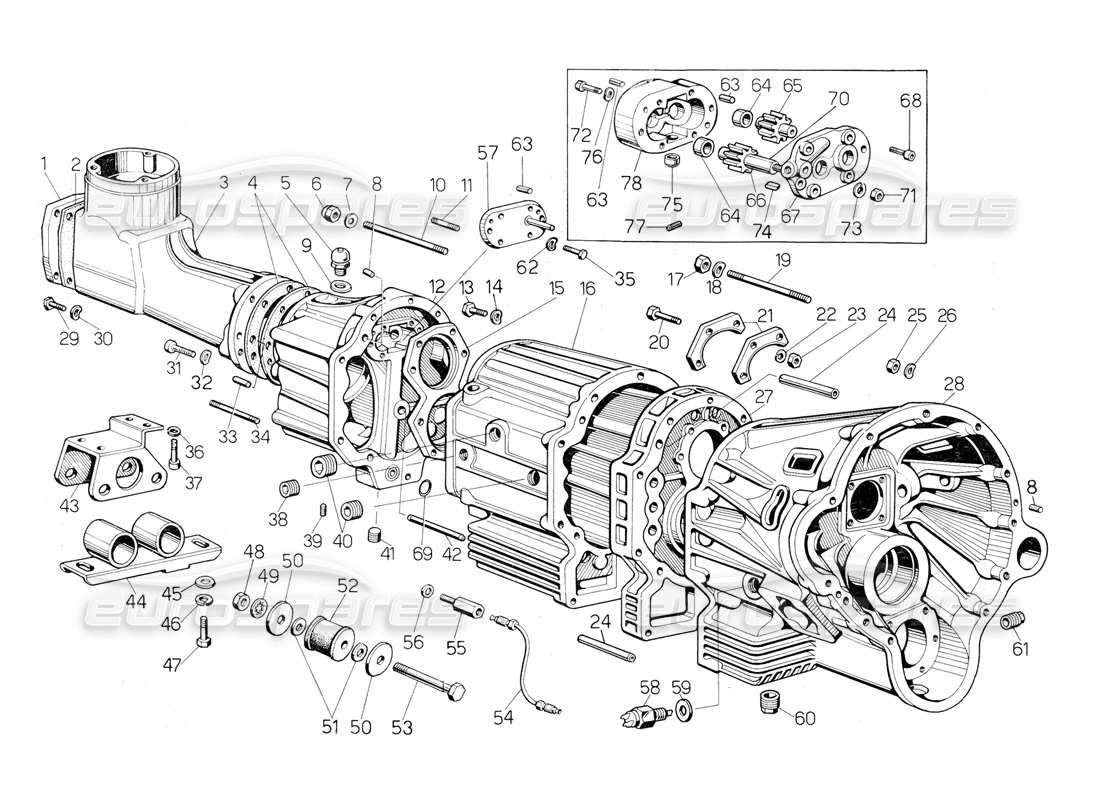

Lamborghini Countach 5000 QVi (1989) Gearbox Casting Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 002408070
    COVER
    Cop. supp. leva cambio fC
    from £197.33
    from £197.33
    GEAR LEVER COVER Genuine Lamborghini - New (to order)

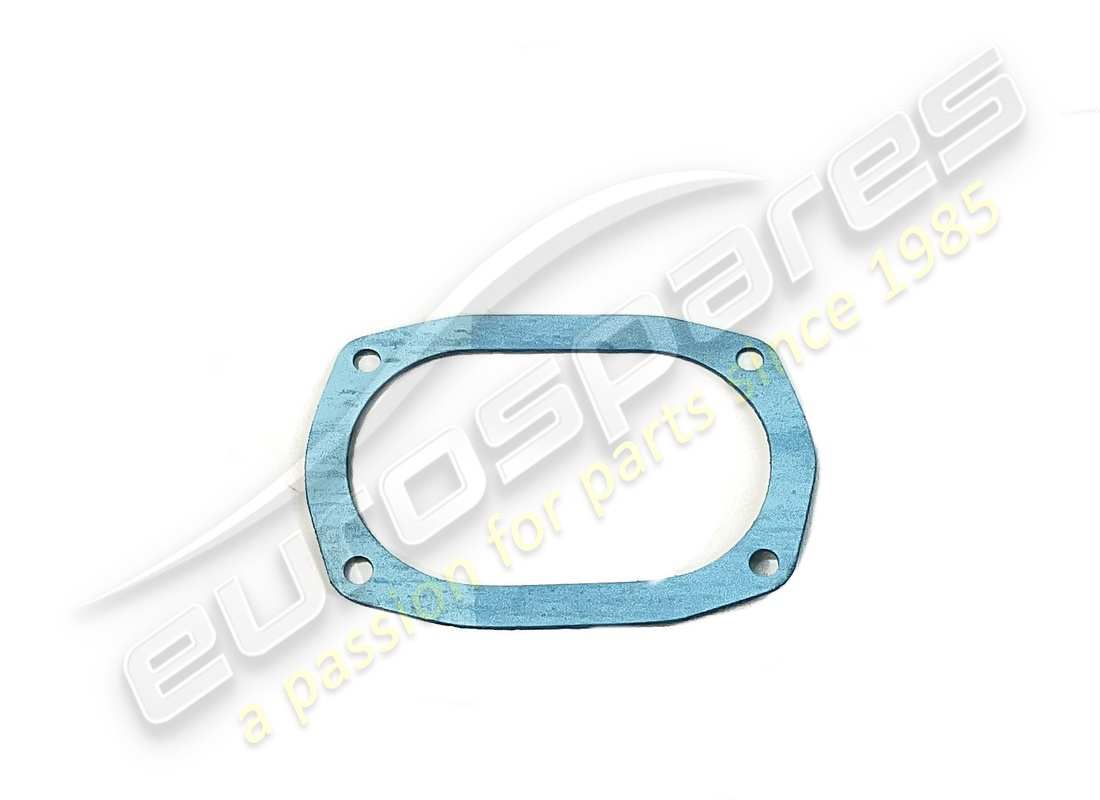

    # 002
    MPN: 002408086
    GASKET
    Guam. cop. supp. leva cambio
    from £11.11
    from £11.11
    GEAR LEVER COVER SEAL Genuine Lamborghini - New (to order)
    # 003
    MPN: 002409790
    SUPPORT
    Supp. leva com. cambio /C
    from £695.63
    from £695.63
    GEAR LEVER BRACKET Genuine Lamborghini - New (to order)
    # 004
    MPN: 002409878
    OIL GASKET
    Guam, pompa olio 1C
    from £25.51
    from £25.51
    OIL PUMP SEAL Genuine Lamborghini - New (to order)
    # 005
    MPN: 002302182
    PIPE
    Sfiato olio differ.
    from £143.54
    from £143.54
    DIFFERENTIAL OIL BREATHER PIPE Genuine Lamborghini - New (to order)
    # 006
    MPN: 008200605
    NUT
    DADO NCM/70/106M
    from £1.69
    from £1.69
    M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
    # 007
    MPN: 008400606
    WASHER
    Rond. 6,4 UNI 1734
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 008
    MPN: 008850806
    DOWEL
    Grano8x16C40
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 009
    MPN: 008401408
    WASHER
    ROND. 14,5x21x1,5 RAME
    from £1.29
    from £1.29
    ANNEALED COPPER WASHER 21X14X1 .5 Genuine Lamborghini - New In stock
    # 010
    MPN: 008300622
    BOLT
    Prig. M6x105 UNI 591 7 8G
    from £7.55
    from £7.55
    STUD M6X105 UNI5917/66 8G Genuine Lamborghini - New (to order)
    # 011
    MPN: 008300623
    BOLT
    Prig. M6x16UNI 591 7 8G
    from £10.53
    from £10.53
    STUD M6X18 UNI 5917 8G ZD Genuine Lamborghini - New (to order)
    # 012
    MPN: 002409834
    COVER
    Cop. pompa olio cambio 1C
    from £714.70
    from £714.70
    GEARBOX COVER & OIL PUMP Genuine Lamborghini - New (to order)
    # 013
    MPN: 008100636
    BOLT
    Bull. M6x35 UNI 5739 8G
    from £0.50
    from £0.50
    SCREW M6X1X35 UNI 5739/8G/ Genuine Lamborghini - New (to order)
    # 014
    MPN: 008410602
    LOCK WASHER
    Ros. el. 6,4x12x0,5
    from £26.95
    from £26.95
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
    # 015
    MPN: 002409792
    COVER
    Cop. rit. CSN post, cambio /C
    from £276.09
    from £276.09
    COVER Genuine Lamborghini - New (to order)
    # 016
    MPN: 002409857
    Gear Box
    Scatola post, cambio 1C
    from £29,019.00
    from £29,019.00
    REAR GEARBOX Genuine Lamborghini - New (to order)
    # 017
    MPN: 008200806
    NUT
    DADO M8 UNI 5588-65/8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 018
    MPN: WHT001514
    LOCK WASHER
    Ros. el. 8,4x17x0,8
    from £15.09
    from £15.09
    This part replaces part number 008410805
    SPRING WASHER Genuine Lamborghini - New (to order)
    # 019
    MPN: 008300842
    BOLT
    Prig. M8x65 UNI 5917 8G
    from £0.50
    from £0.50
    STUD M8X65 UNI 5917 8G ZD Genuine Lamborghini - New (to order)
    # 020
    MPN: 008100635
    BOLT
    Bull. M6x40 UNI 5737 8G
    Lamborghini PART 008100635 Genuine Lamborghini - New (to order)
    # 021
    MPN: 002409879
    RETAIN PLAT
    Piastr. fermo cambio /friz.
    from £45.60
    from £45.60
    GEARBOX CLUTCH LOCK PLATE Genuine Lamborghini - New (to order)
    # 022
    MPN: 008410603
    LOCK WASHER
    Rond. A6,4 UNI 1751 C72
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 023
    MPN: 008200604
    NUT
    DADO M6 UNI 5588-65/8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 024
    MPN: 008851003
    DOWEL
    Grano D. 10x51
    from £14.98
    from £14.98
    REFERENCE PIN 10H6X5C40 Genuine Lamborghini - New (to order)
    # 025
    MPN: N01100845
    NUT
    DADO M8 UNI 5587-65/8G
    from £0.47
    from £0.47
    This part replaces part number 008200801 - and 2 more. Click to view details
    HEX.NUT Genuine Lamborghini - New In stock
    HEXAGON NUT Genuine Porsche Part - New (to order)
    # 026
    MPN: WHT001514
    LOCK WASHER
    Ros. el. 8,4x17x0,8
    from £15.09
    from £15.09
    This part replaces part number 008410805
    SPRING WASHER Genuine Lamborghini - New (to order)
    # 027
    MPN: 002412261
    SPACER
    Distanz. cambio/friz./C
    from £749.52
    from £749.52
    GEARBOX/CLUTCH SHIM Genuine Lamborghini - New (to order)
    # 028
    MPN: 002419954
    CLUTCH BELL
    CAMPANA FRIZIONE
    from £597.79

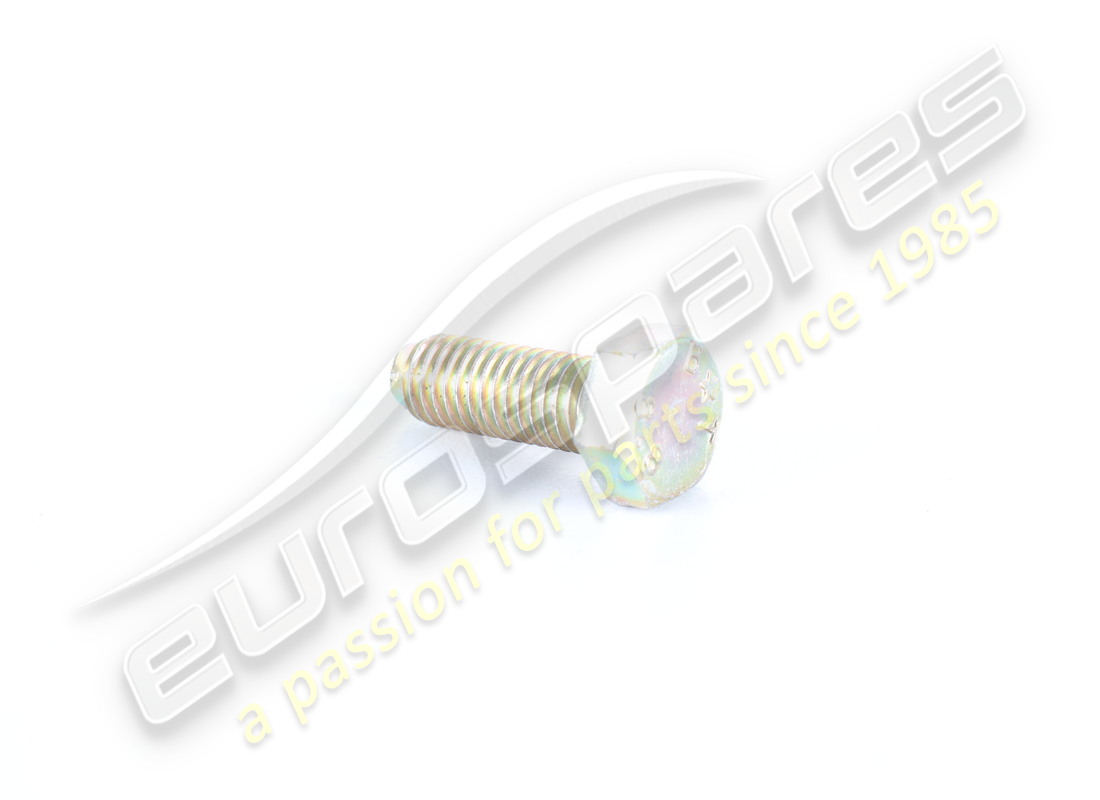

    from £597.79
    CLUTCH BELL Genuine Lamborghini - New (to order)
    # 029
    MPN: 008100625
    BOLT
    Bull. M6x16 UNI 5739/8G
    from £84.59
    from £84.59
    SCREW M6X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
    # 030
    MPN: 008410602
    LOCK WASHER
    Ros, EL, 6,4x12x0,5
    from £27.52
    from £27.52
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
    # 031
    MPN: 008700625
    SCREW
    Vite vice 6x35 UNI 5931 8G
    from £0.52
    from £0.52
    SCREW M6X35 UNI 59318G/ZD Genuine Lamborghini - New (to order)
    # 032
    MPN: 008410602
    LOCK WASHER
    Ros. El_6,4x 12x0,5
    from £27.14
    from £27.14
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
    # 033
    MPN: 008850812
    PIN
    Spina 8x20 UNI 1707 C40
    from £3.70
    from £3.70
    REFERENCE PIN 8H7X20C40 Genuine Lamborghini - New (to order)
    # 034
    MPN: 008300621
    BOLT
    Prig. M6x35 UNI 5917 8G
    from £2.95
    from £2.95
    STUD M6X35 UNI 5917 8G ZD Genuine Lamborghini - New (to order)
    # 035
    MPN: 008100625
    BOLT
    Bull. M6x16UNI 5739/8G
    from £83.46
    from £83.46
    SCREW M6X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
    # 036
    MPN: 008410806
    LOCK WASHER
    Rond. EL. A8,4 UNI 1751
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 037
    MPN: 008700815
    SCREW
    VITE 8x1,25x19 UNI 5931 8G
    from £0.53
    from £0.53
    SCREW M8X20 UNI 5931/8G/ZD Genuine Lamborghini - New In stock
    # 038
    MPN: 008931603
    PLUG
    Tappo 3/8 gas conico /U
    from £6.43
    from £6.43
    TAPER GAS PLUG 3/8 /U Genuine Lamborghini - New (to order)
    # 039
    MPN: 008700606
    SCREW
    Vite El M6x1x10 12K
    from £0.51
    from £0.51
    SCREW EI M6X1X10 12KD Genuine Lamborghini - New In stock
    SCREW EI M6X1X10 12KD Genuine Lamborghini - New (other) In stock
    (Valid for June 1992 version) GRAND (dalla 12678)
    # 040
    MPN: 008931901
    PLUG
    Tappo conico sul cambio
    from £3.57
    from £3.57
    TAPER PLUG 3/4X14/5S/Z D Genuine Lamborghini - New (to order)
    # 041
    MPN: 008931301
    PLUG
    Tappo 1/4gas-1/16 12K
    from £4.73
    from £4.73
    PLUG 1/4GAS-1/16 12K Genuine Lamborghini - New (to order)
    # 042
    MPN: 002408626
    PIPE
    Condotto olio pompa sec./U
    from £40.88
    from £40.88
    OIL PUMP PIPE Genuine Lamborghini - New (to order)
    # 043
    MPN: 002409836
    SUPPORT
    Supporto cambio 1C
    from £184.07
    from £184.07
    GEARBOX MOUNT Genuine Lamborghini - New (to order)
    # 044
    MPN: 002413327
    Gear Box
    Traversa supp. cambio 1C
    from £44.28
    from £44.28
    GEARBOX CROSSMEMBER Genuine Lamborghini - New (to order)
    # 045
    MPN: N90179103
    WASHER
    Rond. 8,4 UNI 1734 8G
    from £1.04
    from £1.04
    This part replaces part number 008400801
    WASHER Genuine Lamborghini - New (to order)
    # 046
    MPN: 008410806
    LOCK WASHER
    Rond. EL. A8,4 UNI 1751
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 047
    MPN: 008100809
    BOLT
    Bull. M8x22 UNI 5739/8G
    from £0.53
    from £0.53
    SCREW M8X22 UNI 5739/8G/ZD Genuine Lamborghini - New In stock
    # 048
    MPN: 008201413
    NUT
    Dado M 14x1, 5x5,5 8G
    from £4.73
    from £4.73
    M14X1.5 H.5.5 SPECIAL NUT Genuine Lamborghini - New (to order)
    # 049
    MPN: 008411401
    WASHER
    Rond. 14 UNI 3704
    from £1.67
    from £1.67
    CORRUGATED WASHER D.14.2 UNI 3 704 Genuine Lamborghini - New In stock
    # 050
    MPN: 008401415
    WASHER
    Rond. piana D. 14x58x3 8G
    from £10.37
    from £10.37
    FLAT WASHER D.14X58X3 8G Genuine Lamborghini - New In stock
    # 051
    MPN: 008401413
    WASHER
    Rond. 14,4x26x3
    from £0.61
    from £0.61
    FLAT WASHER 14.3 UNI1750/Z Genuine Lamborghini - New In stock
    # 052
    MPN: 0B9501144
    SUPPORT MOUNT
    from £115.28
    from £115.28
    This part replaces part number 008921408 - and 1 more. Click to view details
    SILENTBLOC 14X56,5X52,5 Genuine Lamborghini - New (to order)
    SILENTBLOC 14X56,5X52,5 Eurospares Approved Part - New In stock
    # 052
    MPN: 0B9501144
    SUPPORT MOUNT
    from £115.28
    from £115.28
    This part replaces part number 008921408 - and 1 more. Click to view details
    SILENTBLOC 14X56,5X52,5 Genuine Lamborghini - New (to order)
    SILENTBLOC 14X56,5X52,5 Eurospares Approved Part - New In stock
    # 053
    MPN: 008101418
    BOLT
    Bull. 14x1, 5x80 CH22 1 0K
    from £25.22
    from £25.22
    SPECIAL SCREW M14X78.5 Genuine Lamborghini - New (to order)
    # 054
    MPN: 002419500
    TUBE
    Tub! x mandate olio
    from £30.55
    from £30.55
    OIL DELIVERY PIPE Genuine Lamborghini - New (to order)
    # 055
    MPN: 002419596
    R. TUBE
    Rid. x tubo mand. olio nel cambio
    from £16.04
    from £16.04
    GEARBOX OIL DELIVERYPIPE ADAPT ER Genuine Lamborghini - New (to order)
    # 056
    MPN: 008401414
    WASHER
    Rond. rame 14x24x1,5
    from £1.65
    from £1.65
    COPPER WASHER 14X24X0,04513888 8889 Genuine Lamborghini - New In stock
    # 057
    MPN: 002413013
    FLANGE
    Flangia cop. cambio 1C
    from £195.68
    from £195.68
    GEARBOX COVER FLANGE Genuine Lamborghini - New (to order)
    # 058

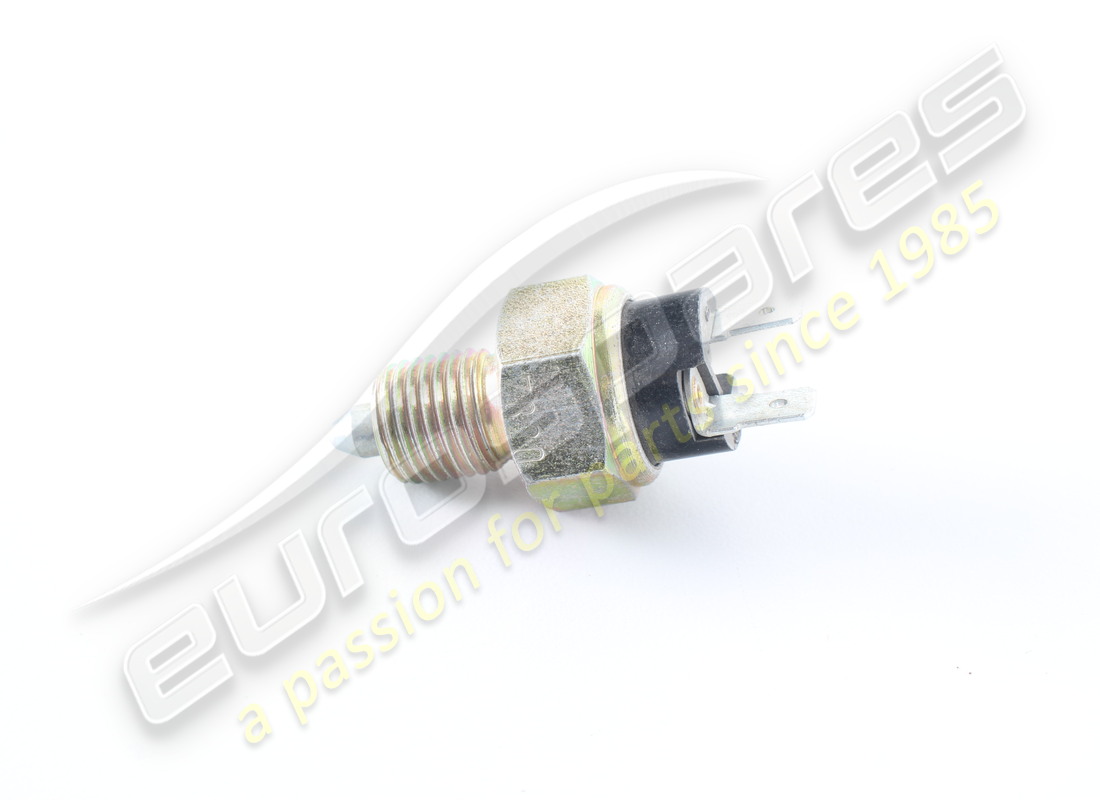

    MPN: 002409895
    REVERS SWIT
    Interr. RM art. 91003/C
    from £177.96
    from £177.96
    REVERSE SWITCH Genuine Lamborghini - New (to order)
    REVERSE SWITCH Original Equipment - New In stock
    # 059
    MPN: 008401408
    WASHER
    ROND. 14,5x21x1,5 RAME
    from £1.29
    from £1.29
    ANNEALED COPPER WASHER 21X14X1 .5 Genuine Lamborghini - New In stock
    # 060
    MPN: 086301141A
    PLUG
    Tappo magnet. 22x1,5
    from £22.53
    from £22.53
    This part replaces part number TN-03165
    MAGNETIC PLUG 22X1.5 Genuine Lamborghini - New (to order)
    # 061
    MPN: 01S409965
    PLUG
    Tappo 18x1,5 conico
    from £105.93
    from £105.93
    This part replaces part number 008931802
    PLUG Genuine Lamborghini - New (to order)
    # 062
    MPN: 008410602
    LOCK WASHER
    Ros. EL.6,4x 12x0,5
    from £26.77
    from £26.77
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
    # 063
    MPN: 008850504
    DOWEL
    Grano 0.5x8,5 C 40
    from £11.53
    from £11.53
    REFERENCE PIN 5H6X8.5 C 40 Genuine Lamborghini - New (to order)
    # 064
    MPN: 002408625
    BUSH
    Boccola ingr. pompa olio /U
    from £121.88
    from £121.88
    OIL PUMP GEAR BUSHING Genuine Lamborghini - New (to order)
    # 065
    MPN: 002409858
    OIL GEAR
    Ingr. condotto pompa olio
    from £199.82
    from £199.82
    OIL PUMP IDLE GEAR Genuine Lamborghini - New (to order)
    # 066
    MPN: 002413007
    GEAR
    Ingr. condutt. pompa cam. 1C
    from £425.34
    from £425.34
    GEARBOX PUMP DRIVE GEAR Genuine Lamborghini - New (to order)
    # 067
    MPN: 002419498
    COVER
    Coperchio pompa olio cambio
    from £509.90
    from £509.90
    GEARBOX OIL PUMP COVER Genuine Lamborghini - New (to order)
    # 068
    MPN: 008700612
    SCREW
    VITE 8,6x1x25 UNI 2383
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 069
    MPN: 008601502
    SEAL RING
    ANELLO OR 2062
    from £1.71
    from £1.71
    RING 16 MM OR Genuine Lamborghini - New In stock
    # 070
    MPN: 002413008
    PUMP SHAFT
    Alb. ingr. condut. pompa/C
    from £172.87
    from £172.87
    PUMP DRIVE GEAR SHAFT Genuine Lamborghini - New (to order)
    # 071
    MPN: 008201004
    NUT
    Dado M 10x1, 25x6/8G
    from £0.59
    from £0.59
    M10X1.25X6 UNI 5589 NUT Genuine Lamborghini - New (to order)
    # 072
    MPN: 008700611
    SCREW
    Vite brugola 6x1x15
    from £0.53
    from £0.53
    SCREW UNI 5931 6X14 ZG.8G Genuine Lamborghini - New In stock
    # 073
    MPN: 008201004
    NUT
    Dado M10x1,25x6/8G
    from £0.59
    from £0.59
    M10X1.25X6 UNI 5589 NUT Genuine Lamborghini - New (to order)
    # 074
    MPN: 008860403
    Key
    Chiavetta 4x4x10 UNIM 92
    from £8.84
    from £8.84
    KEY 4X4X10 Genuine Lamborghini - New (to order)
    # 075
    MPN: 002413005
    OIL FILTER
    Filtro pompa olio cambio/C
    Lamborghini PART 002413005 Genuine Lamborghini - New (to order)
    # 076
    MPN: 008410602
    LOCK WASHER
    Ros. EL.6,4x 12x0,5
    from £27.52
    from £27.52
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
    # 077
    MPN: 008700820
    SPRING
    Vitestei M8x10 12K
    Lamborghini PART 008700820 Genuine Lamborghini - New (to order)
    # 078
    MPN: 002413003
    oil pump
    Corpo pompa olio cambio/C
    from £519.85
    from £519.85
    TRANSMISSION OIL PUMP CASING Genuine Lamborghini - New (to order)
    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
