022 - Brake System

Lamborghini Countach 5000 QVi (1989) Brake System Parts Diagram

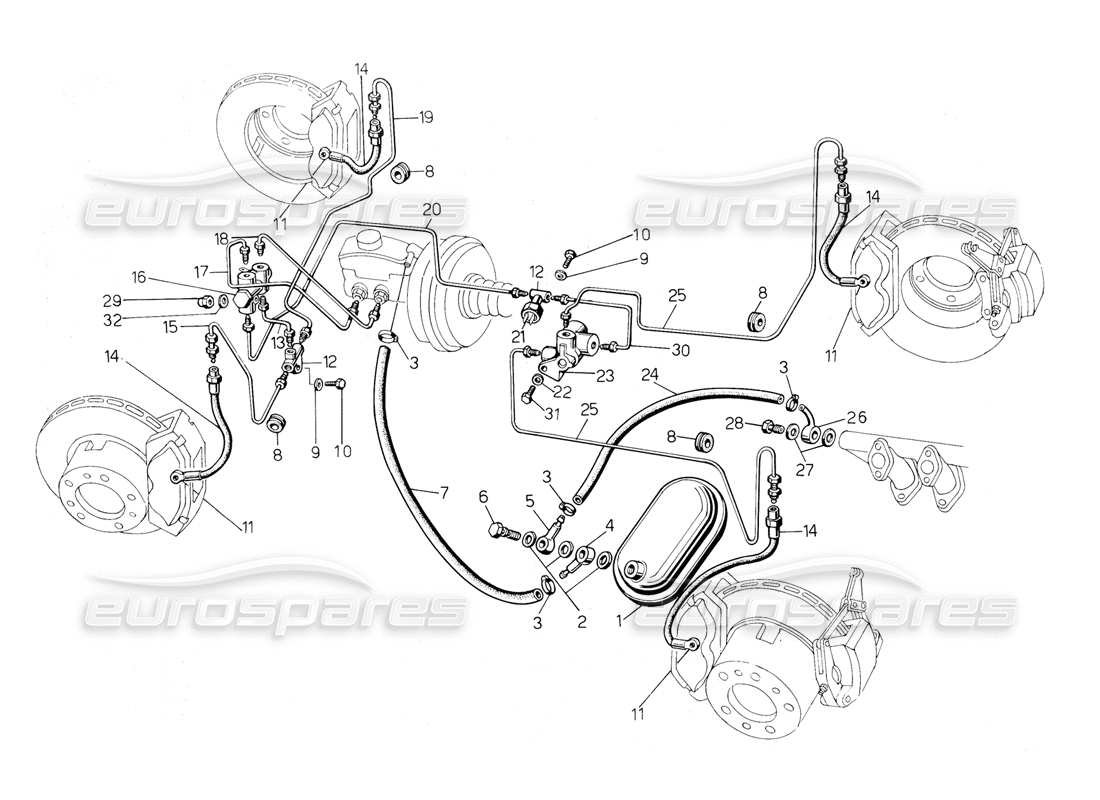

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 003204974
    VACUM TANK
    Serbatoio vacum 64049052
    from £166.92
    from £166.92
    VACUUM RESERVOIR Genuine Lamborghini - New (to order)
    VACUUM RESERVOIR Genuine Lamborghini - Used In stock
    # 002
    MPN: 003101513
    WASHER
    Rond. rame ricot. 378730
    from £0.97
    from £0.97
    COPPER WASHER 16.2X24X1 Genuine Lamborghini - New In stock
    # 003
    MPN: 008830205
    CLAMP RING
    FASC. ROYAL 000/9 14/24
    from £4.27
    from £4.27
    CLAMP Genuine Lamborghini - New In stock
    # 004
    MPN: 003204607
    TUBE
    Tubo colleg. servofr.
    from £64.35
    from £64.35
    BRAKE BOOSTER UNION PIPE Genuine Lamborghini - New (to order)
    # 005
    MPN: 003101518
    VALVE
    Valvola non rit. 64490204
    from £109.86
    from £109.86
    CHECK VALVE Genuine Lamborghini - New (to order)
    # 006
    MPN: 003101486
    BOLT
    Bullone 64490210
    from £20.23
    from £20.23
    BOLT Genuine Lamborghini - New (to order)
    # 007
    MPN: 003210387
    BRAKE PIPE
    Tubo servofr/vacum 1C
    from £67.49
    from £67.49
    BRAKE BOOSTER PIPE/VACUUM Genuine Lamborghini - New (to order)
    # 007
    MPN: 003212422
    PIPE
    (Valid for GB - January 1984) Tubo servofr. ant./serb./C
    Lamborghini PART 003212422 Genuine Lamborghini - New (to order)
    # 008
    MPN: 008610502
    SEAL RING
    Gommino 4,75x14x5
    from £2.53
    from £2.53
    GROMMET 4.76X14.28X1.58 MM Genuine Lamborghini - New (to order)
    # 009
    MPN: 008410602
    LOCK WASHER
    Ros. el. 6,4x12x0,5
    from £27.90
    from £27.90
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
    # 010
    MPN: 008100603
    BOLT
    Bull. M6x25 UNI 5739-65A 8G
    from £0.95
    from £0.95
    SCREW M6X25 UNI 5739-8G ZG Genuine Lamborghini - New In stock
    # 011
    MPN: 003113904
    FITTIN BOLT
    Raccordo 3.3521.0200.1/03
    from £92.09
    from £92.09
    UNION Genuine Lamborghini - New In stock
    # 012
    MPN: 003208682
    GROSS PIPE
    Raccordo 3.351 3.1 000.1 /02
    from £34.66
    from £34.66
    UNION Genuine Lamborghini - New (to order)
    # 013
    MPN: 003110365
    BRAKE PIPE
    Tubo disp. sic/3 vie ant./C
    from £13.72
    from £13.72
    SAFETY DEVICE PIPE/THREE-WAY Genuine Lamborghini - New (to order)
    # 013
    MPN: 003112690
    PIPE
    (Valid for GB - January 1984) Tubo disp. sic./3 vie ant.
    from £48.43
    from £48.43
    SAFETY DEVICE PIPE/FRONT THREE -WAY Genuine Lamborghini - New (to order)
    # 014
    MPN: 003208683
    BRAKE PIPE
    Tubo f less. vs. rif. 06.2344.1 0
    from £31.20
    from £31.20
    HOSE Genuine Lamborghini - New In stock
    HOSE Genuine Lamborghini - Used In stock
    # 015
    MPN: 003110363
    BRAKE PIPE
    Tubo freni ant. sin. /C
    from £190.29
    from £190.29
    LH FRONT BRAKE PIPE Genuine Lamborghini - New (to order)
    # 015
    MPN: 003112687
    BRAKE PIPE
    (Valid for GB - January 1984) Tubo freni ant. sin. c/gad
    from £30.36
    from £30.36
    LH FRONT BRAKE PIPE Genuine Lamborghini - New (to order)
    # 016
    MPN: 003111243
    BRAKE VALVE
    Disp. sic. freni 14-07988 /U
    from £131.87
    from £131.87
    BRAKE SAFETY DEVICE Genuine Lamborghini - New (to order)
    # 017
    MPN: 003110373
    BRAKE PIPE
    Tubo disp. sic/serv. ant. /C
    from £18.58
    from £18.58
    SAFETY DEVICE PIPE/FRONT BRAKE BOOSTER Genuine Lamborghini - New (to order)
    # 017
    MPN: 003112691
    PIPE
    (Valid for GB - January 1984) Tubo disp. sic./pompa ant.
    from £48.43
    from £48.43
    SAFETY DEVICE PIPE/FRONT PUMP Genuine Lamborghini - New (to order)
    # 018
    MPN: 003210372
    BRAKE PIPE
    Tubo disp. sic/serv. pos.
    from £48.43
    from £48.43
    SAFETY DEVICE PIPE/REAR BRAKE BOOSTER Genuine Lamborghini - New (to order)
    # 018
    MPN: 003212692
    PIPE
    (Valid for GB - January 1984) Tubo disp. sic/pompa c/gad
    Lamborghini PART 003212692 Genuine Lamborghini - New (to order)
    # 019
    MPN: 003110364
    BRAKE PIPE
    Tubo freni ant. des. 1C
    from £199.40
    from £199.40
    RH FRONT BRAKE PIPE Genuine Lamborghini - New (to order)
    # 019
    MPN: 003112688
    BRAKE PIPE
    (Valid for GB - January 1984) Tubo freni ant. des c/gad
    from £10.29
    from £10.29
    RH FRONT BRAKE PIPE Genuine Lamborghini - New (to order)
    # 020
    MPN: 003210366
    BRAKE PIPE
    Tubo disp. sic./3 vie post.
    Lamborghini PART 003210366 Genuine Lamborghini - New (to order)
    # 020
    MPN: 003212689
    PIPE
    (Valid for GB - January 1984) Tubo disp. sic/3 vie c/gad
    from £15.85
    from £15.85
    SAFETY DEVICE PIPE/THREE-WAY Genuine Lamborghini - New (to order)
    # 021
    MPN: 003208693
    BRAKE SWITCH
    Cont. stop fr. 33526081 03/U
    from £85.39
    from £85.39
    BRAKE LIGHT CHECK Genuine Lamborghini - New In stock
    # 022
    MPN: 008410806
    LOCK WASHER
    Rond. EL. A8,4 UNI 1751
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 023
    MPN: 003213911
    PRESS DISTR
    Ripart. press. N. 1408995
    from £196.50
    from £196.50
    PRESSURE REGULATOR Genuine Lamborghini - New (to order)
    # 024
    MPN: 003210386
    VACUM PIPE
    Tubo mot. /valv.no rit./C
    from £25.04
    from £25.04
    ENGINE PIPE/CHECK VALVE Genuine Lamborghini - New In stock
    # 025
    MPN: 003210358
    BRAKE PIPE
    Tubo valv. lim./fless. post.
    from £281.88
    from £281.88
    LIMITING VALVE PIPE/REAR HOSE Genuine Lamborghini - New (to order)
    # 026
    MPN: 003204610
    UNION
    Race, presa depress.
    from £89.49
    from £89.49
    VACUUM UNION Genuine Lamborghini - New (to order)
    # 027
    MPN: 008401610
    WASHER
    Rond. 22x15,5x0,5 rame
    from £6.32
    from £6.32
    ANNEALED COPPER WASHER 16X22X0 .5 Genuine Lamborghini - New In stock
    # 028
    MPN: 003101941
    BOLT
    Race, tub! depressione
    from £2.64
    from £2.64
    VACUUM UNION PIPE Genuine Lamborghini - New (to order)
    # 029
    MPN: 008200606
    NUT
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 030
    MPN: 003210367
    BRAKE PIPE
    Tubo 3 vie stop/valv. Mm.
    from £13.14
    from £13.14
    THREE-WAY PIPE/LIMITING VALVE Genuine Lamborghini - New (to order)
    # 031
    MPN: 008100839
    BOLT
    Bull. M8x10 UNI 5739/8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 032
    MPN: 008400606
    WASHER
    Rond. 6,4 UNI 1734
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
