028 - Exhaust pipes

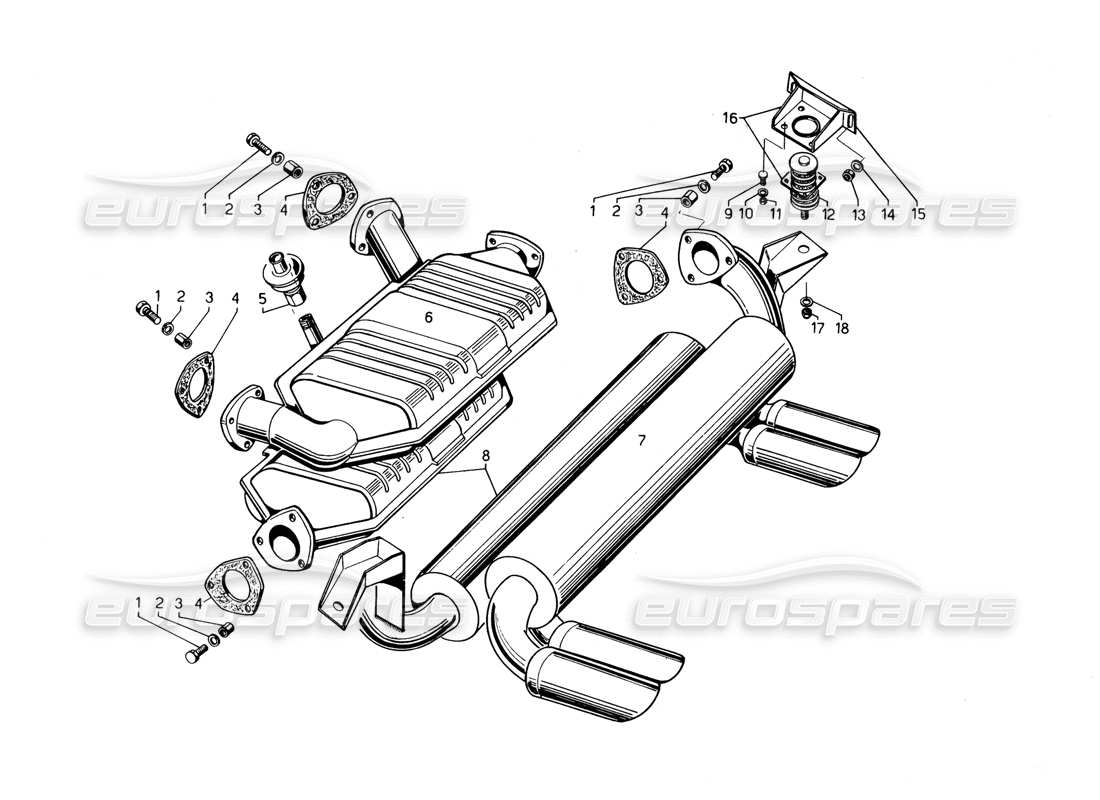

Lamborghini Countach 5000 QVi (1989) Exhaust Pipes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008100807
BOLT
Bull. M8x40 UNI 5737 8G
from £0.50
from £0.50
# 002
MPN: 008410806
LOCK WASHER
Rond. EL. A8,4 UNI 1751
Supersession
Supersession
# 003
MPN: 008200807
NUT
Dado ottone 8 MA
from £14.38
from £14.38
# 004
MPN: 004422340
GASKET
Guarniz. in diring sulle flange
from £6.47
from £6.47
# 005
MPN: 004607187
VALVE CER
CEK VALVE VS. 1/5354987
from £140.55
from £140.55
# 006
MPN: 004422177
SILENCER
USA type muffler
# 007
MPN: 004422181
INT. SILENCE
Marmitta Countach USA
# 008
MPN: 004423791
MUFFLER
Marmitta compl. di silenz. e catalizz.
from £5,932.27
from £5,932.27
# 009
MPN: 008100502
BOLT
BULLONI 4x0,8 UNI 5739
from £0.51
from £0.51
# 010
MPN: WHT001187
WASHER
Rond. 5,3 UNI 1734 5S
from £0.50
from £0.50
This part replaces part number 008400502
# 011
MPN: N0211963
NUT
DADO N/70/105M
from £0.51
from £0.51
# 012
MPN: 400251393A
EXHAUST SUPPORT MOUNT
from £151.23
from £151.23
This part replaces part number 004432031 - and 5 more. Click to view details
# 013
MPN: N0111849
NUT
DADO N/70/108M
from £1.39
from £1.39
This part replaces part number 008200809
# 014
MPN: N90179103
WASHER
Rond. 8,4 UNI 1734 8G
from £0.98
from £0.98
This part replaces part number 008400801
# 015
MPN: 004405055
SUPPORT
Supp. vibrachoc centr.
from £185.72
from £185.72
# 016
MPN: 004421266
DAMPER
Assieme supp. vibrachoc completo
# 017
MPN: 008201008
NUT
DADO B/70/210M
from £0.56
from £0.56
# 018
MPN: 008401006
WASHER
Rond. A10.5 UNI 1734
from £0.51
from £0.51
