lamborghini countach 5000 qvi (1989) air conditioning parts diagram

029 - Air Conditioning

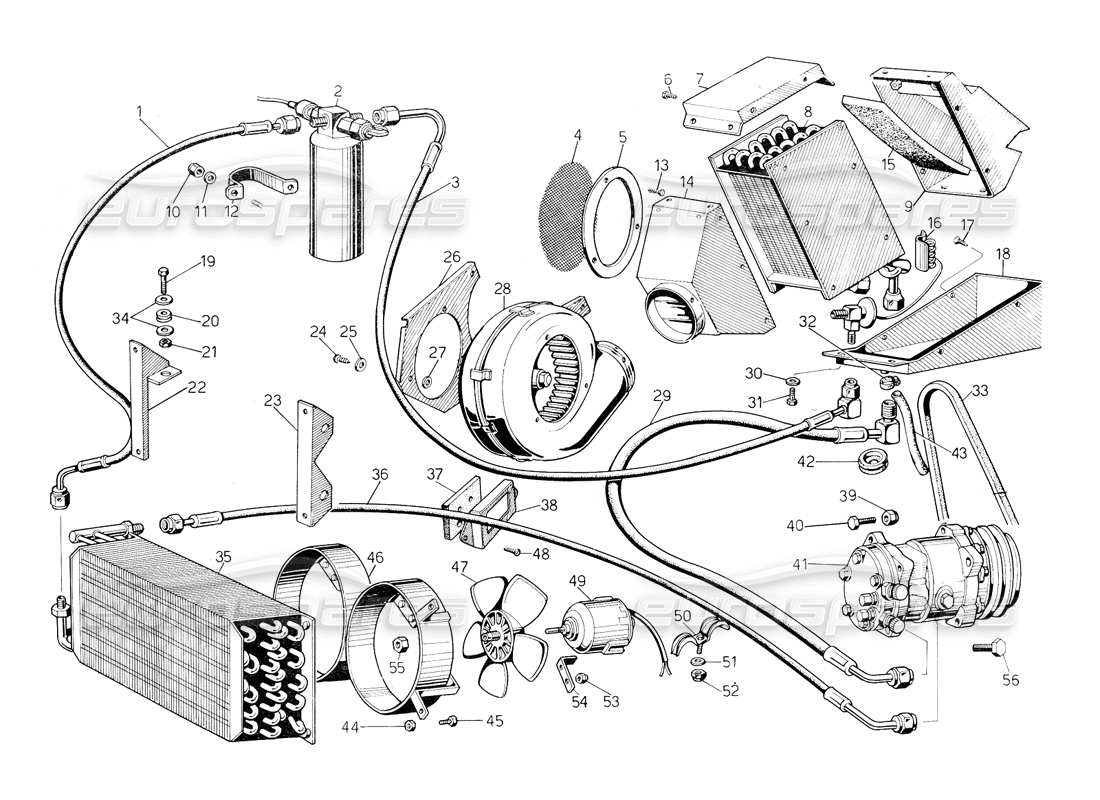

Lamborghini Countach 5000 QVi (1989) Air Conditioning Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 004511342
    PIPE
    Tubo condens. /depur. 1C
    from £181.57
    from £181.57
    CONDENSER/CLEANER PIPE Genuine Lamborghini - New (to order)
    # 002
    MPN: 004535411
    FILTER
    FILTRO DEIDRATORE
    from £220.49
    from £220.49
    This part replaces part number 004534692
    DRYER FILTER Genuine Lamborghini - New In stock
    # 003
    MPN: 004513937
    PIPE
    Tubo dal depur. alia valv.
    from £408.98
    from £408.98
    CLEANER/VALVE PIPE Genuine Lamborghini - New (to order)
    # 004
    MPN: 004513146
    MESH
    Rete x chiocciola /C
    from £61.03
    from £61.03
    SCROLL NET Genuine Lamborghini - New (to order)
    # 005
    MPN: 004513145
    RING
    Anello fermo rete chiocc. 1C
    from £38.98
    from £38.98
    RACK NET RETAINING RING Genuine Lamborghini - New (to order)
    # 006
    MPN: 008700414
    SCREW
    Vite 4,2x9,5 DIN 7976/BZ
    from £1.55
    from £1.55
    SCREW 4.2X6.5 ISO8 UNI6949 -B/ N Genuine Lamborghini - New In stock
    # 007
    MPN: 004508820
    SUPPORT COVE
    Cop. sup. evaporatore /U
    from £79.81
    from £79.81
    EVAPORATOR UPPER COVER Genuine Lamborghini - New (to order)
    # 008
    MPN: 004510897
    COND RADIA
    Evaporatore countach
    from £1,876.28
    from £1,876.28
    evaporator Genuine Lamborghini - New (to order)
    # 009
    MPN: 004519623
    SHIELD
    Carenatura evaporatore condizionatore
    Lamborghini PART 004519623 Genuine Lamborghini - New (to order)
    # 009
    MPN: 004520754
    SUPPORT
    (Valid from chassis No. 511) Supp. bocch. aria sull'evap.
    SUPPORT Genuine Lamborghini - New (to order)
    # 010
    MPN: 008200606
    NUT
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 011
    MPN: 008400606
    WASHER
    Rond. 6,4 UNI 1734
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 012
    MPN: 004508813
    CLAMP
    Fasc. fiss. depur. /U
    from £8.58
    from £8.58
    CLEANER CLAMP Genuine Lamborghini - New (to order)
    # 013
    MPN: 008700414
    SCREW
    Vite 4,2x9,5 DIN 7976/BZ
    from £1.62
    from £1.62
    SCREW 4.2X6.5 ISO8 UNI6949 -B/ N Genuine Lamborghini - New In stock
    # 014
    MPN: 004513150
    AIR DUCT
    Convogliat. evapor. /C
    from £62.43
    from £62.43
    EVAPORATOR MANIFOLD Genuine Lamborghini - New (to order)
    # 015
    MPN: 004508824
    CONDEN. GASK
    Feltro per condensa evap.
    FELTRO Genuine Lamborghini - New (to order)
    # 016
    MPN: 004506860
    CONDIT VALV
    Valv. esp. ev. egelhof tec— 2
    from £59.40
    from £59.40
    EXPANSION VALVE Genuine Lamborghini - New (to order)
    # 017
    MPN: 008700414
    SCREW
    Vite 4,2x9,5 DIN 7976/BZ
    from £1.55
    from £1.55
    SCREW 4.2X6.5 ISO8 UNI6949 -B/ N Genuine Lamborghini - New In stock
    # 018
    MPN: 004513147
    GUARD
    Contenit. condensa evap. 1C
    from £121.88
    from £121.88
    EVAPORATOR CONDENSE HOUSING Genuine Lamborghini - New (to order)
    # 019
    MPN: 008100618
    BOLT
    Bull. M6x20 UNI 5739-8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 020
    MPN: 008610701
    SEAL RING
    Gommino 0.7x13x10
    from £18.62
    from £18.62
    GROMMET 7X13X2 MM Genuine Lamborghini - New (to order)
    # 021
    MPN: 008200604
    NUT
    DADO M6 UNI 5588-65/8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 022
    MPN: 004511115
    PLATE
    Staffa fiss. condens. /C
    from £15.46
    from £15.46
    CONDENSER BRACKET Genuine Lamborghini - New (to order)
    CONDENSER BRACKET Genuine Lamborghini - Used In stock
    # 023
    MPN: 004511114
    PLATE
    Staffa fiss. condens. /C
    from £36.85
    from £36.85
    CONDENSER BRACKET Genuine Lamborghini - New (to order)
    CONDENSER BRACKET Genuine Lamborghini - Used In stock
    # 024
    MPN: 008700306
    SCREW
    Viteknip B3,5x16DIN 7971
    from £1.62
    from £1.62
    SCREW KNIP B3.5X16DIN7971 Genuine Lamborghini - New (to order)
    # 025
    MPN: 008400608
    WASHER
    Rond. 6,4x11x3,5
    from £11.53
    from £11.53
    FLAT WASHER D.6.4X3.5X11 Genuine Lamborghini - New (to order)
    # 026
    MPN: 004513148
    SUPPORT
    Supp. elettrov. condiz. 1C
    from £21.15
    from £21.15
    CONDITIONER SOLENOIDVALVE BRAC KET Genuine Lamborghini - New (to order)
    # 027
    MPN: WHT001187
    WASHER
    Rond. 5,3 UNI 17345S
    from £0.53
    from £0.53
    This part replaces part number 008400502
    WASHER 10X5.3X1 UNI 6952 CAT-A Genuine Lamborghini - New In stock
    # 028
    MPN: 004513144
    FAN
    Elettrov. sin. riscald. /S/C
    Lamborghini PART 004513144 Genuine Lamborghini - New (to order)
    # 029
    MPN: 004513936
    PIPE
    Tubo dal evap. al compress.
    Lamborghini PART 004513936 Genuine Lamborghini - New (to order)
    # 030
    MPN: WHT002961
    WASHER
    Rond. 6,5x18x1,5
    from £0.54
    from £0.54
    This part replaces part number 008400607
    WASHER Genuine Lamborghini - New In stock
    # 031
    MPN: 008100622
    BOLT
    Bull. M6x12 UNI 5739/8G
    from £3.65
    from £3.65
    SCREW M6X12 UNI 5739/8G Genuine Lamborghini - New (to order)
    # 032
    MPN: 008830901
    CLAMP RING
    Fasc. royal 0000/9
    from £6.11
    from £6.11
    CLAMP Genuine Lamborghini - New (to order)
    # 033
    MPN: 004513741
    BELT
    Cinghia com. cond. CTA 4703
    from £98.25
    from £98.25
    CONDITIONER BELT Genuine Lamborghini - New (to order)
    # 034
    MPN: WHT002961
    WASHER
    Bond. 6,5x18x1,5
    from £0.52
    from £0.52
    This part replaces part number 008400607
    WASHER Genuine Lamborghini - New In stock
    # 035
    MPN: 004510564
    COND. RADIA
    Condensatore countach
    from £444.41
    from £444.41
    CONDENSER Genuine Lamborghini - New (to order)
    # 036
    MPN: 004513938
    PIPE
    Tubo dal compress, al cond.
    from £230.87
    from £230.87
    COMPRESSOR/CONDENSERPIPE Genuine Lamborghini - New (to order)
    # 037
    MPN: 004519129
    GASKET
    Guarnizione tenuta Tubi freno cond.
    GASKET Genuine Lamborghini - New (to order)
    # 038
    MPN: 004519130
    COVER
    Cornice per guar. Tubi freno cond.
    Plate corn Genuine Lamborghini - New (to order)
    # 039
    MPN: 008201008
    NUT
    DADO B/70/210M
    from £0.55
    from £0.55
    NUT Genuine Lamborghini - New In stock
    # 040
    MPN: 008101034
    BOLT
    Bull. M10x130 UNI 5737 10K
    from £43.41
    from £43.41
    SCREW M10X130 UNI 5737 10K Genuine Lamborghini - New (to order)
    # 041
    MPN: 004513470
    COMPR
    Compress, rot. abacus 508 /U
    from £1,081.99
    from £1,081.99
    ROTARY COMPRESSOR Genuine Lamborghini - New (to order)
    # 042
    MPN: 008611002
    SEAL RING
    Gommino dur S 458
    from £13.87
    from £13.87
    GROMMET 22X38X10 MM Genuine Lamborghini - New (to order)
    # 043
    MPN: 004511004
    PIPE
    Tubo scar, condensa /C
    Lamborghini PART 004511004 Genuine Lamborghini - New (to order)
    # 044
    MPN: 008200609
    NUT
    Dado M6 UNI 5596-65/A 5S
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 045
    MPN: 008100613
    BOLT
    Bull. M6x10 UNI 5739 5S
    from £0.50
    from £0.50
    SCREW M6X10 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
    SCREW M6X10 UNI 5739/5S/Z Genuine Lamborghini - New (other) In stock
    BULL.M6X10 UNI 5739 5S
    # 046
    MPN: 004510563
    FAN SUPPORT
    Supp. mot. condens. 1C
    from £500.63
    from £500.63
    CONDENSER MOTOR BRACKET Genuine Lamborghini - New (to order)
    # 047
    MPN: 004504908
    CONDIT FAN
    Vent. 78513241 mot. cond.
    from £483.34
    from £483.34
    CONDIT FAN Genuine Lamborghini - New (to order)
    # 048
    MPN: 008700506
    SCREW
    Viteknip4,8x16DIN7971
    from £0.53
    from £0.53
    SCREW KNIP 4.8X16DIN7971 BLACK STEEL Genuine Lamborghini - New In stock
    # 049
    MPN: 004508071
    CONDIT FAN
    Mot. condens. 69401 138 con ventola
    from £538.67
    from £538.67
    CONDENSER MOTOR & FAN Genuine Lamborghini - New (to order)
    # 050
    MPN: 004505977
    PIPE
    Fasc. fiss. Tubi cohdiz.
    from £9.52
    from £9.52
    CONDITIONER PIPE CLAMP Genuine Lamborghini - New (to order)
    # 051
    MPN: 008400501
    WASHER
    Bond. 5,8 UNI 1737 AQ45
    from £0.54
    from £0.54
    WASHER 5.8X18X2 Genuine Lamborghini - New In stock
    # 052
    MPN: N0211963
    NUT
    DadoN/70/105M
    from £0.54
    from £0.54
    HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
    HEX. NUT - M5 Genuine Porsche Part - New (to order)
    # 053
    MPN: N0211963
    NUT
    DadoN/70/105M
    from £0.51
    from £0.51
    HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
    HEX. NUT - M5 Genuine Porsche Part - New (to order)
    # 054
    MPN: 004508088
    PLATE
    Piastr. fiss. mot. cond. MIURA
    from £16.50
    from £16.50
    CONDITIONER MOTOR PLATE Genuine Lamborghini - New (to order)
    # 055
    MPN: 004504909
    NUT
    Dado 78516479 fiss. vent.
    from £7.10
    from £7.10
    FAN NUT Genuine Lamborghini - New (to order)
    # 056
    MPN: 008101008
    BOLT
    Bull. M10x30UNI 5739 8G
    from £9.69
    from £9.69
    SCREW M10X30UNI 5739/8G/ZD Genuine Lamborghini - New (to order)
