lamborghini countach 5000 qvi (1989) fuel system parts diagram

037 - fuel system

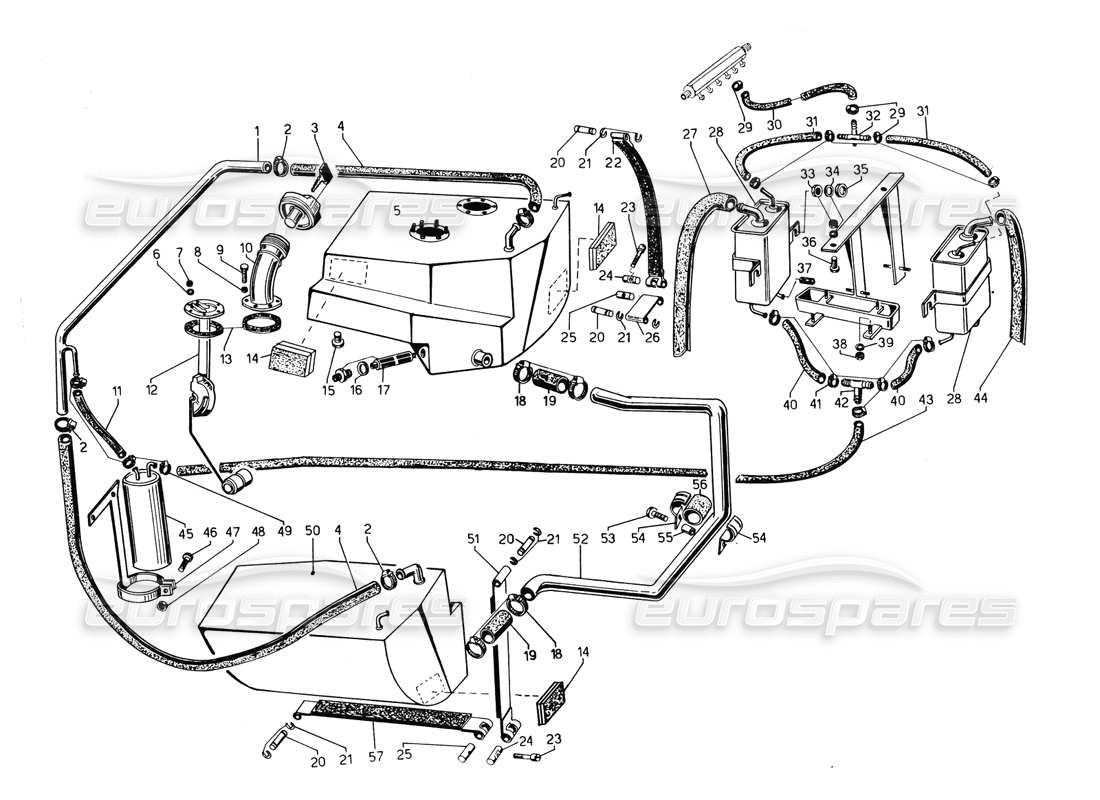

Lamborghini Countach 5000 QVi (1989) Fuel System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 006221556
TUBE
Tubo in metallo x colleg. sup. serb.
from £50.58
from £50.58
TANK UPPER METAL PIPE Genuine Lamborghini - New (to order)
# 002
MPN: 008830205
CLAMP RING
FASC. ROYAL 000/9 14/24
from £4.27
from £4.27
CLAMP Genuine Lamborghini - New In stock
# 003
MPN: 006220985
FUEL CAP
Tappo serb. benz. con chiave vs. 062184
from £32.96
from £32.96
FUEL FILLER CAP & KEY Genuine Lamborghini - New (to order)
# 004
MPN: 006221557
TUBE
TUBO IN GOMMA
from £55.80
from £55.80
RUBBER PIPE Genuine Lamborghini - New (to order)
# 005
MPN: 006221066
RIGHT TANK
Serbatoio benzina des. Countach USA
from £2,843.86
from £2,843.86
RH FUEL TANK Genuine Lamborghini - New (to order)
# 006
MPN: 008410404
LOCK WASHER
ROND. EL. 4 UNI 3704
from £0.52
from £0.52
CORRUGATED WASHER D.4.1 UNI370 4/Z Genuine Lamborghini - New In stock
# 007
MPN: 008100402
BOLT
Bull. M4x16 UNI 5739-65A8G
from £0.52
from £0.52
SCREW M4X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
# 008
MPN: 008410402
LOCK WASHER
Rond. A 4,3 UNI 1751 C72
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 009
MPN: 008100402
BOLT
Bull. M4x16 UNI 5739-65A8G
from £0.52
from £0.52
SCREW M4X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
# 010
MPN: 006221128
FUEL UNION
Fuel tank filler
from £1,128.37
from £1,128.37
FUEL FILLER Genuine Lamborghini - New (to order)
# 011
MPN: 006221558
TUBE
Tubo coll. tubo metal, a corpo sfiato o|io
TUBE Genuine Lamborghini - New (to order)
# 012
MPN: 006205411
LEVER FUEL
Misurat. livello benzina 393.655.01
from £96.84
from £96.84
This part replaces part number 006203181
INDICATORE LIV.BENZINA 03-295 Genuine Lamborghini - New In stock
# 013
MPN: 006205360
GASKET
Guam, reost. gall. 39094601
from £34.14
from £34.14
FLOAT DIMMER SEAL Genuine Lamborghini - New (to order)
FLOAT DIMMER SEAL Eurospares Approved Part - New In stock
# 014
MPN: 006213226
SPACER
Spess. fra serb. passar./C
from £19.41
from £19.41
TANK/WHEELHOUSE SHIM Genuine Lamborghini - New (to order)
# 015
MPN: 008931203
CAP
Tappo d. 12x1,25x9 CH 19SS
from £9.44
from £9.44
PLUG D.12X1.25X9 CH 19SS Genuine Lamborghini - New (to order)
PLUG D.12X1.25X9 CH 19SS Genuine Lamborghini - Used In stock
# 016
MPN: 008401804
WASHER
ROND. RAME 18,2x30x1
from £2.53
from £2.53
ANNEALED COPPER WASHER 18.2X30 X1 Genuine Lamborghini - New In stock
# 017
MPN: 006221531
PETR FILL A
Assieme filtro asp. benz.
from £19.62
from £19.62
FUEL INTAKE FILTER ASSEMBLY Genuine Lamborghini - New (to order)
# 018
MPN: 008835004
CLAMP RING
FASC. ROYAL 1/12 32/52
from £6.14
from £6.14
This part replaces part number 008830201
CLAMP Genuine Lamborghini - New In stock
# 019
MPN: 420201143C
TUBE
Tubo in gomma colleg. II tubo jnf. ai serb.
from £49.89
from £49.89
This part replaces part number 006221562
CONNECTING HOSE Genuine Lamborghini - New In stock
# 020
MPN: 006203081
TANK PIN
Perno fasc. serb. benzina
from £14.30
from £14.30
FUEL TANK CLAMP PIN Genuine Lamborghini - New (to order)
# 021
MPN: 008580401
LOCK RING
SEEGER 5 4 DIN 6799
from £1.58
from £1.58
CIRCLIP 5 7 DIN 6799 Genuine Lamborghini - New (to order)
# 022
MPN: 006210599
CLIP
Fasc. sup. fiss. serb./C
from £69.23
from £69.23
TANK UPPER CLAMP Genuine Lamborghini - New (to order)
# 023
MPN: 006203084
FUEL TANK
TIRANTE FISS. SERBATOIO
from £42.70
from £42.70
TANK TIEROD Genuine Lamborghini - New (to order)
# 024
MPN: 006203079
TANK PIN
Perno pass. fasc. serb.
from £29.71
from £29.71
TANK CLAMP PIN Genuine Lamborghini - New (to order)
# 025
MPN: 006203080
TANK PIN
Perno III. fasc. serb.
from £14.30
from £14.30
TANK CLAMP FILTER PIN Genuine Lamborghini - New (to order)
# 026
MPN: 006210598
CLIP
Fasc. inf. fiss. serb./C
from £36.90
from £36.90
TANK LOWER CLAMP Genuine Lamborghini - New (to order)
# 027
MPN: 006222062
TUBE
Tubo x sfiato filtri carb. attivi a terra
TUBE Genuine Lamborghini - New (to order)
# 028
MPN: 006221563
FILTERS
Filtro carbone attivo vs. dis. 9.35.20.00
from £466.80
from £466.80
CARBURETTOR FILTER Genuine Lamborghini - New (to order)
# 029
MPN: 008830204
CLAMP RING
Fasc. royal 0000 A/5 7/11
from £5.43
from £5.43
CLAMP Genuine Lamborghini - New (to order)
# 030
MPN: 006221560
TUBE
Pipe from 3 way to manifold. to 8 exits
TUBE Genuine Lamborghini - New (to order)
# 031
MPN: 006222061
TUBE
Tubo colleg. filtri carb. attivi/3 vie
Lamborghini PART 006222061 Genuine Lamborghini - New (to order)
# 032
MPN: 006220752
3 WAYS UNIO
Race, a 3 vie in plast x coll. pompa benz.
from £3.70
from £3.70
PLASTIC THREE-WAY UNION TS8 Genuine Lamborghini - New (to order)
# 033
MPN: 008200809
NUT
DADO B/70/208M
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 034
MPN: N90179103
WASHER
Rond. 8,4 UNI 1734 8G
from £0.98
from £0.98
This part replaces part number 008400801
WASHER Genuine Lamborghini - New (to order)
# 035
MPN: 008610801
RUBBER GROMMET
Gomm. x cavo contakm.
Lamborghini PART 008610801 Genuine Lamborghini - New (to order)
# 036
MPN: 008100830
BOLT
Bull. M8x20 UNI 5739/8G
from £0.53
from £0.53
SCREW M8X20 UNI 5739/8G/Z Genuine Lamborghini - New In stock
# 037
MPN: 008612503
SEAL RING
Gomm. dur R 330 in tubo ris
from £8.84
from £8.84
GROMMET 25X32X2 MM Genuine Lamborghini - New (to order)
# 038
MPN: N0211963
NUT
DADO N/70/105M
from £0.53
from £0.53
HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
HEX. NUT - M5 Genuine Porsche Part - New (to order)
# 039
MPN: WHT001187
WASHER
Rond. 5,3 UNI 1734 5S
from £0.53
from £0.53
This part replaces part number 008400502
WASHER 10X5.3X1 UNI 6952 CAT-A Genuine Lamborghini - New In stock
# 040
MPN: 006222060
TUBE
Tubo colleg. 3 vie/filtri carb. attivi
Lamborghini PART 006222060 Genuine Lamborghini - New (to order)
# 041
MPN: 008830901
CLAMP RING
Fasc. royal 0000/9
from £6.11
from £6.11
CLAMP Genuine Lamborghini - New (to order)
# 042
MPN: 001613782
SCREW
Tre vie fra collett. asp. DS. 1S6
from £2.16
from £2.16
THREE-WAY UNION Genuine Lamborghini - New In stock
# 043
MPN: 006221559
TUBE
Pipe from the Benz breather course. to the filter
TUBE Genuine Lamborghini - New (to order)
# 044
MPN: 006222063
TUBE
Tubo x sfiato filtri carb. attivi a terra
TUBE Genuine Lamborghini - New (to order)
# 045
MPN: 006221564
BRETH FUEL
Fuel breather body
from £500.78
from £500.78
FUEL BREATHER CASING Genuine Lamborghini - New (to order)
# 046
MPN: 008100505
BOLT
Bull. M5x20 UNI 5739/5S
from £0.54
from £0.54
SCREW M5X20 UNI 5739/5S Genuine Lamborghini - New In stock
# 047
MPN: 006221571
CLAMP RING
Assieme fasc. fiss. corpo sfiato oli e ben.
from £16.91
from £16.91
BREATHER CASING RETAINING CLAM P Genuine Lamborghini - New (to order)
# 048
MPN: 008200501
NUT
DADO M5 UNI 5588-65/8G
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 049
MPN: 008830901
CLAMP RING
Fasc. royal 0000/9
from £6.11
from £6.11
CLAMP Genuine Lamborghini - New (to order)
# 050
MPN: 006221067
LEFT TANK
Serbatoio benzina sin. Countach USA
from £423.68
from £423.68
LH FUEL TANK Genuine Lamborghini - New (to order)
# 051
MPN: 006210600
CLIP
Fasc. post. fiss. serb./C
from £69.26
from £69.26
TANK REAR CLAMP Genuine Lamborghini - New (to order)
# 052
MPN: 006223339
TUBE
Tubo colleg. serbatoio benzina
from £75.45
from £75.45
FUEL TANK UNION PIPE Genuine Lamborghini - New (to order)
# 053
MPN: 008700601
SCREW
Vite TCEI M6x30 UNI 5931 8G
from £3.65
from £3.65
SCREW M6X30 UNI 59318G/Z Genuine Lamborghini - New In stock
# 054
MPN: 001719347
TUBE
Cavallotto fiss. tubo dal rad. des. al. -sin.
from £166.45
from £166.45
PIPE U-BOLT FROM RH RADIATOR Genuine Lamborghini - New (to order)
# 055
MPN: 008800607
SPACER
Distanziale x cavall. fiss. Tubi acqua rad
from £7.55
from £7.55
BUSHING 6.5X14X11 MM Genuine Lamborghini - New (to order)
# 056
MPN: 006221609
GASKFT
Guarniz. x fiss. tubo colleg. serb.
from £43.58
from £43.58
TANK PIPE FASTENING SEAL Genuine Lamborghini - New (to order)
# 057
MPN: 006210601
CLIP
Fasc. ant. fiss. serb./C
from £109.86
from £109.86
TANK FRONT CLAMP Genuine Lamborghini - New (to order)
