lamborghini countach 5000 qvi (1989) bumpers and spoilers parts diagram

046 - Bumpers and Spoilers

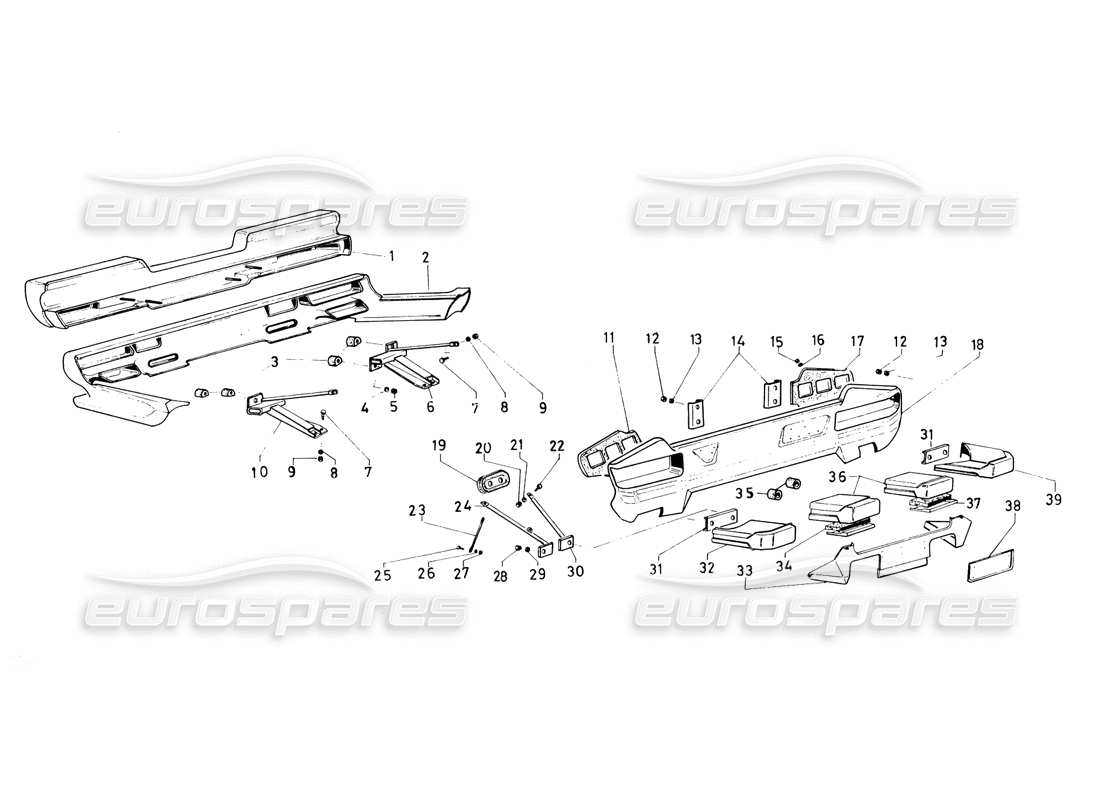

Lamborghini Countach 5000 QVi (1989) Bumpers and Spoilers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 007063089
FRONT BUMPE
PARAURTI ANTERIORE
from £2,317.24
from £2,317.24
FRONT BUMPER Genuine Lamborghini - New (to order)
# 002
MPN: 007063037
SPOILER
SPOILER
from £998.66
from £998.66
SPOILER Genuine Lamborghini - New (to order)
SPOILER Genuine Lamborghini - Used In stock
# 003
MPN: 007063091
PLUG
Tampone x paraurti anteriore
PLUG Genuine Lamborghini - New (to order)
# 004
MPN: 008401006
WASHER
Rond. A10.5 UNI 1734
from £0.53
from £0.53
WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New In stock
# 005
MPN: 008201008
NUT
DADO B/70/210M
from £0.55
from £0.55
NUT Genuine Lamborghini - New In stock
# 006
MPN: 004123518
PUMP FRAME
Telaietto anter. smont. di rinforzo des.
from £178.99
from £178.99
REMOVABLE FRONT FRAME Genuine Lamborghini - New (to order)
# 007
MPN: 008101031
BOLT
Bull. M10X25 UNI 5739/8G
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 008
MPN: 008401006
WASHER
Rond. A10.5 UNI 1734
from £0.52
from £0.52
WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New In stock
# 009
MPN: 008201008
NUT
DADO B/70/210M
from £0.53
from £0.53
NUT Genuine Lamborghini - New In stock
# 010
MPN: 004123519
BUMP, TRAME
Telaietto anter. smont. di rinforzo sin.
from £171.63
from £171.63
REMOVABLE FRONT FRAME Genuine Lamborghini - New (to order)
# 011
MPN: 007063088
GASKET
Guarniz. x fanale post. sin.
from £66.67
from £66.67
LH REAR HEADLAMP WEATHER STRIP Genuine Lamborghini - New (to order)
# 012
MPN: 008200809
NUT
DADO B/70/208M
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 013
MPN: 008400806
WASHER
Rond. 8,4x16
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 014
MPN: 007063097
PLATE
Piastra fiss. paraurti post, alia carrozz.
from £45.11
from £45.11
REAR BUMP.FIX.PLATE Genuine Lamborghini - New (to order)
# 015
MPN: 008200501
NUT
DADO M5 UNI 5588-65/8G
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 016
MPN: WHT003040
WASHER
RONDELLA PORE/S
from £4.55
from £4.55
WASHER Genuine Lamborghini - New (to order)
# 017
MPN: 007063087
GASKET
Guarniz. x fanale post des.
from £66.67
from £66.67
RH REAR HEADLAMP WEATHER STRIP Genuine Lamborghini - New (to order)
# 018
MPN: 007063084
REAR BUMPE
Compless. paraurti posteriore
from £1,285.12
from £1,285.12
REAR BUMPER ASSEMBLY Genuine Lamborghini - New (to order)
# 019
MPN: 007063069
GASKET
Guam, su paraf. post des./sin. x pass, staffa
from £64.01
from £64.01
REAR RH/LH FENDER SEAL Genuine Lamborghini - New (to order)
# 020
MPN: 008200809
NUT
DADO B/70/208M
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 021
MPN: N90179103
WASHER
Rond. 8,4 UNI 1734 8G
from £0.98
from £0.98
This part replaces part number 008400801
WASHER Genuine Lamborghini - New (to order)
# 022
MPN: 008100838
BOLT
Bull. 8x1,25x25 10K
from £15.00
from £15.00
This part replaces part number BN-00368
SPECIAL SCREW M8X25 Genuine Lamborghini - New In stock
# 023
MPN: 007063096
PLATE
Staffa sost. puntoni est. supp. rostri
from £60.26
from £60.26
EXT.L STRUT BRACKET Genuine Lamborghini - New (to order)
# 024
MPN: 007063092
PLATE
Puntone est. supp. rostro des.
from £88.72
from £88.72
RH GUARD SUPPORT EXT.END Genuine Lamborghini - New (to order)
# 024
MPN: 007063094
PLATE
Puntone est. supp. rostro sin.
from £88.72
from £88.72
GUARD SUPPORT EXT.END Genuine Lamborghini - New (to order)
# 025
MPN: 008100607
BOLT
Bull. M6x18 UNI 5739 5S
from £3.65
from £3.65
SCREW M6X18 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
# 026
MPN: WHT002961
WASHER
Rond. 6,5x18x1,5
from £0.53
from £0.53
This part replaces part number 008400607
WASHER Genuine Lamborghini - New In stock
# 027
MPN: 008200601
NUT
DADO M6 UNI 5588-65/A
from £2.24
from £2.24
M6 UNI 5588-8G/Z NUT Genuine Lamborghini - New (to order)
# 028
MPN: 008200809
NUT
DADO B/70/208M
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 029
MPN: N90179103
WASHER
Rond. 8,4 UNI 1734 8G
from £0.98
from £0.98
This part replaces part number 008400801
WASHER Genuine Lamborghini - New (to order)
# 030
MPN: 007063093
PLATE
Puntone int. supp. rostro des.
from £88.72
from £88.72
RH GUARD SUPPORT EXT.END Genuine Lamborghini - New (to order)
# 030
MPN: 007063095
PLATE
Puntone int. supp. rostro sin.
from £88.72
from £88.72
GUARD SUPPORT EXT.END Genuine Lamborghini - New (to order)
# 031
MPN: 007063070
UNION PLATE
East strut union plate. and int.
from £46.85
from £46.85
STRUT UNION PLATE Genuine Lamborghini - New (to order)
# 032
MPN: 007063080
PLATE
Overall left external rostrum.
Lamborghini PART 007063080 Genuine Lamborghini - New (to order)
# 033
MPN: 007030014
TEMP, PLATE
Muffler protection mask
from £468.45
from £468.45
MUFFLER GUARD GRILL Genuine Lamborghini - New (to order)
# 034
MPN: 007055057
TEMP, PANEL
ISOLANTE
TEMP, PANEL Genuine Lamborghini - New (to order)
# 035
MPN: 007063023
RUBBER PAD.
Tampone x ammort. paraurti ant. e post.
from £378.90
from £378.90
BUMP.SH.ABSORBER PAD Genuine Lamborghini - New (to order)
# 036
MPN: 007063081
PLATE
Compless. rostri central!
Lamborghini PART 007063081 Genuine Lamborghini - New (to order)
# 037
MPN: 007055056
TEMP, PLATE
Heat shelter bulkhead under central guards.
Lamborghini PART 007055056 Genuine Lamborghini - New (to order)
# 038
MPN: 007066005
REAR UP. PLATE
PORTA TARGA POSTERIORE
from £46.85
from £46.85
REAR PLATE CARR. Genuine Lamborghini - New (to order)
# 039
MPN: 007063079
PLATE
Compless. rostro est. des.
from £225.53
from £225.53
RIGHT EXT. BUMPER GUARD ASSEMB LY Genuine Lamborghini - New (to order)
