lamborghini countach 5000 s (1984) crankcase parts diagram

011 - crankcase

Lamborghini Countach 5000 S (1984) Crankcase Parts Diagram

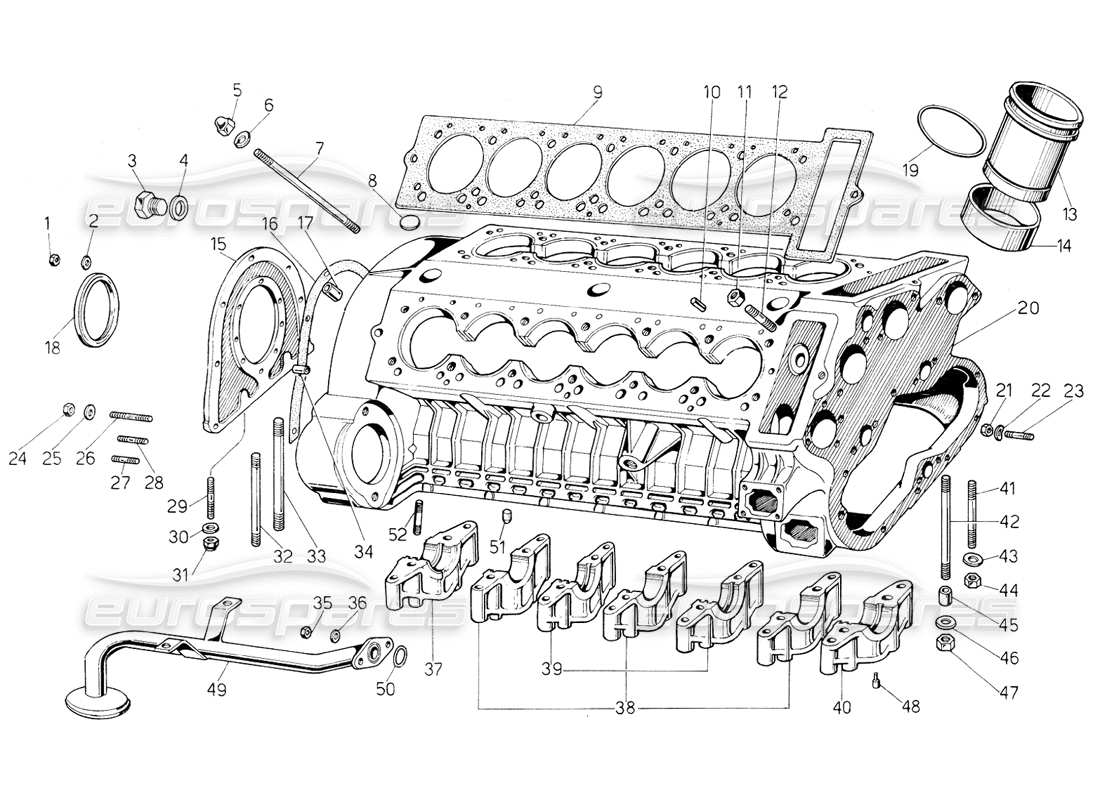

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 000

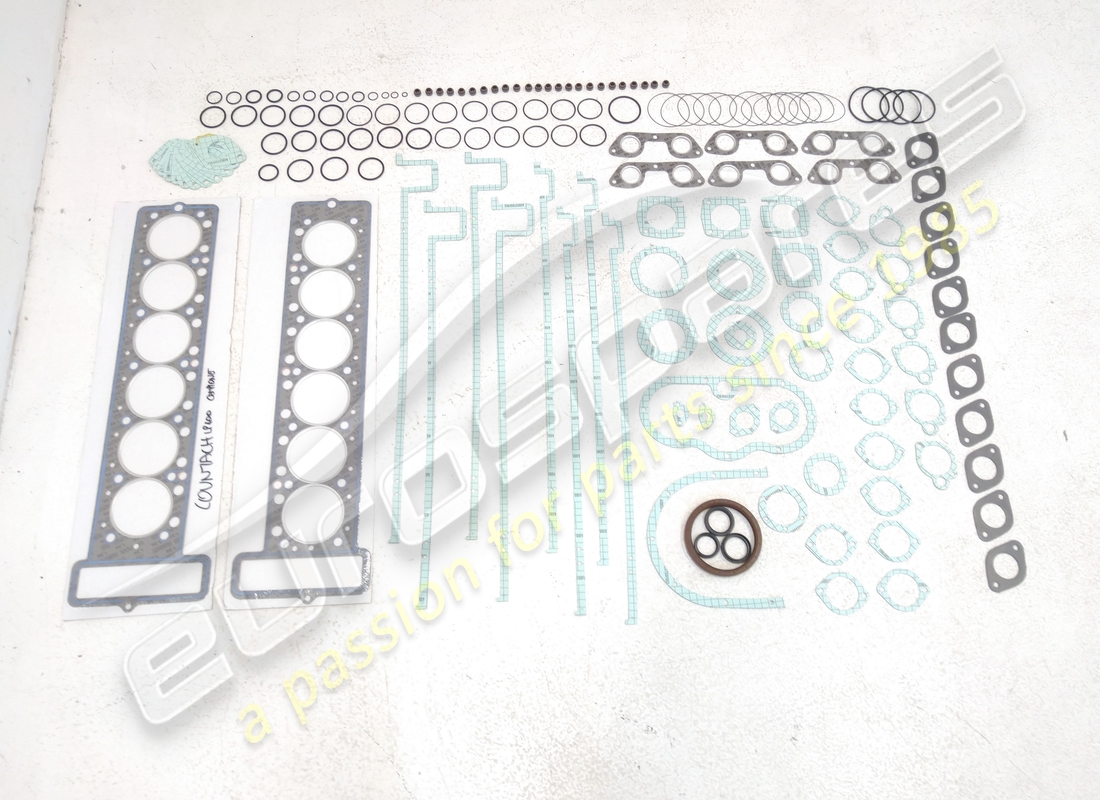

          MPN: 001526488
          GASKET SET
          Full gasket set / No oil seals
          from £865.08
          from £865.08
          engine gasket kit Genuine Lamborghini - New (to order)
          engine gasket kit Eurospares Approved Part - New (to order)
          # 001
          MPN: N01100637
          NUT
          DADO M6 UNI 5588-65/8G
          from £0.51
          from £0.51
          This part replaces part number 008200604
          HEX.NUT Genuine Lamborghini - New In stock
          # 002
          MPN: 008400616
          WASHER
          Rond. bonded seal PP 45-4
          from £2.01
          from £2.01
          BONDED SEAL WASHER PP 45-4 Genuine Lamborghini - New In stock
          # 003
          MPN: 008932202
          PLUG
          Tappo 22MB
          from £49.83
          from £49.83
          PLUG 22MB Genuine Lamborghini - New (to order)
          # 004
          MPN: 008602002
          SEAL RING
          ANELLO OR 128
          from £14.31
          from £14.31
          RING 21 MM OR Genuine Lamborghini - New In stock
          # 005
          MPN: 008201101
          NUT
          Dado cieco 11x1 8G
          from £22.23
          from £22.23
          M11X1 CAP NUT Genuine Lamborghini - New (to order)
          # 006
          MPN: 001112287
          WASHER
          Rond. fiss. teste/U
          from £11.66
          from £11.66
          HEAD FIXING WASHER Genuine Lamborghini - New (to order)

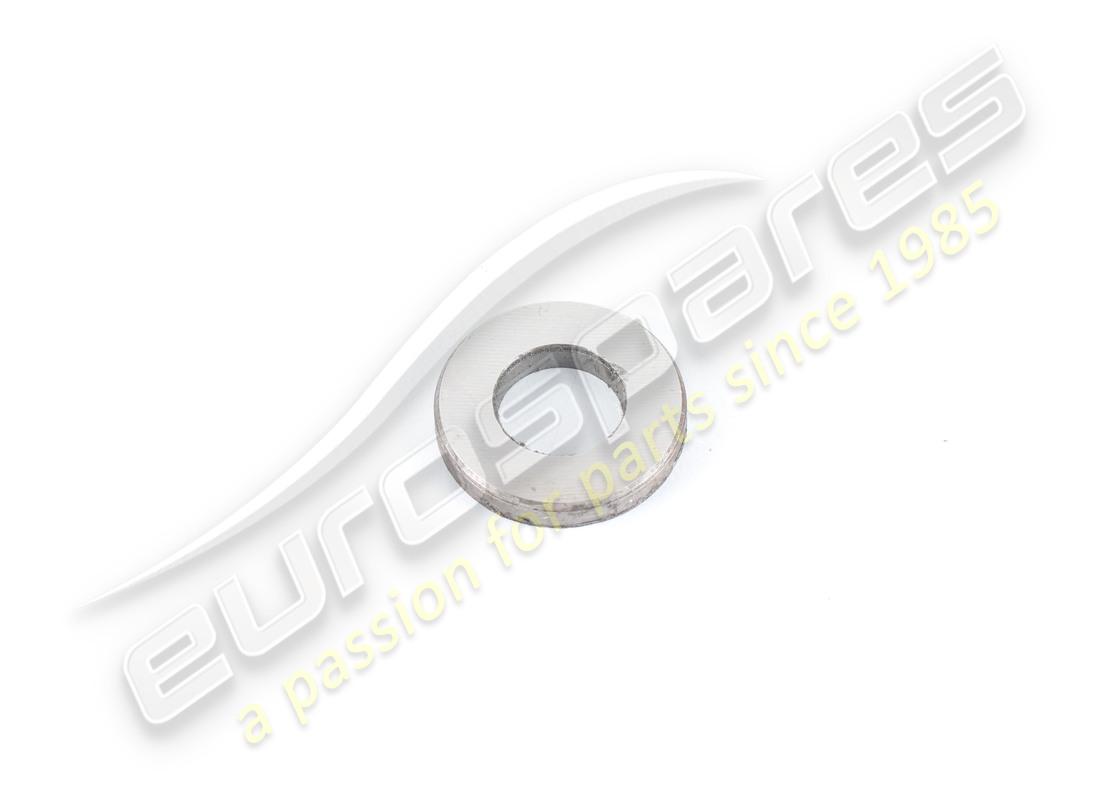

          # 007
          MPN: 008301212
          HEAD STUD
          from £19.77
          from £19.77
          HEAD FASTENING STUD M11X100 Genuine Lamborghini - New In stock
          # 008
          MPN: 008932401
          PLUG
          TAPPO
          from £16.77
          from £16.77
          EXPANSION PLUG Genuine Lamborghini - New (to order)
          # 009
          MPN: 001120593
          GASKET
          Guarniz. x testa sin.
          from £251.70
          from £251.70
          LH HEAD GASKET Genuine Lamborghini - New In stock
          LH HEAD GASKET Eurospares Approved Part - New (to order)
          # 009
          MPN: 001120594
          GASKET
          Guarniz. x testa dex
          from £251.70
          from £251.70
          RH HEAD GASKET Genuine Lamborghini - New (to order)
          RH HEAD GASKET Eurospares Approved Part - New In stock
          # 009
          MPN: LHGAS002
          PAIR OF HEAD GASKETS
          (pattern)
          PAIR OF HEAD GASKETS Genuine Lamborghini - New (to order)
          # 010
          MPN: 008850804
          DOWEL
          from £11.11
          from £11.11
          REFERENCE PIN 8X14 C40 Genuine Lamborghini - New (to order)
          # 011
          MPN: N0111849
          NUT
          DADO N/70/108M
          from £1.47
          from £1.47
          This part replaces part number 008200809
          HEX.HEAD CLAMPING NUT Genuine Lamborghini - New In stock
          # 012
          MPN: 008300815
          STUD
          from £10.53
          from £10.53
          SPECIAL STUD M8X33 Genuine Lamborghini - New (to order)
          # 013
          MPN: 001819473
          CYLIND LINE
          Canna cilindro
          CYLINDER LINER Genuine Lamborghini - New (to order)
          # 013
          MPN: 001819964
          CYLINDER LINER
          (Valid from chassis No. 435)
          from £317.55
          from £317.55
          CYLINDER LINER Genuine Lamborghini - New (to order)
          # 014
          MPN: 001819838
          SPACER
          Distanziale per canna cilindro
          from £203.63
          from £203.63
          SHIM Genuine Lamborghini - New (to order)
          # 015
          MPN: 001802034
          BLOCK COVER
          Cop. post, albero motore
          BLOCK COVER Genuine Lamborghini - New (to order)
          # 016
          MPN: 001800294
          GASKET
          Guam. cop. post, basam.
          from £14.93
          from £14.93
          CRANKCASE REAR COVERSEAL Genuine Lamborghini - New In stock
          # 017
          MPN: 008851103
          DOWEL
          GRANO DI RIFERIMENTO
          LOCATING DOWEL Genuine Lamborghini - New (to order)
          # 018
          MPN: 001829009
          OIL SEAL
          Paraolio D. 100x120x42 RSS,.
          from £38.69
          from £38.69
          This part replaces part number 008609902 - and 1 more. Click to view details
          REAR MAIN OIL SEAL 100X120X12 Genuine Lamborghini - New In stock
          # 019
          MPN: WHT003085
          RUBBER
          Comma per canna cilindri 78x1,20
          from £2.68
          from £2.68
          CYLINDER LINER RUBBER WASHER M M 78X1 Genuine Lamborghini - New In stock
          # 020
          MPN: 001819467
          CYLINDER BLOC
          Basamento cilindri
          CYLINDER BLOC Genuine Lamborghini - New (to order)
          # 021
          MPN: N01100637
          NUT
          DADO M6 UNI 5588-65/8G
          from £0.53
          from £0.53
          This part replaces part number 008200604
          HEX.NUT Genuine Lamborghini - New In stock
          # 022
          MPN: 008410603
          LOCK WASHER
          Rond, A6,4 UNI 1751 C72
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 023
          MPN: 008300610
          BOLT
          PRIG. 6x1x1 6 8G
          from £15.47
          from £15.47
          STUD 6X1X16 8G UNI5911 Z. Genuine Lamborghini - New (to order)
          # 024
          MPN: N01100637
          NUT
          DADO M6 UNI 5588-65/8G
          from £0.52
          from £0.52
          This part replaces part number 008200604
          HEX.NUT Genuine Lamborghini - New In stock
          # 025
          MPN: WHT001197
          LOCK WASHER
          Ros. el. 6,4x12x0,5
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 026
          MPN: 008300609
          BOLT
          PRIG. 6x1x25 8G
          from £8.84
          from £8.84
          STUD M6X25 UNI 5911 8G/ZD Genuine Lamborghini - New (to order)
          # 027
          MPN: 008300608
          STUD
          PRIG. 6x1x20 8G
          from £0.66
          from £0.66
          STUD M6X20 UNI 5911 8G/ZD Genuine Lamborghini - New (to order)
          # 028
          MPN: 008300845
          BOLT
          Prig. 8x1,25x18980
          from £29.39
          from £29.39
          SPECIAL STUD M8X189 Genuine Lamborghini - New (to order)
          # 029
          MPN: 008300611
          BOLT
          PRIG. 6x1x30 8G
          from £4.40
          from £4.40
          STUD 6X30 UNI 5911/8G/Z Genuine Lamborghini - New (to order)
          # 030
          MPN: WHT001197
          LOCK WASHER
          Ros. el. 6,4x12x0,5
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 031
          MPN: 008200606
          NUT
          DADO N/70/106M
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 032
          MPN: 008300816
          BOLT
          PRIG. 8x1x65 10K
          from £9.66
          from £9.66
          STUD M8X1X65 UNI 5919 10K Genuine Lamborghini - New (to order)
          # 033
          MPN: 008301213
          BOLT
          Prig. 12x1, 75x98 38NCD4
          from £37.40
          from £37.40
          SPECIAL STUD M12X98 Genuine Lamborghini - New In stock
          # 034
          MPN: 008850605
          DOWEL
          Bocc.c. 6,25x8x1 OC40
          Lamborghini PART 008850605 Genuine Lamborghini - New (to order)
          # 035
          MPN: N01100637
          NUT
          Dado M6 UN I 5588-65/8G
          from £0.53
          from £0.53
          This part replaces part number 008200604
          HEX.NUT Genuine Lamborghini - New In stock
          # 036
          MPN: 008410603
          LOCK WASHER
          Rond. A6.4UNI 1751 C72
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 037
          MPN: 001819472
          SUPPORT C.
          Supp. post. alb. motore
          SUPPORT C. Genuine Lamborghini - New (to order)
          # 038
          MPN: 001819471
          SUPPORT C.
          Supp. int. alb. motore N. 2—4—6
          SUPPORT C. Genuine Lamborghini - New (to order)
          # 039
          MPN: 001819469
          SUPPORT C.
          Supp. int. alb. motore N. 3—5
          SUPPORT C. Genuine Lamborghini - New (to order)
          # 040
          MPN: 001819470
          SUPPORT C.
          Supp. ant. alb. motore
          SUPPORT C. Genuine Lamborghini - New (to order)
          # 041
          MPN: 008300817
          BOLT
          Prig. 8x1x60 38NCD4
          from £10.53
          from £10.53
          STUD M8X1X60 UNI 5919 10K Genuine Lamborghini - New (to order)
          # 042
          MPN: 008301214
          BOLT
          Prig. 12x1,5x94 1 0K
          from £21.81
          from £21.81
          SPECIAL STUD M12X94 Genuine Lamborghini - New In stock
          # 043
          MPN: WHT001514
          LOCK WASHER
          Ros. el. 8,4x17x0,8
          from £15.09
          from £15.09
          This part replaces part number 008410805
          SPRING WASHER Genuine Lamborghini - New (to order)
          # 044
          MPN: 008200805
          NUT
          from £0.49
          from £0.49
          M8X1X8 8G/B NUT Genuine Lamborghini - New In stock
          # 045
          MPN: 008851501
          DOWEL
          Grano D. 15x12,5x14
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 046
          MPN: 008411302
          LOCK WASHER
          Rondel. 13x24x1,2
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 047
          MPN: 008201221
          NUT
          Dado fiss. supp. interm. e ant. alb. motore
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 048
          MPN: 008850613
          DOWEL BOLT
          Grano supp. albero motore
          Lamborghini PART 008850613 Genuine Lamborghini - New (to order)
          # 049
          MPN: 001808151
          Sump pickup
          Tubo asp. olio coppa /C
          from £123.54
          from £123.54
          OIL SUMP SUCTION PIPE Genuine Lamborghini - New (to order)
          # 050
          MPN: 008602901
          SEAL RING
          AnelloOR4118
          from £0.54
          from £0.54
          RING 30 MM OR Genuine Lamborghini - New In stock
          # 051
          MPN: 001819519
          DOWEL
          GRANO
          from £14.98
          from £14.98
          LOWER BRACKET OIL REDUCTION DO WEL Genuine Lamborghini - New (to order)
          # 052
          MPN: 008300847
          BOLT
          Prig. M8x26 8G
          from £0.49
          from £0.49
          SPECIAL STUD M8X26 Genuine Lamborghini - New (to order)
          # 053
          MPN: 001526468
          OIL SEALS
          Complete engine oil seal kit
          from £55.46
          from £55.46
          GROMMET & OIL SEALS SET Genuine Lamborghini - New In stock
