lamborghini countach 5000 s (1984) pedals parts diagram

025 - Pedals

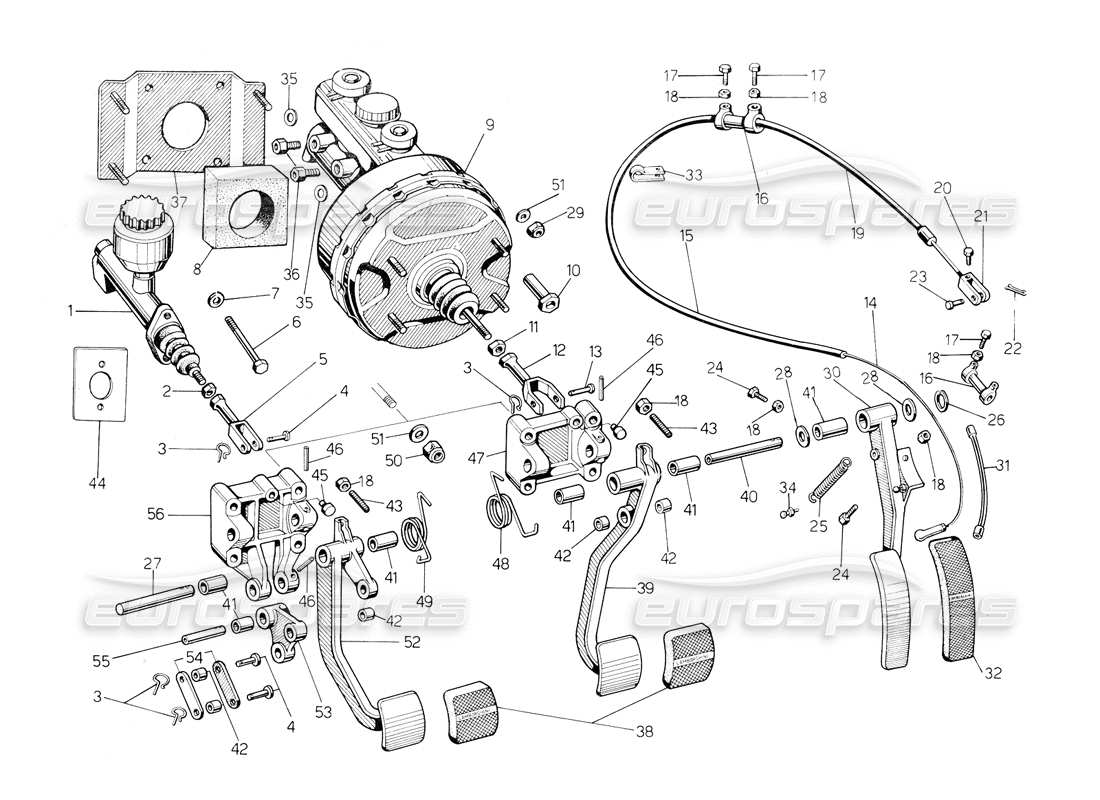

Lamborghini Countach 5000 S (1984) Pedals Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 004219984
        Clutch Pump
        from £198.44
        from £198.44
        CLUTCH MASTER CYLINDER Genuine Lamborghini - New In stock
        # 002
        MPN: 008200811
        NUT
        DADO M8 UNI 5589-65/8G
        from £3.65
        from £3.65
        M8 UNI 5589/8G/ZDNUT Genuine Lamborghini - New (to order)
        # 003
        MPN: 004207085
        LEVER
        Fermo perno pompa freno/friz.
        from £48.26
        from £48.26
        BRAKE CYLINDER PIN STOPPER Genuine Lamborghini - New In stock
        # 004
        MPN: 004210745
        PIN
        Perno fore, pedale friz./C
        from £22.97
        from £22.97
        CLUTCH PEDAL FORK PIN Genuine Lamborghini - New (to order)
        # 005
        MPN: 004219591
        FORK
        Forcella comando pompa frizione
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 006
        MPN: 008100822
        BOLT
        BULL.M8x60 UNI 5737 8G
        from £3.70
        from £3.70
        SCREW M8X60 UNI 57378G/ZD Genuine Lamborghini - New (to order)
        # 007
        MPN: 008410806
        LOCK WASHER
        Rond. EL. A8,4 UNI 1751
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 008
        MPN: 004220287
        GASKET
        Guarnizione in spugna x servofreno
        Lamborghini PART 004220287 Genuine Lamborghini - New (to order)
        # 009
        MPN: 004205398
        BRAKE PUMP
        from £508.47
        from £508.47
        This part replaces part number 004219271
        BRAKE PUMP Genuine Lamborghini - New (to order)
        brake master cylinder Original Equipment - New (to order)
        brake master cylinder Eurospares Approved Part - New In stock
        # 009
        MPN: 004219271
        BRAKE PUMP + SERVO
        Compl. pompa servofreno
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 010
        MPN: 008201021
        NUT
        Dado f iss. servofreno
        from £7.60
        from £7.60
        POWER BRAKE MOUNTINGNUT Genuine Lamborghini - New (to order)
        # 011
        MPN: 008201014
        NUT
        Dado M1 0x1x655
        from £3.86
        from £3.86
        M10X1X6 UNI 5589/5S/Z NUT Genuine Lamborghini - New (to order)
        # 012
        MPN: 004219276
        FORK
        Forcella com. pompa freno
        from £158.36
        from £158.36
        BRAKE CYLINDER CONTROL FORK Genuine Lamborghini - New (to order)
        # 013
        MPN: 004208714
        PIN
        Perno pompa freno/f riz./U
        from £242.10
        from £242.10
        BRAKE & CLUTCH CYLINDER PIN Genuine Lamborghini - New (to order)
        # 014
        MPN: 004229312
        THROTT CABLE
        Cavo acceleratore 1C
        from £38.65
        from £38.65
        ACCELERATOR WIRE UNIT Genuine Lamborghini - New In stock
        # 015
        MPN: 004213626
        PIPE
        Tubo nylon cavo acceler. 1C
        from £11.74
        from £11.74
        TUBO NYLON CAVO ACCELER./ Genuine Lamborghini - New (to order)
        # 016
        MPN: 004208719
        BUSH
        Boccola tubo protez. FM /U
        from £164.58
        from £164.58
        HANDBRAKE PROTECTIONPIPE BUSHI NG Genuine Lamborghini - New (to order)
        # 017
        MPN: 008100625
        BOLT
        Bull. M6x16 UNI 5739/8G
        from £84.59
        from £84.59
        SCREW M6X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
        # 018
        MPN: N01100637
        NUT
        DADO M6 UNI 5588-65/8G
        from £0.53
        from £0.53
        This part replaces part number 008200604
        HEX.NUT Genuine Lamborghini - New In stock
        # 019
        MPN: 004210632
        CABLE
        Guaina cavo acceleratore/C
        from £5.89
        from £5.89
        ACCELERATOR WIRE SHEATH Genuine Lamborghini - New (to order)
        # 020
        MPN: 008100503
        BOLT
        Bull. M5x8 UNI 5739/8G
        from £0.54
        from £0.54
        SCREW M5X8 UNI 5739/8G Genuine Lamborghini - New In stock
        # 021
        MPN: 001300188
        CABLE FORK
        Fore, fermo cavo accel.
        from £127.28
        from £127.28
        ACCELERATOR WIRE LOCK FORK Genuine Lamborghini - New (to order)
        # 022
        MPN: 008820201
        SPLINT PIN
        Coppigl. 2x,15 UNI 1336
        from £4.11
        from £4.11
        SPLIT PIN 1.8X15 UNI 1336A Genuine Lamborghini - New (to order)
        # 023
        MPN: 001300372
        CABLE PIN
        Perno cavo accel.
        from £13.14
        from £13.14
        ACCELERATOR WIRE PIN Genuine Lamborghini - New (to order)
        # 024
        MPN: 008100632
        BOLT
        Bull. M6x30 UNI 5739-65A5S
        from £1.67
        from £1.67
        SCREW M6X30 UNI 5739-65A 5 Genuine Lamborghini - New In stock
        # 025
        MPN: 004212017
        THROTT PEDA
        Molla pedale accel. 1C
        from £22.64
        from £22.64
        ACCELERATOR PEDAL SPRING Genuine Lamborghini - New (to order)
        # 026
        MPN: 008581502
        CIRCLP
        Seeger 15 UNI 3653
        from £3.65
        from £3.65
        O-RING E 15 UNI 7435-75 Genuine Lamborghini - New (to order)
        # 027
        MPN: 004210744
        PIN
        Perno supp. pedale frizione
        from £50.58
        from £50.58
        CLUTCH PEDAL MOUNT PIN Genuine Lamborghini - New (to order)
        # 028
        MPN: 008401503
        WASHER
        Rondella D. 125,25x22x3 V
        from £29.44
        from £29.44
        WASHER D.125.25X22X3 Genuine Lamborghini - New (to order)
        # 029
        MPN: 008200840
        NUT
        Dado f iss. piastra servof reno
        STUD Genuine Lamborghini - New (to order)
        # 030
        MPN: 004213617
        THROTT PEDA
        Pedale acceleratore 1C
        Lamborghini PART 004213617 Genuine Lamborghini - New (to order)
        # 031
        MPN: 004213628
        SHEATH
        Guaina cavo acceler. lato pedale
        SHEATH Genuine Lamborghini - New (to order)
        # 032
        MPN: 004203128
        PEDAL COVER
        Copert. pedale acceleratore
        from £45.00
        from £45.00
        ACCELERATOR PEDAL COVER Genuine Lamborghini - New (to order)
        ACCELERATOR PEDAL COVER Eurospares Approved Part - New In stock
        # 033
        MPN: 008830112
        CLAMP RING
        Fasc. x tubo D. 8 C 72
        from £68.07
        from £68.07
        PIPE CLAMP Genuine Lamborghini - New (to order)
        # 034
        MPN: 001300803
        PIN
        Testina sferica leva
        from £20.78
        from £20.78
        LEVER BALL JOINT Genuine Lamborghini - New In stock
        # 035
        MPN: 008401018
        WASHER
        Rondella raccordo pompa freni
        from £0.53
        from £0.53
        PUMP FITTING WASHER Genuine Lamborghini - New In stock
        # 036
        MPN: 003219278
        TUBE
        Race, di riduz. pompa freni M. 10x1,25
        from £146.33
        from £146.33
        M10 BRAKE PUMP PIPE ADAPTER FI TTING Genuine Lamborghini - New (to order)
        # 037
        MPN: 004119287
        PLATE
        Compl. piastra att. servofr.
        from £111.94
        from £111.94
        BRAKE BOOSTER ATTACHMENT PLATE ASSEMBLY Genuine Lamborghini - New (to order)
        # 038
        MPN: 004201212
        BRAKE PEDAL COVER
        from £30.00
        from £30.00
        BRAKE PEDAL COVER Genuine Lamborghini - New In stock
        BRAKE PEDAL COVER Eurospares Approved Part - New In stock
        # 039
        MPN: 004213615
        BRAKE PEDAL
        Pedale freno 1C
        from £281.08
        from £281.08
        BRAKE PEDAL Genuine Lamborghini - New (to order)
        # 040
        MPN: 004213619
        PIN
        Perno pedale freno accel. 1C
        from £318.39
        from £318.39
        ACCELERATOR & BRAKE PEDAL PIN Genuine Lamborghini - New (to order)
        # 041
        MPN: 008801501
        BUSH
        Boccola MB 1525 DU
        from £11.69
        from £11.69
        BUSHING 15X17X25 MM Genuine Lamborghini - New (to order)
        # 042
        MPN: 008800803
        BUSH
        Boccola glissa 8F7/12x8
        from £3.98
        from £3.98
        BUSHING 8X12X8 MM Genuine Lamborghini - New In stock
        # 043
        MPN: 004210834
        CLUTCH PEDA
        Registro pedali freno /friz. 1C
        from £2.83
        from £2.83
        BRAKE/CLUTCH PEDAL ADJUSTMENT Genuine Lamborghini - New (to order)
        # 044
        MPN: 004213632
        PANEL
        Prot. pompa f rizione 1C
        from £5.35
        from £5.35
        CLUTCH CYLINDER COVER Genuine Lamborghini - New (to order)
        # 045
        MPN: 410721381
        PEDAL STOP
        from £51.54
        from £51.54
        BRAKE CLUTCH PEDAL STOP Genuine Lamborghini - New (to order)
        # 046
        MPN: 008900302
        PIN
        Spi,na EL. S 3x32
        Lamborghini PART 008900302 Genuine Lamborghini - New (to order)
        # 047
        MPN: 004213618
        PEDAL SUPPORT
        Supp. pedale freno 1C
        from £446.89
        from £446.89
        BRAKE PEDAL BRACKET Genuine Lamborghini - New (to order)
        # 048
        MPN: 004213406
        SPRING
        Molla rit. pedale freno 1C
        from £41.13
        from £41.13
        BRAKE PEDAL RETURN SPRING Genuine Lamborghini - New (to order)
        # 049
        MPN: 004213407
        SPRING
        Molla rit. pedale friz. 1C
        from £27.03
        from £27.03
        CLUTCH PEDAL RETURN SPRING Genuine Lamborghini - New In stock
        # 050
        MPN: N0111849
        NUT
        DADO N/70/108M
        from £1.39
        from £1.39
        This part replaces part number 008200809
        HEX.HEAD CLAMPING NUT Genuine Lamborghini - New In stock
        # 051
        MPN: N90179103
        WASHER
        Rond. 8,4 UNI 1734 8G
        from £0.98
        from £0.98
        This part replaces part number 008400801
        WASHER Genuine Lamborghini - New (to order)
        # 052
        MPN: 004213616
        CLUTCH PEDA
        Pedale frizione 1C
        from £281.08
        from £281.08
        CLUTCH PEDAL Genuine Lamborghini - New (to order)
        # 053
        MPN: 004210743
        LEVER
        Leva rinvio pedale friz. 1C
        from £163.34
        from £163.34
        CLUTCH PEDAL TRANSMISSION LEVE R Genuine Lamborghini - New (to order)
        # 054
        MPN: 004210747
        CLUTCH PEDA
        Biell. pedale frizione 1C
        from £27.65
        from £27.65
        CLUTCH PEDAL LINK ROD Genuine Lamborghini - New (to order)
        # 055
        MPN: 004210746
        PIN
        Perno supp. leva rinvio friz.
        from £48.17
        from £48.17
        CLUTCH GEAR LEVER MOUNT PIN Genuine Lamborghini - New (to order)
        # 056
        MPN: 004210742
        PEDAL SUPPORT
        Supp. pedale frizione 1C
        from £887.16
        from £887.16
        CLUTCH PEDAL BRACKET Genuine Lamborghini - New (to order)
