lamborghini countach lp400 sump parts diagram

010 - Sump

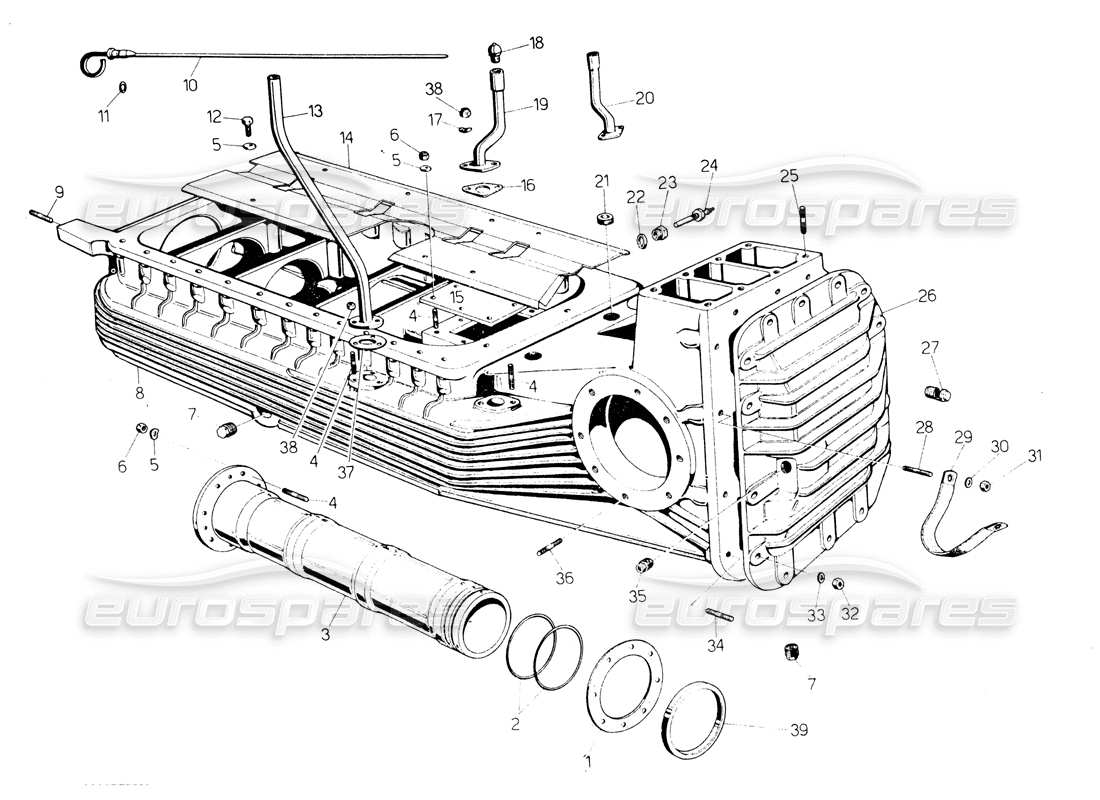

Lamborghini Countach LP400 Sump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Key
                                                                                Price

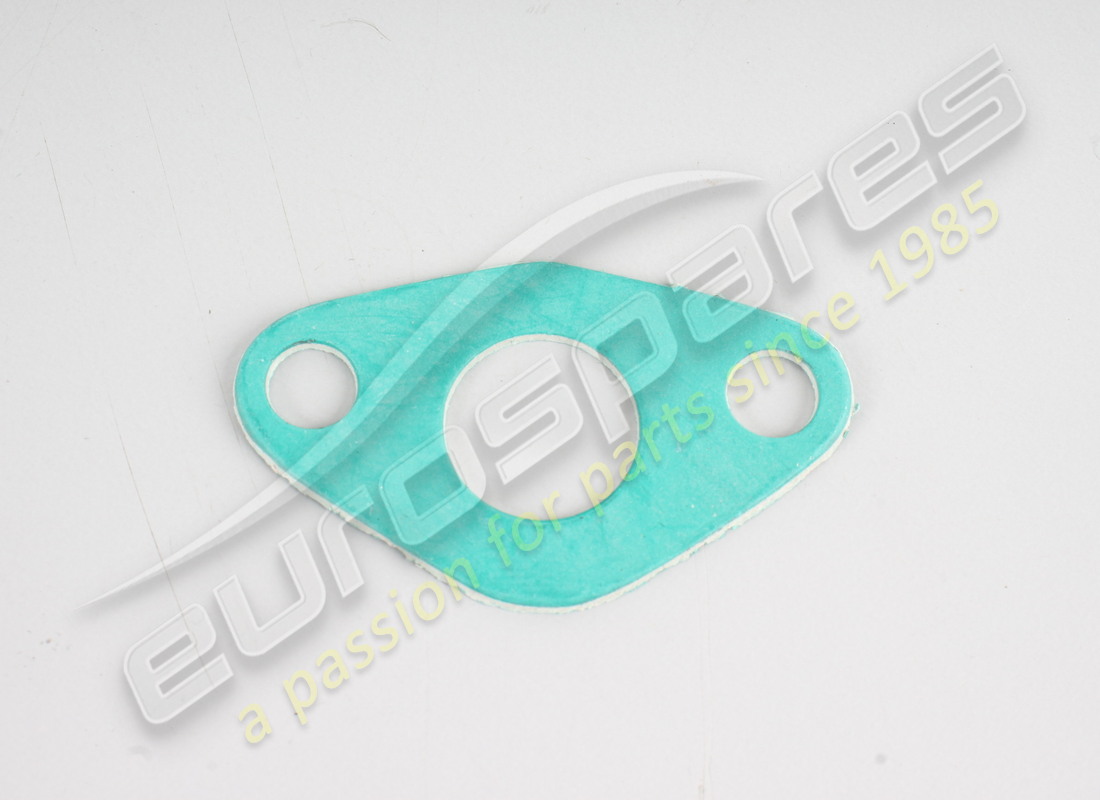

                                                                                # 001
                                                                                MPN: 001812768
                                                                                GASKET
                                                                                from £17.52
                                                                                from £17.52
                                                                                PROPELLER SHAFT PIPEGASKET Genuine Lamborghini - New In stock
                                                                                # 002
                                                                                MPN: 008607301
                                                                                GASKET OR SEAL
                                                                                from £0.66
                                                                                from £0.66
                                                                                RING 73 MM OR Genuine Lamborghini - New In stock
                                                                                # 003
                                                                                MPN: 001808101
                                                                                PIPE / TUBE / HOSE
                                                                                Lamborghini PART 001808101 Genuine Lamborghini - New (to order)
                                                                                # 004
                                                                                MPN: 008300610
                                                                                THREADED STUD
                                                                                from £15.47
                                                                                from £15.47
                                                                                STUD 6X1X16 8G UNI5911 Z. Genuine Lamborghini - New (to order)
                                                                                # 005
                                                                                MPN: 008410602
                                                                                WASHER
                                                                                from £26.01
                                                                                from £26.01
                                                                                WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
                                                                                # 006
                                                                                MPN: 008200604
                                                                                NUT
                                                                                Supersession
                                                                                Supersession
                                                                                Genuine Lamborghini (no longer available to order)
                                                                                # 007
                                                                                MPN: 086301141A
                                                                                TAPPO CONICO
                                                                                from £22.53
                                                                                from £22.53
                                                                                This part replaces part number TN-03165
                                                                                MAGNETIC PLUG 22X1.5 Genuine Lamborghini - New (to order)
                                                                                # 008
                                                                                MPN: 001810040
                                                                                COPPA OLIO
                                                                                from £4,191.15
                                                                                from £4,191.15
                                                                                COUNTACH OIL SUMP Genuine Lamborghini - New (to order)
                                                                                # 009
                                                                                MPN: 008300815
                                                                                STUD
                                                                                from £10.53
                                                                                from £10.53
                                                                                SPECIAL STUD M8X33 Genuine Lamborghini - New (to order)
                                                                                # 010
                                                                                MPN: 001811229
                                                                                COMPLESSIVO ASTA LIVELLO OLIO
                                                                                from £360.67
                                                                                from £360.67
                                                                                OIL DIPSTICK ASSEMBLY Genuine Lamborghini - New (to order)
                                                                                # 011
                                                                                MPN: WHT003057
                                                                                GASKET OR SEAL
                                                                                from £0.91
                                                                                from £0.91
                                                                                This part replaces part number WHT003507 which we have in stock
                                                                                O-RING Genuine Lamborghini - New In stock
                                                                                # 012
                                                                                MPN: 008100620
                                                                                BOLT
                                                                                from £3.65
                                                                                from £3.65
                                                                                SCREW M6X12 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
                                                                                # 013
                                                                                MPN: 001811237
                                                                                PIPE / TUBE / HOSE
                                                                                Lamborghini PART 001811237 Genuine Lamborghini - New (to order)
                                                                                # 014
                                                                                MPN: 001808152
                                                                                PARATIA
                                                                                from £155.06
                                                                                from £155.06
                                                                                OIL SUMP BULKHEAD Genuine Lamborghini - New (to order)
                                                                                # 015
                                                                                MPN: 001811732
                                                                                COVER
                                                                                from £124.79
                                                                                from £124.79
                                                                                SUMP INSPECTION COVER Genuine Lamborghini - New (to order)
                                                                                # 016
                                                                                MPN: 001810045
                                                                                GASKET
                                                                                from £3.34
                                                                                from £3.34
                                                                                DIFFERENTIAL SEAL Genuine Lamborghini - New In stock
                                                                                # 017
                                                                                MPN: 008410603
                                                                                WASHER
                                                                                Supersession
                                                                                Supersession
                                                                                Genuine Lamborghini (no longer available to order)
                                                                                # 018
                                                                                MPN: 002302182
                                                                                SFIATO OLIO
                                                                                from £143.54
                                                                                from £143.54
                                                                                DIFFERENTIAL OIL BREATHER PIPE Genuine Lamborghini - New (to order)
                                                                                # 019
                                                                                MPN: 001811040
                                                                                TUBO SFIATO OLIO LATO SINISTRO
                                                                                from £22.23
                                                                                from £22.23
                                                                                LH DIFFERENTIAL OIL BREATHER Genuine Lamborghini - New (to order)
                                                                                # 020
                                                                                MPN: 001811041
                                                                                TUBO SFIATO OLIO LATO DESTRO
                                                                                from £653.35
                                                                                from £653.35
                                                                                RH DIFFERENTIAL OIL BREATHER Genuine Lamborghini - New (to order)
                                                                                # 021
                                                                                MPN: 008931901
                                                                                PLUG
                                                                                from £3.57
                                                                                from £3.57
                                                                                TAPER PLUG 3/4X14/5S/Z D Genuine Lamborghini - New (to order)
                                                                                # 022
                                                                                MPN: 008401408
                                                                                WASHER
                                                                                from £1.29
                                                                                from £1.29
                                                                                ANNEALED COPPER WASHER 21X14X1 .5 Genuine Lamborghini - New In stock
                                                                                # 023
                                                                                MPN: 001810335
                                                                                RIDUZIONE PER TERMOCOPPIA
                                                                                RIDUZIONE PER TERMOCOPPIA Genuine Lamborghini - New (to order)
                                                                                # 025
                                                                                MPN: 0018300844
                                                                                THREADED STUD
                                                                                THREADED STUD Genuine Lamborghini - New (to order)
                                                                                # 026
                                                                                MPN: 002308058
                                                                                COVER
                                                                                from £323.35
                                                                                from £323.35
                                                                                DIFFERENTIAL BOX COVER Genuine Lamborghini - New (to order)
                                                                                # 027
                                                                                MPN: 002311535
                                                                                PLUG
                                                                                from £70.06
                                                                                from £70.06
                                                                                DIFFERENTIAL OIL BREATHER PLUG Genuine Lamborghini - New (to order)
                                                                                # 028
                                                                                MPN: 008300847
                                                                                THREADED STUD
                                                                                from £0.54
                                                                                from £0.54
                                                                                SPECIAL STUD M8X26 Genuine Lamborghini - New (to order)
                                                                                # 029
                                                                                MPN: 001604328
                                                                                CAVO MASSA DAL MOTORE AT TELAIO
                                                                                Supersession
                                                                                Supersession
                                                                                Genuine Lamborghini (no longer available to order)
                                                                                # 030
                                                                                MPN: N90179103
                                                                                WASHER
                                                                                from £1.06
                                                                                from £1.06
                                                                                This part replaces part number 008400801
                                                                                WASHER Genuine Lamborghini - New In stock
                                                                                # 031
                                                                                MPN: 0018200804
                                                                                NUT
                                                                                NUT Genuine Lamborghini - New (to order)
                                                                                # 032
                                                                                MPN: 008200806
                                                                                NUT
                                                                                Supersession
                                                                                Supersession
                                                                                Genuine Lamborghini (no longer available to order)
                                                                                # 033
                                                                                MPN: WHT001514
                                                                                WASHER
                                                                                from £15.09
                                                                                from £15.09
                                                                                This part replaces part number 008410805
                                                                                SPRING WASHER Genuine Lamborghini - New (to order)
                                                                                # 034
                                                                                MPN: 008300843
                                                                                THREADED STUD
                                                                                from £0.59
                                                                                from £0.59
                                                                                STUD M8X22 UNI 5917 8G ZD Genuine Lamborghini - New (to order)
                                                                                # 035
                                                                                MPN: 01S409965
                                                                                PLUG
                                                                                from £105.93
                                                                                from £105.93
                                                                                This part replaces part number 008931802
                                                                                PLUG Genuine Lamborghini - New (to order)
                                                                                # 036
                                                                                MPN: 008300814
                                                                                THREADED STUD
                                                                                from £4.15
                                                                                from £4.15
                                                                                STUD M8X18 UNI 5914 8G ZD Genuine Lamborghini - New (to order)
                                                                                # 037
                                                                                MPN: 001803094
                                                                                GASKET
                                                                                from £4.56
                                                                                from £4.56
                                                                                OIL DIPSTICK PIPE SEAL Genuine Lamborghini - New (to order)
                                                                                # 038
                                                                                MPN: 008200606
                                                                                NUT
                                                                                Supersession
                                                                                Supersession
                                                                                Genuine Lamborghini (no longer available to order)
                                                                                # 039
                                                                                MPN: 001808102
                                                                                SPACER
                                                                                from £90.38
                                                                                from £90.38
                                                                                SPACER Genuine Lamborghini - New (to order)
