lamborghini countach lp400 hand brake parts diagram

021 - Hand brake

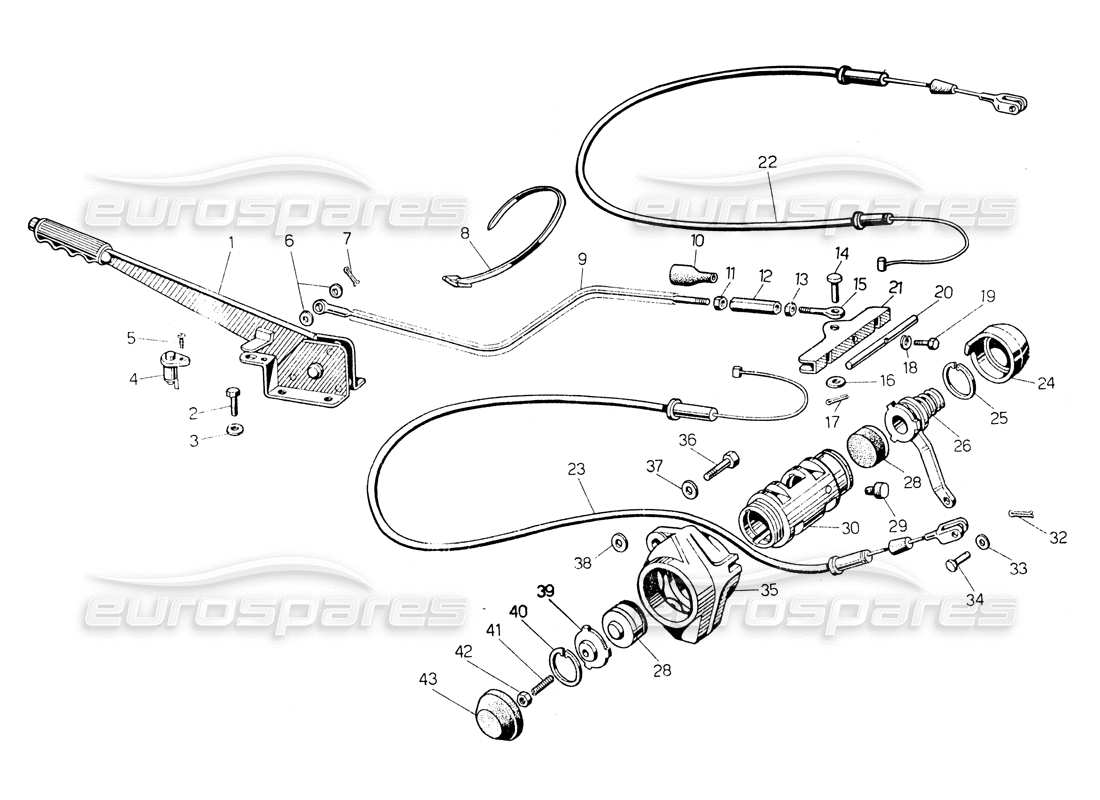

Lamborghini Countach LP400 Hand brake Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 003311179
                                                                                      LEVER
                                                                                      # 002
                                                                                      MPN: 008100616
                                                                                      BOLT
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 003
                                                                                      MPN: 008410603
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 004
                                                                                      MPN: 006721234
                                                                                      INTERRUTTORE FINE CORSA LEVA FRENO A MANO
                                                                                      from £23.47
                                                                                      from £23.47
                                                                                      # 005
                                                                                      MPN: 008700315
                                                                                      VITA
                                                                                      from £1.71
                                                                                      from £1.71
                                                                                      # 006
                                                                                      MPN: 008400806
                                                                                      RANDALLA
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 007
                                                                                      MPN: 008820201
                                                                                      SPLIT PIN
                                                                                      from £4.11
                                                                                      from £4.11
                                                                                      # 008
                                                                                      MPN: 008830403
                                                                                      JUBILEE CLIP
                                                                                      from £1.46
                                                                                      from £1.46
                                                                                      # 009
                                                                                      MPN: 003311189
                                                                                      COMPLESSIVO CAVO DALLA LEVA AL REGISTRO
                                                                                      from £9.05
                                                                                      from £9.05
                                                                                      # 010
                                                                                      MPN: 003307535
                                                                                      PROTEZIO. N PER CAVO FRENO MANO
                                                                                      from £18.62
                                                                                      from £18.62
                                                                                      # 011
                                                                                      MPN: 008200604
                                                                                      NUT
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 012
                                                                                      MPN: 413609206
                                                                                      ADJUSTING SLEEVE
                                                                                      (Valid for RH D. version – April 1994) REGISTRO
                                                                                      from £39.87
                                                                                      from £39.87
                                                                                      # 013
                                                                                      MPN: 008200607
                                                                                      NUT
                                                                                      from £8.05
                                                                                      from £8.05
                                                                                      # 014
                                                                                      MPN: 410609789
                                                                                      PIVOT
                                                                                      from £18.55
                                                                                      from £18.55
                                                                                      This part replaces part number 003301307 which we have in stock
                                                                                      # 015
                                                                                      MPN: 003309378
                                                                                      TIE ROD
                                                                                      from £15.80
                                                                                      from £15.80
                                                                                      # 016
                                                                                      MPN: 008400806
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 017
                                                                                      MPN: 008820201
                                                                                      SPLIT PIN
                                                                                      from £4.11
                                                                                      from £4.11
                                                                                      # 018
                                                                                      MPN: 008410502
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 019
                                                                                      MPN: 008100505
                                                                                      BOLT
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 020
                                                                                      MPN: 003309426
                                                                                      6ARRETTA PER TENUTA PERNO ARRESTO CAVO FRENO
                                                                                      from £6.81
                                                                                      from £6.81
                                                                                      # 021
                                                                                      MPN: 003309423
                                                                                      BRACKET / SUPPORT
                                                                                      from £14.22
                                                                                      from £14.22
                                                                                      # 022
                                                                                      MPN: 003310774
                                                                                      CAVO PER PINZA FRENO RUOTA DESTRA
                                                                                      from £80.07
                                                                                      from £80.07
                                                                                      # 023
                                                                                      MPN: 003310773
                                                                                      CAVO PER PINZA FRENO RUOTA SINISTRA
                                                                                      from £282.74
                                                                                      from £282.74
                                                                                      # 024
                                                                                      MPN: 003309387
                                                                                      GOMMINO DI PROTEZIONE PER LEVA PINZA FRENO
                                                                                      from £27.49
                                                                                      from £27.49
                                                                                      # 025
                                                                                      MPN: 008573601

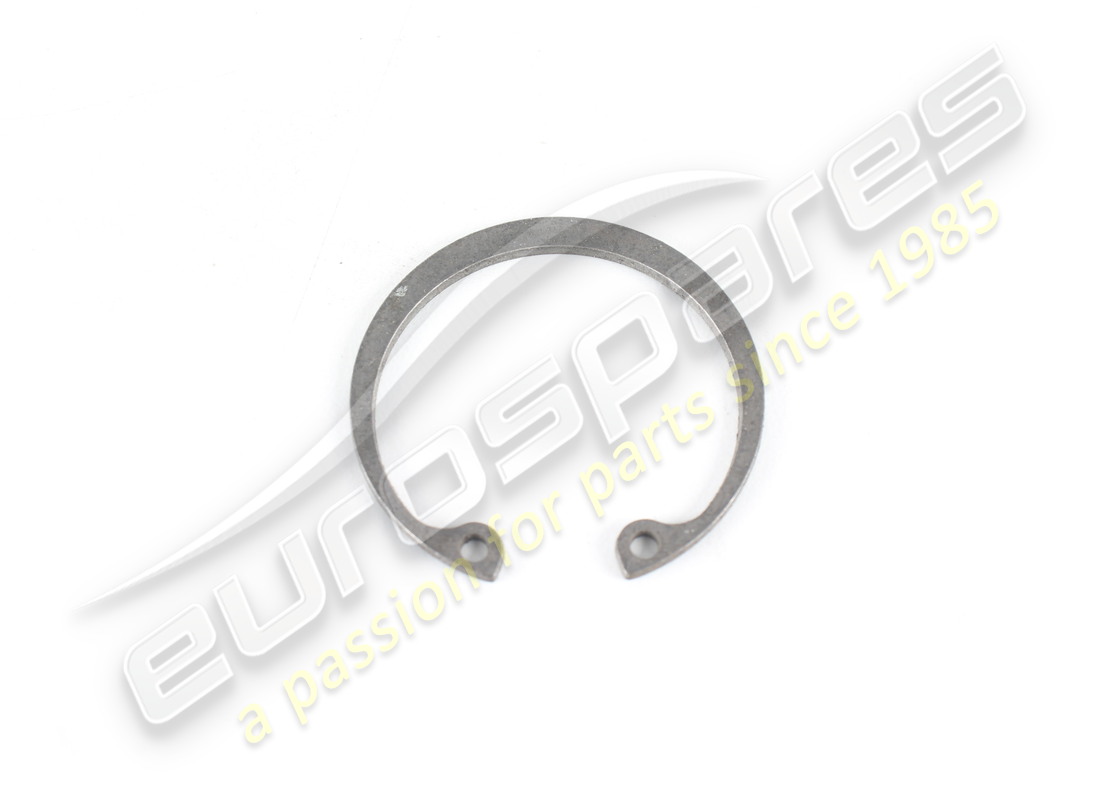

                                                                                      SEEGER RING
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 026
                                                                                      MPN: 003309385
                                                                                      GRUPPO FRENO A MANO-PER RUOTA SINISTRA
                                                                                      from £63.27
                                                                                      from £63.27
                                                                                      # 027
                                                                                      MPN: 003309384
                                                                                      GRUPPO FRENO A MANO PER RUOTA DESTRA
                                                                                      from £63.27
                                                                                      from £63.27
                                                                                      # 028
                                                                                      MPN: 003309363
                                                                                      PASTIGLIA PER PINZE FRENO A MANO
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 029
                                                                                      MPN: 003309361
                                                                                      PIVOT
                                                                                      from £17.04
                                                                                      from £17.04
                                                                                      # 030
                                                                                      MPN: 003309365
                                                                                      CORPO INTERNO PINZA FRENO A MANO RUOTA SIN.
                                                                                      from £755.71
                                                                                      from £755.71
                                                                                      # 031
                                                                                      MPN: 003309364
                                                                                      CORPO INTERNO PINZA FRENO A MANO RUOTA DX.
                                                                                      from £196.09
                                                                                      from £196.09
                                                                                      # 032
                                                                                      MPN: 008820201
                                                                                      SPLIT PIN
                                                                                      from £4.11
                                                                                      from £4.11
                                                                                      # 033
                                                                                      MPN: 008400806
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 034
                                                                                      MPN: 003309478
                                                                                      PIVOT
                                                                                      from £11.90
                                                                                      from £11.90
                                                                                      # 035
                                                                                      MPN: 003309590
                                                                                      SUPPORT
                                                                                      from £244.59
                                                                                      from £244.59
                                                                                      # 036
                                                                                      MPN: 008101225
                                                                                      BOLT
                                                                                      from £11.69
                                                                                      from £11.69
                                                                                      # 037
                                                                                      MPN: 008411302
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 038
                                                                                      MPN: 008401305
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 040
                                                                                      MPN: 008573701
                                                                                      SEEGER RING
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 041
                                                                                      MPN: 008700814
                                                                                      VITA
                                                                                      from £4.73
                                                                                      from £4.73
                                                                                      # 042
                                                                                      MPN: 008200811
                                                                                      NUT
                                                                                      from £3.65
                                                                                      from £3.65
                                                                                      # 043
                                                                                      MPN: 003309388
                                                                                      GOMMINO DI PROTEZIONE REGISTRO PINZA FRENO
                                                                                      from £34.95
                                                                                      from £34.95
