lamborghini diablo (1991) intake manifold (valid for june 1992 version) parts diagram

13.01.01 - Intake Manifold (Valid for June 1992 Version)

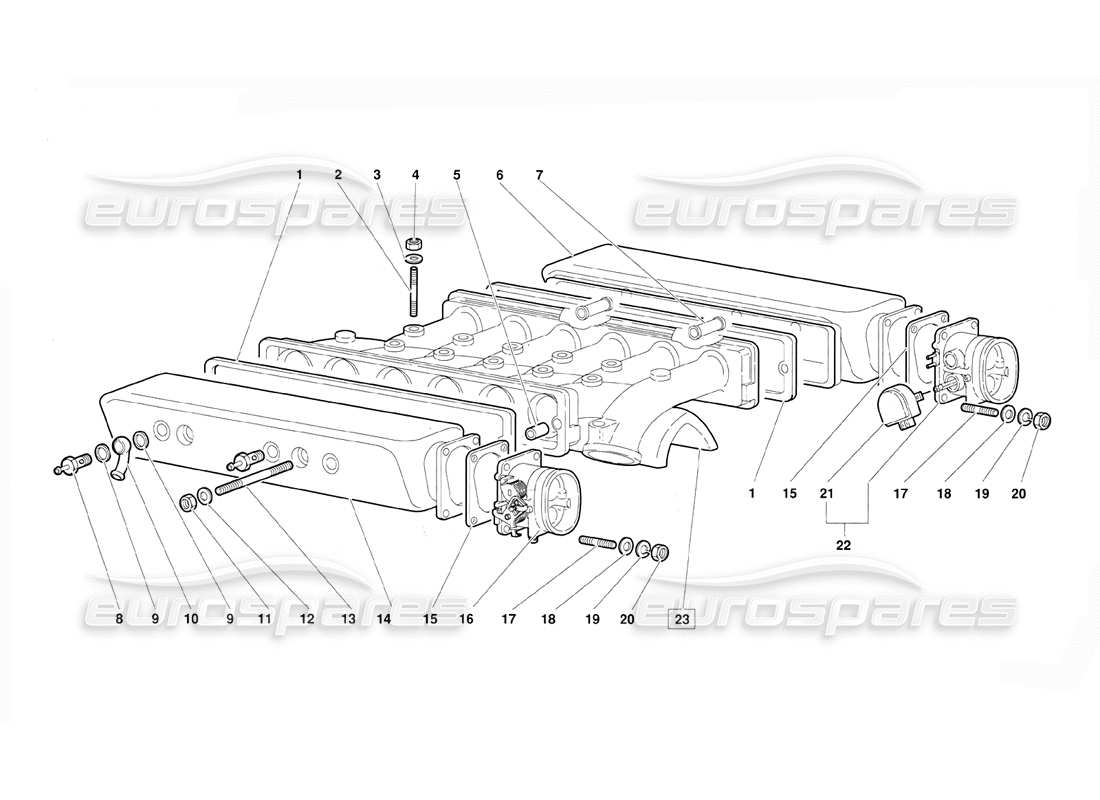

Lamborghini Diablo (1991) Intake Manifold (Valid for June 1992 Version) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price

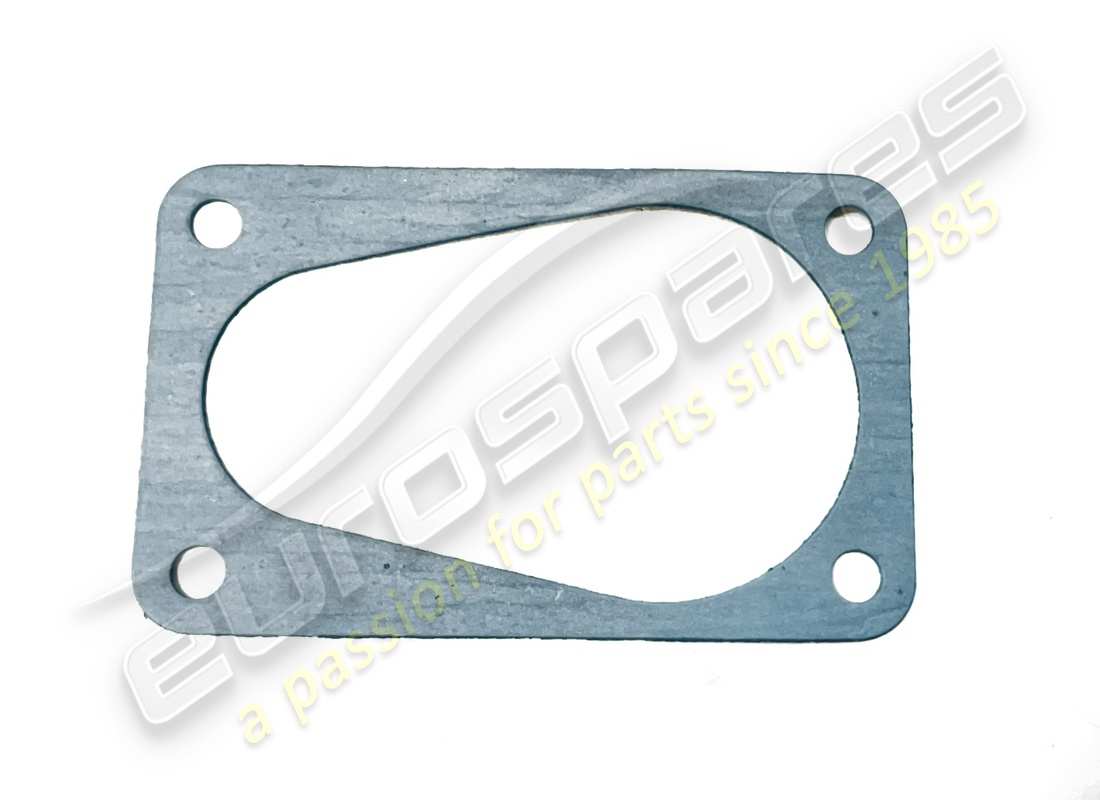

# 001
MPN: 001323717
GASKET
(Valid for June 1992 version) GUARNIZIONE
from £32.64
from £32.64
INTAKE MANIFOLD COVER GASKET Genuine Lamborghini - New In stock
# 002
MPN: 008300610
STUD
(Valid for June 1992 version) PRIGIONIERO
from £15.47
from £15.47
STUD 6X1X16 8G UNI5911 Z. Genuine Lamborghini - New In stock
# 003
MPN: 008400606
WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)

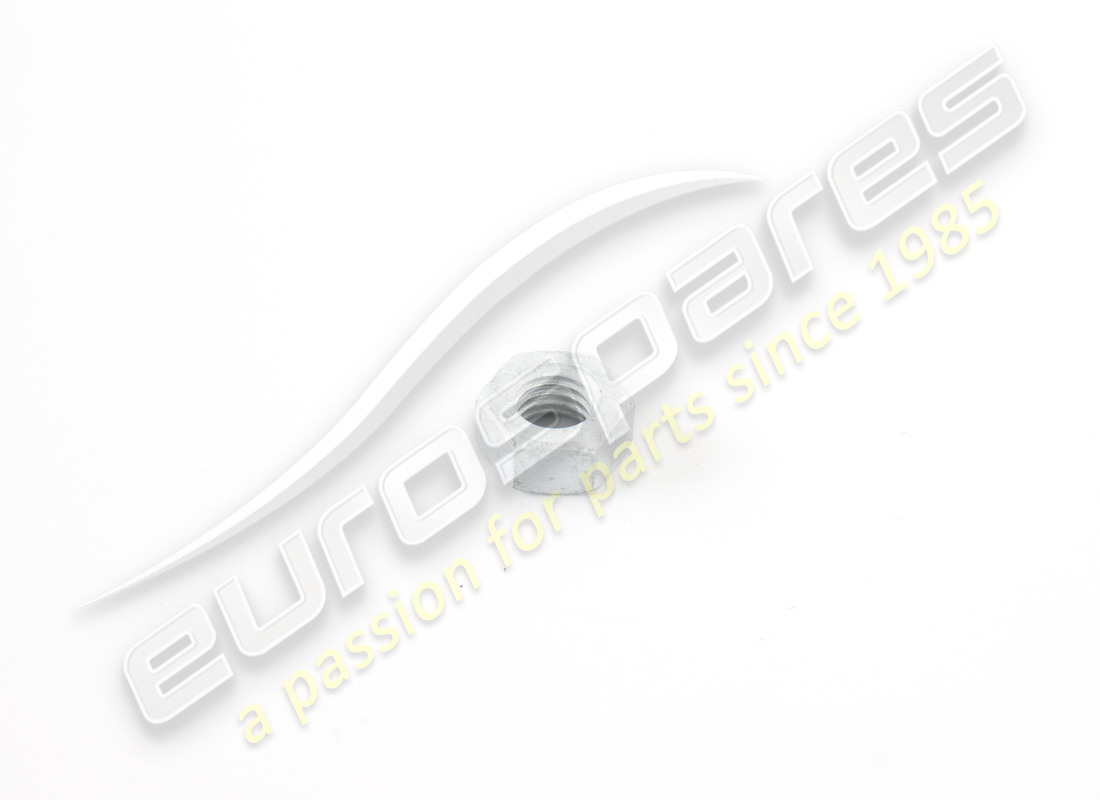

# 004
MPN: 008200605
NUT
(Valid for June 1992 version) DADO
from £1.69
from £1.69
M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
# 005
MPN: WHT003577
DOWEL
(Valid for June 1992 version) GRAND
from £1.16
from £1.16
REFERENCE PIN 6H6X16C40 Genuine Lamborghini - New In stock
# 006
MPN: 001326316
COVER
(Valid for June 1992 version) COPERCHIO SIMSTRO
from £933.81
from £933.81
INJECTION MANIFOLD LH COVER Genuine Lamborghini - New (to order)
# 007
MPN: 001322163
SPACER
(Valid for June 1992 version) DISTANZIALE
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 008
MPN: 001330455
CONNECTION
(Valid for June 1992 version) RACCORDO
from £20.86
from £20.86
FAIRLEAD BOLT 5 MM Genuine Lamborghini - New (to order)
# 009
MPN: 008401621
WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 010
MPN: 001328002
CONNECTION
(Valid for June 1992 version) RACCORDO
from £36.98
from £36.98
RH/LH COVER UNION Genuine Lamborghini - New (to order)
# 011
MPN: 008201016
NUT
(Valid for June 1992 version) DADO
from £14.30
from £14.30
This part replaces part number 008201034
10X1X6 S LEFT NUT Genuine Lamborghini - New (to order)
# 012
MPN: 008401022
WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 013
MPN: 008301030
STUD
(Valid for June 1992 version) PRIGIONIERO
from £22.02
from £22.02
SPECIAL STUD M10X20 Genuine Lamborghini - New (to order)
# 014
MPN: 001326315
COVER
(Valid for June 1992 version) COPERCHIO DESTRO
Lamborghini PART 001326315 Genuine Lamborghini - New (to order)
# 015

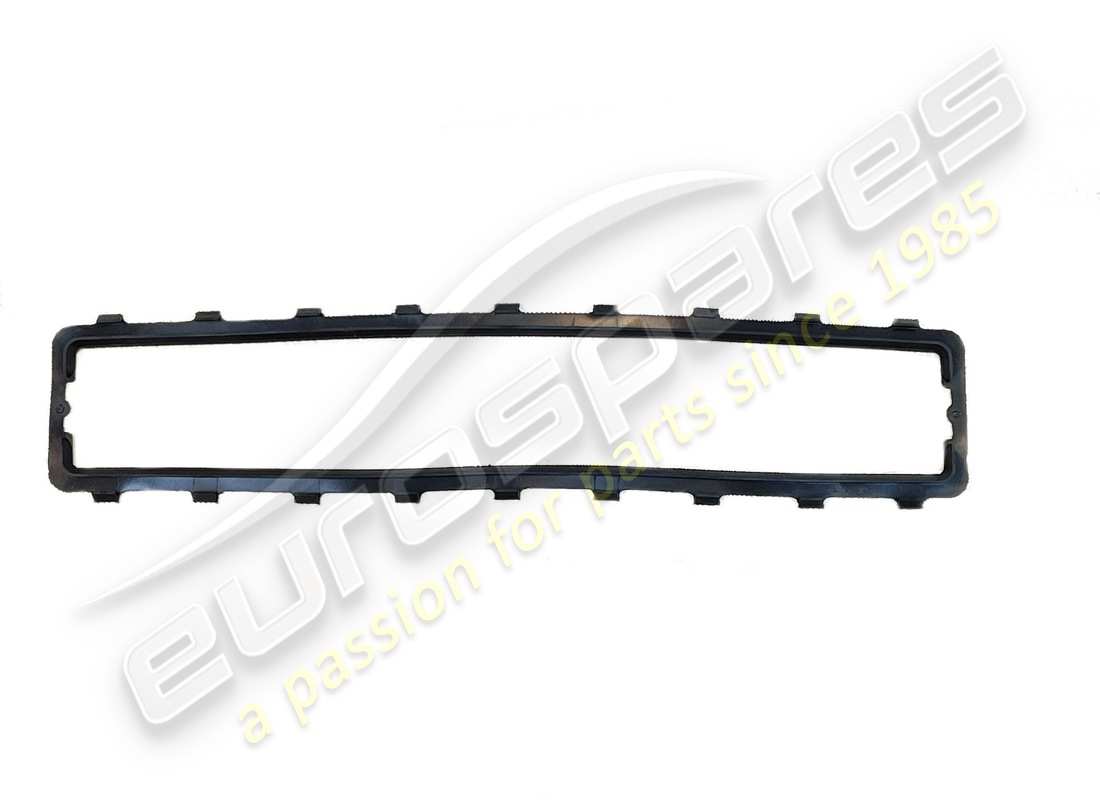

MPN: 001326311
GASKET
(Valid for June 1992 version) GUARNIZIONE
from £13.85
from £13.85
THROTTLE CASING GASKET Genuine Lamborghini - New In stock
# 016
MPN: 001326181
THROTTLE HOLDER
(Valid for June 1992 version) CORPO FARFALLATO DESTRO
from £734.08
from £734.08
THROTTLE CASING Genuine Lamborghini - New (to order)
# 017
MPN: WHT003028
STUD
(Valid for June 1992 version) PRIGIONIERO
from £12.54
from £12.54
TAP END STUD Genuine Lamborghini - New In stock
# 018
MPN: 008400816
WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 019
MPN: 008410806
WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 020
MPN: N01100845
NUT
(Valid for June 1992 version) DADO
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
HEX.NUT Genuine Lamborghini - New In stock
HEXAGON NUT (N 01100845) Genuine Porsche Part - New (to order)
# 021
MPN: 001327641
POTENTIOMETER
(Valid for June 1992 version) POTENZIOMETRO
from £107.79
from £107.79
POTENTIOMETER Genuine Lamborghini - New In stock
# 022
MPN: 001326293
THROTTLE HOLDER
(Valid for June 1992 version) CORPO FARF. SX CON POTENZIOMET
from £891.30
from £891.30
THROTTLE CASING Genuine Lamborghini - New (to order)
# 023
MPN: 001329745
Inlet Manifold
(Valid for June 1992 version) COLLETTORE ASPIRAZIONE (fino alia 12337) compatibile solo con iniettori 002024396
Lamborghini PART 001329745 Genuine Lamborghini - New (to order)
# 023
MPN: 001332507
Inlet Manifold
(Valid for June 1992 version) COLLETTORE ASPIRAZIONE (dalla 12338) compatibile con iniettori 002024396 e 002032496
PART Genuine Lamborghini - New (to order)
