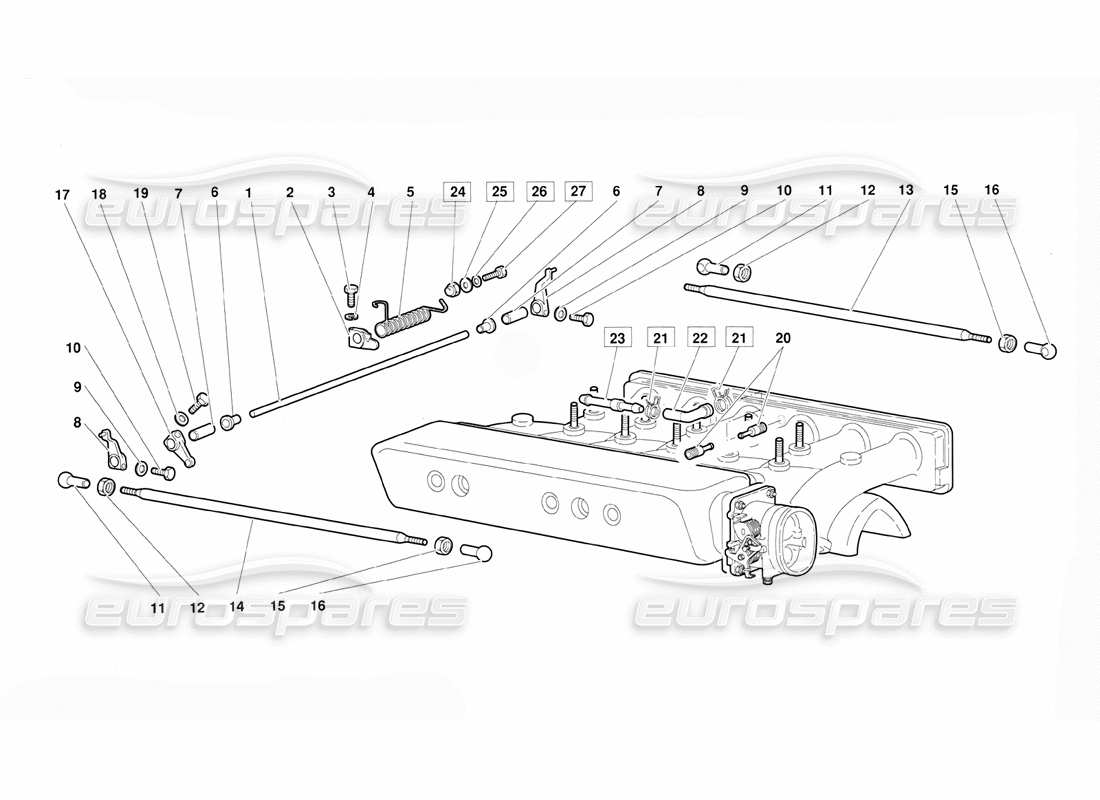

13.03.01 - Accelerator Cables (Valid for June 1992 Version)
Lamborghini Diablo (1991) Accelerator Cables (Valid for June 1992 Version) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001323135
SHAFT
(Valid for June 1992 version) ALBERINO
from £20.78
from £20.78
# 002
MPN: 001331005
LEVER
(Valid for June 1992 version) LEVA
from £23.97
from £23.97
# 003
MPN: 008100607
SCREW
(Valid for June 1992 version) VITE
from £3.65
from £3.65
# 004
MPN: 008410603
LOCK WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
# 005
MPN: 001310961
SPRING
(Valid for June 1992 version) MOLLA
from £50.59
from £50.59
# 006
MPN: 008801204
BUSHING
(Valid for June 1992 version) BOCCOLA
from £5.85
from £5.85
# 007
MPN: 001323136
SPACER
(Valid for June 1992 version) DISTANZIALE
from £8.58
from £8.58
# 008
MPN: 001311580
LEVER
(Valid for June 1992 version) LEVA
from £208.10
from £208.10
# 009
MPN: 008410603
LOCK WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
# 010
MPN: 008100618
SCREW
(Valid for June 1992 version) VITE
Supersession
Supersession
# 011
MPN: 001300804
COUPLING HEAD
(Valid for June 1992 version) TESTA GIUNTO SFERICO
from £7.38
from £7.38
# 012
MPN: N10690001
NUT
(Valid for June 1992 version) DADO
from £318.19
from £318.19
# 013
MPN: 001328014
LEFT TIE ROD
(Valid for June 1992 version) TIRANTE SINISTRO
from £228.28
from £228.28
# 014
MPN: 001328016
RIGHT TIE ROD
(Valid for June 1992 version) TIRANTE DESTRO
from £323.35
from £323.35
# 015
MPN: 008200501
NUT
(Valid for June 1992 version) DADO
Supersession
Supersession
# 016
MPN: 001308539
COUPLING HEAD
(Valid for June 1992 version) TESTA GIUNTO SFERICO
# 017
MPN: 001301093
LEVER.
(Valid for June 1992 version) LEVA
from £143.10
from £143.10
# 018
MPN: 008410603
LOCK WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
# 019
MPN: 008100621
SCREW
(Valid for June 1992 version) VITE
from £1.11
from £1.11
# 020
MPN: 001328721
CONNECTION
(Valid for June 1992 version) RACCORDO
from £12.66
from £12.66
# 021
MPN: 008830122
STRAP
(Valid for June 1992 version) FASCETTA (dalla 12600) (part, compatibile sulle vetture precedenti)
from £0.53
from £0.53
# 022
MPN: 07L131756
CONNECTION
(Valid for June 1992 version) RACCORDO A 90° (dalla 12600) (part, compatibile sulle vetture precedenti)
from £17.17
from £17.17
This part replaces part number 001329321
# 023
MPN: 001329319
CONNECTION
(Valid for June 1992 version) RACCORDO (dalla 12600) (part, compatibile sulle vetture precedenti)
from £0.75
from £0.75
# 024
MPN: 008200605
NUT
(Valid for June 1992 version) DADO (errata corrige)
from £1.89
from £1.89
# 025
MPN: 008400606
WASHER
(Valid for June 1992 version) RONDELLA (errata corrige)
Supersession
Supersession
# 026
MPN: 008410602
WASHER
(Valid for June 1992 version) RONDELLA (errata corrige)
from £28.85
from £28.85
# 027
MPN: 008100625
BOLT
from £86.29
from £86.29
