lamborghini diablo (1991) engine oil filter and thermostat (valid for june 1992 version) parts diagram

15.03.01 - Engine Oil Filter and Thermostat (Valid for June 1992 Version)

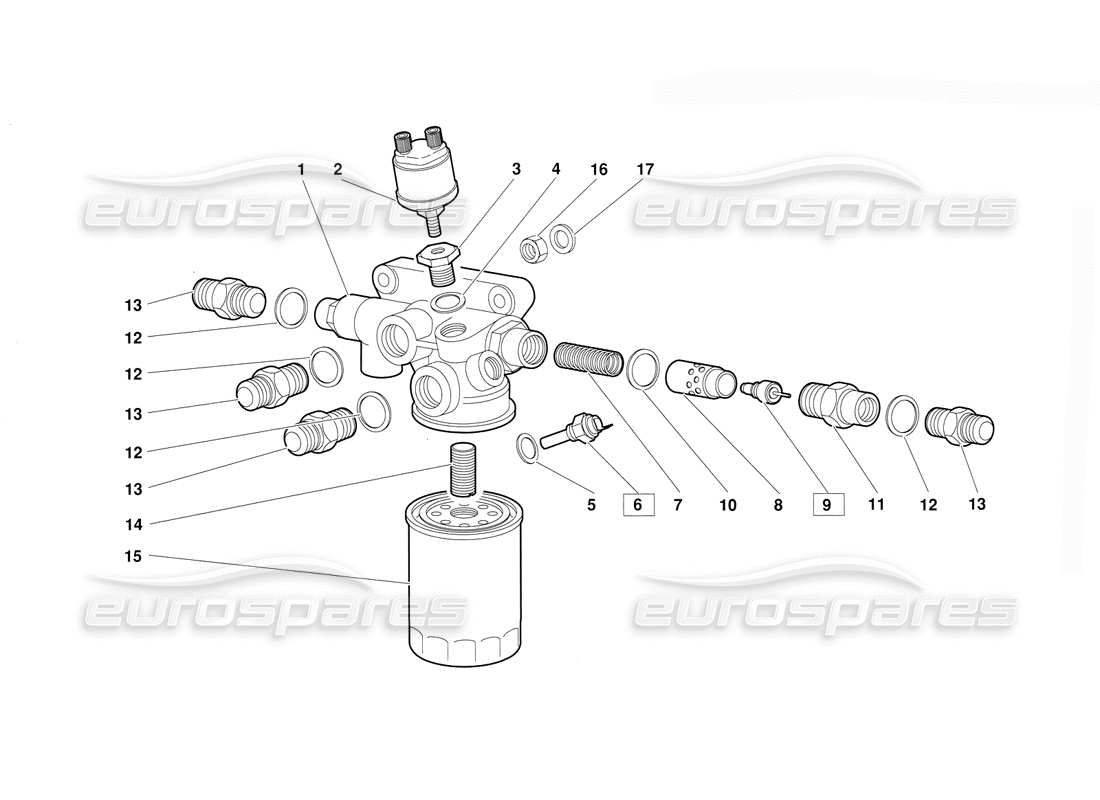

Lamborghini Diablo (1991) Engine Oil Filter and Thermostat (Valid for June 1992 Version) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 001529644
VALVE HOUSING
(Valid for June 1992 version) CORPO VALVOLA TERMOSTATIGA
from £286.04
from £286.04
THERMOSTAT VALVE UNIT Genuine Lamborghini - New (to order)
# 002
MPN: 001530303
OIL PRESSURE SENS.
(Valid for June 1992 version) SENSORE PRESSIONE OLIO
from £237.96
from £237.96
SENSOR Genuine Lamborghini - New (to order)
# 003
MPN: 001530309
CONNECTION
(Valid for June 1992 version) RIDUZIONE
from £24.00
from £24.00
OIL PRESSURE SENSOR ADAPTER Genuine Lamborghini - New (to order)
# 004
MPN: 008402207
WASHER
(Valid for June 1992 version) RONDELLA
from £6.48
from £6.48
ANNEALED COPPER WASHER 22.1X2X 30 Genuine Lamborghini - New In stock
# 005
MPN: 008401425
WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 006
MPN: 001530301
TEMPERATURE SENS.
SENSORE TEMPERATURA OLIO (Errata corrige)
from £54.89
from £54.89
SENSOR Genuine Lamborghini - New (to order)
# 007
MPN: 001530038
SPRING
(Valid for June 1992 version) MOLLA VALVOLA TERMOSTATICA
from £12.40
from £12.40
THERMOSTAT VALVE SPRING Genuine Lamborghini - New (to order)
# 008
MPN: 001530037
THERMOSTATIC VALVE
(Valid for June 1992 version) CILINDRO ESTERNO
from £151.32
from £151.32
THERMOSTAT VALVE Genuine Lamborghini - New (to order)
# 009
MPN: 0015301961
THERMOSTAT
(Valid for June 1992 version) VALVOLA TERMOSTATICA (Errata corrige)
THERMOSTAT Genuine Lamborghini - New (to order)
# 010
MPN: 001530761
WASHER
(Valid for June 1992 version) RONDELLA
from £20.49
from £20.49
STOP & SPRING GUIDE ON THERMOS TAT VALVE Genuine Lamborghini - New (to order)
# 011
MPN: 001530040
CONNECTION
(Valid for June 1992 version) RACCORDO
from £101.16
from £101.16
OIL TEMPERATURE SENSOR RETAINE R UNION Genuine Lamborghini - New (to order)
# 012
MPN: 008403006
WASHER
(Valid for June 1992 version) RONDELLA
from £6.39
from £6.39
COPPER WASHER 30X40X0,04513888 8889 Genuine Lamborghini - New In stock
# 013
MPN: 001529610
CONNECTION
(Valid for June 1992 version) RACCORDO
from £32.39
from £32.39
THERMOSTAT VALVE UNION Genuine Lamborghini - New (to order)
# 014
MPN: 001523587
THREADED BUSHING
(Valid for June 1992 version) BOCCOLA FILETTATA
from £20.23
from £20.23
THREADED BUSHING Genuine Lamborghini - New (to order)
# 015
MPN: 001505914
OIL FILTER
(UFI)
from £31.24
from £31.24
OIL CARTRIDGE (001505914) Eurospares Approved Part - New In stock
OIL CARTRIDGE Genuine Lamborghini - New (to order)
# 016
MPN: 008200809
NUT
DADO
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 017
MPN: N90179103
WASHER
RONDELLA
from £1.01
from £1.01
This part replaces part number 008400801
WASHER Genuine Lamborghini - New In stock
