lamborghini diablo (1991) clutch control levers parts diagram

21.02.00 - Clutch Control Levers

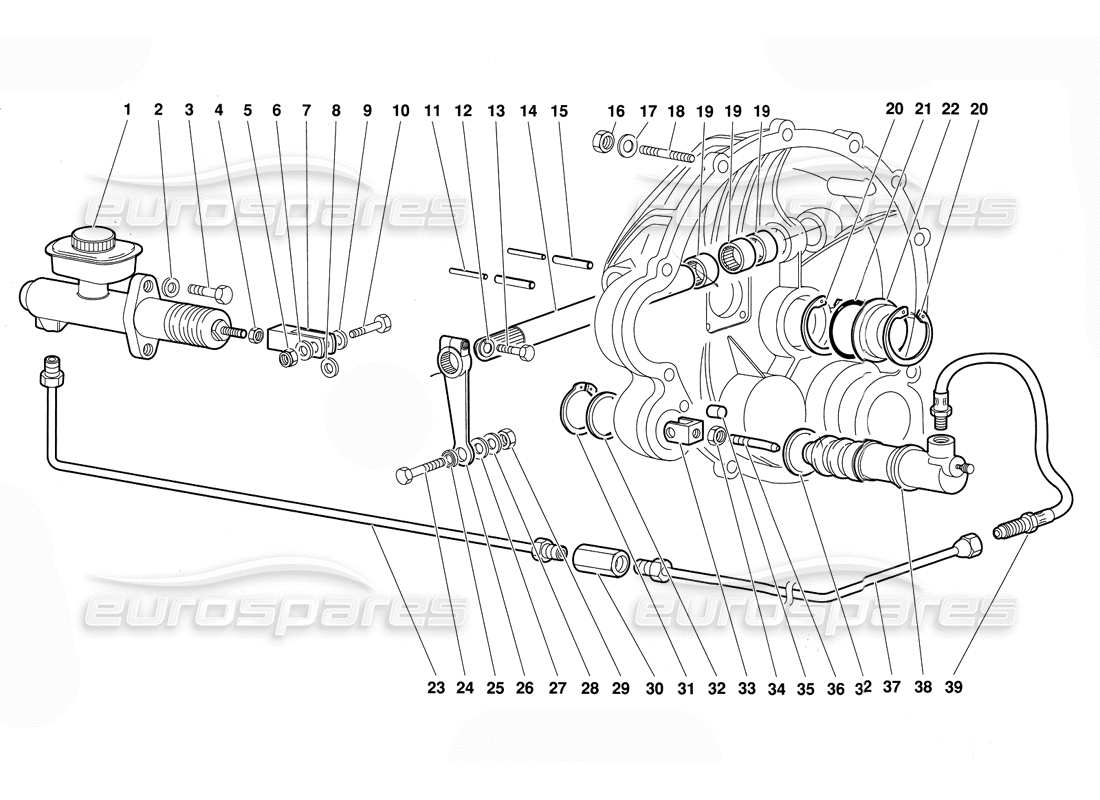

Lamborghini Diablo (1991) Clutch Control Levers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 004219984
Clutch Pump
POMPA FRIZIONE
from £198.44
from £198.44
CLUTCH CYLINDER CONTROL ASSEMB LY Genuine Lamborghini - New In stock
# 002
MPN: 008410806
WASHER
RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 003
MPN: 008100830
SCREW
VITE
from £0.53
from £0.53
SCREW M8X20 UNI 5739/8G/Z Genuine Lamborghini - New In stock
# 004
MPN: 008200811
NUT
DADO
from £3.65
from £3.65
M8 UNI 5589/8G/ZDNUT Genuine Lamborghini - New (to order)
# 005
MPN: 008200809
NUT
DADO
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 006
MPN: 008400816
WASHER
RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 007
MPN: 004219591
FORK
FORCELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 008
MPN: 008400819
WASHER
RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 009
MPN: 008400816
WASHER
RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 010
MPN: 002129460
PIN
PERNO
from £20.39
from £20.39
CLUTCH CYLINDER FORKPIN Genuine Lamborghini - New (to order)
# 011
MPN: 008900503
PIN
SPINA
from £0.72
from £0.72
ELASTIC PIN 5X36 DIN1481 Genuine Lamborghini - New In stock
# 012
MPN: 008400806
WASHER
RONDELLA
from £0.54
from £0.54
WASHER 15X8X1.5 UNI 1750 R40/Z Genuine Lamborghini - New In stock
# 013
MPN: 008100841
SCREW
VITE
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 014
MPN: 002125925
SHAFT
ALBERO
from £309.26
from £309.26
CLUTCH DRIVE SHAFT Genuine Lamborghini - New (to order)
# 015
MPN: 008900802
PIN
SPINA
from £4.73
from £4.73
PIN DIN 1481 8X36X1.5 Genuine Lamborghini - New (to order)
# 016
MPN: N01100845
NUT
DADO
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
HEX.NUT Genuine Lamborghini - New In stock
HEXAGON NUT (N 01100845) Genuine Porsche Part - New (to order)
# 017
MPN: WHT001514
WASHER
RONDELLA
from £15.09
from £15.09
This part replaces part number 008410805
SPRING WASHER Genuine Lamborghini - New In stock
# 018
MPN: 008300808
STUD
use : WHT003027
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 019
MPN: 008522204
ROLLER CAGE
GABBIAARULLI
from £12.61
from £12.61
BEARING Genuine Lamborghini - New In stock
# 020
MPN: 008576601
RETAINER RING
ANELLO RITEGNO
from £0.53
from £0.53
O-RING I 62 UNI 3654 Genuine Lamborghini - New (to order)
# 021
MPN: 008605600
SEAL
ANELLO TENUTA
from £25.47
from £25.47
OR RING Genuine Lamborghini - New (to order)
# 022
MPN: 002424858
COVER
COPERCHIO
from £88.72
from £88.72
SECONDARY SHAFT COVER Genuine Lamborghini - New (to order)
# 023
MPN: 002130853
PIPE
Tubo
from £149.66
from £149.66
CLUTCH CYLINDER PIPE/REAR PIPE Genuine Lamborghini - New (to order)
# 024
MPN: 008100841
SCREW
VITE
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 025
MPN: 004225225
COUPLING
TESTA A SNODO
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 026
MPN: 002129457
LEVER
LEVA
from £309.55
from £309.55
CLUTCH LEVER Genuine Lamborghini - New (to order)
# 027
MPN: 008400816
WASHER
RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 028
MPN: 008410806
WASHER
RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 029
MPN: N01100845
NUT
DADO
from £0.47
from £0.47
This part replaces part number 008200801 - and 2 more. Click to view details
HEX.NUT Genuine Lamborghini - New In stock
HEXAGON NUT (N 01100845) Genuine Porsche Part - New (to order)
# 030
MPN: 002131194
CONNECTION
RACCORDO
from £87.06
from £87.06
UNION Genuine Lamborghini - New (to order)
# 031
MPN: 008583701
RETAINER RING
ANELLO RITEGNO
from £0.54
from £0.54
O-RING E 37 UNI 7435-75 Genuine Lamborghini - New In stock
# 032
MPN: 002129128
SPACER
DISTANZIALE
from £34.51
from £34.51
CLUTCH CYLINDER SHIM Genuine Lamborghini - New (to order)
# 033
MPN: 002121672
FORK
FORCELLA
from £63.27
from £63.27
CYLINDER FORK Genuine Lamborghini - New (to order)
# 034
MPN: 008200811
NUT
DADO
from £3.65
from £3.65
M8 UNI 5589/8G/ZDNUT Genuine Lamborghini - New (to order)
# 035
MPN: 008850806
DOWEL
GRANO
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 036
MPN: 002121345
ROD
PUNTALE
from £195.68
from £195.68
CLUTCH CYLINDER ROD Genuine Lamborghini - New (to order)
# 037
MPN: 002131528
PIPE
Tubo
from £97.83
from £97.83
CLUTCH PIPE Genuine Lamborghini - New (to order)
# 038
MPN: 002136948
PUMP CYLINDER
CILINDRO POMPA
from £52.95
from £52.95
This part replaces part number 002121674
CLUTCH CYLINDER Genuine Lamborghini - New In stock
CLUTCH CYLINDER (002136948) Original Equipment - New In stock
# 039
MPN: 002110618
PIPE
Tubo
from £52.23
from £52.23
CLUTCH PIPE Genuine Lamborghini - New In stock
