lamborghini diablo (1991) gearbox (valid for june 1992 version) parts diagram

24.03.01 - Gearbox (Valid for June 1992 Version)

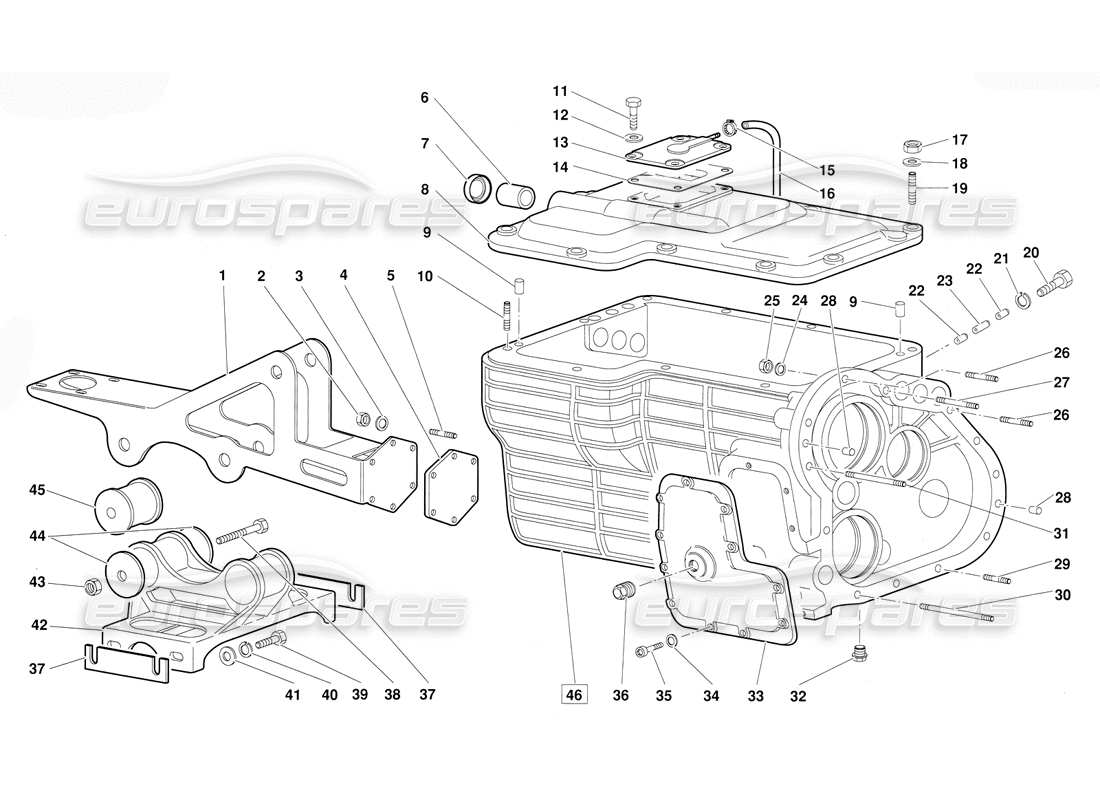

Lamborghini Diablo (1991) Gearbox (Valid for June 1992 Version) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 002431479
    SUPPORT
    (Valid for June 1992 version) SUPPORTO TORRETTA
    from £155.96
    from £155.96
    GEARBOX FIXED PART FRONT MOUNT Genuine Lamborghini - New (to order)
    GEARBOX FIXED PART FRONT MOUNT Genuine Lamborghini - Used In stock
    # 002
    MPN: N01100637
    NUT
    (Valid for June 1992 version) DADO
    from £0.52
    from £0.52
    This part replaces part number 003303099 - and 1 more. Click to view details
    HEX.NUT Genuine Lamborghini - New In stock
    # 003
    MPN: 008410602
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £27.90
    from £27.90
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
    # 004
    MPN: 002425638
    COVER
    (Valid for June 1992 version) COPERCHIO
    from £39.93
    from £39.93
    GEARBOX COVER Genuine Lamborghini - New (to order)
    # 005
    MPN: 008300602
    STUD
    (Valid for June 1992 version) PRIGIONIERO
    from £4.19
    from £4.19
    STUD M6X25 UNI 5911/8G/ZD Genuine Lamborghini - New (to order)
    # 006
    MPN: 008801612
    BUSHING
    (Valid for June 1992 version) BOCCOLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 007
    MPN: 008611605
    SEAL
    (Valid for June 1992 version) ANELLO TENUTA
    from £10.00
    from £10.00
    OIL SEAL 16X24X5 MM Genuine Lamborghini - New (to order)
    # 008
    MPN: 002424900
    COVER
    (Valid for June 1992 version) COPERCHIO SUPERIORE
    from £347.40
    from £347.40
    GEARBOX UPPER COVER Genuine Lamborghini - New (to order)
    # 009
    MPN: 008850806
    DOWEL
    (Valid for June 1992 version) GRAND
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 010
    MPN: 008300862
    STUD
    (Valid for June 1992 version) PRIGIONIERO
    Lamborghini PART 008300862 Genuine Lamborghini - New (to order)
    # 011
    MPN: 008100604
    SCREW
    (Valid for June 1992 version) VITE
    from £1.58
    from £1.58
    SCREW M6X14 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
    # 012
    MPN: 008410602
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £28.28
    from £28.28
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
    # 013
    MPN: 002428645
    COVER
    (Valid for June 1992 version) COPERCHIO SFIATO
    from £80.02
    from £80.02
    GEARBOX BREATHER COVER Genuine Lamborghini - New (to order)
    # 014
    MPN: 002428643
    PAN
    (Valid for June 1992 version) VASCHETTA
    from £13.06
    from £13.06
    BREATHER COVER Genuine Lamborghini - New (to order)
    # 015
    MPN: 008830204
    CLAMP RING
    (Valid for June 1992 version) FASCETTA
    from £5.43
    from £5.43
    CLAMP Genuine Lamborghini - New (to order)
    # 016
    MPN: 002428649
    VENT PIPE
    (Valid for June 1992 version) TUBO Dl SFIATO
    Lamborghini PART 002428649 Genuine Lamborghini - New (to order)
    # 017
    MPN: 008200806
    NUT
    (Valid for June 1992 version) DADO
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 018
    MPN: WHT001514
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £15.09
    from £15.09
    This part replaces part number 008410805
    SPRING WASHER Genuine Lamborghini - New In stock
    # 019
    MPN: 008300825
    STUD
    (Valid for June 1992 version) PRIGIONIERO
    from £8.61
    from £8.61
    STUD M8X22 UNI 5911 10K Z Genuine Lamborghini - New In stock
    # 020
    MPN: N01029315
    SCREW
    (Valid for June 1992 version) VITE
    from £0.85
    from £0.85
    HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
    # 021
    MPN: 008400802
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £1.03
    from £1.03
    COPPER WASHER 8.4X16X1.5 Genuine Lamborghini - New In stock
    # 022
    MPN: 002425223
    ROD
    (Valid for June 1992 version) PUNTALINO
    from £17.62
    from £17.62
    DOWEL Genuine Lamborghini - New (to order)
    # 023
    MPN: 002425224
    ROD
    (Valid for June 1992 version) PUNTALINO
    from £18.12
    from £18.12
    CENTRAL ROD STRUT Genuine Lamborghini - New (to order)
    # 024
    MPN: WHT001514
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £15.09
    from £15.09
    This part replaces part number 008410805
    SPRING WASHER Genuine Lamborghini - New In stock
    # 025
    MPN: 008200806
    NUT
    (Valid for June 1992 version) DADO
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 026
    MPN: 008300894
    STUD
    (Valid for June 1992 version) PRIGIONIERO
    from £24.59
    from £24.59
    STUD M8X25 UNI 5914 8G Genuine Lamborghini - New (to order)
    # 027
    MPN: 008300889
    STUD
    (Valid for June 1992 version) PRIGIONIERO
    from £18.20
    from £18.20
    SPECIAL STUD M8X122 Genuine Lamborghini - New (to order)
    # 028
    MPN: 008850806
    DOWEL
    (Valid for June 1992 version) GRANO
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 029
    MPN: 008300892
    STUD
    (Valid for June 1992 version) PRIGIONIERO
    from £21.60
    from £21.60
    STUD M8X50 UNI 5914 8G Genuine Lamborghini - New (to order)
    # 030
    MPN: 008300896
    STUD
    (Valid for June 1992 version) PRIGIONIERO
    from £16.30
    from £16.30
    STUD M8X100 UNI 59148G Genuine Lamborghini - New (to order)
    # 031
    MPN: 008300895
    STUD
    (Valid for June 1992 version) PRIGIONIERO
    from £5.06
    from £5.06
    STUD M8X65 UNI 5914 8G Genuine Lamborghini - New (to order)
    # 032
    MPN: 086301141A
    MAGNETIC PLUG
    (Valid for June 1992 version) TAPPO MAGNETICO
    from £22.53
    from £22.53
    MAGNETIC PLUG 22X1.5 Genuine Lamborghini - New (to order)
    # 033
    MPN: 002428586
    COVER
    (Valid for June 1992 version) COPERCHIO
    from £732.11
    from £732.11
    GEARBOX SIDE COVER Genuine Lamborghini - New (to order)
    # 034
    MPN: 008410602
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £26.95
    from £26.95
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
    # 035
    MPN: 008700614
    SCREW
    (Valid for June 1992 version) VITE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 036
    MPN: 01S409965
    PLUG
    (Valid for June 1992 version) TAPPO
    from £105.93
    from £105.93
    This part replaces part number 008931802
    PLUG Genuine Lamborghini - New In stock
    # 037
    MPN: 004126766
    SHIM
    (Valid for June 1992 version) SPESSORE Dl REGISTRO
    SPACER Genuine Lamborghini - New (to order)
    # 038
    MPN: 008101430
    SCREW
    (Valid for June 1992 version) VITE
    from £2.20
    from £2.20
    SCREW 14X2X80UNI57378G ZG Genuine Lamborghini - New (to order)
    # 039
    MPN: N01033520
    SCREW
    (Valid for June 1992 version) VITE
    from £0.98
    from £0.98
    HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
    # 040
    MPN: 008410806
    WASHER
    (Valid for June 1992 version) RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 041
    MPN: 008400806
    WASHER
    (Valid for June 1992 version) RONDELLA
    from £0.53
    from £0.53
    WASHER 15X8X1.5 UNI 1750 R40/Z Genuine Lamborghini - New In stock
    # 042
    MPN: 004131478
    SUPPORT
    (Valid for June 1992 version) SUPPORTO INFERIORE CAMBIO
    from £259.40
    from £259.40
    GEARBOX FRONT MOUNT Genuine Lamborghini - New (to order)
    # 043
    MPN: 008201416
    NUT
    (Valid for June 1992 version) DADO
    from £1.11
    from £1.11
    14X2X14 8G/Z NUT Genuine Lamborghini - New (to order)
    # 044
    MPN: 004130884
    SPACER
    (Valid for June 1992 version) DISTANZIALE
    from £26.66
    from £26.66
    MOBILE GEARBOX FRONTMOUNT SHIM Genuine Lamborghini - New (to order)
    # 045
    MPN: 0B9501144
    SUPPORT MOUNT
    from £117.28
    from £117.28
    This part replaces part number 008921408 - and 1 more. Click to view details
    SILENTBLOC 14X56,5X52,5 (0B9501144) Eurospares Approved Part - New In stock
    SILENTBLOC 14X56,5X52,5 Genuine Lamborghini - New In stock
    # 045
    MPN: 0B9501144
    SUPPORT MOUNT
    from £117.28
    from £117.28
    This part replaces part number 008921408 - and 1 more. Click to view details
    SILENTBLOC 14X56,5X52,5 (0B9501144) Eurospares Approved Part - New In stock
    SILENTBLOC 14X56,5X52,5 Genuine Lamborghini - New In stock
    # 046
    MPN: 002429421
    GEAR BOX CASE
    (Valid for June 1992 version) SCATOLA CAMBIO (Errata corrige)
    from £2,590.98
    from £2,590.98
    GEARBOX Genuine Lamborghini - New (to order)
    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
