lamborghini diablo (1991) rear driveshafts parts diagram

25.01.00 - Rear Driveshafts

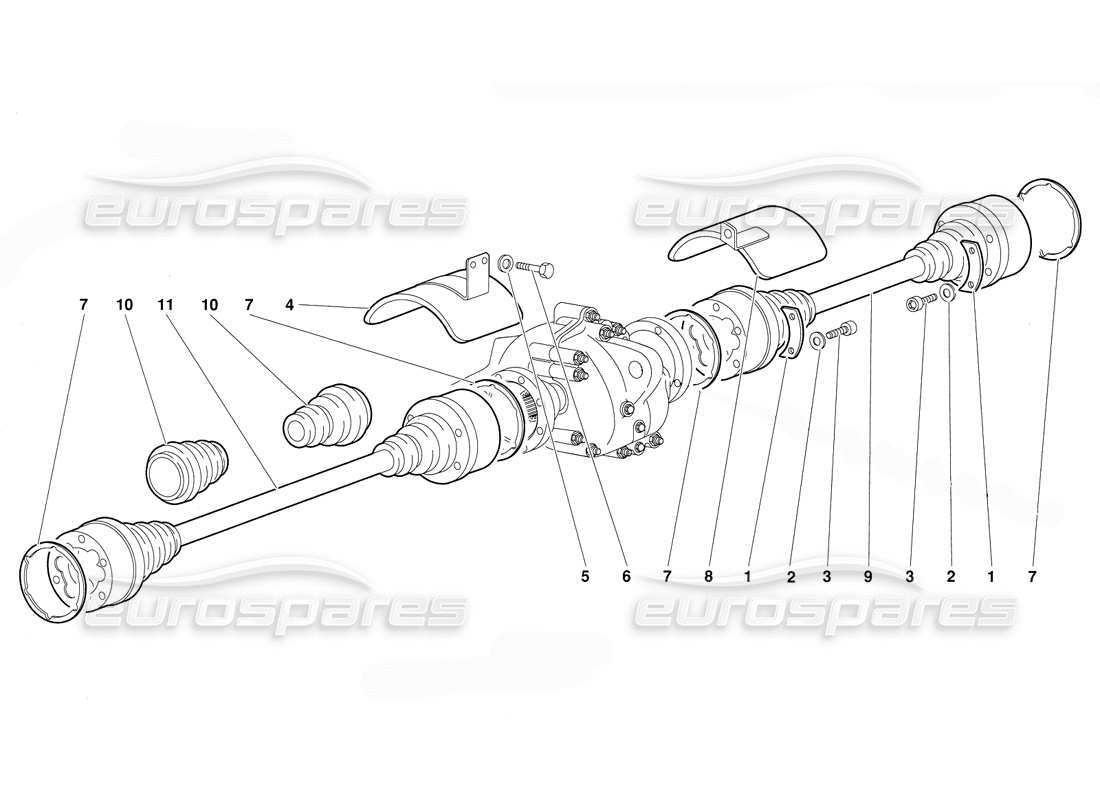

Lamborghini Diablo (1991) Rear Driveshafts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 000
    MPN: 002512800
    DRIVESHAFT REPAIR KIT
    from £309.75
    from £309.75
    # 001
    MPN: 002506602
    PLATE
    Piastrina
    from £67.16
    from £67.16
    # 002
    MPN: 008411011
    WASHER
    RONDELLA
    from £0.48
    from £0.48

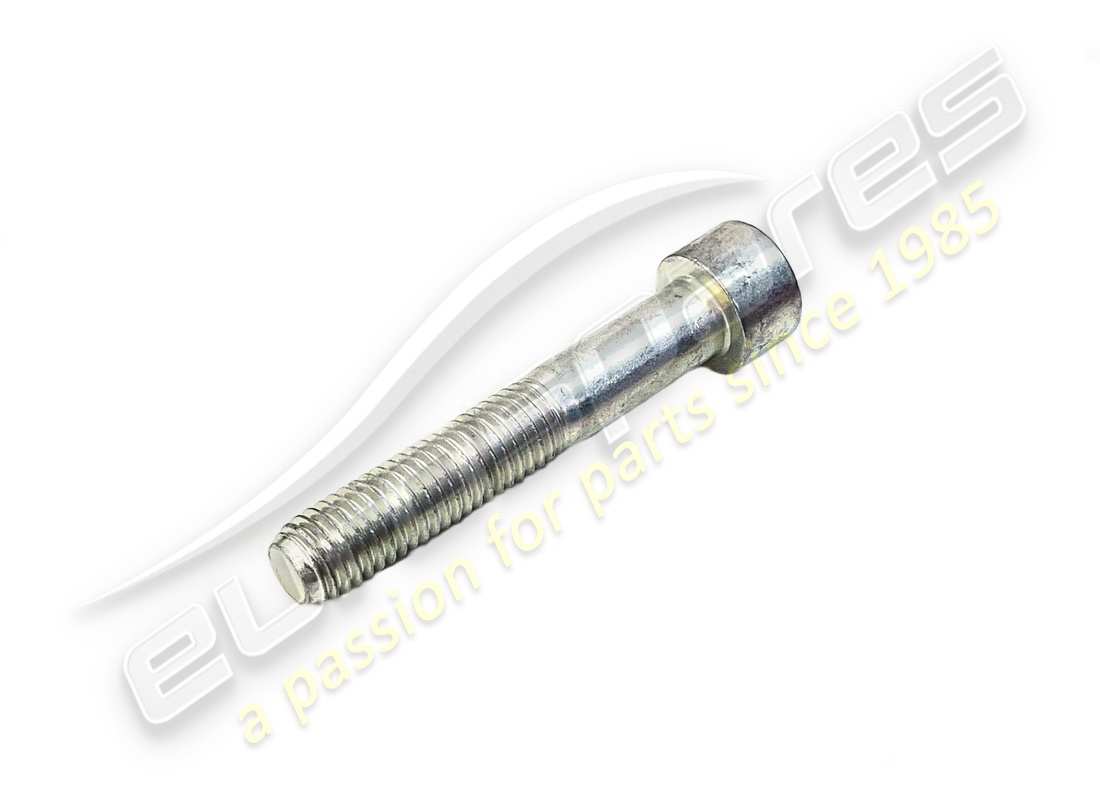

    # 003
    MPN: 008701001
    SCREW
    VITE
    from £2.10
    from £2.10
    # 004
    MPN: 002530901
    SHIELD
    PROTEZIONE
    from £114.42
    from £114.42
    # 005
    MPN: 008410603
    LOCK WASHER
    RONDELLA
    Supersession
    Supersession
    # 006
    MPN: 008100613
    SCREW
    VITE
    from £0.51
    from £0.51
    # 007
    MPN: 002531773
    GASKET
    Guarnizione
    from £63.93
    from £63.93
    # 008
    MPN: 002530896
    SHIELD
    PROTEZIONE
    from £393.41
    from £393.41
    # 009
    MPN: 002525862
    HALF SHAFT
    SEMIASSE DESTRO
    from £2,578.53
    from £2,578.53
    # 010
    MPN: 002512808
    KIT SEMIASSE
    use : 002537315
    from £106.79
    from £106.79
    This part replaces part number 002532668
    # 011
    MPN: 002525863
    HALF SHAFT
    SEMIASSE SINISTRO
    from £2,578.53
    from £2,578.53
