lamborghini diablo (1991) rear brakes (valid for june 1992 version) parts diagram

32.01.01 - Rear Brakes (Valid for June 1992 Version)

Lamborghini Diablo (1991) Rear Brakes (Valid for June 1992 Version) Parts Diagram

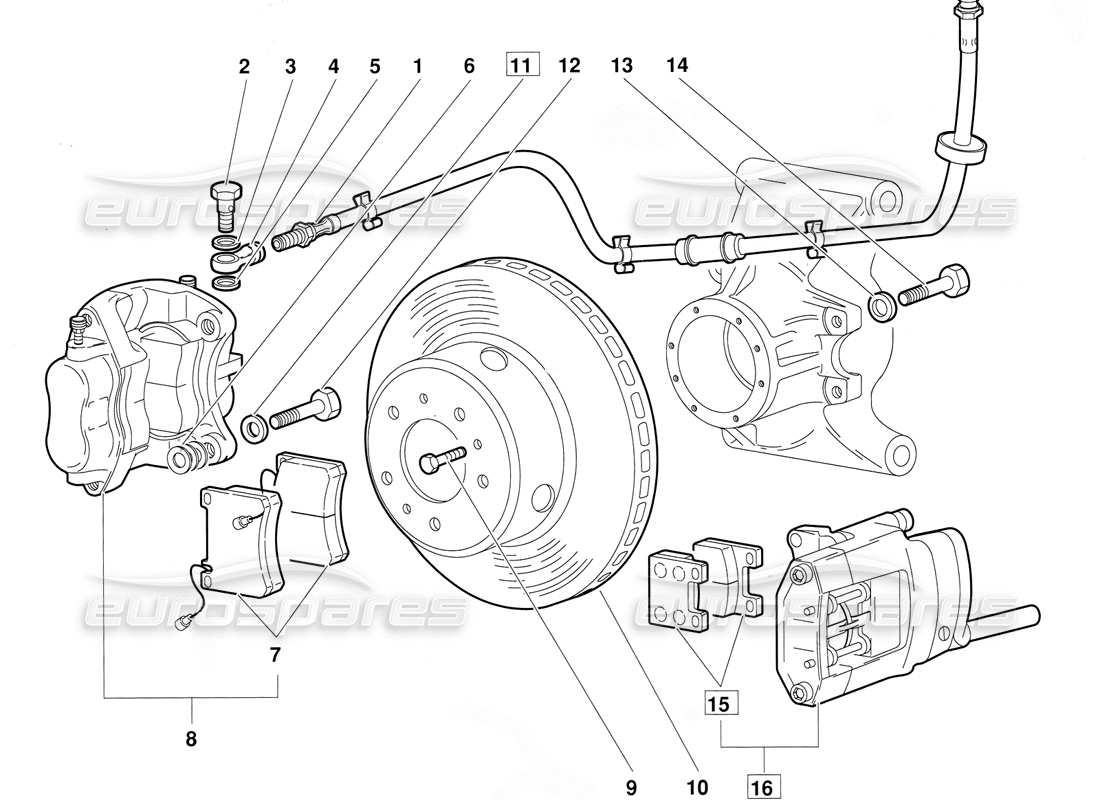

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 003229882
PIPE
(Valid for June 1992 version) TUBO FRENI POSTERIORI
from £104.89
from £104.89
REAR BRAKE SHOE PIPE Genuine Lamborghini - New In stock
# 002
MPN: 003113907
SCREW
(Valid for June 1992 version) VITE
from £17.17
from £17.17
BOLT Genuine Lamborghini - New (to order)
# 003
MPN: 003113906
WASHER
(Valid for June 1992 version) RONDELLA
from £11.68
from £11.68
WASHER Genuine Lamborghini - New (to order)
# 004
MPN: 003113904
CONNECTION
(Valid for June 1992 version) RACCORDO
from £92.09
from £92.09
UNION Genuine Lamborghini - New In stock
# 005
MPN: 003113905
WASHER
(Valid for June 1992 version) RONDELLA
from £1.55
from £1.55
WASHER Genuine Lamborghini - New In stock
# 006
MPN: 003230719
WASHER SP. 0,05 MM
(Valid for June 1992 version) RONDELLA SP. 0.05 MM
from £0.54
from £0.54
WASHER SHIM 0.05 Genuine Lamborghini - New (to order)
# 006
MPN: 003230720
WASHER SP. 0,1 MM
(Valid for June 1992 version) RONDELLA SP. 0.1 MM
from £0.54
from £0.54
WASHER SHIM 0.1 Genuine Lamborghini - New In stock
# 006
MPN: 003230721
WASHER SP. 0,2 MM
(Valid for June 1992 version) RONDELLA SP. 0.2 MM
from £0.54
from £0.54
WASHER SHIM 0.2 Genuine Lamborghini - New In stock
# 006
MPN: 003230722
WASHER SP. 0,3 MM
(Valid for June 1992 version) RONDELLA SP. 0.3 MM
from £0.73
from £0.73
WASHER SHIM 0.3 Genuine Lamborghini - New (to order)
# 006
MPN: 003230723
WASHER SP. 0,4 MM
(Valid for June 1992 version) RONDELLA SP. 0.4 MM
from £0.54
from £0.54
WASHER SHIM 0.4 Genuine Lamborghini - New (to order)
# 006
MPN: 003230724
WASHER SP. 0,5 MM
(Valid for June 1992 version) RONDELLA SP. 0.5 MM
from £0.54
from £0.54
WASHER SHIM 0.5 Genuine Lamborghini - New In stock
# 006
MPN: 003230725
WASHER SP. 0,6 MM
(Valid for June 1992 version) RONDELLA SP. 0.6 MM
from £0.54
from £0.54
WASHER SHIM 0.6 Genuine Lamborghini - New (to order)
# 006
MPN: 003230726
WASHER SP. 0,8 MM
(Valid for June 1992 version) RONDELLA SP. 0.8 MM
from £0.54
from £0.54
WASHER SHIM 0.8 Genuine Lamborghini - New (to order)
# 006
MPN: 003230727
WASHER SP. 1.0 MM
(Valid for June 1992 version) RONDELLASP. 1.0 MM
from £2.24
from £2.24
WASHER SHIM 1. Genuine Lamborghini - New In stock
# 007
MPN: 003235293

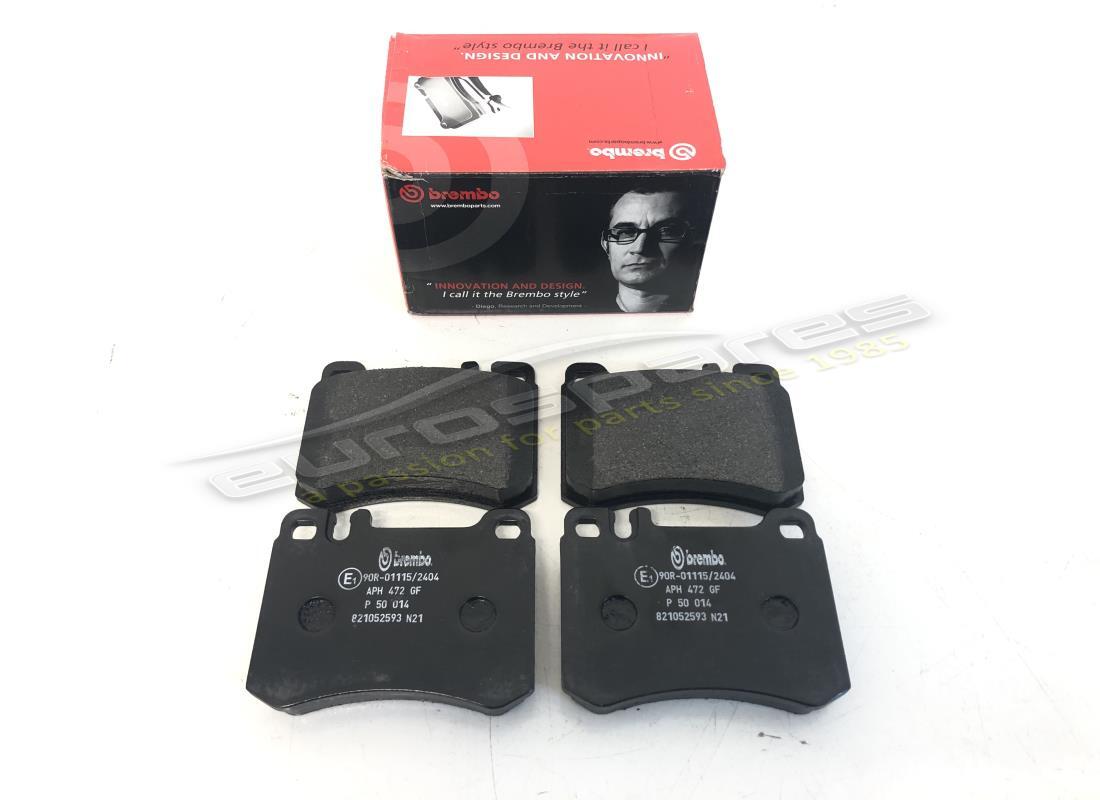

REAR BRAKE PADS
Complete set of 4
from £120.62
from £120.62
REAR BRAKE PADS Genuine Lamborghini - New (to order)
REAR BRAKE PADS Genuine Lamborghini - New (other) In stock
SET OF 4 PADS
# 008
MPN: 003226352
LEFT BRAKE CALIPER
(Valid for June 1992 version) PINZA FRENO SINISTRO POSTERIORE
from £1,214.83
from £1,214.83
SHOE Genuine Lamborghini - New (to order)
# 008
MPN: 003226353
RIGHT BRAKE CALIPER
(Valid for June 1992 version) PINZA FRENO DESTRO POSTERIORE
from £1,214.83
from £1,214.83
SHOE Genuine Lamborghini - New (to order)
# 009
MPN: N01029315
SCREW
(Valid for June 1992 version) VITE
from £0.80
from £0.80
HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
# 010
MPN: 003234862

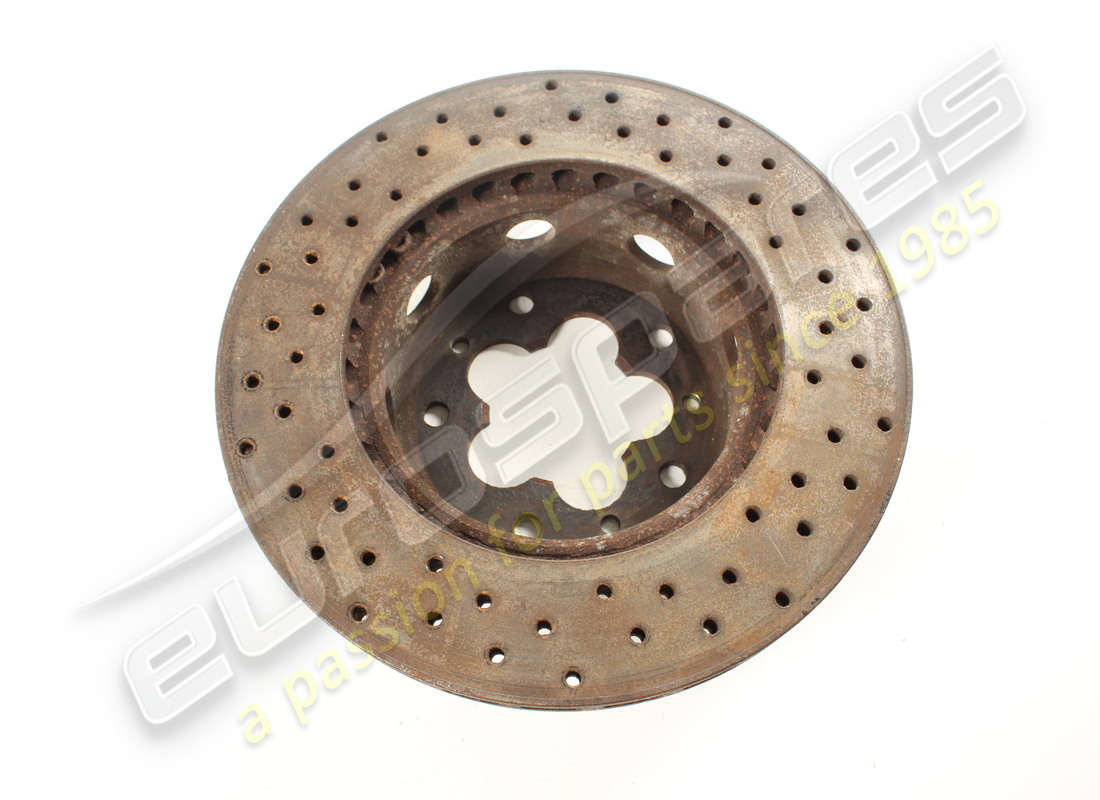

REAR BRAKE DISC
(Valid for June 1992 version) DISCO FRENO POSTERIORE
from £1,017.69
from £1,017.69
REAR BRAKE DISC Genuine Lamborghini - New (to order)
REAR BRAKE DISC Genuine Lamborghini - Used In stock
# 011
MPN: 008401217
WASHER
(Valid for June 1992 version) RONDELLA (sostituisce 8411303)
from £3.65
from £3.65
WASHER12 ALLEN SCREW5S Genuine Lamborghini - New (to order)
# 012
MPN: 008101247
SCREW
(Valid for June 1992 version) VITE
from £4.32
from £4.32
SCREW M12X22 CH19 10K BON. Genuine Lamborghini - New (to order)
# 013
MPN: 008411302
WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 014
MPN: 008101246
SCREW
(Valid for June 1992 version) VITE
from £38.51
from £38.51
BOLT D.M12X1.5X30 10K BON Genuine Lamborghini - New (to order)
# 015
MPN: 003331672

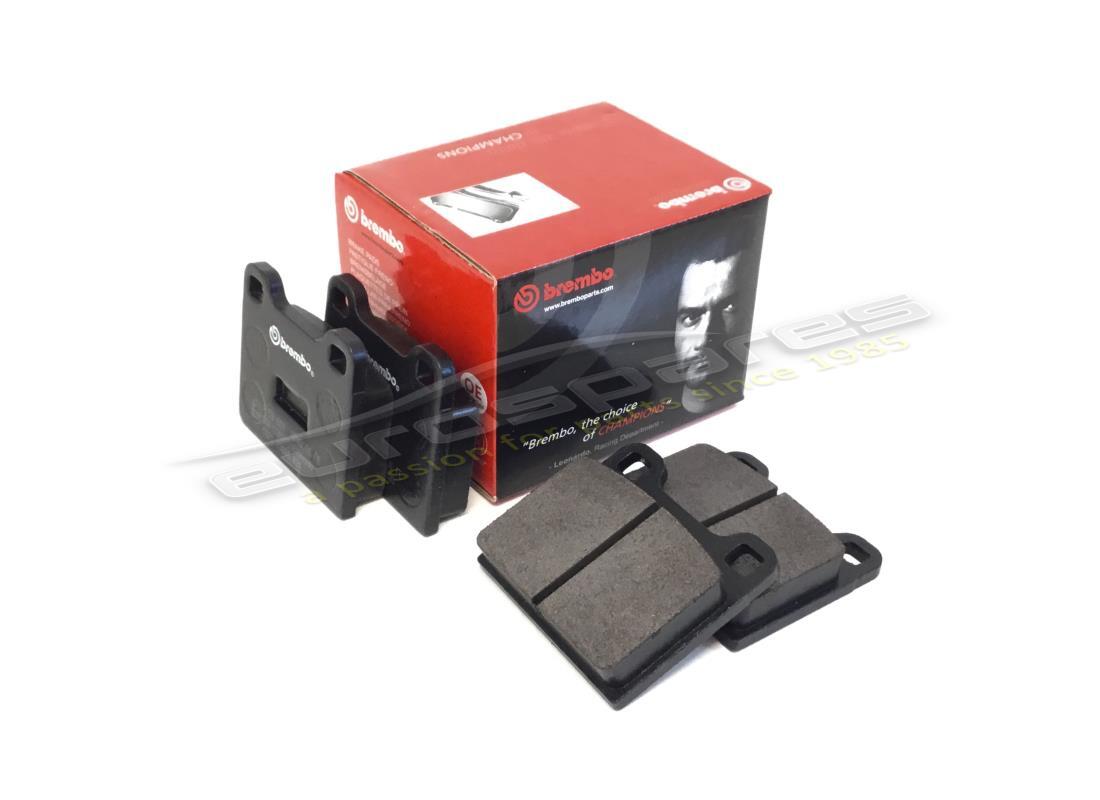

HANDBRAKE PADS SET
use 108134 as alternative
from £109.45
from £109.45
HAND BRAKE PADS Genuine Lamborghini - New In stock
# 015
MPN: 003331672
HANDBRAKE PADS SET
use 108134 as alternative
from £109.45
from £109.45
HAND BRAKE PADS Genuine Lamborghini - New In stock
# 016
MPN: 003327753
HAND BRAKE CALIPER
(Valid for June 1992 version) PINZA DX FRENO A MANO CON PASTIGLIE (fino 12620)
from £1,247.81
from £1,247.81
HANDBRAKE RH SHOE Genuine Lamborghini - New (to order)
# 016
MPN: 003327754
HAND BRAKE CALIPER
(Valid for June 1992 version) PINZA SX FRENO A MANO CON PASTIGLIE (fino 12620)
from £679.04
from £679.04
HANDBRAKE LH SHOE Genuine Lamborghini - New (to order)
# 016
MPN: 003333273
HAND BRAKE CALIPER
(Valid for June 1992 version) PINZA SX FRENO A MANO CON PASTIGLIE (dalla 12621)
from £1,608.48
from £1,608.48
RH HANDBRAKE SHOE Genuine Lamborghini - New (to order)
# 016
MPN: 003333274
HAND BRAKE CALIPER
(Valid for June 1992 version) PINZA DX FRENO A MANO CON PASTIGLIE (fino 12621)
from £1,608.48
from £1,608.48
LH HANDBRAKE SHOE Genuine Lamborghini - New (to order)
# 017
MPN: 008900204
PIN
(Valid for June 1992 version) SPINA
from £0.53
from £0.53
ELASTIC PIN 2.5X18 DIN 1481 Genuine Lamborghini - New In stock
# 018
MPN: 003330824
BUSHING
(Valid for June 1992 version) BOCCOLA
BUSHING Genuine Lamborghini - New (to order)
# 019
MPN: 003319644
BOOT
(Valid for June 1992 version) SOFFIETTO
from £11.02
from £11.02
BRAKE FAIRLEAD RUBBER WASHER Genuine Lamborghini - New (to order)
