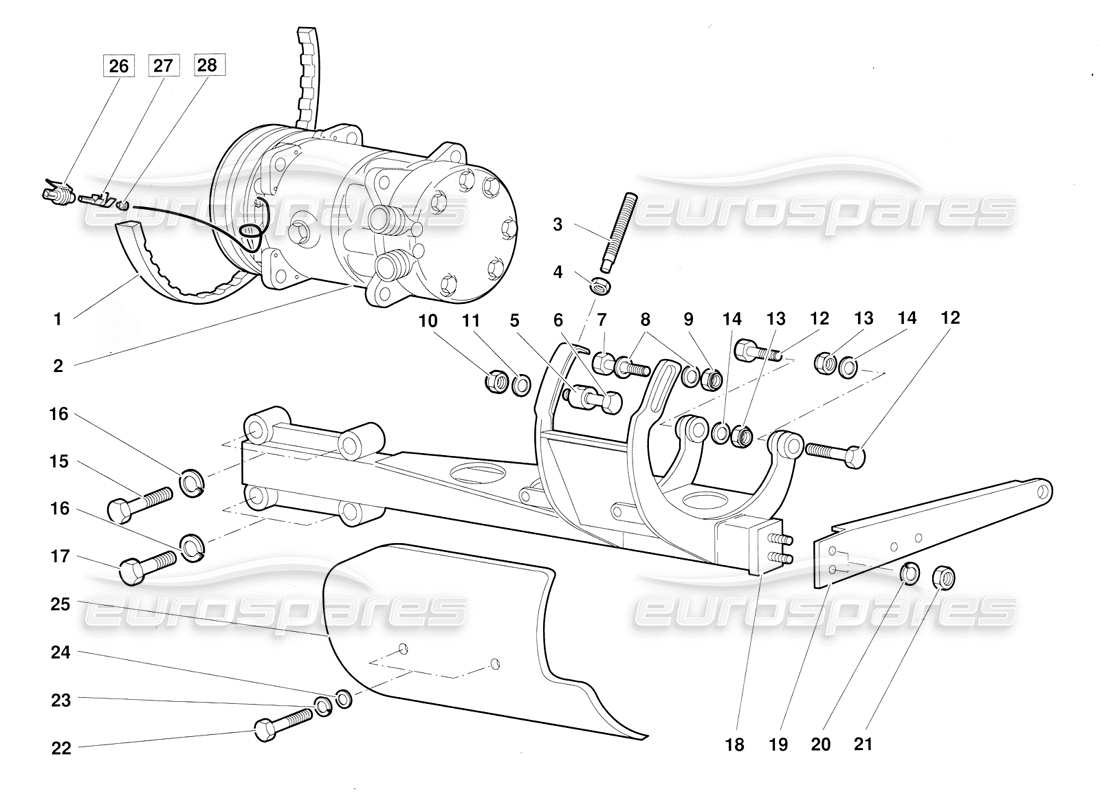

      # 001
      MPN: 004529536
      BELT
      (Valid for June 1992 version) CINGHIA
      from £114.00
      from £114.00
      COMPRESSOR BELT Genuine Lamborghini - New (to order)
      # 002
      MPN: 004530198
      AIR COMPRESSOR
      (Valid for June 1992 version) COMPRESSORE
      from £890.59
      from £890.59
      COMPRESSOR Genuine Lamborghini - New (to order)
      # 002
      MPN: 410407127A
      BOLT
      (Valid for June 1992 version) ECCENTRICO
      from £608.71
      from £608.71
      ECCENTRIC Genuine Lamborghini - New (to order)
      # 003
      MPN: 005133488
      SHIM SP = 1,5 MM
      (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 1,5 MM (dalla 12678)
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 003
      MPN: 008700841
      ADJUSTING SLEEVE
      (Valid for June 1992 version) VITE REGISTRO
      from £1.59
      from £1.59
      SCREW M8X70 UNI 5925/12K Genuine Lamborghini - New In stock
      # 003
      MPN: 410407295
      SHIM SP = 1 MM
      (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 1 MM (dalla 12678)
      from £2.73
      from £2.73
      SPACER RING Genuine Lamborghini - New (to order)
      # 003
      MPN: 410407295B
      SHIM SP = 2 MM
      (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 2 MM (dalla 12678)
      from £2.39
      from £2.39
      SPACER RING Genuine Lamborghini - New In stock
      # 003
      MPN: 410407295C
      SHIM SP = 2,5 MM
      (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 2,5 MM (dalla 12678)
      from £2.64
      from £2.64
      SPACER RING Genuine Lamborghini - New In stock
      # 003
      MPN: 410407295D
      SHIM SP = 3 MM
      (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 3 MM (dalla 12678)
      from £17.99
      from £17.99
      SPACER RING Genuine Lamborghini - New In stock
      # 004
      MPN: 008200801
      NUT
      (Valid for June 1992 version) DADO
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 005
      MPN: 004529646
      SPACER
      (Valid for June 1992 version) DISTANZIALE
      from £15.59
      from £15.59
      ADJUSTMENT SHIM Genuine Lamborghini - New (to order)
      # 005
      MPN: 008921206
      RESILIENT BUSHING
      (Valid for June 1992 version) BOCCOLA ELASTICA
      from £29.93
      from £29.93
      FLANBLOC Genuine Lamborghini - New In stock
      # 006
      MPN: 008101035
      SCREW
      (Valid for June 1992 version) VITE
      from £6.51
      from £6.51
      SCREW 10X1.5X45 UNI 5737/8 Genuine Lamborghini - New (to order)
      # 006
      MPN: 410407127A
      BOLT
      (Valid for June 1992 version) PERNO CON ECCENTRICO
      from £608.71
      from £608.71
      ECCENTRIC Genuine Lamborghini - New (to order)
      # 007
      MPN: 005225908
      RH UPPER SUSPENSION ARM
      from £1,344.52
      from £1,344.52
      RH UPPER ARM Genuine Lamborghini - New (to order)
      # 007
      MPN: 005225909
      ARM
      (Valid for June 1992 version) BRACCIO SUPERIORE SINISTRO
      from £1,539.06
      from £1,539.06
      LH UPPER ARM Genuine Lamborghini - New (to order)
      # 007
      MPN: 008101022
      BOLT
      (Valid for June 1992 version) VITE
      from £2.66
      from £2.66
      SCREW M10X1.5X35 UNI5737/ Genuine Lamborghini - New (to order)
      # 008
      MPN: 005225204
      PIN
      (Valid for June 1992 version) PERNO
      from £57.79
      from £57.79
      UPPER REAR ARM PIN Genuine Lamborghini - New (to order)
      # 008
      MPN: 008401028
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £3.65
      from £3.65
      WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New (to order)
      # 009
      MPN: 005225207
      RESILIENT BUSHING
      (Valid for June 1992 version) BOCCOLA ELASTICA
      from £129.30
      from £129.30
      BUSH (005225207) Eurospares Approved Part - New In stock
      JOINT Genuine Lamborghini - New (to order)
      # 009
      MPN: 008201008
      NUT
      (Valid for June 1992 version) DADO
      from £0.57
      from £0.57
      NUT Genuine Lamborghini - New In stock
      # 010
      MPN: 008201008
      NUT
      (Valid for June 1992 version) DADO
      from £0.57
      from £0.57
      NUT Genuine Lamborghini - New In stock
      # 010
      MPN: 008401710
      SHIM
      (Valid for June 1992 version) SPESSORE Dl REGISTRO
      from £26.12
      from £26.12
      FLAT WASHER 17X34X1 Genuine Lamborghini - New (to order)
      # 011
      MPN: 008401028
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £3.65
      from £3.65
      WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New (to order)
      # 011
      MPN: 008401708
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £1.58
      from £1.58
      WASHER 17.5X26X3 AQ42 Genuine Lamborghini - New In stock
      # 012
      MPN: 008101019
      BOLT
      (Valid for June 1992 version) VITE
      from £2.83
      from £2.83
      SCREW M10X1.5X45 UNI5737/ Genuine Lamborghini - New (to order)
      # 012
      MPN: 008251702
      PLUG
      (Valid for June 1992 version) GHIERA
      from £2.41
      from £2.41
      This part replaces part number 008251701
      M17X1X28 SELF-LOCKING RING NUT Genuine Lamborghini - New In stock
      # 013
      MPN: 005225205
      PIN
      (Valid for June 1992 version) PERNO
      from £57.79
      from £57.79
      UPPER ARM PIN Genuine Lamborghini - New (to order)
      # 013
      MPN: 008201010
      NUT
      (Valid for June 1992 version) DADO
      from £0.87
      from £0.87
      M10 SELF LOCKING NUT Genuine Lamborghini - New In stock
      # 014
      MPN: 005225906
      ARM
      (Valid for June 1992 version) BRACCIO INFERIORE DESTRO
      from £1,119.71
      from £1,119.71
      RH LOWER ARM Genuine Lamborghini - New (to order)
      # 014
      MPN: 005225907
      ARM
      (Valid for June 1992 version) BRACCIO INFERIORE SINISTRO
      from £1,111.07
      from £1,111.07
      LH LOWER ARM Genuine Lamborghini - New (to order)
      # 014
      MPN: 008401028
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £3.65
      from £3.65
      WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New (to order)
      # 015
      MPN: 008100841
      SCREW
      (Valid for June 1992 version) VITE
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 015
      MPN: N0111849
      NUT
      (Valid for June 1992 version) DADO (sostituisce II 008200809)
      from £1.39
      from £1.39
      This part replaces part number 008200809
      HEX.HEAD CLAMPING NUT Genuine Lamborghini - New In stock
      # 016
      MPN: 005227297
      BUSHING
      (Valid for June 1992 version) BOCCOLA
      from £18.21
      from £18.21
      BALL JOINT BUSHING Genuine Lamborghini - New (to order)
      # 016
      MPN: 008410806
      WASHER
      (Valid for June 1992 version) RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 017
      MPN: 005227298
      BUSHING
      (Valid for June 1992 version) BOCCOLA
      from £11.08
      from £11.08
      TORSION BAR ADAPTER BUSHING Genuine Lamborghini - New In stock
      # 017
      MPN: N01033520
      SCREW
      (Valid for June 1992 version) VITE
      from £1.04
      from £1.04
      HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
      # 018
      MPN: 004529535
      SUPPORT
      (Valid for June 1992 version) SUPPORTO
      from £354.86
      from £354.86
      CONDITIONER COMPRESSOR BRACKET Genuine Lamborghini - New (to order)
      # 018
      MPN: 005109714
      BOOT
      (Valid for June 1992 version) CAPPUCCIO
      from £16.55
      from £16.55
      BOOT Genuine Lamborghini - New In stock
      # 019
      MPN: 004529645
      TIE ROD
      (Valid for June 1992 version) TIRANTE
      from £23.10
      from £23.10
      COMPRESSOR MOUNT TIEROD Genuine Lamborghini - New (to order)
      # 019
      MPN: 008100810
      SCREW
      (Valid for June 1992 version) VITE (sostituisce il 0081 00807)
      Lamborghini PART 008100810 Genuine Lamborghini - New (to order)
      # 020
      MPN: 008410806
      WASHER
      (Valid for June 1992 version) RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 020
      MPN: 417801931A
      BALL JOINT
      (Valid for June 1992 version) GIUNTO SFERICO
      from £155.64
      from £155.64
      This part replaces part number 005206963 - and 1 more. Click to view details
      STRAP JOINT Genuine Lamborghini - New In stock
      # 021
      MPN: 008200801
      NUT
      (Valid for June 1992 version) DADO
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 021
      MPN: 008201014
      NUT
      (Valid for June 1992 version) DADO
      from £3.86
      from £3.86
      M10X1X6 UNI 5589/5S/Z NUT Genuine Lamborghini - New (to order)
      # 022
      MPN: 005209770
      TIE ROD
      (Valid for June 1992 version) TIRANTE
      from £71.89
      from £71.89
      TORSION BAR TIEROD Genuine Lamborghini - New (to order)
      # 022
      MPN: 008100620
      BOLT
      (Valid for June 1992 version) VITE
      from £3.65
      from £3.65
      SCREW M6X12 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
      # 023
      MPN: 008201016
      NUT
      (Valid for June 1992 version) DADO
      from £14.30
      from £14.30
      This part replaces part number 008201034
      10X1X6 S LEFT NUT Genuine Lamborghini - New (to order)
      # 023
      MPN: WHT003053
      LOCK WASHER
      (Valid for June 1992 version) RONDELLA
      from £2.13
      from £2.13
      This part replaces part number 008410603
      WASHER Genuine Lamborghini - New In stock
      # 024
      MPN: 005227295
      BALL JOINT
      (Valid for June 1992 version) GIUNTO SFERICO
      from £72.47
      from £72.47
      BALL JOINT (005227295) Eurospares Approved Part - New (to order)
      BALL JOINT (use 005227295 & 005227298) (005206964) Genuine Lamborghini - New (to order)
      BALL JOINT Genuine Lamborghini - New In stock
      # 024
      MPN: 008400606
      WASHER
      (Valid for June 1992 version) RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 025
      MPN: 004532221
      SHIELD
      (Valid for June 1992 version) PARATIA ANTICALORE
      from £533.95
      from £533.95
      COMPRESSOR HEAT GUARD Genuine Lamborghini - New (to order)
      # 025
      MPN: 005230211
      STABILIZER BAR
      (Valid for June 1992 version) BARRA STABILIZZATRICE
      from £798.93
      from £798.93
      ROLL BAR Genuine Lamborghini - New (to order)
      # 026
      MPN: 006132546
      CONNECTION
      (Valid for June 1992 version) CONNESSIONE
      from £11.32
      from £11.32
      ONE-PIN CONNECTOR Genuine Lamborghini - New (to order)
      # 026
      MPN: 008700609
      SCREW
      (Valid for June 1992 version) VITE
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 027
      MPN: 006131992
      Key
      (Valid for June 1992 version) LINGUETTA
      Lamborghini PART 006131992 Genuine Lamborghini - New (to order)
      # 027
      MPN: 008410602
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £27.52
      from £27.52
      WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
      # 028
      MPN: 005230256
      RETAINER
      (Valid for June 1992 version) CAVALLOTTO
      Lamborghini PART 005230256 Genuine Lamborghini - New (to order)
      # 028
      MPN: 006132584
      TERMINAL
      (Valid for June 1992 version) TERMINALE
      from £4.98
      from £4.98
      THERM. AMP 282110-1 Genuine Lamborghini - New (to order)
      # 029
      MPN: 005238302
      BUSHING
      (Valid for June 1992 version) BOCCOLA
      from £88.31
      from £88.31
      This part replaces part number 005230804
      TORSION BAR BUSHING Genuine Lamborghini - New (to order)
      # 030
      MPN: 005230257
      RETAINER
      (Valid for June 1992 version) CAVALLOTTO
      Lamborghini PART 005230257 Genuine Lamborghini - New (to order)
      # 031
      MPN: 005229803
      SHOCK ABSORBER
      (Valid for June 1992 version) AMMORTIZZATORE POSTERIORE (fino 12678)
      from £769.53
      from £769.53
      REAR SHOCK ABSORBER Genuine Lamborghini - New (to order)
      # 031
      MPN: 005233269
      SHOCK ABSORBER
      (Valid for June 1992 version) AMMORTIZZATORE POSTERIORE (dalla 12679) (compatibili sulle vetture precedenti solo se abbinati alle molle 0052261 57 q.ta 4)
      from £477.57
      from £477.57
      SHORT SHOCK ABSORBER Genuine Lamborghini - New In stock
      # 032
      MPN: 005226157
      SPRING
      (Valid for June 1992 version) MOLLA (dalla 12679 compatibile solo con gli ammortizzatori 005233269)
      from £239.61
      from £239.61
      REAR SPRING Genuine Lamborghini - New In stock
      # 032
      MPN: 005226158
      SPRING
      (Valid for June 1992 version) MOLLA (fino 12678)
      from £428.65
      from £428.65
      SHOCK ABSORBER SPRING Genuine Lamborghini - New (to order)
      # 033
      MPN: WHT003355
      NUT
      (Valid for June 1992 version) DADO (Sostituisce il 008201206)
      from £8.48
      from £8.48
      CLAMPING NUT Genuine Lamborghini - New In stock
      # 034
      MPN: 410512383
      RESILIENT BUSHING
      from £356.24
      from £356.24
      EXTENDIBLE 012 X 042X 46 X 35 Genuine Lamborghini - New In stock
      # 035
      MPN: 008101259
      SCREW
      (Valid for June 1992 version) VITE (sostituisce il 008101274)
      from £9.74
      from £9.74
      SCREW 12X1.25X70UNI5738ZG8G Genuine Lamborghini - New In stock
      # 036
      MPN: 410512385
      RUBBER RING
      from £32.34
      from £32.34
      SHOCK ABSORBER BULKHEAD Genuine Lamborghini - New In stock
      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
