61.03.00 - electrical system

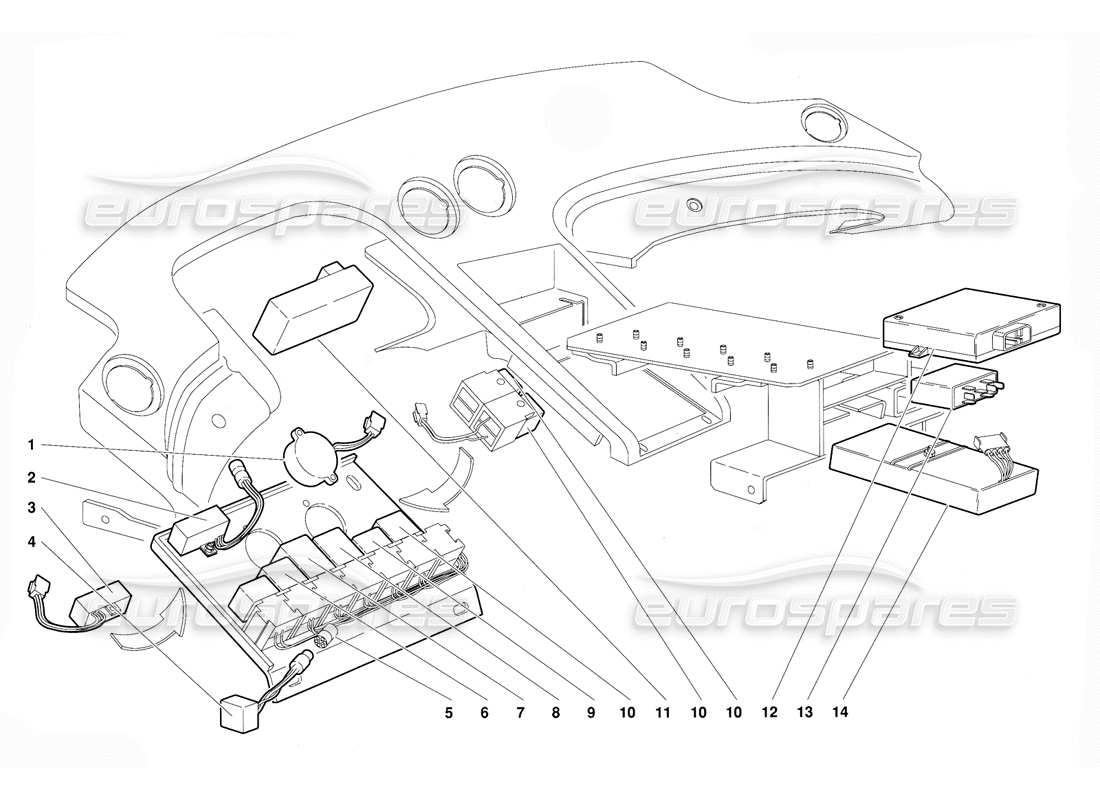

Lamborghini Diablo (1991) Electrical System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 006031684
BUZZER
SEGN. ACUSTICO LUCI ACCESE
# 002
MPN: 006031481
TIMER
TEMPORIZZ. SPIA OLIO MOTORE
from £485.03
from £485.03
# 003
MPN: 006031837
TIMER
TEMPORIZZ. UTILIZZ. ALL'ACCENSIONE
from £626.01
from £626.01
# 004
MPN: 006031967
CONTROL
DISP. CONTR. SEGNALE PRESS. OLIO
from £17.62
from £17.62
# 005
MPN: 006131543
ELECT CABLE
CABLAGGIO TELERUTTORI
# 006
MPN: 006030676
DEVICE FOR INT.OPSR.
INTERMITTENZA LUCI Dl DIREZIONE
from £99.08
from £99.08
# 007
MPN: 006031508
BUZZER
SEGNALATORE ACUSTICO CATALYST
from £131.87
from £131.87
# 008
MPN: 006321335
TIMER
TEMPORIZZATORE LUCI ABITACOLO
from £52.23
from £52.23
# 009
MPN: 006311155
RELAY
TELERUTTORE BOSCH 0.332.015.006
from £36.37
from £36.37
# 010
MPN: 006331913
RELAY
TELERUTTORE BOSCH 0.332.204.151
# 011
MPN: 006031460
RHEOSTAT
REOSTATO ILLUMIN. STRUMENTAZ.
from £360.67
from £360.67
# 012
MPN: 006032856
ELECTRONIC CONTROL
CENTRALINA ALZAVETRO SX
from £796.34
from £796.34
# 013
MPN: 005929915
LOCKING CENTR.
CENTRALINA CHIUSURA CENTRALIZZ.
from £249.89
from £249.89
# 014
MPN: 006030677
ELECTRONIC CONTROL
CENTRALINA LOW TIRE
from £425.34
from £425.34
