lamborghini diablo (1991) frame floor panels (valid for australia version - october 1991) parts diagram

76.9411.01.00 - Frame Floor Panels (Valid for Australia Version - October 1991)

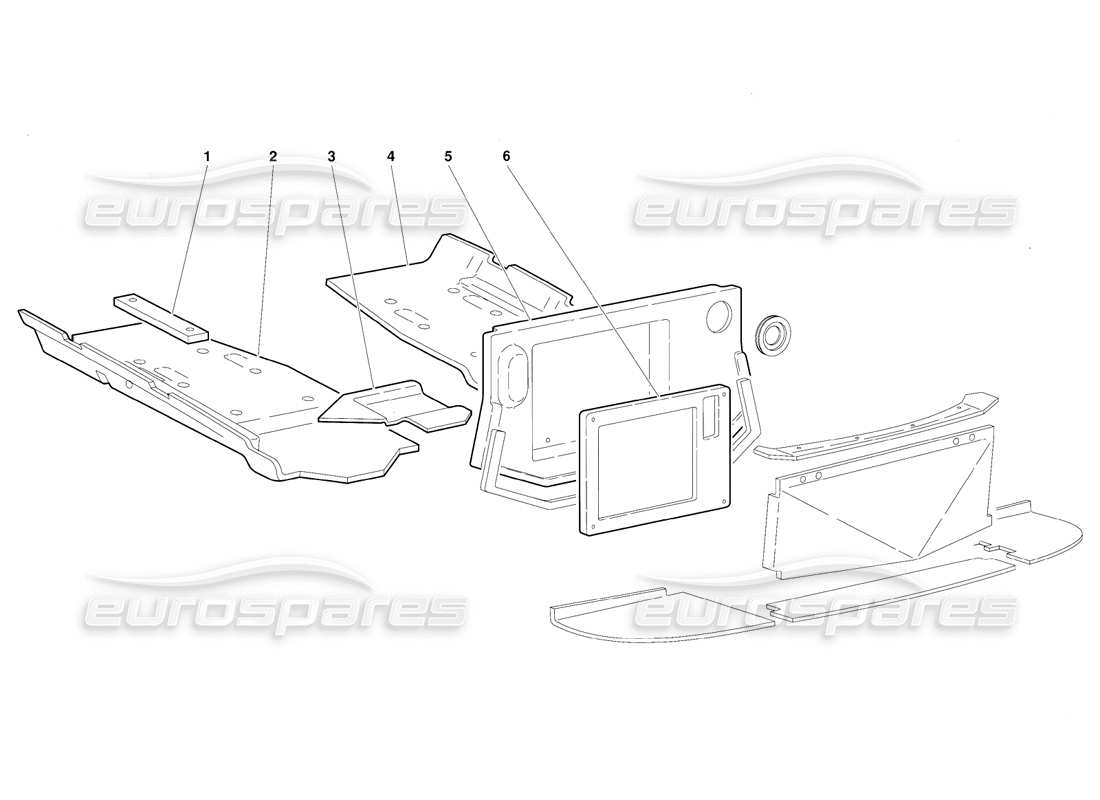

Lamborghini Diablo (1991) Frame Floor Panels (Valid for Australia Version - October 1991) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009435234
PLATE
(Valid for AUSTRALIA version – October 1991) PIASTRA
from £21.97
from £21.97
# 002
MPN: 009411207
SHELF PANEL
(Valid for AUSTRALIA version – October 1991) PIANALE DESTRO
from £688.16
from £688.16
# 003
MPN: 009411213
PANEL
(Valid for AUSTRALIA version – October 1991) PANNELLO
from £145.51
from £145.51
# 004
MPN: 009411208
SHELF PANEL
(Valid for AUSTRALIA version – October 1991) PIANALE SINISTRO
from £688.16
from £688.16
# 005
MPN: 009409220
PANEL
(Valid for AUSTRALIA version – October 1991) PANNELLO CENTRALE
from £337.46
from £337.46
# 006
MPN: 009409211
PANEL
(Valid for AUSTRALIA version – October 1991) PANNELLO FISS. AMPLIFICATORE
from £116.92
from £116.92
