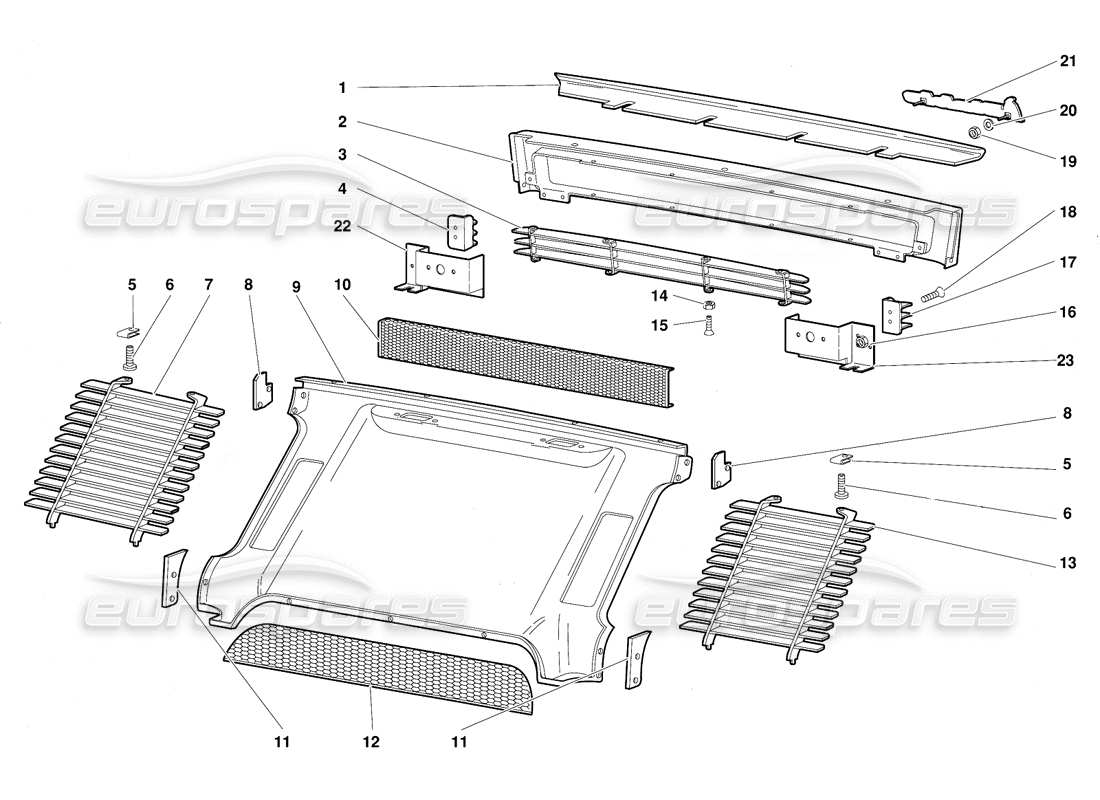

9410.01.00 - Rear Body Elements

Lamborghini Diablo (1991) Rear Body Elements Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 009430132
    SHIELD
    PARATIA ANTICALORE
    from £153.39
    from £153.39
    MOLURA FRAME GUARD Genuine Lamborghini - New (to order)
    # 002
    MPN: 009410210
    Rear Frame
    CORNICE POSTERIORE
    from £1,521.78
    from £1,521.78
    REAR LIGHT CLUSTER OUTER FRAME Genuine Lamborghini - New (to order)
    # 002
    MPN: 009410210/A
    REAR PANEL ASSY
    (used)
    REAR PANEL ASSY Genuine Lamborghini - New (to order)
    # 003
    MPN: 009430008

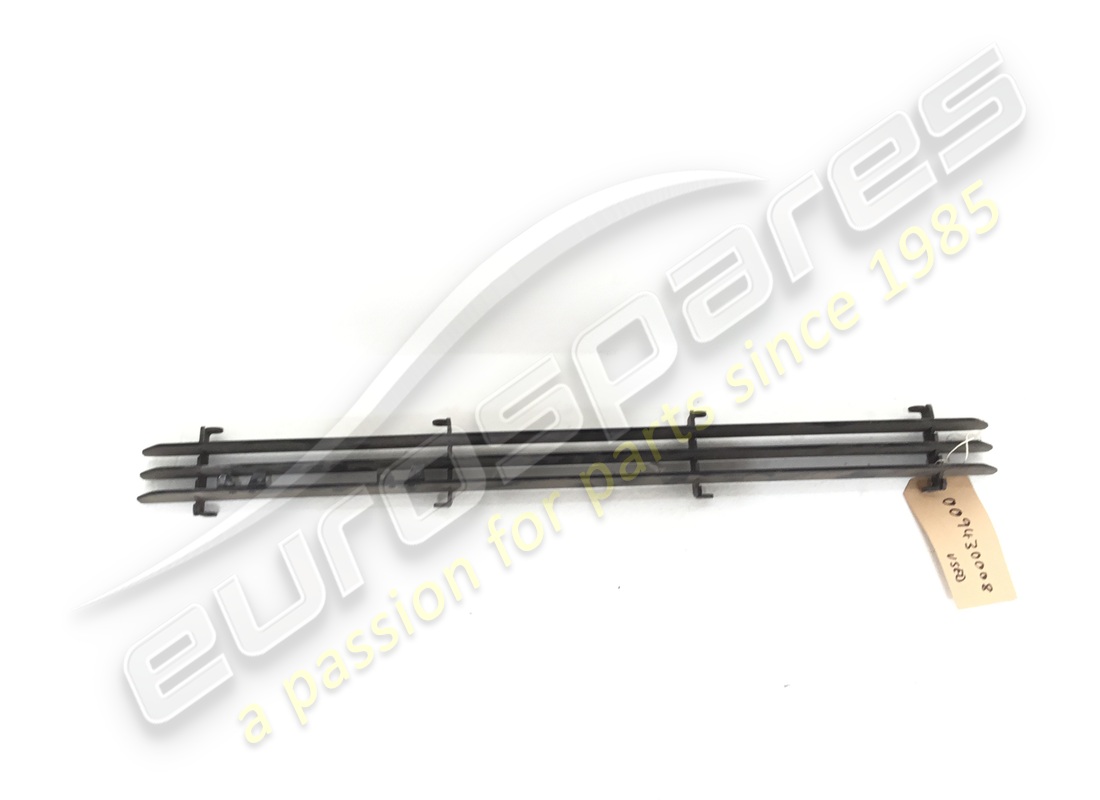

    GRILLE
    from £569.61
    from £569.61
    GRID BEHIND HEADLIGHT Genuine Lamborghini - New (to order)
    # 004
    MPN: 009430136
    GRILLE
    GRIGLIA DESTRA
    from £214.44
    from £214.44
    GRIGLIA LAT.DX FAN.RETRON Genuine Lamborghini - New (to order)
    # 005
    MPN: 008220505
    PLATE
    PIASTRINA FILETTATA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 006
    MPN: 008700545
    SCREW
    VITE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 007
    MPN: 009430103
    GRILLE
    GRIGLIA INFERIORE DESTRA
    from £2,010.29
    from £2,010.29
    WATER RADIATOR AIR OUTLET GRILLE RH Genuine Lamborghini - New (to order)
    # 008
    MPN: 009410205
    SPACER
    DISTANZIALE
    from £7.01
    from £7.01
    SHIM BETWEEN REAR BUMPER AND T RIM Genuine Lamborghini - New (to order)
    # 009
    MPN: 009410200

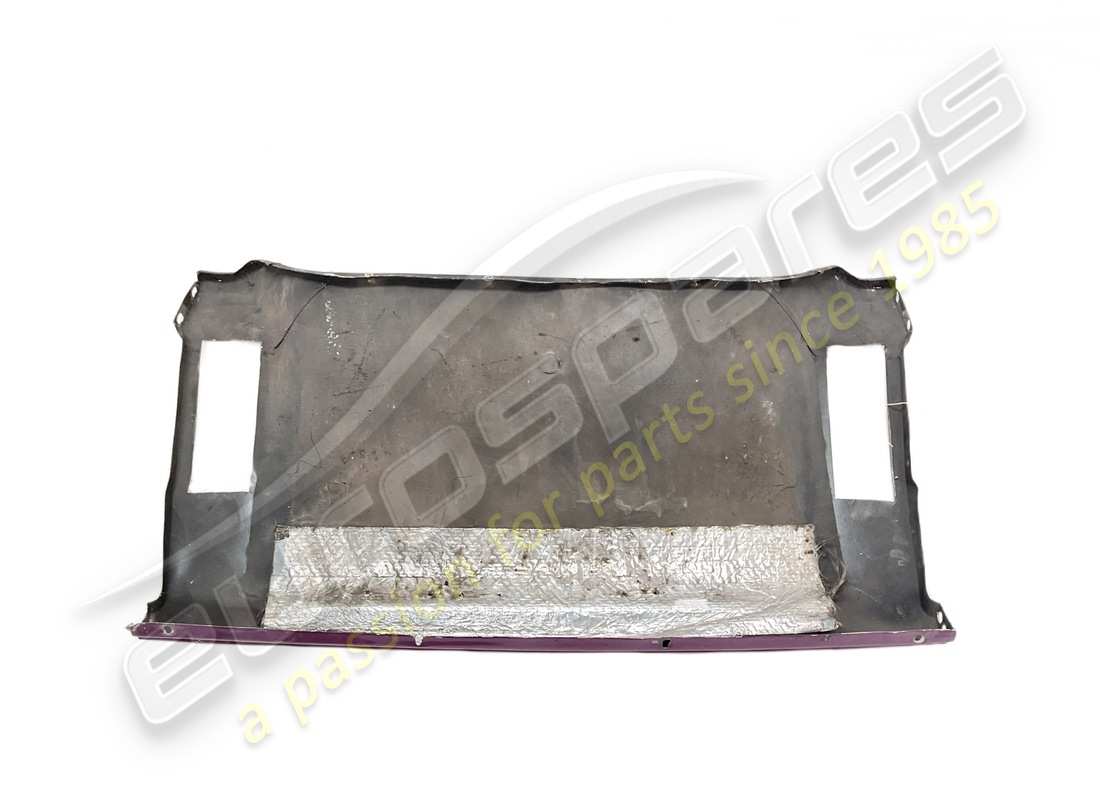

    REAR PANEL
    ELEMENTO SCOCCA POSTERIORE
    from £695.00
    from £695.00
    REAR EXT.COVER.BETWEEN FEND. Genuine Lamborghini - New (to order)
    REAR EXT.COVER.BETWEEN FEND. Genuine Lamborghini - Damaged In stock
    # 010
    MPN: 009430135
    NET
    RETE METALLICA
    from £163.34
    from £163.34
    REAR LIGHT OUTSIDE FRAME NET Genuine Lamborghini - New (to order)
    # 011
    MPN: 009410206
    SPACER
    DISTANZIALE
    from £28.15
    from £28.15
    REAR BUMPER SHIM Genuine Lamborghini - New (to order)
    # 012
    MPN: 009430121
    NET
    RETE METALLICA
    Lamborghini PART 009430121 Genuine Lamborghini - New (to order)
    # 013
    MPN: 009430104
    GRILLE
    GRIGLIA INFERIORE SINISTRA
    from £447.03
    from £447.03
    WATER RADIATOR AIR OUTLET GRILLE LH Genuine Lamborghini - New (to order)
    # 014
    MPN: 008200301
    NUT
    DADO
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 015
    MPN: 008700328
    SCREW
    VITE
    from £0.51
    from £0.51
    SCREW M3X8 UNI 5933/8G/Z BLACK Genuine Lamborghini - New In stock
    # 016
    MPN: 008200301
    NUT
    DADO
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 017
    MPN: 009430134
    GRILLE
    GRIGLIA LATERALE SINISTRA
    from £147.02
    from £147.02
    REVERSE LIGHT SIDE GRID Genuine Lamborghini - New In stock
    # 018
    MPN: 008700328
    SCREW
    VITE
    from £0.53
    from £0.53
    SCREW M3X8 UNI 5933/8G/Z BLACK Genuine Lamborghini - New In stock
    # 019
    MPN: 008200302
    NUT
    DADO
    from £0.53
    from £0.53
    1/8 GALVAN. WHITWORTH NUT Genuine Lamborghini - New In stock
    # 020
    MPN: 008400303
    WASHER
    RONDELLA
    from £0.53
    from £0.53
    WASHER 7X3.2X0.5 UNI6592/Z Genuine Lamborghini - New In stock
    # 021
    MPN: 009466101

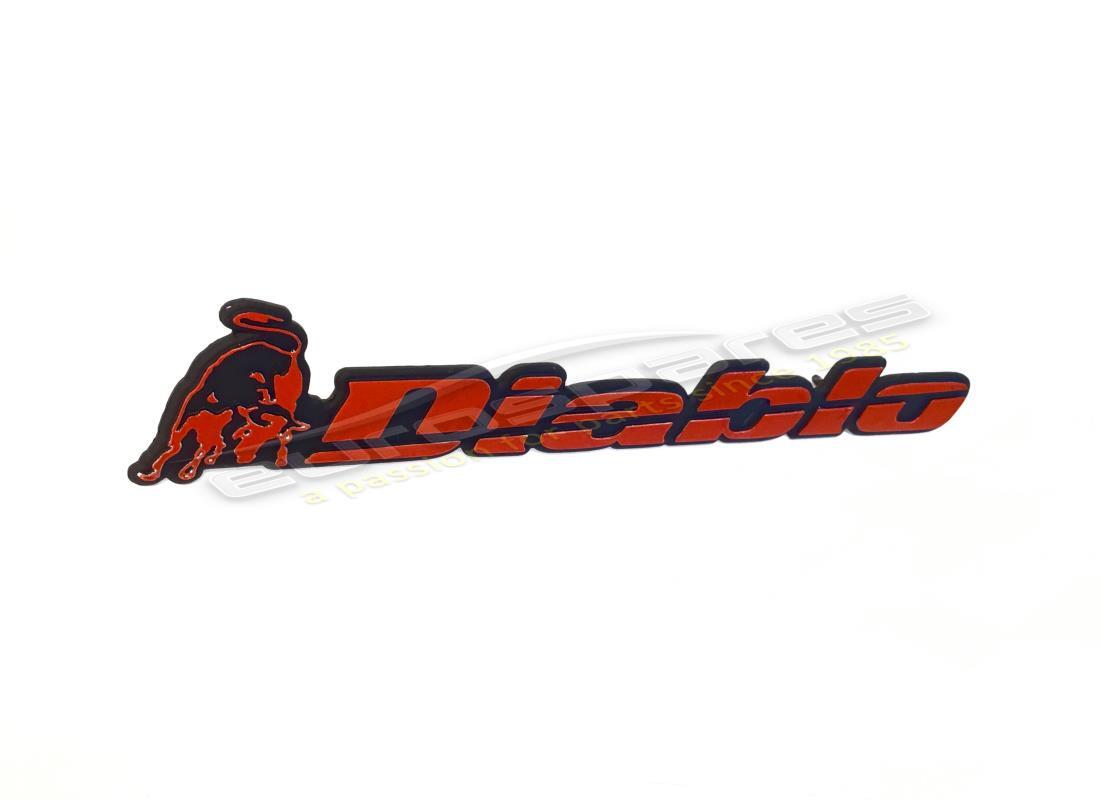

    ORNAMENT
    FREGIO DIABLO
    from £124.79
    from £124.79
    DIABLO PLATE (009466101) Eurospares Approved Part - New (to order)
    DIABLO PLATE Genuine Lamborghini - New (to order)
    # 022
    MPN: 009410211

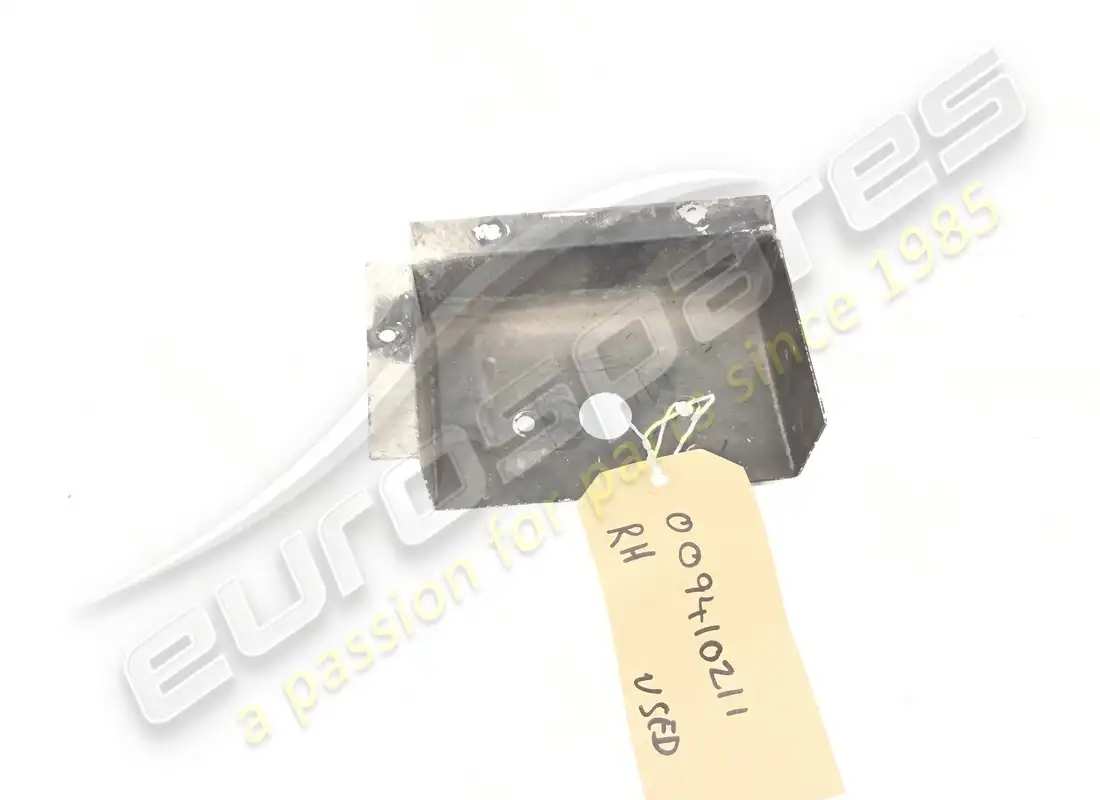

    SUPPORT
    SUPPORTO FANALE DESTRO
    from £18.70
    from £18.70
    BACKUP LIGHT HOUS Genuine Lamborghini - New In stock
    BACKUP LIGHT HOUS Genuine Lamborghini - Used In stock
    # 023
    MPN: 009410212

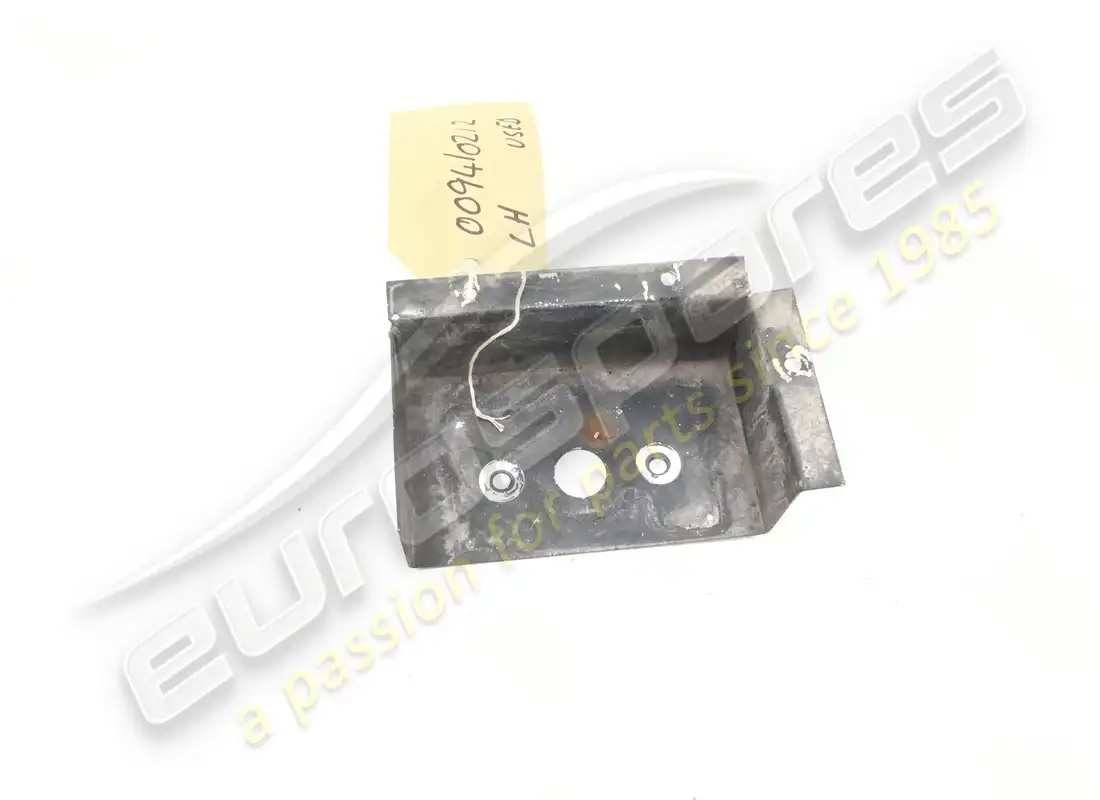

    SUPPORT
    SUPPORTO FANALE SINISTRO
    from £87.10
    from £87.10
    REVERSE LIGHT BOX Genuine Lamborghini - New In stock
    REVERSE LIGHT BOX Genuine Lamborghini - Used In stock
