61.03.00 - electrical system

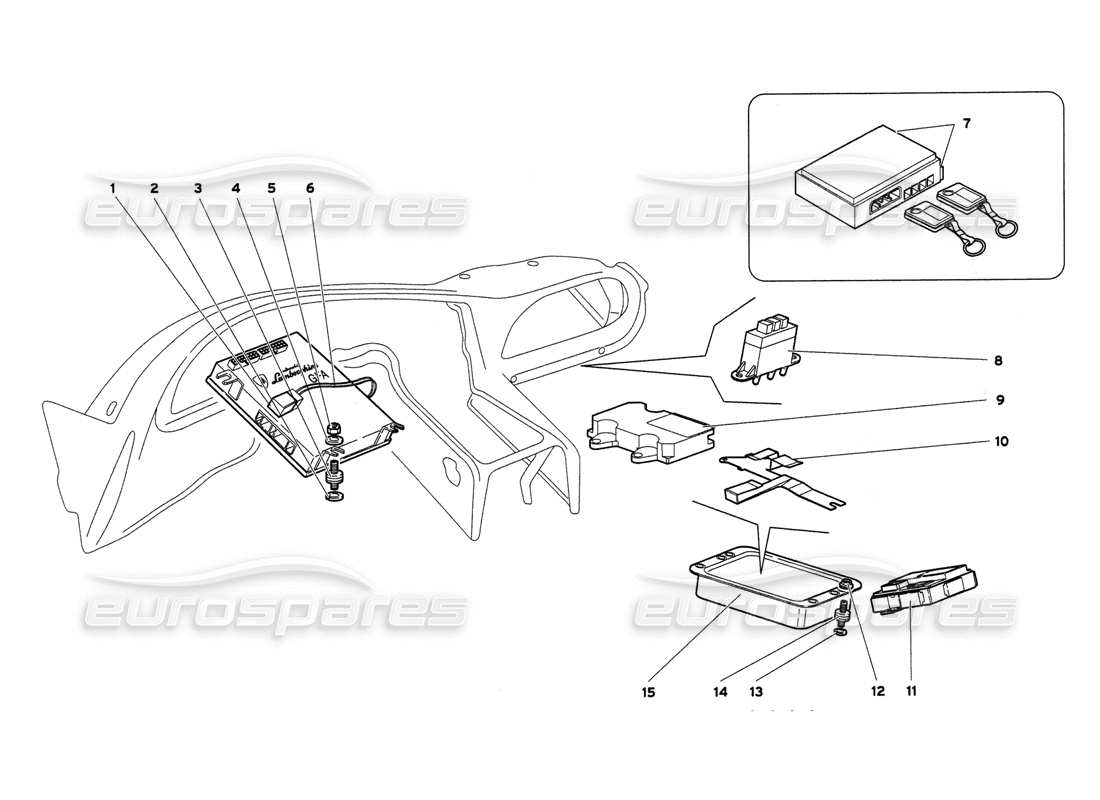

Lamborghini Diablo 6.0 (2001) Electrical System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 0061006946
                              INTERMITTENCE RELAY
                              from £79.52
                              from £79.52
                              # 002
                              MPN: 008410611
                              WASHER
                              from £0.53
                              from £0.53
                              # 003
                              MPN: 008920602
                              FLEXIBLE SUPPORT
                              from £8.91
                              from £8.91
                              # 004
                              MPN: WHT002961
                              WASHER
                              from £0.53
                              from £0.53
                              This part replaces part number 008400607
                              # 005
                              MPN: 008200606
                              NUT
                              Supersession
                              Supersession
                              # 006
                              MPN: 0020005362
                              GFA E.C.U.
                              (Valid for JAPAN - March 2001)
                              from £3,838.78
                              from £3,838.78
                              # 006
                              MPN: 0020006205
                              GFA E.C.U.
                              (Valid for ARABIA - March 2001)
                              from £4,902.52
                              from £4,902.52
                              # 006
                              MPN: 0020006206
                              GFA E.C.U.
                              (Valid for USA - March 2001)
                              Supersession
                              Supersession
                              # 006
                              MPN: 0020006206
                              GFA E.C.U.
                              (Valid for CANADA - March 2001)
                              Supersession
                              Supersession
                              # 006
                              MPN: 0020008454
                              GFA E.C.U.
                              from £5,057.57
                              from £5,057.57
                              # 007
                              MPN: 0061006425
                              ANTITHEFT CONTROL UNIT AND REMOTE CONTROL
                              from £520.69
                              from £520.69
                              # 008
                              MPN: 0061006419
                              DIAGNOSTIC INTERFACE
                              from £179.93
                              from £179.93
                              # 009
                              MPN: 0060005469
                              AIRBAG E.C.U.
                              from £810.04
                              from £810.04
                              # 010
                              MPN: 0059001925
                              BRACKET
                              # 011
                              MPN: 0060002330
                              WINDOW LIFT E.C.U.
                              from £834.75
                              from £834.75
                              # 012
                              MPN: 008200614
                              NUT
                              Supersession
                              Supersession
                              # 013
                              MPN: 008410611
                              WASHER
                              from £0.53
                              from £0.53
                              # 014
                              MPN: 008920602
                              FLEXIBLE SUPPORT
                              from £8.91
                              from £8.91
                              # 015
                              MPN: 005134572
                              KONI E.C.U.
                              from £1,413.63
                              from £1,413.63
