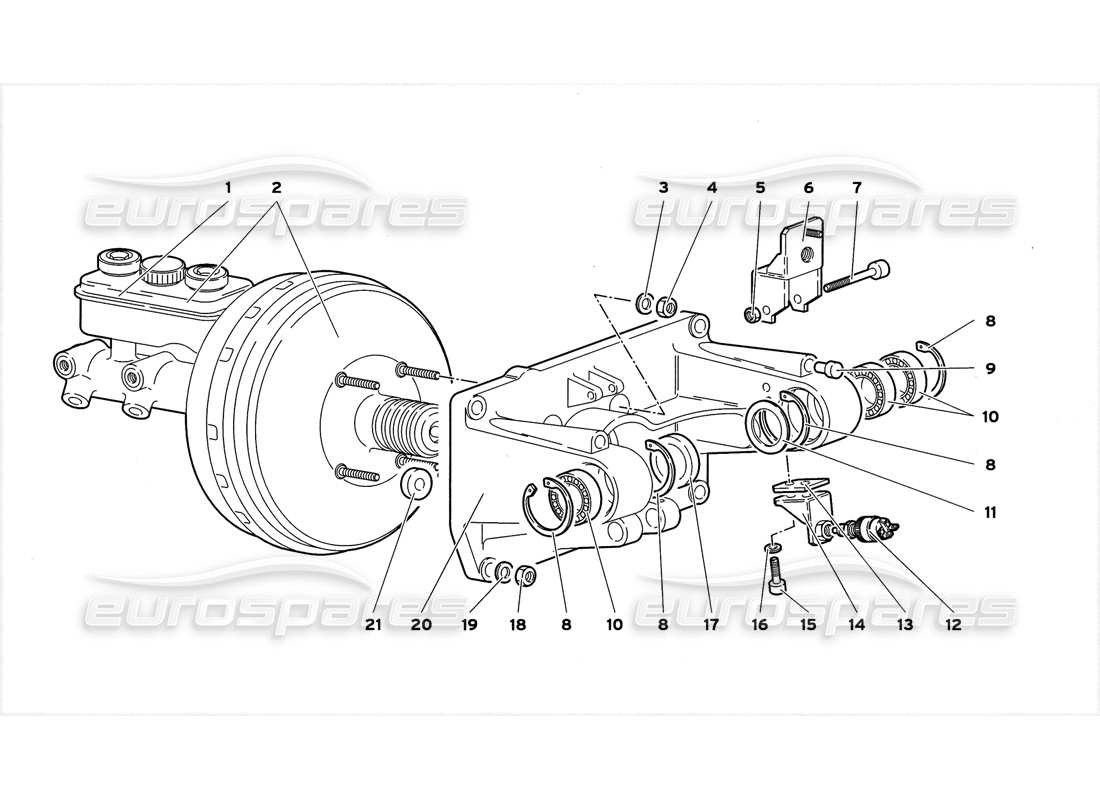

42.02.00 - Pedal Mounting
Lamborghini Diablo GT (1999) Pedal Mounting Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 004236817
BRAKE-SERVO RESER.
BRAKE SERVO RESERVOIR
from £134.03
from £134.03
# 002
MPN: 0042001085
BRAKE-SERVO
SERVOFRENO
from £2,495.00
from £2,495.00
# 003
MPN: 008400801
WASHER
RONDELLA
Supersession
Supersession
# 004
MPN: 008200804
NUT
DADO
from £0.71
from £0.71
# 005
MPN: 008400606
WASHER
DADO
Supersession
Supersession
# 006
MPN: 004231515
SUPPORT
SUPPORTO
from £26.49
from £26.49
# 007
MPN: 008700644
SCREW
VITE
Supersession
Supersession
# 008
MPN: 008573701
RETAINER RING
ANELLO RITEGNO
from £0.53
from £0.53
# 009
MPN: 410721381
PEDAL STOP
from £51.54
from £51.54
# 010
MPN: 008502513
BEARING
CUSCINETTO
from £22.97
from £22.97
# 011
MPN: 008402507
WASHER
RONDELLA
from £17.59
from £17.59
# 012
MPN: 417959727
ABS SWITCH
INTERRUTTORE ABS
from £34.80
from £34.80
# 013
MPN: 0042001530
SPACER
DISTANZIALE
# 014
MPN: 0042004496
SUPPORT
SUPPORTO
from £44.36
from £44.36
# 015
MPN: 008700644
SCREW
VITE
Supersession
Supersession
# 016
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 017
MPN: 004230923
SPACER
DISTANZIALE
from £17.96
from £17.96
# 018
MPN: 008200804
NUT
DADO
from £0.71
from £0.71
# 019
MPN: 008400801
WASHER
RONDELLA
Supersession
Supersession
# 020
MPN: 004233483
PEDALS SUPPORT
SUPPORTO PEDALIERA
from £479.10
from £479.10
# 021
MPN: 0042000931
SPACER
DISTANZIALE
from £22.31
from £22.31
