45.02.00 - Climate Control

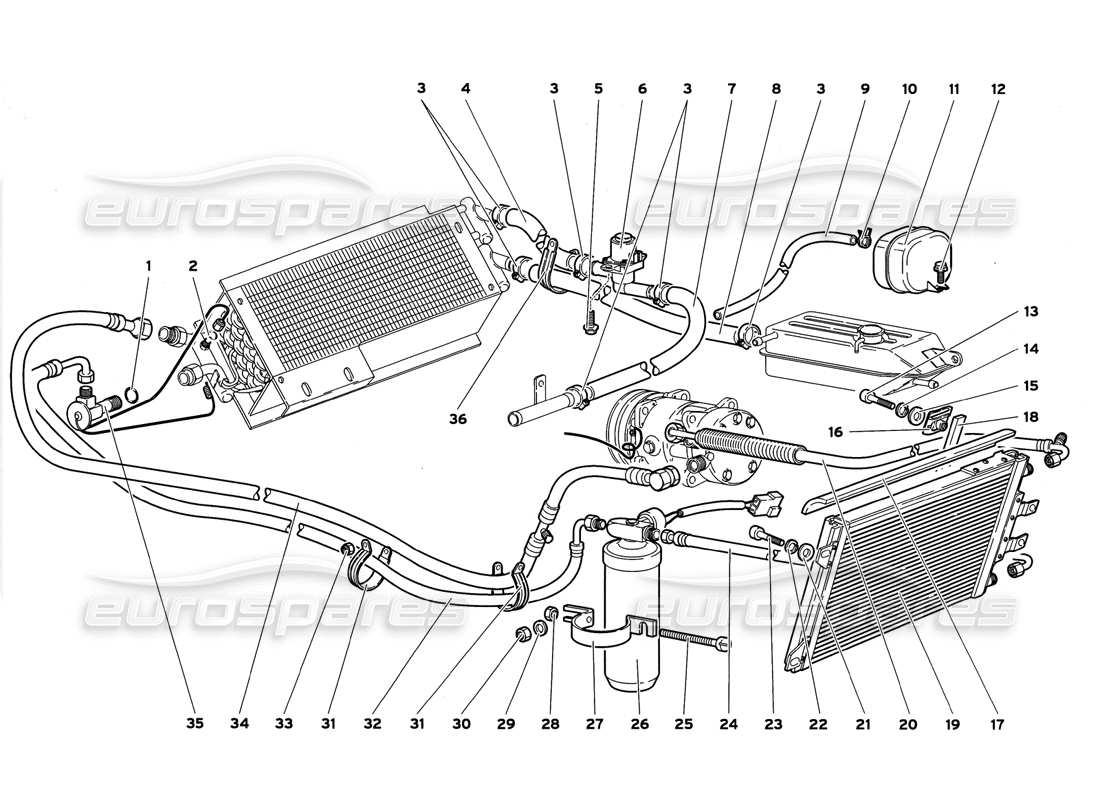

Lamborghini Diablo GT (1999) Climate Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 004535912
SEAL
ANELLO TENUTA
from £2.18
from £2.18
# 002
MPN: 004535915
SEAL
ANELLO TENUTA
from £1.36
from £1.36
# 003
MPN: 008832003
STRAP
FASCETTA
from £27.78
from £27.78
# 004
MPN: 004734346
PIPE
Tubo
from £117.16
from £117.16
# 005
MPN: 008700663
SCREW
VITE
from £0.53
from £0.53
# 006
MPN: 006031658
ELECTRO-VALVE
ELETTROVALVOLA
from £114.57
from £114.57
# 007
MPN: 004734347
PIPE
Tubo
from £114.57
from £114.57
# 008
MPN: 001734332
PIPE
Tubo
from £168.72
from £168.72
# 009
MPN: 0062005141
PIPE
Tubo
# 010
MPN: 008830128
STRAP
FASCETTA
Supersession
Supersession
# 011
MPN: 001323406
VACUUM TANK
EMPTY TANK
from £28.65
from £28.65
# 012
MPN: 008700663
SCREW
VITE
from £0.53
from £0.53
# 013
MPN: 008700614
SCREW
VITE
Supersession
Supersession
# 014
MPN: 008410611
WASHER
RONDELLA
from £0.53
from £0.53
# 015
MPN: WHT002961
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400607
# 016
MPN: N90327506
CLIP
from £0.62
from £0.62
# 017
MPN: 004531592
GASKET
Guarnizione
from £5.89
from £5.89
# 018
MPN: 004531591
GASKET
Guarnizione
from £1.36
from £1.36
# 019
MPN: 0045001234
A/C CONDENSER
CONDENSATORE CONDIZIONATORE
from £941.04
from £941.04
# 020
MPN: 0045001269
PIPE
Tubo
from £331.64
from £331.64
# 021
MPN: WHT002961
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400607
# 022
MPN: 008410611
WASHER
RONDELLA
from £0.53
from £0.53
# 023
MPN: 008700614
SCREW
VITE
Supersession
Supersession
# 024
MPN: 0045001270
PIPE
Tubo
from £126.03
from £126.03
# 025
MPN: 008700542
SCREW
VITE
from £0.53
from £0.53
# 026
MPN: 0045003629
FILTER
FILTRO DEIDRATORE
from £163.34
from £163.34
DRYER FILTER Genuine Lamborghini - New In stock
supplied without pressure sensor. use 65628200 for the sensor
supplied without pressure sensor. use 65628200 for the sensor
# 027
MPN: 004531395
STRAP
FASCETTA
from £5.60
from £5.60
# 028
MPN: N0211963
NUT
DADO
from £0.53
from £0.53
# 029
MPN: 008400801
WASHER
RONDELLA
Supersession
Supersession
# 030
MPN: 008200804
NUT
DADO
from £0.73
from £0.73
# 031
MPN: 008834401
STRAP
FASCETTA
from £8.17
from £8.17
# 032
MPN: 004535415
PIPE
Tubo
from £205.20
from £205.20
# 033
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 034
MPN: 004535416
PIPE
Tubo
from £175.96
from £175.96
# 035
MPN: 004535412
VALVE
VALVOLA Dl ESPANSIONE
from £228.83
from £228.83
# 036
MPN: 008834401
STRAP
FASCETTA
from £8.17
from £8.17
