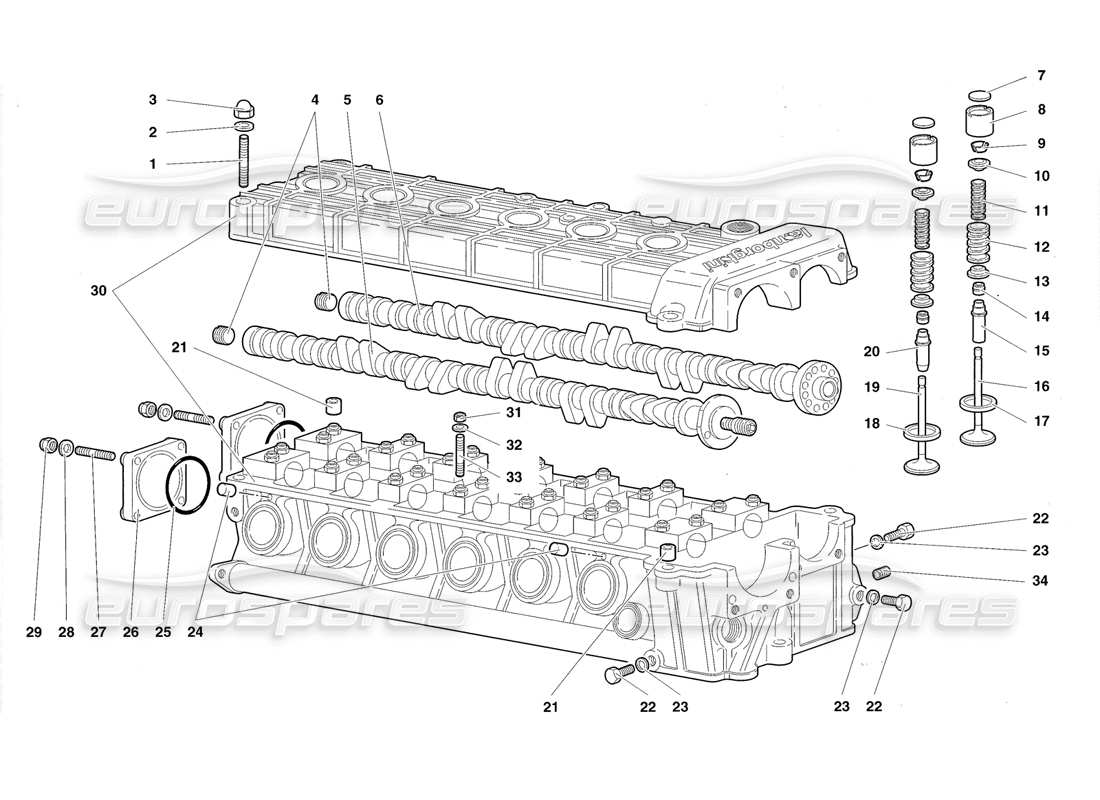

11.02.00 - left cylinder head
Lamborghini Diablo Roadster (1998) Left Cylinder Head Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008300649
STUD
PRIGIONIERO
from £5.94
from £5.94
# 002
MPN: 008410602
WASHER
RONDELLA
from £28.85
from £28.85
# 003
MPN: 008200605
NUT
DADO
from £1.89
from £1.89
# 004
MPN: 008931409
PLUG
TAPPO
from £7.76
from £7.76
# 005
MPN: 0012001311
camshaft
ASSE A CAMME ASP. TESTA SX
# 006
MPN: 001232711
camshaft
ASSE A CAMME SCARICO TESTA SX
from £1,106.86
from £1,106.86
# 007
MPN: 001220877
SHIM
SPESSORE Dl REGISTRO 3.25 MM
Supersession
Supersession
# 007
MPN: 001220878
SHIM
SPESSORE Dl REGISTRO 3.30 MM
# 007
MPN: 001220879
SHIM
SPESSORE Dl REGISTRO 3.35 MM
# 007
MPN: 001220880
SHIM
SPESSORE Dl REGISTRO 3.40 MM
# 007
MPN: 001220891
SHIM
SPESSORE Dl REGISTRO 3.95 MM
# 007
MPN: 001220892
VALVE SHIMS
4.00 MM
Supersession
Supersession
# 007
MPN: 001220895
SHIM
SPESSORE Dl REGISTRO 4.15 MM
# 007
MPN: 001220896
SHIM
SPESSORE Dl REGISTRO 4.20 MM
Supersession
Supersession
# 007
MPN: 001220897
SHIM
SPESSORE Dl REGISTRO 4.25 MM
# 007
MPN: 001220898
SHIM
SPESSORE Dl REGISTRO 4.30 MM
# 007
MPN: 001220899
SHIM
SPESSORE Dl REGISTRO 4.35 MM
# 007
MPN: 001220900
SHIM
SPESSORE Dl REGISTRO 4.40 MM
# 007
MPN: 001220901
SHIM
SPESSORE Dl REGISTRO 4.45 MM
# 007
MPN: 001220902
SHIM
SPESSORE Dl REGISTRO 4.50 MM
# 007
MPN: 001220903
SHIM
SPESSORE Dl REGISTRO 4.55 MM
# 007
MPN: 001220904
SHIM
SPESSORE Dl REGISTRO 4.60 MM
# 007
MPN: 001220905
SHIM
SPESSORE Dl REGISTRO 4.65 MM
# 007
MPN: 001220906
SHIM
SPESSORE Dl REGISTRO 4.70 MM
# 007
MPN: 07M109320D
SHIM
SPESSORE Dl REGISTRO 3.45 MM
from £6.83
from £6.83
# 007
MPN: 07M109320E
SHIM
SPESSORE Dl REGISTRO 3.50 MM
from £33.81
from £33.81
# 007
MPN: 07M109320F
SHIM
SPESSORE Dl REGISTRO 3.55 MM
from £6.83
from £6.83
# 007
MPN: 07M109320G
SHIM
SPESSORE Dl REGISTRO 3.60 MM
from £33.81
from £33.81
# 007
MPN: 07M109320H
SHIM 3.65 MM
from £35.11
from £35.11
# 007
MPN: 07M109320J
SHIM
SPESSORE Dl REGISTRO 3.70 MM
from £33.81
from £33.81
# 007
MPN: 07M109320K
SHIM
SPESSORE Dl REGISTRO 3.75 MM
from £33.81
from £33.81
# 007
MPN: 07M109320L
SHIM
SPESSORE Dl REGISTRO 3.80 MM
from £33.81
from £33.81
# 007
MPN: 07M109320M
SHIM
SPESSORE Dl REGISTRO 3.85 MM
from £6.83
from £6.83
# 007
MPN: 07M109320N
SHIM
SPESSORE Dl REGISTRO 3.90 MM
from £33.81
from £33.81
# 007
MPN: 07M109320R
SHIM 4.05 MM
from £6.83
from £6.83
# 007
MPN: 07M109320S
SHIM
SPESSORE Dl REGISTRO 4.10 MM
from £33.81
from £33.81
# 008
MPN: 07M109309
TAPPET
PUNTERIA
from £22.27
from £22.27
# 009
MPN: 001235955
TAPPET LOCK CONE
SEMICONO PUNTERIE
# 010
MPN: 07M109641
TAPPET PLATE
from £11.59
from £11.59
# 011
MPN: 07M109633A
SPRING
MOLLA INTERNA
from £3.77
from £3.77
# 012
MPN: 07M109623A
SPRING
MOLLA ESTERNA
from £11.59
from £11.59
# 013
MPN: 001220993
TAPPET PLATE
PIATTELLO PUNTERIA INFERIORE
Supersession
Supersession
# 014
MPN: 07M109675
SEAL
from £9.56
from £9.56
# 015
MPN: 001238320
VALVE GUIDE
GUIDA VALVOLA SCARICO
from £54.64
from £54.64
# 016
MPN: 07M109611
EXHAUST VALVE
VALVOLA SCAR ICO
from £63.21
from £63.21
# 017
MPN: 001234791
VALVE SEAT
SEDE VALVOLA SCARICO
# 018
MPN: 001234790
VALVE SEAT
SEDE VALVOLA ASPIRAZIONE
# 019
MPN: 07M109601
VALVE
VALVOLA ASPIRAZIONE
from £44.02
from £44.02
# 020
MPN: 001238321
VALVE GUIDE
GUIDA VALVOLA ASPIRAZIONE
from £44.44
from £44.44
# 021
MPN: 008800604
BUSHING
BOCCOLA
Supersession
Supersession
# 022
MPN: 008100631
SCREW
VITE
from £0.53
from £0.53
# 023
MPN: WHT003041
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400609 - and 1 more. Click to view details
# 024
MPN: 001122089
DOWEL
GRAND
from £10.57
from £10.57
# 025
MPN: 008606205
SEAL
ANELLO TENUTA
from £2.69
from £2.69
This part replaces part number 008606201
# 026
MPN: 001114502
COVER
COPERCHIO
from £118.98
from £118.98
# 027
MPN: 008300601
STUD
PRIGIONIERO
from £5.19
from £5.19
# 028
MPN: 008400620
WASHER
RONDELLA
from £0.95
from £0.95
# 029
MPN: 008200605
NUT
DADO
from £1.74
from £1.74
# 030
MPN: 460132001
CYLINDER HEAD
TESTA CILINDRISX
from £13,784.54
from £13,784.54
# 031
MPN: 008200604
NUT
DADO
Supersession
Supersession
# 032
MPN: 008410602
WASHER
RONDELLA
from £26.39
from £26.39
# 033
MPN: 008300666
STUD
PRIGIONIERO
from £26.62
from £26.62
# 034
MPN: 008840802
HELI-COIL
HELI-COIL
from £2.06
from £2.06
