12.02.00 - timing system

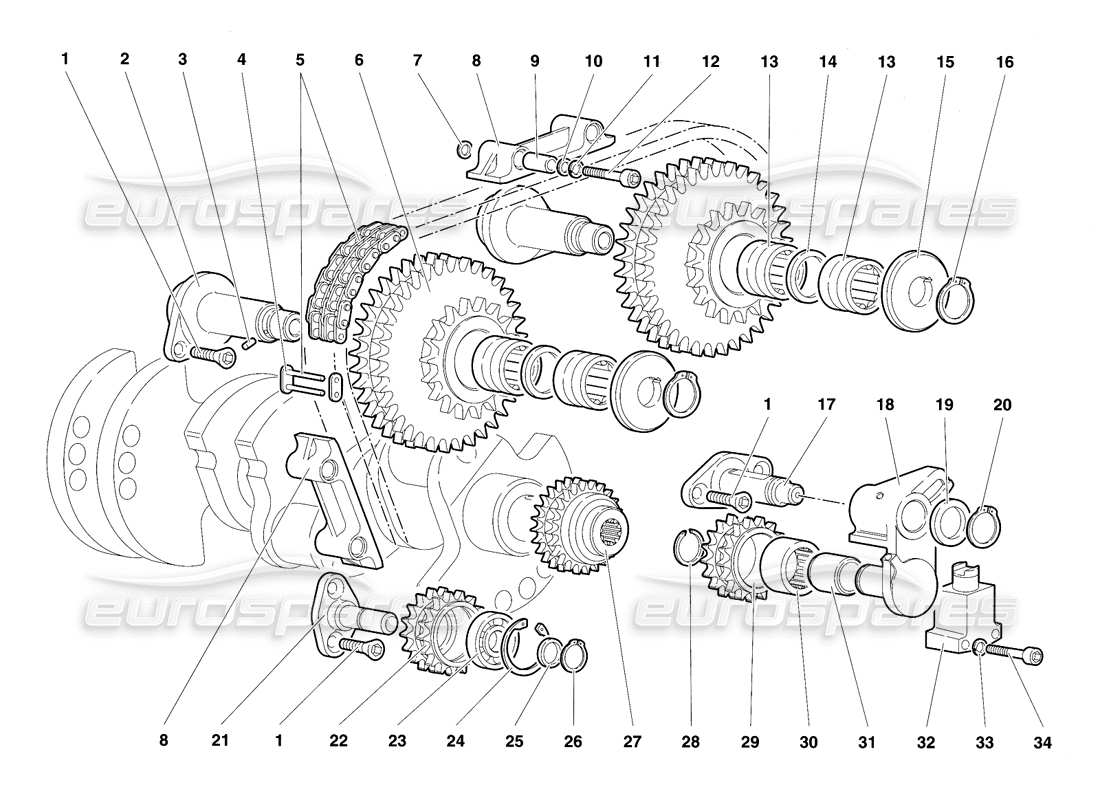

Lamborghini Diablo SE30 (1995) Timing System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008700638
SCREW
VITE
Supersession
Supersession
# 002
MPN: 001224754
PIN
PERNO
from £87.06
from £87.06
# 003
MPN: 008900203
PIN
SPINA
from £0.53
from £0.53
# 004
MPN: 001229933
CHAIN JOINT
CHAIN JOINT
# 005
MPN: 001229932
CHAIN
CATENA
# 006
MPN: 001226385
GEAR
INGRANAGGIO
from £1,069.55
from £1,069.55
# 007
MPN: 008400806
WASHER
RONDELLA
from £0.53
from £0.53
# 008
MPN: 001231108
BRAKE PAD
PATTING
from £26.12
from £26.12
# 009
MPN: 001231088
BUSHING
BOCCOLA
from £13.79
from £13.79
# 010
MPN: 001231040
WASHER
RONDELLA
# 011
MPN: 008410820
WASHER
RONDELLA
Supersession
Supersession
# 012
MPN: 008700845
SCREW
VITE
from £6.43
from £6.43
# 013
MPN: 008522508
BEARING
CUSCINETTO
# 014
MPN: 001226391
SPACER
DISTANZIALE
from £15.72
from £15.72
# 015
MPN: 001231173
WASHER
RONDELLA
from £21.27
from £21.27
# 016
MPN: WHT002646
RETAINER RING
ANELLO RITEGNO
from £0.73
from £0.73
# 017
MPN: 001232026
PIN
PERNO
from £204.80
from £204.80
# 018
MPN: 001231280
SUPPORT
SUPPORTO
from £627.73
from £627.73
# 019
MPN: 008401821
WASHER
RONDELLA
from £14.80
from £14.80
# 020
MPN: 008581601
RETAINER RING
ANELLO RITEGNO
from £0.94
from £0.94
# 021
MPN: 001224981
PIN
PERNO
from £120.22
from £120.22
# 022
MPN: 001224979
GEAR
INGRANAGGIO
from £91.20
from £91.20
# 023
MPN: 008501204
BEARING
CUSCINETTO
from £4.23
from £4.23
# 024
MPN: 008573203
RETAINER RING
ANELLO RITEGNO
from £3.78
from £3.78
# 025
MPN: 008401233
WASHER
RONDELLA
from £16.80
from £16.80
# 026
MPN: 008581101
RETAINER RING
ANELLO RITEGNO
from £3.65
from £3.65
# 027
MPN: 001224808
GEAR
INGRANAGGIO
from £350.18
from £350.18
# 028
MPN: 008581701
RETAINER RING
ANELLO RITEGNO
from £0.72
from £0.72
# 029
MPN: 001231696
GEAR
INGRANAGGIO
from £1,491.52
from £1,491.52
# 030
MPN: 008522209
BEARING
CUSCINETTO
from £62.43
from £62.43
# 031
MPN: 008801703
BUSHING
BOCCOLA
from £34.66
from £34.66
# 032
MPN: 001222770
CHAIN STRETCHER
TENDICATENA
from £369.20
from £369.20
# 033
MPN: 008410806
WASHER
RONDELLA
Supersession
Supersession
# 034
MPN: 008700829
SCREW
VITE
from £3.65
from £3.65
