31.01.00 - Front Brakes

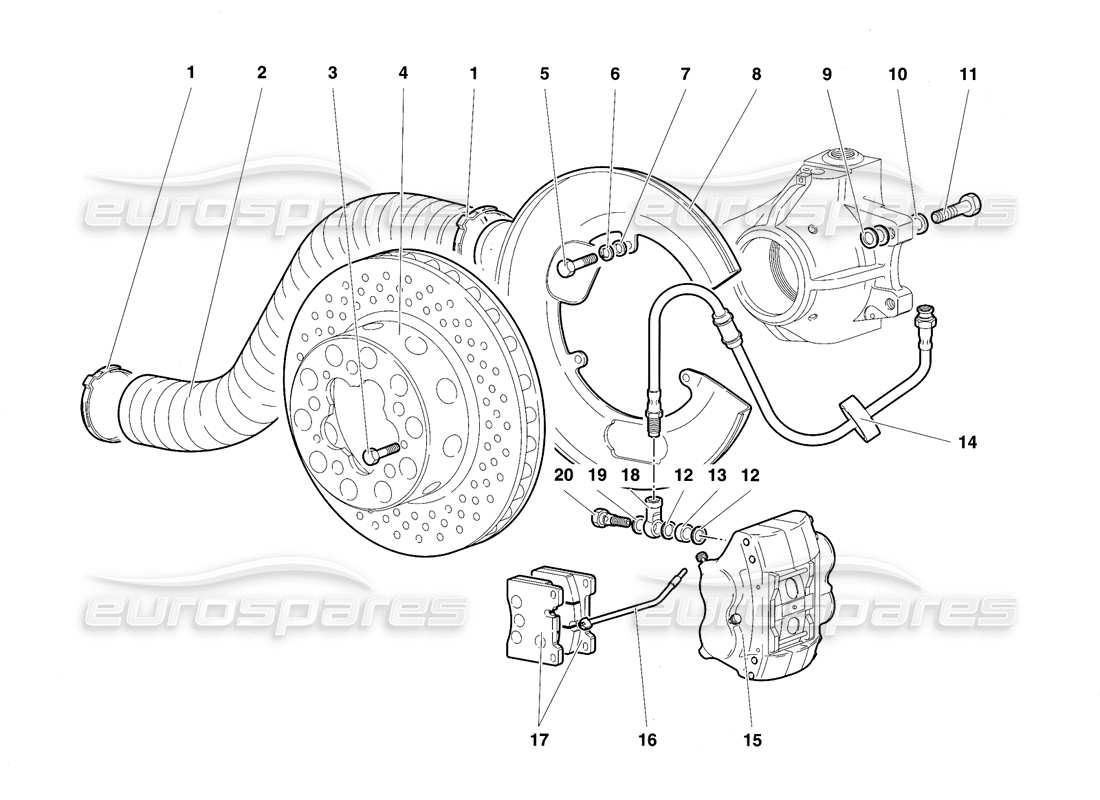

Lamborghini Diablo SE30 (1995) Front Brakes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008836302
STRAP
FASCETTA
from £7.10
from £7.10
# 002
MPN: 009453133

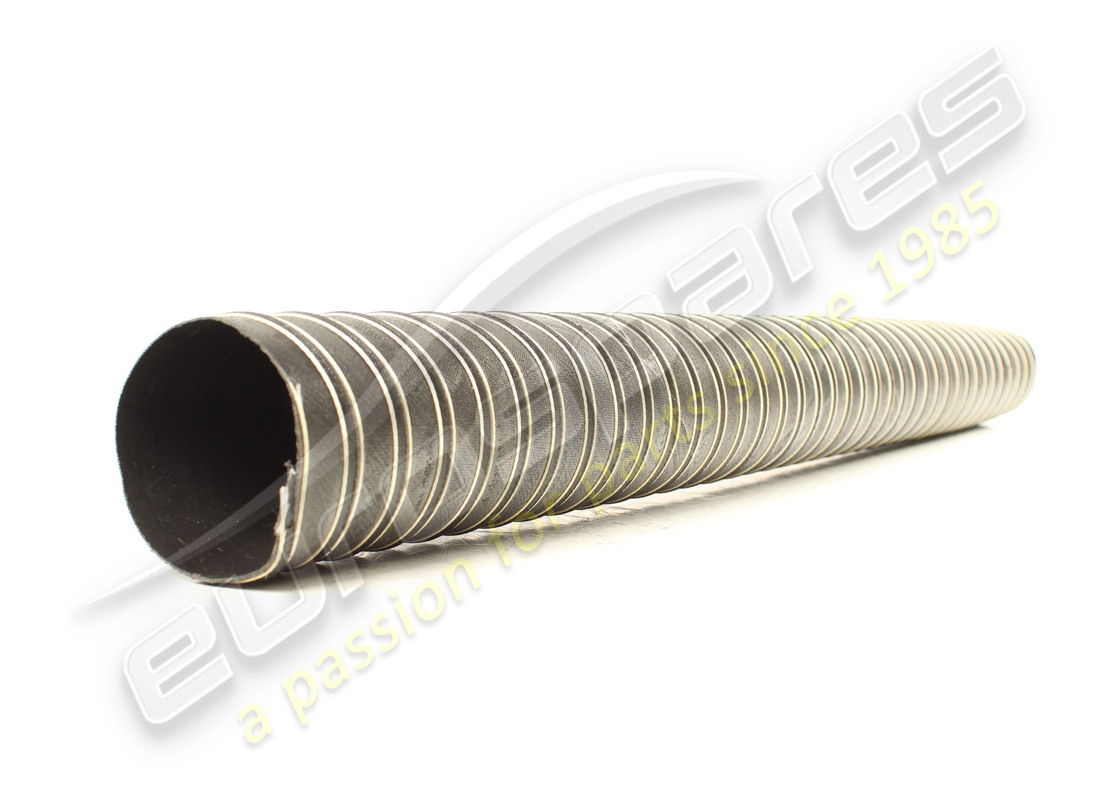

FLEX. HOSE
TUBO FLESSIBILE
from £153.80
from £153.80
# 003
MPN: N01029315
SCREW
VITE
from £0.80
from £0.80
# 004
MPN: 003134861

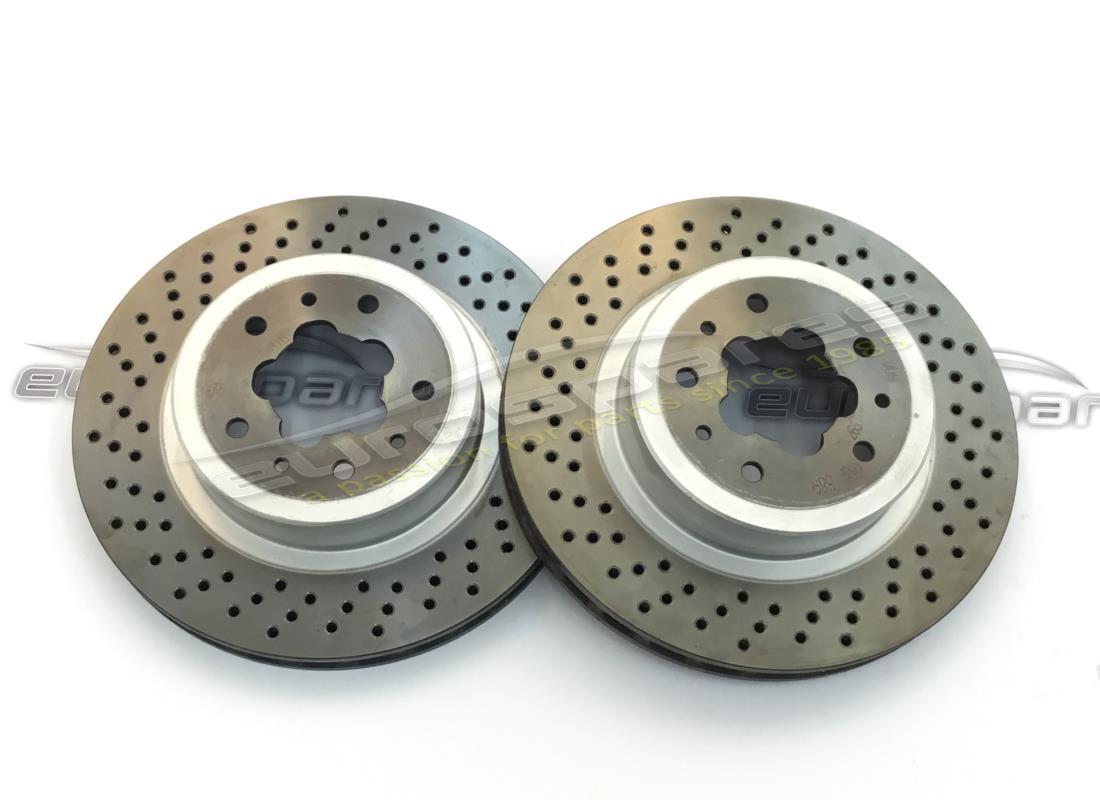

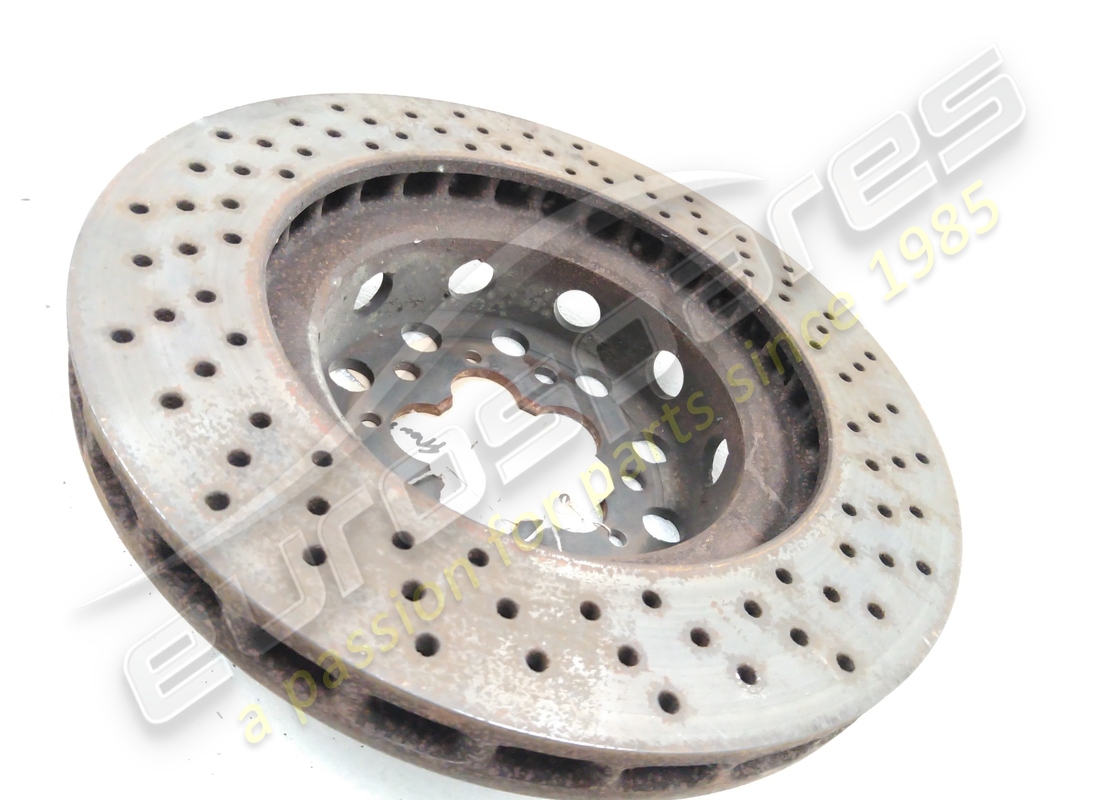

FRONT BRAKE DISC
DISCO FRENO ANTERIORE
from £535.81
from £535.81
# 005
MPN: N01020717
SCREW
VITE
from £0.47
from £0.47
This part replaces part number 008100504
# 006
MPN: 008410508
WASHER
RONDELLA
from £0.52
from £0.52
# 007
MPN: 008400509
WASHER
RONDELLA
from £0.52
from £0.52
# 008
MPN: 003135097
RIGHT MUDGUARDS
PARASPRUZZI DX
from £129.83
from £129.83
# 008
MPN: 003135098
LEFT MUDGUARDS
PARASPRUZZI SX
from £236.05
from £236.05
# 009
MPN: 003230719
WASHER
RONDELLA SP = 0,05 MM
from £0.54
from £0.54
# 009
MPN: 003230720
WASHER
RONDELLA SP = 0,1 MM
from £4.19
from £4.19
# 009
MPN: 003230722
WASHER
RONDELLA SP = 0,3 MM
from £0.73
from £0.73
# 009
MPN: 003230723
WASHER
RONDELLA SP = 0,4 MM
from £0.54
from £0.54
# 009
MPN: 003230724
WASHER
RONDELLA SP = 0,5 MM
from £0.54
from £0.54
# 009
MPN: 003230725
WASHER
RONDELLA SP = 0,6 MM
from £0.54
from £0.54
# 009
MPN: 003230726
WASHER
RONDELLA SP = 0,8 MM
from £0.54
from £0.54
# 009
MPN: 003230727
WASHER
RONDELLA SP = 1 MM
from £2.24
from £2.24
# 010
MPN: 003230721
WASHER
RONDELLA SP = 0,2 MM
from £0.54
from £0.54
# 010
MPN: 008401306
WASHER
RONDELLA
from £1.49
from £1.49
# 011
MPN: WHT003362
WASHER
RONDELLA
from £0.88
from £0.88
# 012
MPN: 003113906
WASHER
RONDELLA
from £11.68
from £11.68
# 013
MPN: 003129777
SPACER
DISTANZIALE
from £33.59
from £33.59
# 014
MPN: 003129881
FRONT BRAKES FLEXI PIPE
from £66.32
from £66.32
# 015
MPN: 003135598
RIGHT BRAKE CALIPER
PINZA FRENI DX
from £736.46
from £736.46
# 015
MPN: 003135599
LEFT BRAKE CALIPER
PINZA FRENI SX
from £1,919.81
from £1,919.81
# 016
MPN: 003135644
ELECT CABLE
CAVO ELETTRICO
from £222.21
from £222.21
# 017
MPN: 003135292
FRONT BRAKE PADS
from £89.25
from £89.25
# 018
MPN: 003113904
CONNECTION
RACCORDO
from £92.09
from £92.09
# 019
MPN: 003113905
WASHER
RONDELLA
from £1.55
from £1.55
# 020
MPN: 003129778
SCREW
VITE
from £37.32
from £37.32
