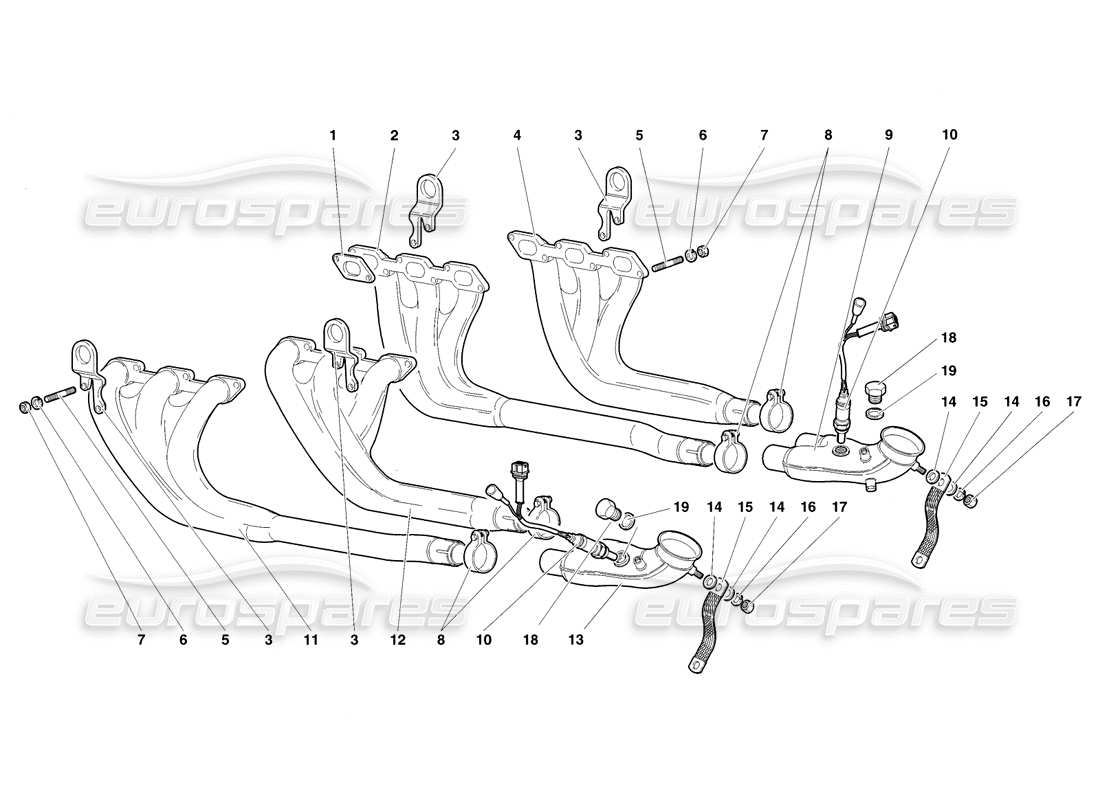

44.01.00 - Exhaust System
Lamborghini Diablo SV (1998) Exhaust System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 07M253039
GASKET
also 147705
from £24.13
from £24.13
# 002
MPN: 004427530
FRONT EXHAUST MAN.
COLLETTORE ANT. DX
from £348.84
from £348.84
# 003
MPN: 004432438
HOOK
GANCIO
from £22.89
from £22.89
# 004
MPN: 004427529
REAR EXHAUST MAN.
REAR MANIFOLD DX
from £348.84
from £348.84
# 005
MPN: WHT003028
STUD
PRIGIONIERO
from £12.54
from £12.54
# 006
MPN: 008410817
WASHER
RONDELLA
Supersession
Supersession
# 007
MPN: 008240808
NUT
DADO
Supersession
Supersession
# 008
MPN: 008835002
STRAP
FASCETTA
from £28.62
from £28.62
# 009
MPN: 0044001238
EXHAUST MANIFOLD
COLLETTORE A TRE VIE DX
from £401.29
from £401.29
# 010
MPN: 0R1470226
OXIGEN SENSOR
from £158.76
from £158.76
# 011
MPN: 004427528
FRO. L. EXHAUST MAN.
COLLETTORE ANT. SX
from £348.84
from £348.84
# 012
MPN: 004427527
REAR L EXHAUST MAN.
COLLETTORE POST. SX
from £634.26
from £634.26
# 013
MPN: 0044001236
EXHAUST MANIFOLD
COLLETTORE A TRE VIE SX
from £401.29
from £401.29
# 014
MPN: 008400806
WASHER
RONDELLA
Supersession
Supersession
# 015
MPN: 001604328
GROUND CABLE
CAVO MASSA
Supersession
Supersession
# 016
MPN: 008410806
WASHER
RONDELLA
Supersession
Supersession
# 017
MPN: N01100845
NUT
DADO
from £1.28
from £1.28
This part replaces part number 008200801 - and 2 more. Click to view details
# 018
MPN: 004431147
PLUG
(Valid for ARABIA - November 1998)TAPPO
from £30.18
from £30.18
# 018
MPN: 004431147
PLUG
(Valid for SOUTH AFRICA - November 1998) TAPPO
from £30.18
from £30.18
# 018
MPN: 004431147
PLUG
(Valid for DUBAI - November 1998) TAPPO
from £30.18
from £30.18
# 019
MPN: 008401819
WASHER
(Valid for ARABIA - November 1998) RONDELLA
Supersession
Supersession
# 019
MPN: 008401819
WASHER
(Valid for SOUTH AFRICA - November 1998) RONDELLA
Supersession
Supersession
# 019
MPN: 008401819
WASHER
(Valid for DUBAI - November 1998) RONDELLA
Supersession
Supersession
