70.01.00 - Windows

Lamborghini Diablo SV (1998) Windows Parts Diagram

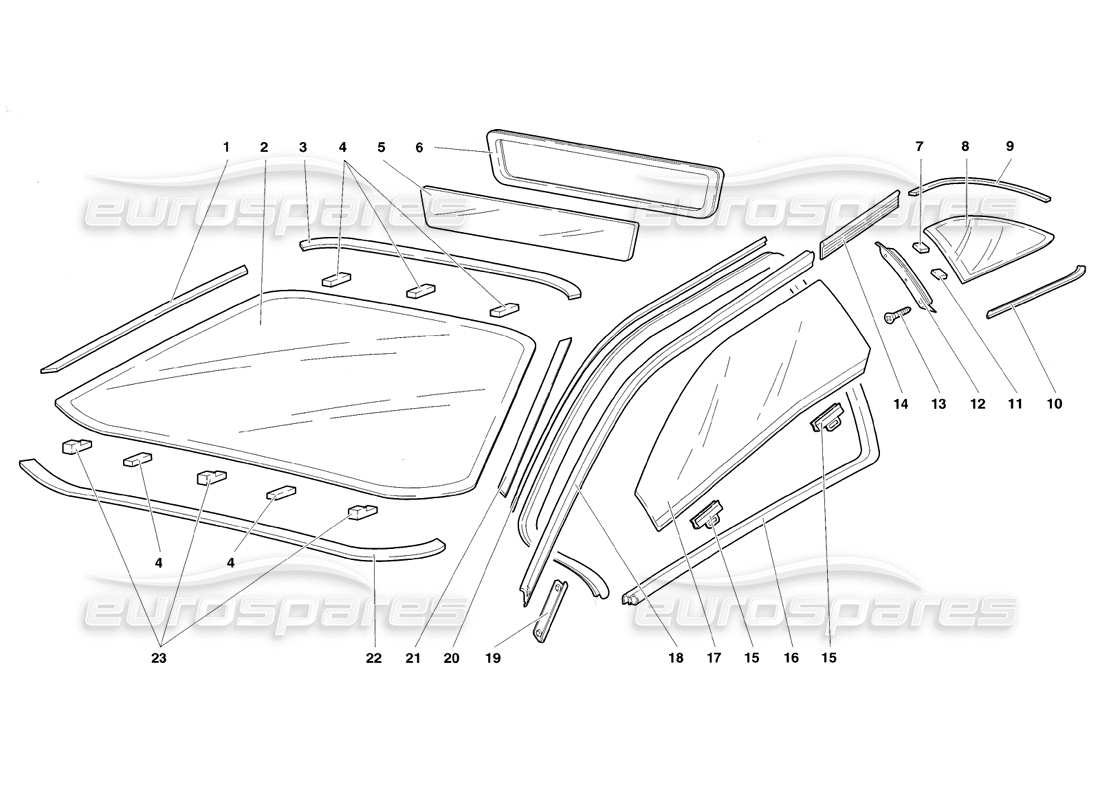

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 009415204
          RIGHT FRAME
          CORNICE DX
          from £232.59
          from £232.59
          RH SIDE WINDSCREEN FRAME Genuine Lamborghini - New (to order)
          # 002
          MPN: 009415107
          FRONT GLASS
          CRISTALLO ANTERIORE
          from £2,750.00
          from £2,750.00
          This part replaces part number 009415100
          WINDSCREEN SIZE : 1550 X 967 MM Genuine Lamborghini - New (to order)
          WINDSCREEN Eurospares Approved Part - New In stock
          # 003
          MPN: 009415200
          top frame
          CORNICE SUPERIORE
          from £297.44
          from £297.44
          RH UPPER WINDSCREEN FRAME Genuine Lamborghini - New (to order)
          # 004
          MPN: 410845235
          SPACER
          from £19.89
          from £19.89
          WINDSCREEN SHIM Genuine Lamborghini - New In stock
          # 005
          MPN: 009418100
          REAR GLASS
          CRISTALLO POSTERIORE
          from £534.78
          from £534.78
          REAR WINDOW Genuine Lamborghini - New (to order)
          # 006
          MPN: 009418103
          GASKET
          Guarnizione
          from £380.57
          from £380.57
          REAR WINDOW SEAL Genuine Lamborghini - New (to order)
          # 007
          MPN: 400845633
          SPACER
          DISTANZIALE
          from £10.21
          from £10.21
          SPACER Genuine Lamborghini - New In stock
          # 008
          MPN: 0070004149

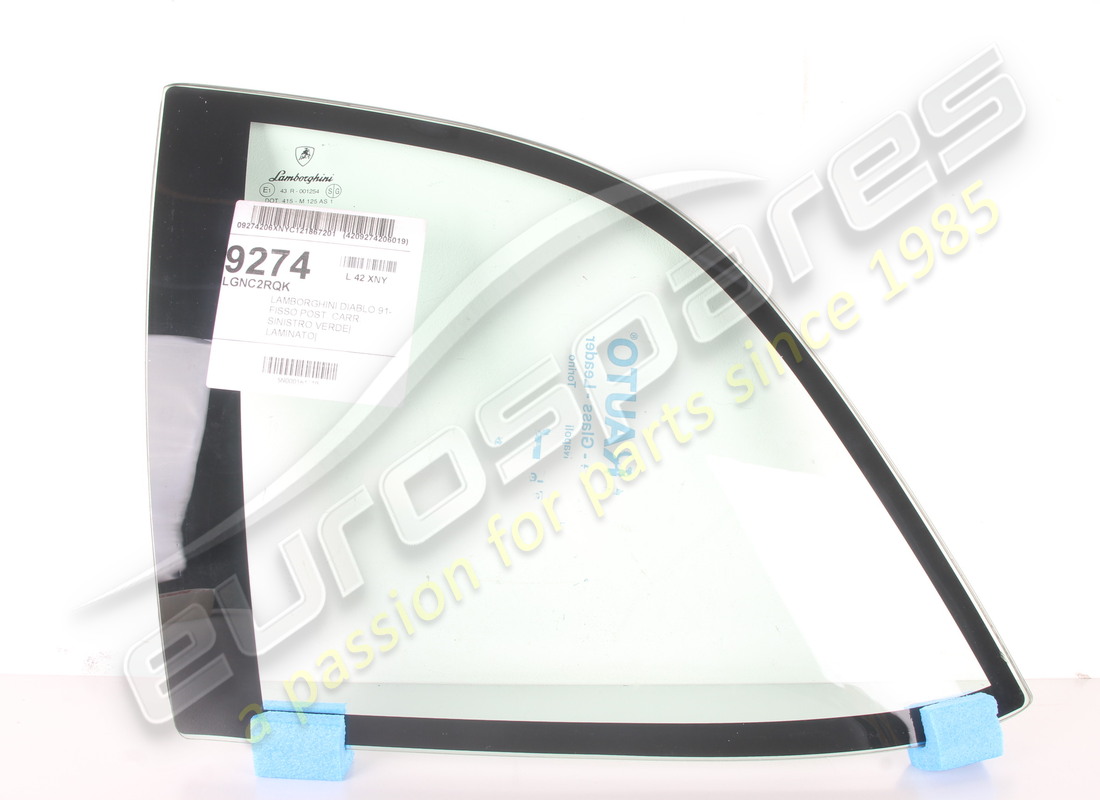

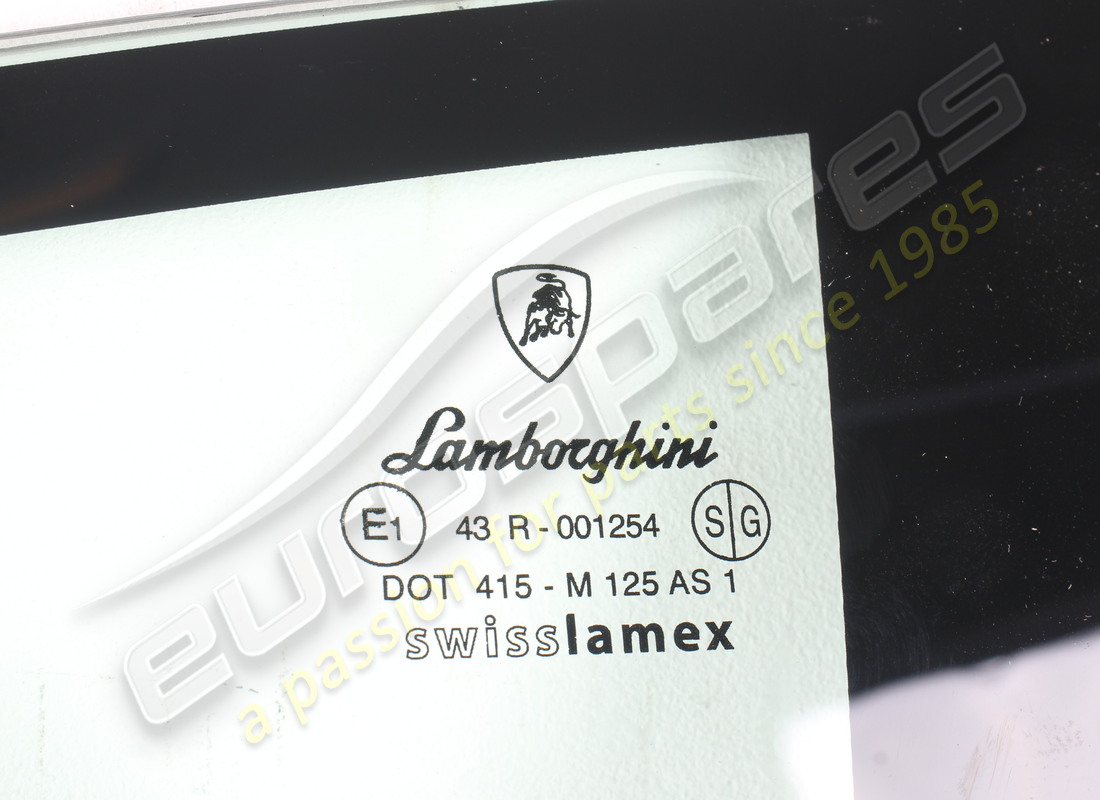

          RIGHT HAND GLASS
          CRISTALLO DX
          from £3,347.28
          from £3,347.28
          RH SIDE GLASS Genuine Lamborghini - New (to order)
          RH SIDE GLASS Original Equipment - New In stock
          # 008
          MPN: 0070004150
          LEFT HAND GLASS
          CRISTALLO SX
          from £3,347.28
          from £3,347.28
          LH SIDE GLASS Genuine Lamborghini - New (to order)
          LH SIDE GLASS Original Equipment - New (to order)
          # 009
          MPN: 009417106
          RIGHT FRAME
          CORNICE DX
          from £403.78
          from £403.78
          RH UPPER WINDOW MOUNTING FRAME Genuine Lamborghini - New (to order)
          # 009
          MPN: 009417107
          LEFT FRAME
          CORNICE SX
          from £206.65
          from £206.65
          LH UPPER WINDOW MOUNTING FRAME Genuine Lamborghini - New (to order)
          # 010
          MPN: 009417102
          RIGHT FRAME
          CORNICE DX
          from £174.53
          from £174.53
          REAR RH SIDE FRAME Genuine Lamborghini - New (to order)
          # 010
          MPN: 009417103
          LEFT FRAME
          CORNICE SX
          from £131.42
          from £131.42
          REAR LH SIDE FRAME Genuine Lamborghini - New (to order)
          # 011
          MPN: 410845626
          SPACER
          from £7.18
          from £7.18
          FIXED SIDE GLASS SPACER Genuine Lamborghini - New In stock
          # 012
          MPN: 009417104
          RIGHT FRAME
          CORNICE DX
          from £349.32
          from £349.32
          RIGHT SIDE GLASS EXTERNAL TRIM Genuine Lamborghini - New (to order)
          # 012
          MPN: 009417105
          LEFT FRAME
          CORNICE SX
          from £261.13
          from £261.13
          LEFT SIDE GLASS EXTERNAL TRIM Genuine Lamborghini - New (to order)
          # 013
          MPN: WHT003065
          SCREW
          VITE
          from £0.85
          from £0.85
          PARKER SCREW 2.9 X 16 Genuine Lamborghini - New In stock
          # 014
          MPN: 009421733
          GASKET
          Guarnizione
          from £34.70
          from £34.70
          REAR FENDER SEAL Genuine Lamborghini - New (to order)
          # 015
          MPN: 009421608
          BRACKET
          STAFFA
          from £76.70
          from £76.70
          WINDOW SUPPORT ROD Genuine Lamborghini - New (to order)
          # 016
          MPN: 0072010205
          RHS GASKET
          from £449.38
          from £449.38
          GASKET Genuine Lamborghini - New (to order)
          # 016
          MPN: 0072010206
          LHS GASKET
          Guarnizione
          from £830.78
          from £830.78
          GASKET Genuine Lamborghini - New (to order)
          # 017
          MPN: 0072004147
          RIGHT DOOR GLASS
          from £3,259.70
          from £3,259.70
          RH DOOR WINDOW Genuine Lamborghini - New (to order)
          # 017
          MPN: 0072004148
          LEFT DOOR GLASS
          from £2,455.58
          from £2,455.58
          LH DOOR WINDOW Genuine Lamborghini - New (to order)
          # 018
          MPN: 0072001177
          GASKET
          Guarnizione
          from £305.22
          from £305.22
          This part replaces part number 009421703
          RUBBER PROFILE Genuine Lamborghini - New In stock
          # 019
          MPN: 0072001470
          PLATE
          PIASTRINO
          from £77.78
          from £77.78
          WEATHER STRIP FRONT STOP Genuine Lamborghini - New (to order)
          # 020
          MPN: 009421708
          RIGHT SUPPORT
          SUPPORTO DX
          from £202.32
          from £202.32
          RH SEAL Genuine Lamborghini - New (to order)
          # 020
          MPN: 009421709
          LEFT SUPPORT
          SUPPORTO SX
          from £210.98
          from £210.98
          LH SEAL Genuine Lamborghini - New (to order)
          # 021
          MPN: 009415205
          LEFT FRAME
          CORNICE SX
          from £294.85
          from £294.85
          LH SIDE WINDSCREEN FRAME Genuine Lamborghini - New (to order)
          # 022
          MPN: 009415201
          BOTTOM FRAME
          CORNICE INFERIORE
          from £265.44
          from £265.44
          WINDSCREEN LOWER FRAME Genuine Lamborghini - New (to order)
          # 023
          MPN: 410845235
          SPACER
          from £19.89
          from £19.89
          WINDSCREEN SHIM Genuine Lamborghini - New In stock
