92.01.00 - Engine Hood

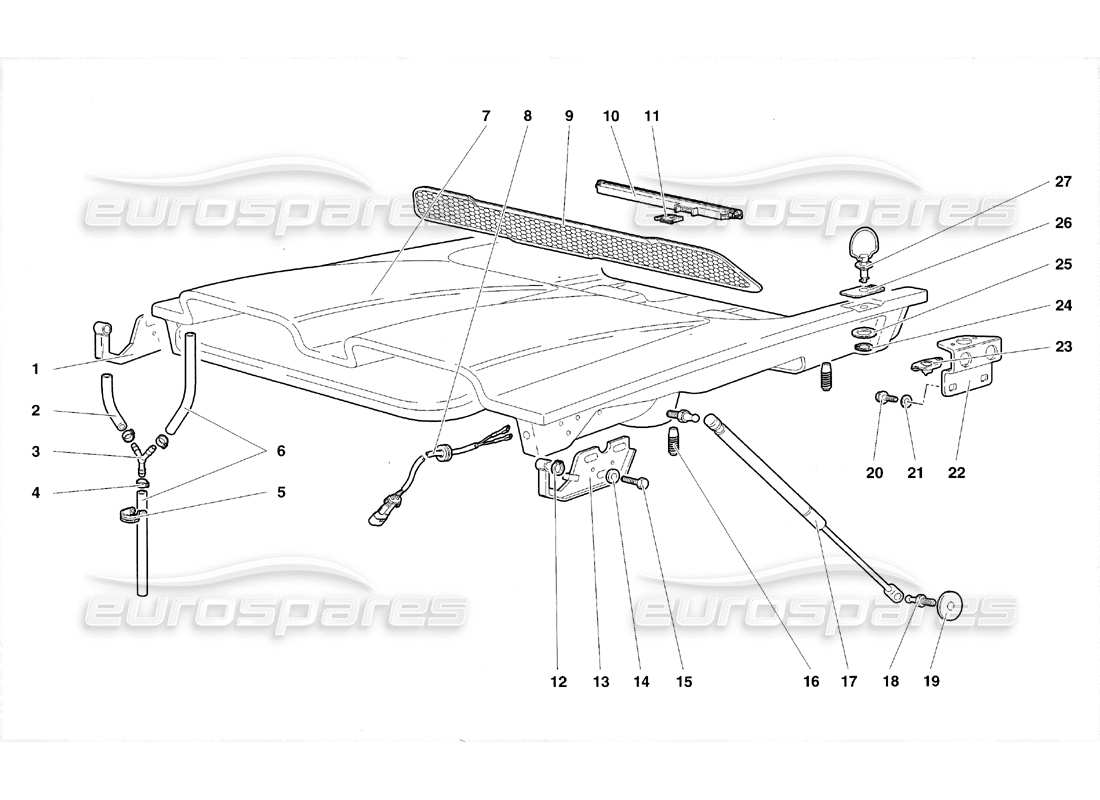

Lamborghini Diablo SV (1998) Engine Hood Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 009460322
RIGHT HINGE
CERNIERADX
from £43.94
from £43.94
# 002
MPN: 009490116
PIPE
Tubo
from £8.87
from £8.87
# 003
MPN: 006108392
CONNECTION
RACCORDO3VIE
from £2.27
from £2.27
# 004
MPN: 008831528
STRAP
FASCETTA
Supersession
Supersession
# 005
MPN: 008831515
STRAP
FASCETTA
from £5.63
from £5.63
# 006
MPN: 009490115
PIPE
Tubo
from £8.42
from £8.42
# 007
MPN: 009460015
Engine Bonnet
COFANO MOTORE
from £3,934.13
from £3,934.13
# 008
MPN: 006135191
ELECT CABLE
CABLAGGIO
from £17.09
from £17.09
# 009
MPN: 009430172
NET
RETE
from £414.56
from £414.56
# 010
MPN: 410945249A
CENTRAL BRAKE LIGHT
use part number: 0R1470010
from £112.40
from £112.40
# 010
MPN: 410945249A
CENTRAL BRAKE LIGHT
from £112.40
from £112.40
# 011
MPN: 006132280
CONNECTION
CONNESSIONE
from £6.43
from £6.43
# 012
MPN: 008580801
RETAINER RING
ANELLO RITEGNO
from £0.53
from £0.53
# 013
MPN: 009460323
LEFT HINGE
CERNIERASX
from £72.81
from £72.81
# 014
MPN: 008400626
WASHER
RONDELLA
from £24.21
from £24.21
# 015
MPN: 008100656
SCREW
VITE
from £2.74
from £2.74
# 016
MPN: 009460214
RUBBER BUMPER
PARACOLPI GOMMA
from £4.88
from £4.88
# 017
MPN: 0092004388
ENGINE COVER STRUT
MARTINETTO
from £136.81
from £136.81
# 018
MPN: 009459305
BALL PIN
PERNO GIUNTO SFERICO
from £1.60
from £1.60
# 019
MPN: WHT001942
WASHER
RONDELLA
from £2.18
from £2.18
# 020
MPN: 008100601
SCREW
VITE
Supersession
Supersession
# 021
MPN: 008410602
WASHER
RONDELLA
from £27.52
from £27.52
# 022
MPN: 009460219
SUPPORT
SUPPORTO
from £64.86
from £64.86
# 023
MPN: 009411615
CLIP
FERMAGLIO
from £21.40
from £21.40
# 024
MPN: 008581101
RETAINER RING
ANELLO RITEGNO
from £3.65
from £3.65
# 025
MPN: 003230722
WASHER
RONDELLA
from £0.72
from £0.72
# 026
MPN: 009460017
ADHESIV
ADESIVO CLOSED
from £13.61
from £13.61
# 027
MPN: 009460018
lock
CHIUSURARAPIDA
from £28.07
from £28.07
