lamborghini diablo sv (1999) fuel system parts diagram

62.05.00 - fuel system

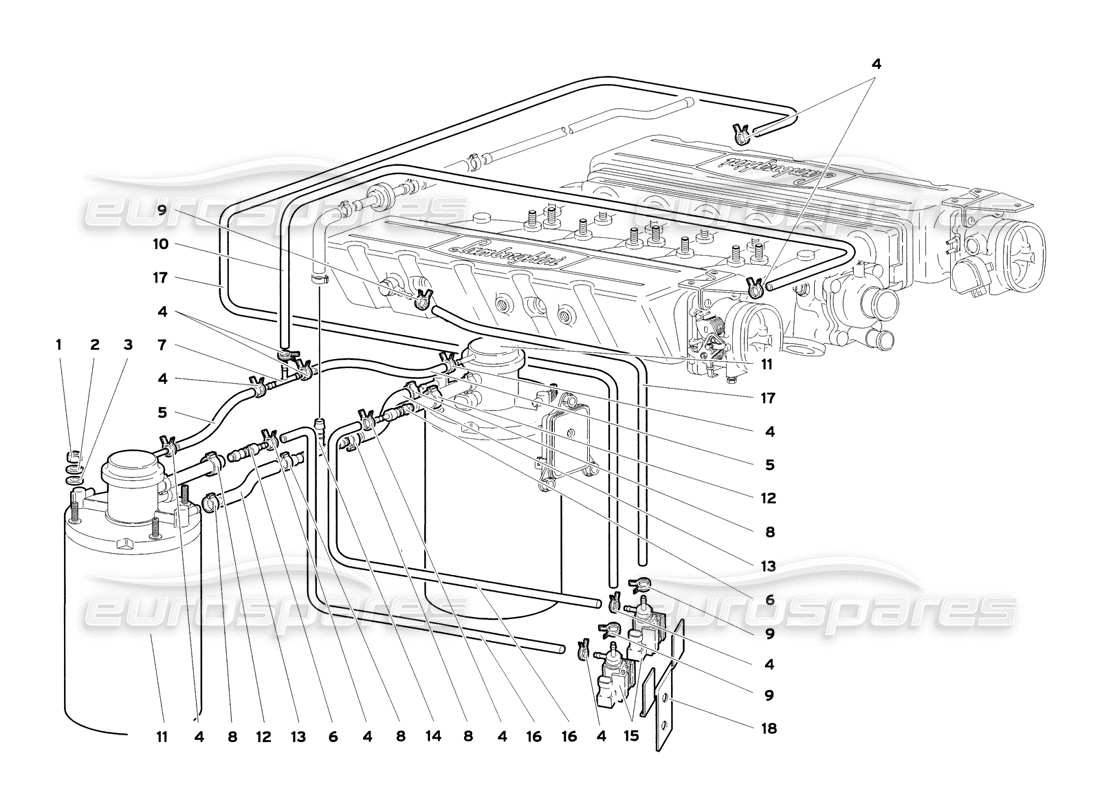

Lamborghini Diablo SV (1999) Fuel System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008200610
NUT
DADO
from £1.58
from £1.58
# 002
MPN: 008410602
WASHER
RONDELLA
from £27.52
from £27.52
# 003
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 004
MPN: 008830128
STRAP
FASCETTA
Supersession
Supersession
# 005
MPN: 006230460
PIPE
Tubo
from £4.52
from £4.52
# 006
MPN: 0062001419
CONNECTION
RACCORDO
from £7.60
from £7.60
# 007
MPN: 007014169
T UNION
RACCORDO A TRE VIE
from £15.47
from £15.47
# 008
MPN: 008831528
STRAP
FASCETTA
Supersession
Supersession
# 009
MPN: 008830131
STRAP
FASCETTA
Supersession
Supersession
# 010
MPN: 006237208
PIPE
Tubo
from £25.04
from £25.04
# 011
MPN: 006229306
VAPOR TRAP
FILTRO VAPORI
from £1,145.65
from £1,145.65
# 012
MPN: 008831117
STRAP
FASCETTA
Supersession
Supersession
# 013
MPN: 006230433
PIPE
Tubo
from £37.55
from £37.55
# 014
MPN: 006220752
T UNION
RACCORDO TRE VIE
from £3.70
from £3.70
# 015
MPN: 0062001421
ELECTRO-VALVE
ELETTROVALVOLA
from £124.09
from £124.09
# 016
MPN: 0062001420
PIPE
Tubo
from £8.42
from £8.42
# 017
MPN: 0062001422
PIPE
Tubo
# 018
MPN: 0062001379
BRACKET
STAFFA
from £44.20
from £44.20
