75.01.00 - Seats and Safety Belts

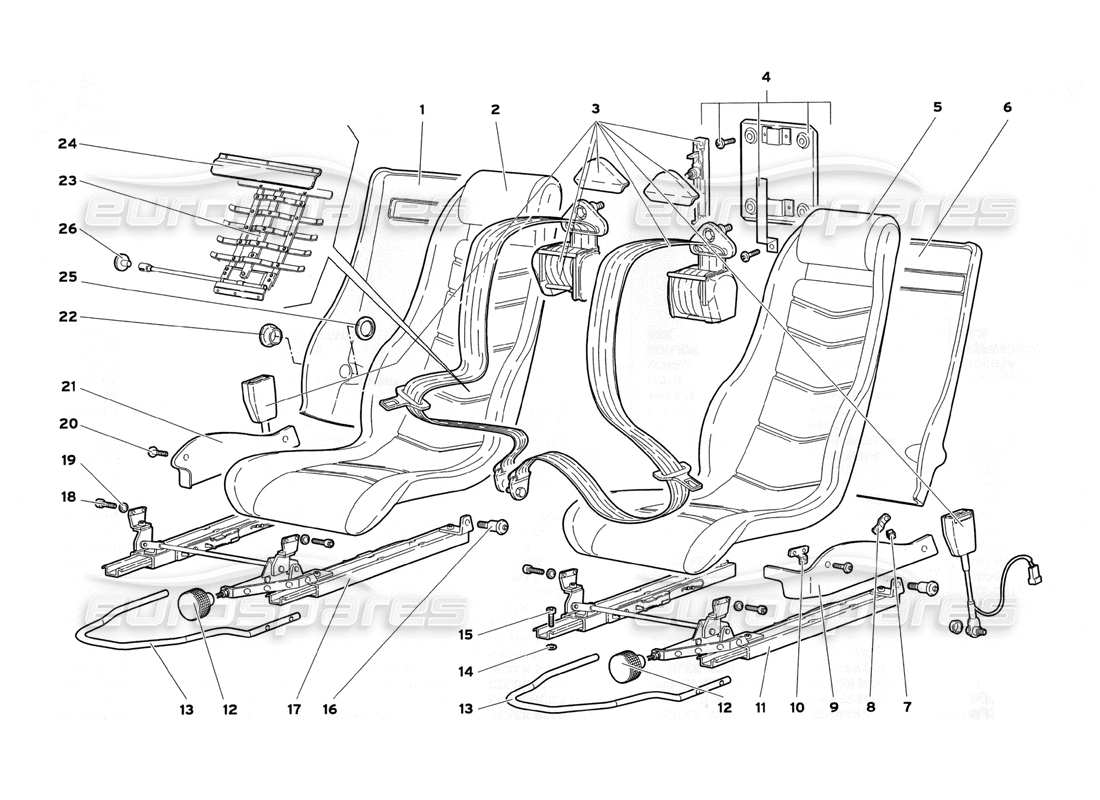

Lamborghini Diablo SV (1999) Seats and Safety Belts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 009435112
R. REAR PANEL SEAT
PANNELLO RETROSCHIENALE DX
from £144.27
from £144.27
# 002
MPN: 009935004
RIGHT SEAT
SEDILE DX
# 003
MPN: 0097001596
SEATS BELTS
CINTUREDI SICUREZZA
from £270.64
from £270.64
# 004
MPN: 009490324
SUPPORT
SUPPORTO
from £39.00
from £39.00
# 005
MPN: 009935005
LEFT SEAT
SEDILE SX
# 006
MPN: 009435113
L. REAR PANEL SEAT
PANNELLO RETROSCHIENALE SX
from £144.27
from £144.27
# 007
MPN: 008220503
CLIP
MOLLETTA
from £6.59
from £6.59
# 008
MPN: 009435261
BRACKET
STAFFA
from £4.23
from £4.23
# 009
MPN: 009435332
RIGHT SIDE PANEL
PANNELLOLATERALESX
from £47.92
from £47.92
# 010
MPN: 009435262
RIGHT BRACKET
STAFFA DX
from £4.23
from £4.23
# 010
MPN: 009435263
LEFT BRACKET
STAFFA SX
from £4.23
from £4.23
# 011
MPN: 009435019
LEFT SEAT GUIDE
GUIDA SEDILE SX
from £353.41
from £353.41
# 012
MPN: 009435264
KNOB
POMELLO
from £4.11
from £4.11
# 013
MPN: 009435207
SEAT LEVER
SEAT LEVER
# 014
MPN: 009435257
SPACER
DISTANZIALE
from £9.13
from £9.13
# 015
MPN: 008700847
SCREW
VITE
from £1.19
from £1.19
# 016
MPN: 009435232
PIN
PERNO
from £19.70
from £19.70
# 017
MPN: 009435018
RIGHT SEAT GUIDE
RIGHT SEAT GUIDE
from £642.56
from £642.56
# 018
MPN: 008700670
SCREW
VITE
Supersession
Supersession
# 019
MPN: 008410601
WASHER
RONDELLA
from £0.51
from £0.51
# 020
MPN: 008700544
SCREW
VITE
from £1.03
from £1.03
# 021
MPN: 009435331
RIGHT SIDE PANEL
PANNELLO LATERALE DX
from £47.92
from £47.92
# 022
MPN: 009435119
BUSHING
BOCCOLA
from £46.01
from £46.01
# 023
MPN: 009435031
BACK-REST ADJU.-R.
RIGHT LUMBAR ADJUSTER
from £237.96
from £237.96
# 023
MPN: 009435032
BACK-REST ADJU.-L.
REGOLATORE LOMBARE SX
from £236.30
from £236.30
# 024
MPN: 009435118
ANGLE PIECE
ANGOLARE
from £20.39
from £20.39
# 025
MPN: 009435120
RING
ANELLO
from £7.05
from £7.05
# 026
MPN: 0075005132
KNOB
POMELLO
from £41.88
from £41.88
