lamborghini lp550-2 coupe (2011) engine oil sump parts diagram

103.10.00 - engine oil sump

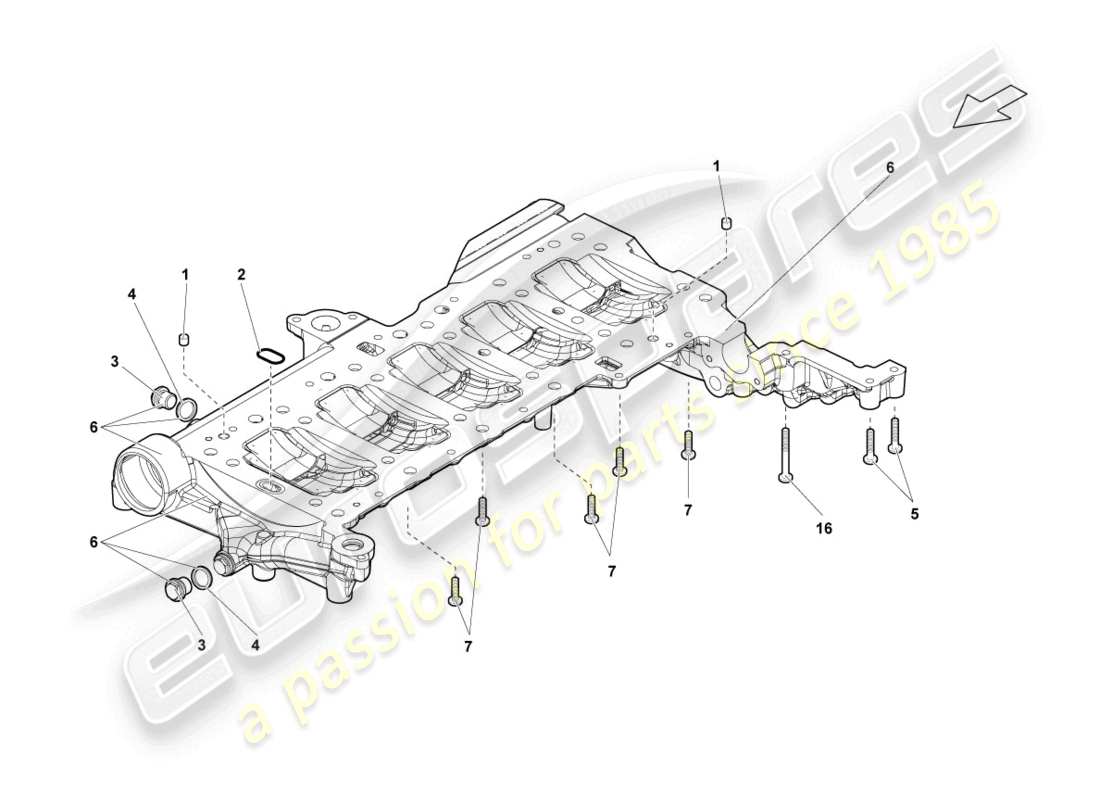

Lamborghini LP550-2 Coupe (2011) ENGINE OIL SUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: N91020803
      DOWEL SLEEVE
      8M7X10
      from £1.60
      from £1.60
      # 002
      MPN: 07L103121S
      SEAL
      from £5.80
      from £5.80
      # 003
      MPN: N0297014
      OIL DRAIN PLUG
      M14X1,50
      from £3.93
      from £3.93
      # 004
      MPN: N0138493
      SEAL RING
      14X20 ALUMINIUM
      from £2.33
      from £2.33
      # 005
      MPN: N10554005
      ROUND HD. SCREW
      M6X35
      from £1.80
      from £1.80
      # 006
      MPN: 07L103601F
      engine oil sump
      from £1,811.43
      from £1,811.43
      # 007
      MPN: N10124306
      HEXAGON SOCKET FLAT HEAD BOLT
      M6X20
      from £0.89
      from £0.89
      # 016
      MPN: N10405702
      HEXAGON SOCKET HEAD BOLT
      M6X45
      from £0.62
      from £0.62
