024 - REAR BRAKE

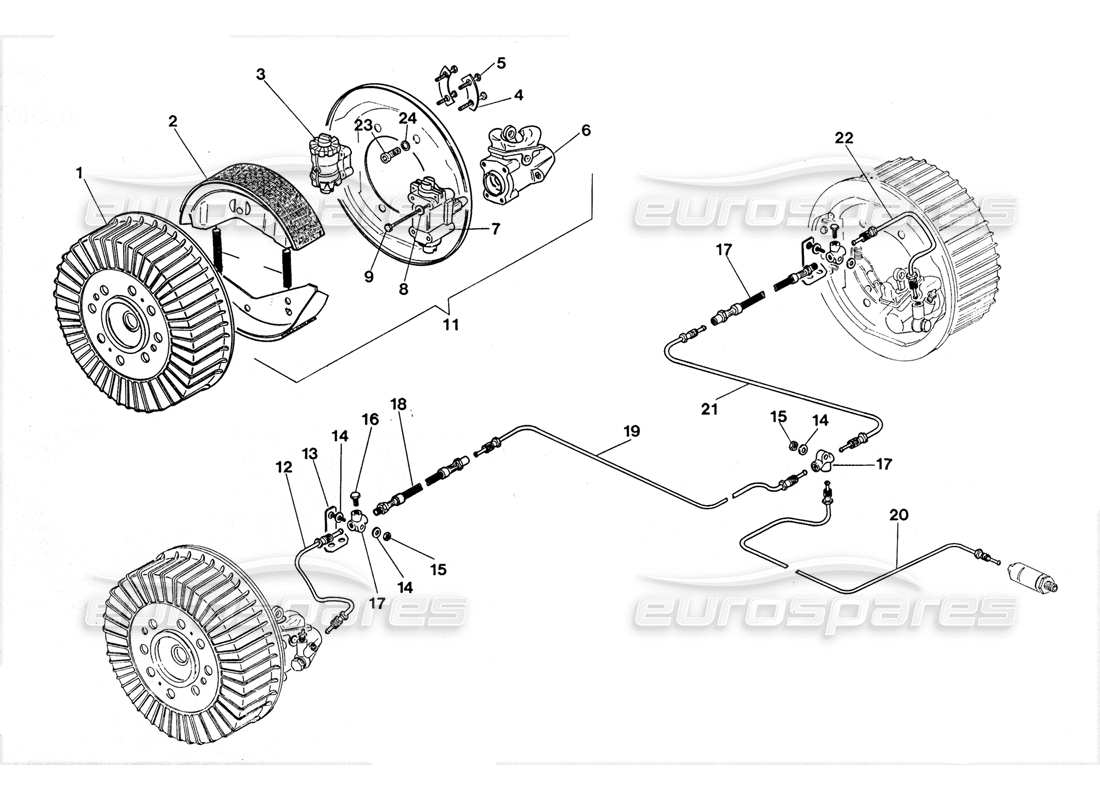

Lamborghini LM002 (1988) Rear Brake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 003221478
BRAKE DRUM
REAR BRAKE DRUM.
from £415.38
from £415.38
# 002
MPN: 003227319
SHOE
CEPPI POST .SUP. INF .DS.SN .
# 003
MPN: 003227330
BRAKE ADJUSTER
REGISTRO MANUALE PARTE INF.
from £207.97
from £207.97
# 004
MPN: 003227328
LOCK WASHER
LAM.DI FERMO X BULL . FIBS . REG . M
from £39.56
from £39.56
# 005
MPN: 003227327
SCREW
BULL.X FIBS. REGISTRO MANUALE
from £17.46
from £17.46
# 006
MPN: 003227332
R. BRAKE ACT
COMPL.CILINDR.DES.
# 006
MPN: 003227333
L. BRAKE ACT
COMPL.CILINDR.SIN.
from £482.47
from £482.47
# 007
MPN: 003227331
WHEEL CYLINDER
REGISTRO X CILINDR. PARTE SUP.
from £389.96
from £389.96
# 008
MPN: 003227335
WASHER
RONDELLA X FISS . REG . PARTE SUP.
from £5.31
from £5.31
# 009
MPN: 003227334
SCREW
BULLONE FISS. REG. PARTE SUPER.
from £9.25
from £9.25
# 010
MPN: 003227329
SPRING
MOLLA X FISS. CEPPI A PORTACEPP
from £10.66
from £10.66
# 011
MPN: 003223695
SHOE PLATE
PIATTO PORTA CEPPI SX ( CP 2883
from £1,741.14
from £1,741.14
# 011
MPN: 003223696
SHOE PLATE
PIATTO PQRTA CEPPI OX ( CP 2883
from £2,356.16
from £2,356.16
# 012
MPN: 003223948
PIPE
TUBO CQLLEG.TRE VIE AL PORTACE
# 013
MPN: 003223942
SUPPORT
COMPLESS.SUPP.3 VIE
# 014
MPN: 008400606
WASHER
ROND.6,4 UNI 1734
Supersession
Supersession
# 015
MPN: 008200606
NUT
DADO N/70/106M
Supersession
Supersession
# 016
MPN: 003108701
PLUG
TAPPO X CHIUSURA FORO SUL 3 VI
from £8.92
from £8.92
# 017
MPN: 003208682
UNION
Raccordo 3.3513.1000.1/02
from £34.66
from £34.66
# 018
MPN: 003224538
PIPE
TUBO COLLEG.3 VIE AL TUBO RIGI
from £83.18
from £83.18
# 019
MPN: 003223950
PIPE
TUBINO DAL 3 VIE AL TUBO FLESS
# 020
MPN: 003224543
PIPE
TUBO DA VALV.LIMIT.A 3 VIE POS
# 021
MPN: 003223951
PIPE
TUSINO DAL 3 VIE AL TUBO FLESS
# 022
MPN: 003223949
PIPE
TUBO COLLEG.TRE VIE AL PORTACE
# 023
MPN: 008701208
SCREW
VITE
from £14.35
from £14.35
# 024
MPN: 008411303
LOCK WASHER
ROND.EL.A 13 UNI 1751
from £1.80
from £1.80
