lamborghini lm002 (1988) air pollution hp parts diagram

036 - Air Pollution Hp

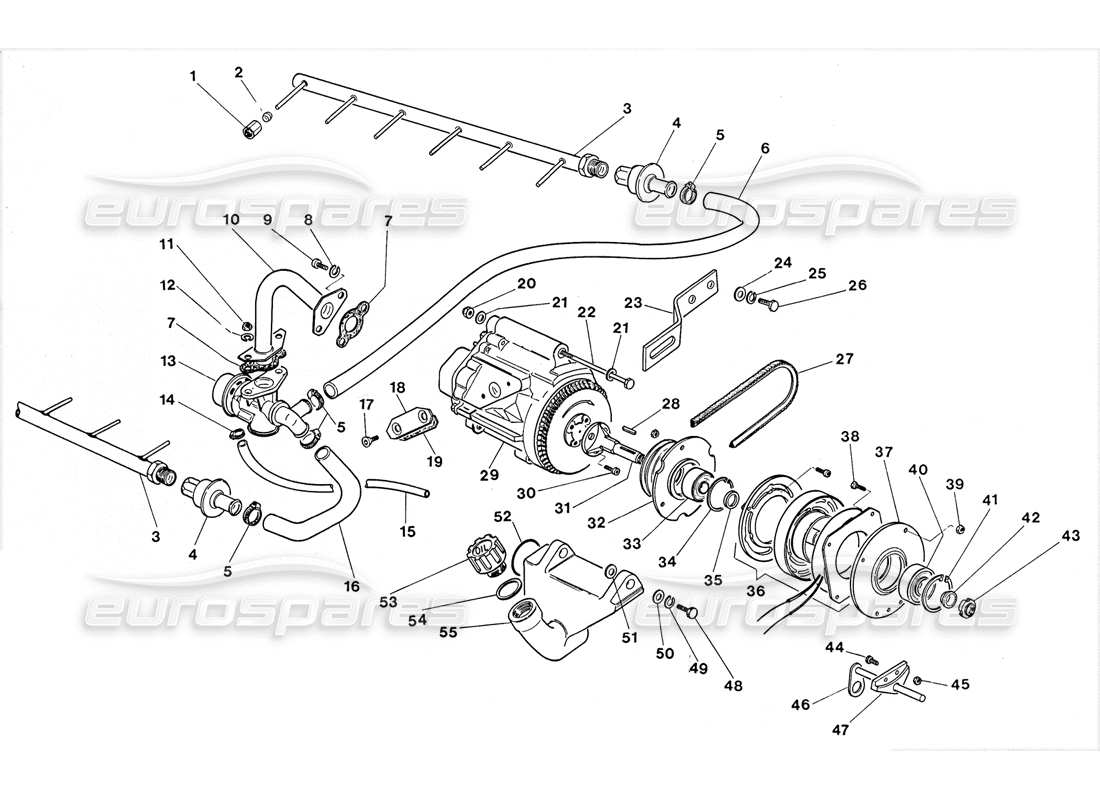

Lamborghini LM002 (1988) Air Pollution Hp Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 004607189
NUT
DADO RACC.2971 GT
from £9.33
from £9.33
UNION NUT Genuine Lamborghini - New (to order)
# 002
MPN: 004607166
FERRULE
Biconi 2956 GT
FERRULE Genuine Lamborghini - New (to order)
# 003
MPN: 004620278
EX. MANIFOLD
COLLETTORE ARIA X TESTE DES. S
from £281.08
from £281.08
RH HEAD AIR MANIFOLD Genuine Lamborghini - New (to order)
# 004
MPN: 004607187
VALVE CER
CEK VALVE VS. 1/5354987
from £140.55
from £140.55
CHECK VALVE Genuine Lamborghini - New (to order)
# 005
MPN: 008832003
CLAMP
FASCETTA 19-28
from £27.78
from £27.78
FASC.19-28 H.12 Genuine Lamborghini - New In stock
# 006
MPN: 004623044
UNION PIPE
TUBO COLL.GRUPPO DIVER. ALLA VA
from £45.27
from £45.27
DIVERTER/CHECK VALVEPIPE Genuine Lamborghini - New (to order)
# 007
MPN: 004607438
GASKET
GUARNIZ.FLANGIA DIVERTER
from £4.28
from £4.28
DIVERTER FLANGE SEAL Genuine Lamborghini - New (to order)
# 008
MPN: 008410806
LOCK WASHER
ROND.EL.A8,4 UNI 1751
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 009
MPN: 008700819
SCREW
VITE TCCE 8X1 , 25X16
from £0.53
from £0.53
SCREW M8X16 UNI 5931/8G/Z Genuine Lamborghini - New (to order)
# 010
MPN: 004628768
PIPE
TUBO CON FLANGE
PIPE Genuine Lamborghini - New (to order)
# 011
MPN: 008200601
NUT
DADO M6 UNI 5S88-65/A
from £2.24
from £2.24
M6 UNI 5588-8G/Z NUT Genuine Lamborghini - New (to order)
# 012
MPN: 008410603
LOCK WASHER
ROND.A6,4 UNI 1751 072
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 013
MPN: 004621116
DIVER VALVE
DIVERTER VALVE A 2 USCITE 1.70
from £281.08
from £281.08
2-WAY DIVERTER VALVE Genuine Lamborghini - New (to order)
# 014
MPN: 008830814
CLAMP RING
FASCETTA 8-14
Lamborghini PART 008830814 Genuine Lamborghini - New (to order)
# 015
MPN: 004625990
PIPE
TUBO DEPRESS. DA DIVERTER AL CO
PIPE Genuine Lamborghini - New (to order)
# 016
MPN: 004625988
PIPE
DIVERTER HOSE TEE VALVE
from £45.27
from £45.27
DIVERTER/HEAD PIPE Genuine Lamborghini - New (to order)
# 017
MPN: 008700801
SCREW
Vite M8X16 UNI S933-67/A
from £0.53
from £0.53
SCREW M8X16 UNI 5933/5S/Z Genuine Lamborghini - New (to order)
# 018
MPN: 004626392
COVER
COP. CH I US. M AND. P. ARIA
from £52.57
from £52.57
AIR PUMP DELIVERY COVER Genuine Lamborghini - New (to order)
# 019
MPN: 004606297
GASKET
GUARNIZ.TUBO POMPA ARIA
from £4.52
from £4.52
AIR PUMP PIPE SEAL Genuine Lamborghini - New (to order)
# 020
MPN: 008201008
NUT
DADO B/70/210M
from £0.57
from £0.57
NUT Genuine Lamborghini - New In stock
# 021
MPN: 008401006
WASHER
ROND.A10,5 UNI 1734
from £0.53
from £0.53
WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New In stock
# 022
MPN: 008101001
BOLT
BULL.M10X120UNI 5737/65 86
from £8.17
from £8.17
SCREW M10X120UNI 5737/65 8 Genuine Lamborghini - New (to order)
# 023
MPN: 004625584
PUMP ADJUST
Staffa X registro pompa aria
from £43.86
from £43.86
PUMP ADJUSTMENT BRACKET Genuine Lamborghini - New (to order)
# 024
MPN: 008411006
LOCK WASHER
PIAST.FERMO SUPP.MOT.
from £4.94
from £4.94
ENGINE MOUNT LOCK PLATE Genuine Lamborghini - New (to order)
# 025
MPN: 008411005
WASHER
RONDEL. A10.S UNI 1751
from £0.53
from £0.53
WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
# 026
MPN: 008101011
BOLT
BULLONE
from £8.17
from £8.17
SCREW M10X1.5X25 UNI5739/ Genuine Lamborghini - New (to order)
# 027
MPN: 004624813
BELT
CINGHIA PROFILTEX GATES 7M 925
from £123.96
from £123.96
BELT Genuine Lamborghini - New (to order)
# 028
MPN: 008860303
Key
LINGUETTA
from £0.54
from £0.54
LINGUETTA Genuine Lamborghini - New (to order)
# 029
MPN: 004624322
AIR PUMP
POMPA ARIA VS. 26.004.561
from £1,111.01
from £1,111.01
This part replaces part number 004607184
AIR PUMP Genuine Lamborghini - New (to order)
# 030
MPN: 0087008378
SCREW
VITE
SCREW Genuine Lamborghini - New (to order)
# 031
MPN: 004624309
SHAFT
ALBERINO X GIUNTO FRIZIONE
from £204.93
from £204.93
COUPLING SPINDLE Genuine Lamborghini - New (to order)
# 032
MPN: 004624281
PULLEY
PULEGGIA
from £234.33
from £234.33
PULEGGIA Genuine Lamborghini - New (to order)
# 033
MPN: 008501707
BEARING
BEARING 62203-2RS1
from £11.61
from £11.61
BEARING Genuine Lamborghini - New (to order)
# 034
MPN: 008574301
CIRCLIP
SEEGEH 40 I
from £1.70
from £1.70
O-RING I 40 UNI 3654 Genuine Lamborghini - New In stock
# 035
MPN: 004623733
SPACER
DISTANZ.TRA CSN E FRIZIONE ELE
from £17.83
from £17.83
SPACER Genuine Lamborghini - New (to order)
# 036
MPN: 004623728
clutch
FRIZIONE ELETTROMAGN.X POMPA A
from £509.08
from £509.08
AIR PUMP ELECTROMAGNETIC COUPL ING Genuine Lamborghini - New (to order)
# 037
MPN: 004623729
RING
ANELLO X CENTRAGGIO GRUPPO MAG
from £125.62
from £125.62
MAGNETIC COUPLING RING Genuine Lamborghini - New (to order)
# 038
MPN: N01020717
BOLT
BULL.M5X12 UNI 5739/SS
from £0.53
from £0.53
This part replaces part number 008100504
HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
screw, hex. hd. - M5 X 12 - D - MJ 1973>> Genuine Porsche Part - New (to order)
# 039
MPN: 006200503
NUT
DADO N/70/105M
NUT Genuine Lamborghini - New (to order)
# 040
MPN: 008502010
BEARING
BEARING 62204-2RS1
from £159.60
from £159.60
BEARING Genuine Lamborghini - New In stock
# 041
MPN: 008575001
CIRCLIP
SEEGER AA 47 I
from £0.57
from £0.57
O-RING I 47 UNI 3654 Genuine Lamborghini - New In stock
# 042
MPN: 004623732
BUSH
BOCCOLA SULL 'ALBERINO TENUTA C
from £28.71
from £28.71
SEALING SHAFT BUSHING Genuine Lamborghini - New (to order)
# 043
MPN: 008251402
RING NUT
RING HERE 14X1
from £3.70
from £3.70
M14X1 RING NUT Genuine Lamborghini - New (to order)
# 044
MPN: 008100514
SCREW
VITE FISSAGGIO ARRESTO
from £1.67
from £1.67
SCREW M5X0.8X18 UNI 5739/5 Genuine Lamborghini - New (to order)
# 045
MPN: N0211963
NUT
DADO N/70/105M
from £0.53
from £0.53
HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
HEX. NUT - M5 Genuine Porsche Part - New (to order)
# 046
MPN: 004622630
RETAINER
Fermo X giunto elettromagn.
from £60.02
from £60.02
ELECTROMAGNETIC COUPLING RETAI NER Genuine Lamborghini - New (to order)
# 047
MPN: 004623328
STOP
ARRESTO X GRUPPO MAGNET . FRIZ . C
from £266.97
from £266.97
MAGNETIC COUPLING RETAINER Genuine Lamborghini - New (to order)
# 048
MPN: 008101022
BOLT
BULL.M10X35 UNI 5737 1 0K
from £2.66
from £2.66
SCREW M10X1.5X35 UNI5737/ Genuine Lamborghini - New (to order)
# 049
MPN: 008411005
WASHER
RONDEL. A10, 5 UNI 1751
from £0.53
from £0.53
WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
# 050
MPN: 008401021
WASHER
WASHERS
from £1.67
from £1.67
WASHER 21X11X2 UNI 6592-69 Genuine Lamborghini - New (to order)
# 051
MPN: 008401025
WASHER
RONDELLA
from £20.94
from £20.94
WASHER 20X10.5X0.5 Genuine Lamborghini - New In stock
# 052
MPN: 008605001
O RING
ANELLO OR 3200
from £0.82
from £0.82
OR RING Genuine Lamborghini - New In stock
# 053
MPN: 001127028
OIL PLUG
TAPPO INTRODUZIONE OLIO
Lamborghini PART 001127028 Genuine Lamborghini - New (to order)
# 054
MPN: 001101401
OIL GASKET
GUARNIZ. X TAPPO INTRODUZ . OLIO
from £2.25
from £2.25
OIL FILLER PLUG GASKET Genuine Lamborghini - New In stock
# 055
MPN: 004624278
MOUNTING
SUPP. POMPA ARIA
from £249.57
from £249.57
AIR PUMP BRACKET Genuine Lamborghini - New (to order)
