008 - radiator and coolant system

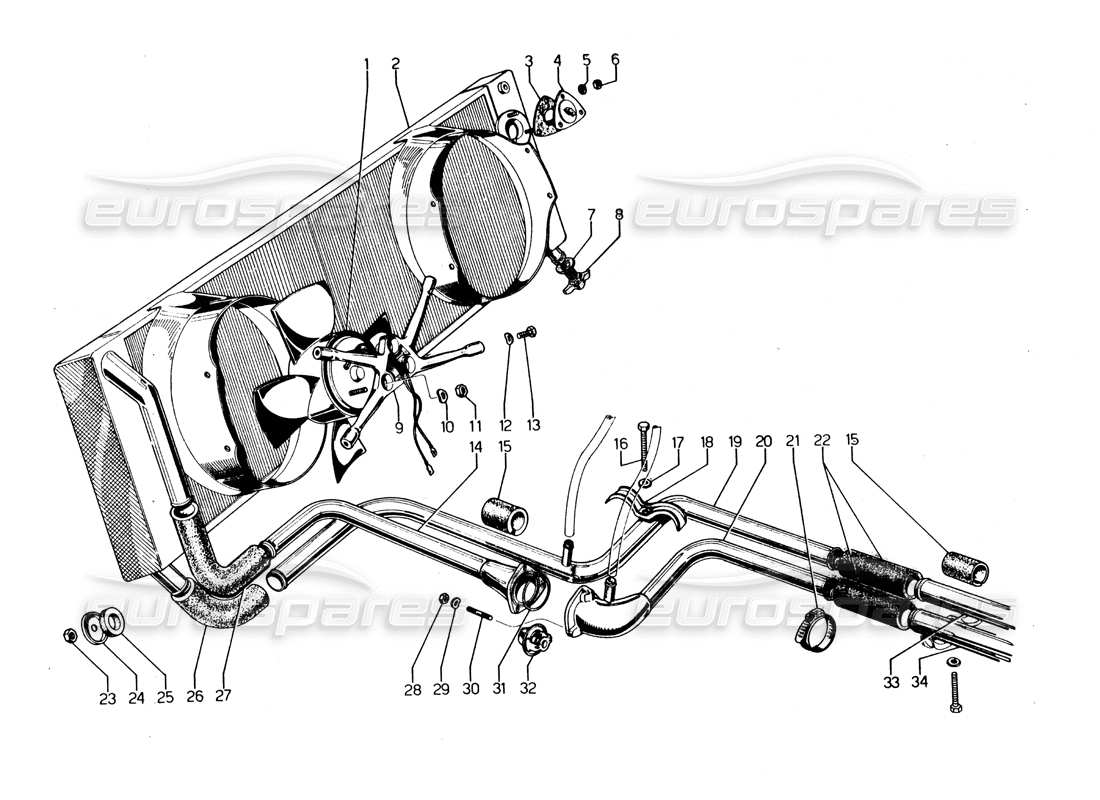

Lamborghini Urraco P250 / P250S Radiator and coolant system Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001707009
MOTOR AND FAN FOR RADIATOR
# 002
MPN: 001708578

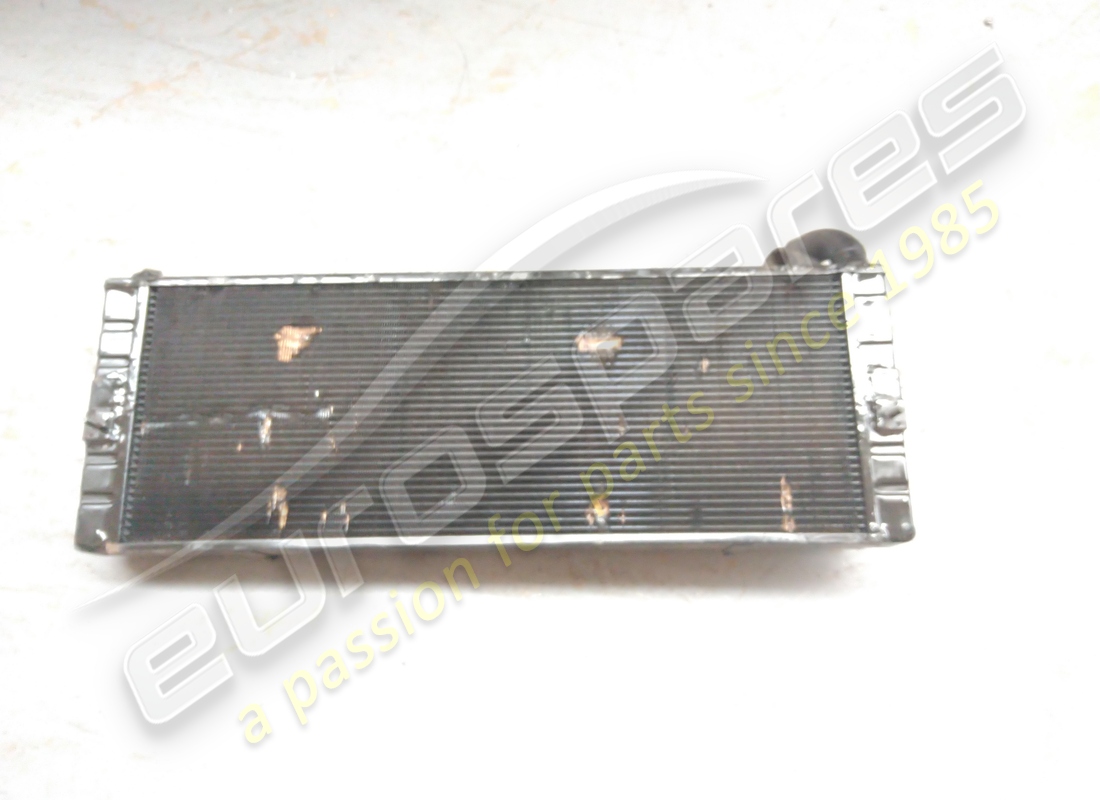

RADIATORE ACQUA
from £939.75
from £939.75
# 003
MPN: 001705504
GASKET
from £16.41
from £16.41
# 004
MPN: 001724565
TEMPERATURE SENDER UNIT
(Single terminal)
from £125.00
from £125.00
# 005
MPN: 008410403
WASHER
from £4.11
from £4.11
# 006
MPN: 008200402
NUT
from £1.62
from £1.62
# 007
MPN: 001701906
WASHER
Supersession
Supersession
# 008
MPN: 001701905
RUBINETTO SCARICO ACQUA
from £65.54
from £65.54
# 009
MPN: 001708581
SUPPORT
from £99.08
from £99.08
# 010
MPN: 008410602
WASHER
from £26.77
from £26.77
# 011
MPN: 008200604
NUT
Supersession
Supersession
# 012
MPN: 008410603
WASHER
Supersession
Supersession
# 013
MPN: 008100622
BOLT
from £3.65
from £3.65
# 014
MPN: 001708586
PIPE / TUBE / HOSE
from £367.54
from £367.54
# 015
MPN: 001708593
SPESSORE IN GOMMA (SALVATUBO)
from £15.35
from £15.35
# 016
MPN: 008100605
BOLT
from £0.53
from £0.53
# 017
MPN: 008410603
WASHER
Supersession
Supersession
# 018
MPN: 008833801
JUBILEE CLIP
from £18.62
from £18.62
# 019
MPN: 001711127
PIPE / TUBE / HOSE
from £102.89
from £102.89
# 020
MPN: 001708585
PIPE / TUBE / HOSE
from £78.75
from £78.75
# 021
MPN: 008835004
JUBILEE CLIP
from £6.14
from £6.14
This part replaces part number 008830201
# 022
MPN: 001708589
SLEEVE
from £19.91
from £19.91
# 023
MPN: 008200804
NUT
from £0.73
from £0.73
# 024
MPN: 001707162
WASHER
from £20.39
from £20.39
# 025
MPN: WHT001189
RUBBER RING
from £2.38
from £2.38
This part replaces part number 001707163
# 026
MPN: 001708588
SLEEVE
from £90.79
from £90.79
# 027
MPN: 001708587
SLEEVE
from £71.51
from £71.51
# 028
MPN: 008200604
NUT
Supersession
Supersession
# 029
MPN: 008410602
WASHER
from £27.90
from £27.90
# 030
MPN: 008300610
THREADED STUD
from £15.47
from £15.47
# 031
MPN: 008605502
SEALING RING
from £1.71
from £1.71
# 032
MPN: 001708584
THERMOSAT
# 033
MPN: 001708591
CENTRAL RADIATOR WATER OUTLET PIPE
from £124.51
from £124.51
# 034
MPN: 001708590
CENTRAL RADIATOR WATER INLET PIPE
from £96.41
from £96.41
