023 - Exhaust pipes

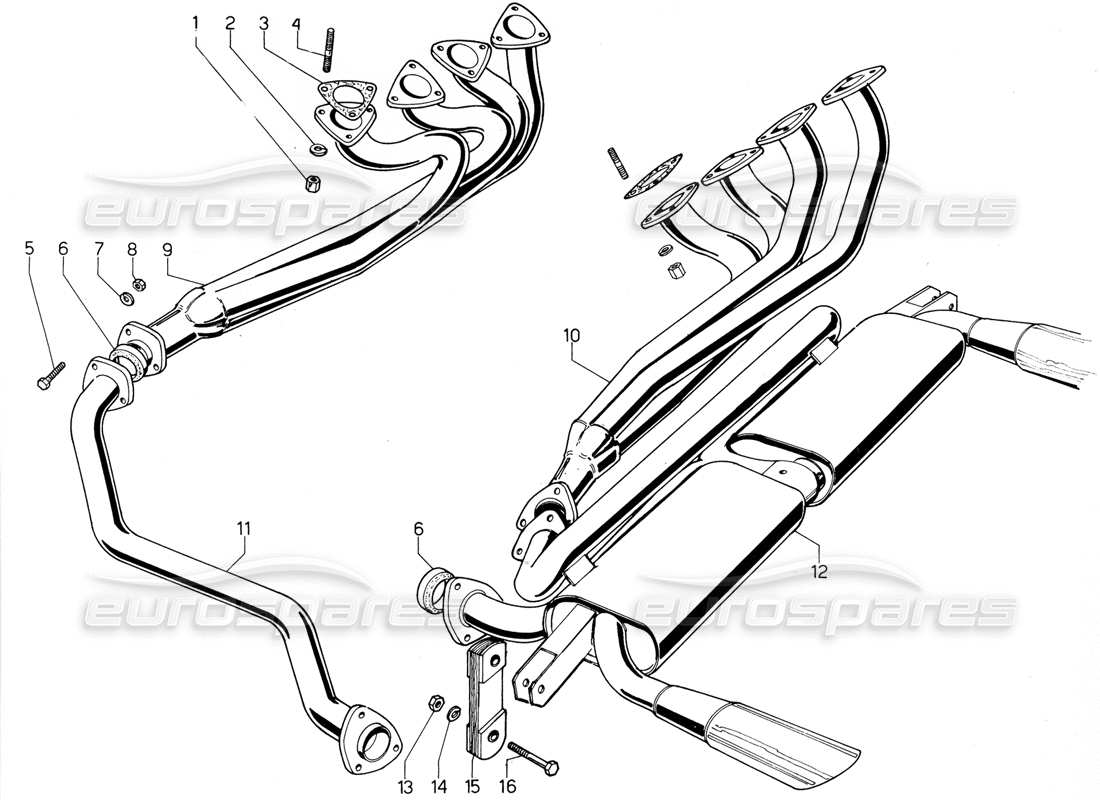

Lamborghini Urraco P300 Exhaust Pipes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008200807
NUT
from £14.85
from £14.85
# 002
MPN: 008410806
WASHER
Supersession
Supersession

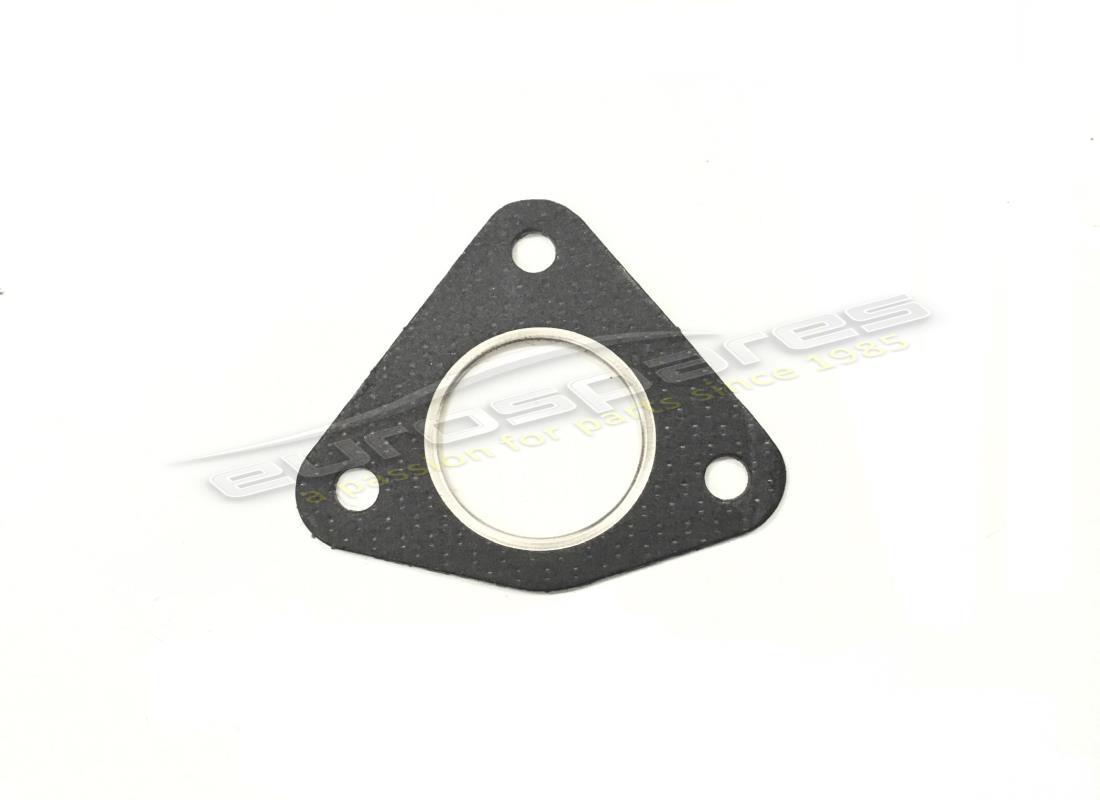

# 003
MPN: 004405807
GASKET
from £14.79
from £14.79
# 004
MPN: WHT003031
THREADED STUD
from £6.01
from £6.01
This part replaces part number 008300839
# 005
MPN: 008100842
BOLT
from £1.02
from £1.02
# 006
MPN: 004410168
GASKET
from £53.99
from £53.99
# 007
MPN: 008410806
WASHER
Supersession
Supersession
# 008
MPN: 008200807
NUT
from £14.85
from £14.85

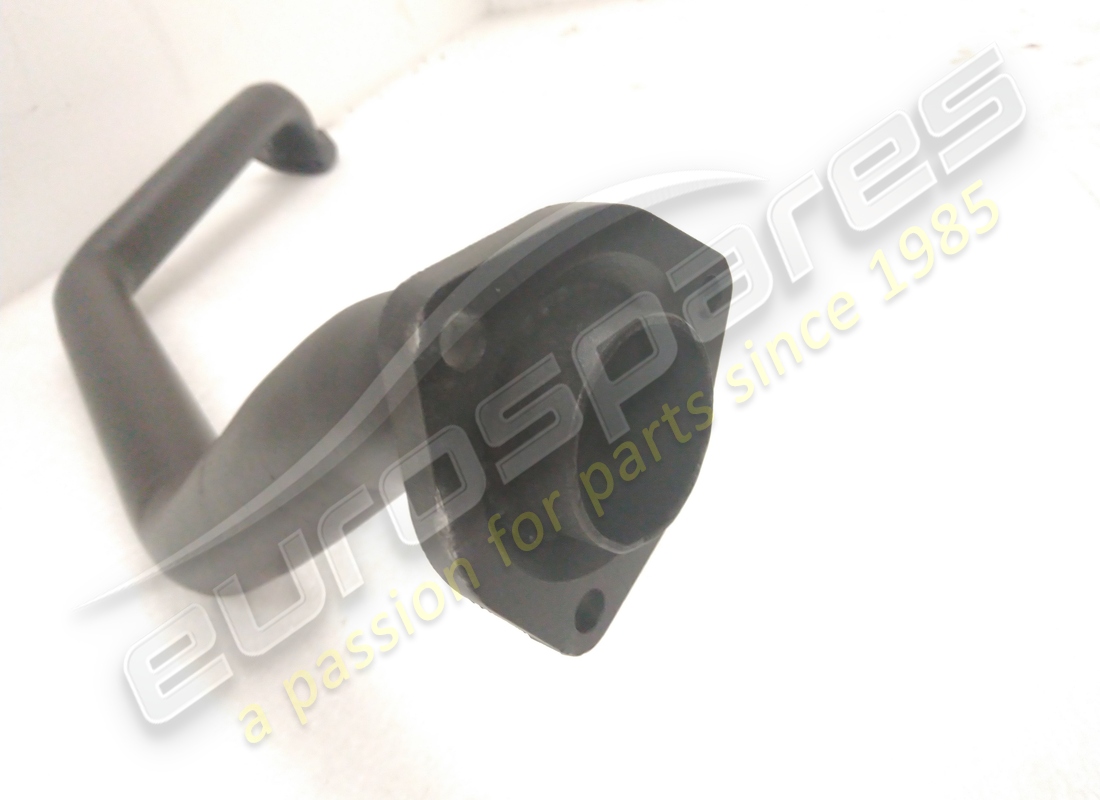

# 009
MPN: 004410986
COLLETTORE DI SCARICO ANTERIORE
from £730.45
from £730.45
# 010
MPN: 004410988
COLLETTORE DI SCARICO POSTERIORE
from £730.45
from £730.45
# 011
MPN: 004410987
CONNECTING HOSE
from £523.17
from £523.17
# 012
MPN: 004410945
MARMITTA
# 013
MPN: 008200806
NUT
Supersession
Supersession
# 014
MPN: 008410806
WASHER
Supersession
Supersession
# 015
MPN: 004408963
SUPPORT
from £15.74
from £15.74
# 016
MPN: 008100842
BOLT
from £1.03
from £1.03
