026 - Rear Suspension

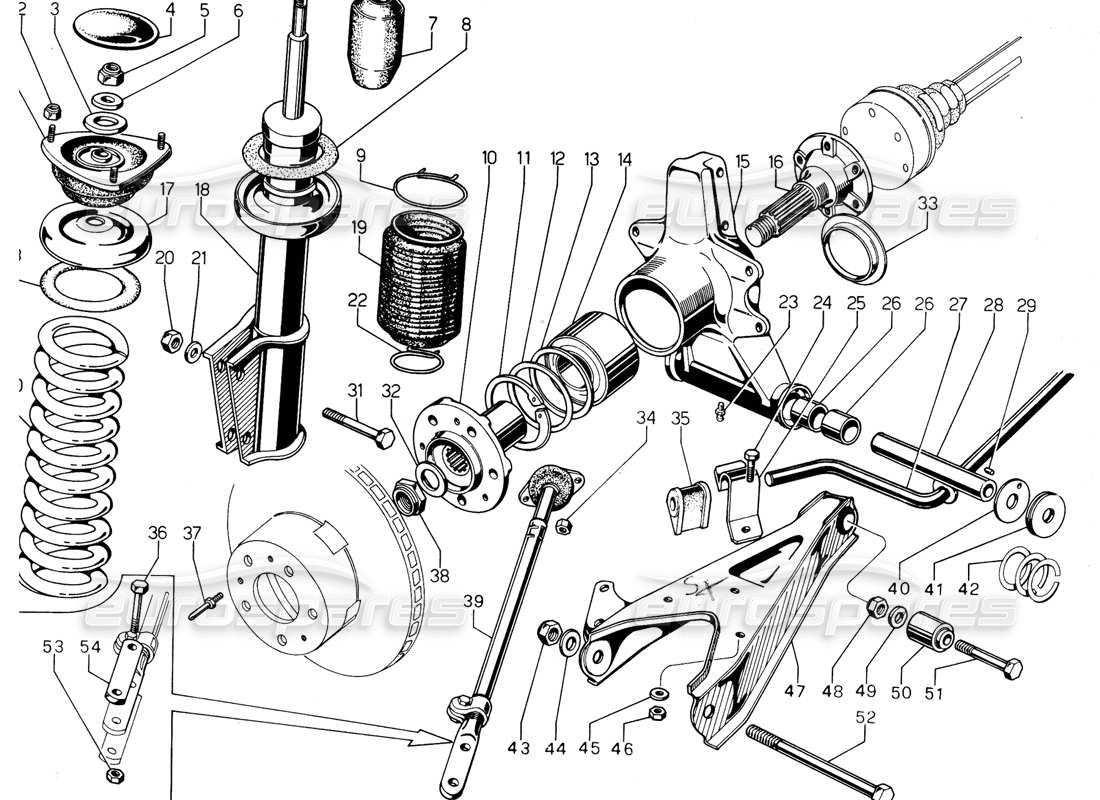

Lamborghini Urraco P300 Rear Suspension Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

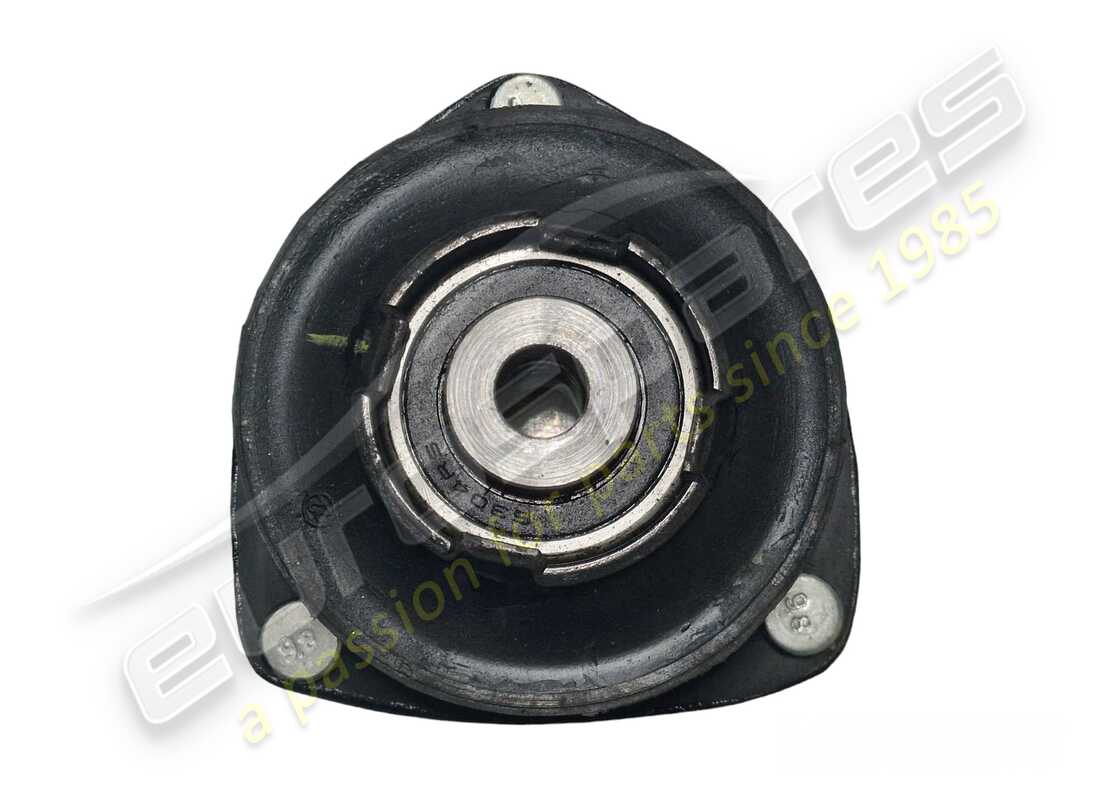

# 001
MPN: 005119407
SUPPORT
from £328.61
from £328.61
# 002
MPN: 008200809
NUT
Supersession
Supersession
# 003
MPN: 005207464
PROTECTION FOR GREASE
from £5.27
from £5.27
# 004
MPN: 005206948
GREASE CAP
from £27.63
from £27.63
# 005
MPN: 008201405
NUT
from £3.70
from £3.70
# 006
MPN: 005207465
LOCKING FOR NUT
from £6.81
from £6.81
# 007
MPN: 005208239
SHOCK ABSORBER LIMIT SWITCH
from £129.27
from £129.27
# 008
MPN: 005207451
RING
from £35.61
from £35.61
# 009
MPN: 008830107
JUBILEE CLIP
from £12.90
from £12.90
# 010
MPN: 005206929
MOZZO PORTA RUOTA
from £190.16
from £190.16
# 011
MPN: 008578201

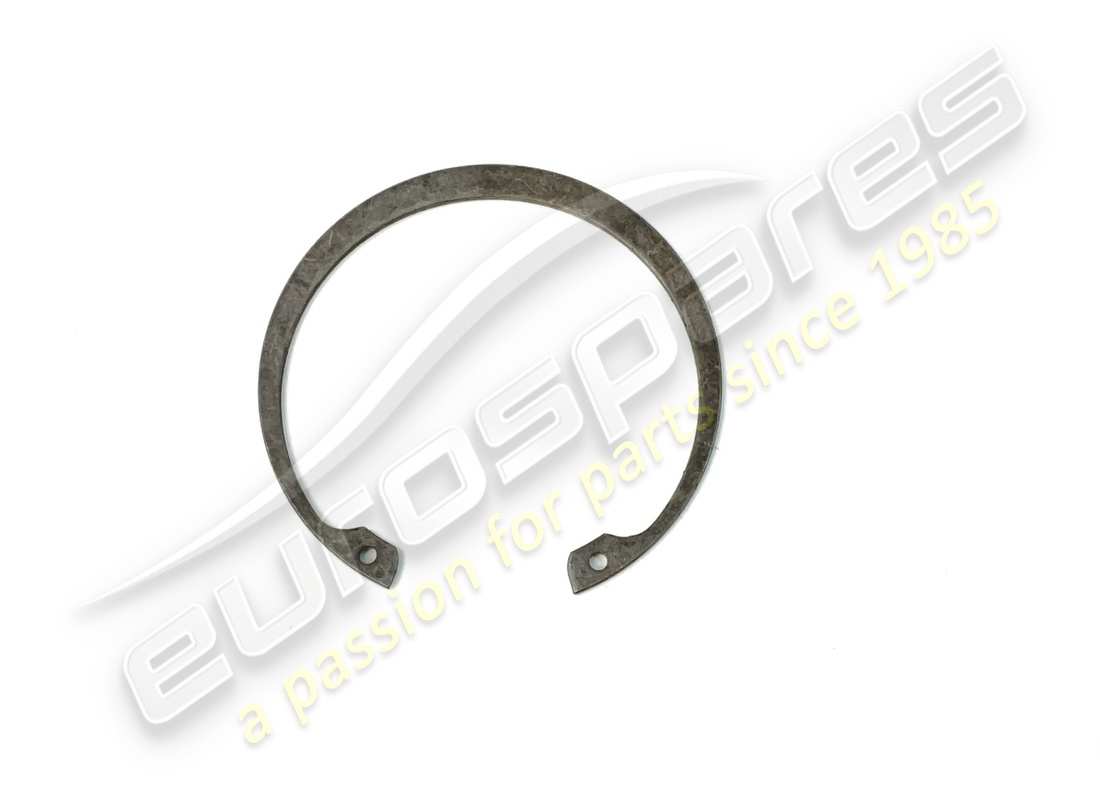

SEEGER RING
from £2.28
from £2.28
# 012
MPN: 008407502

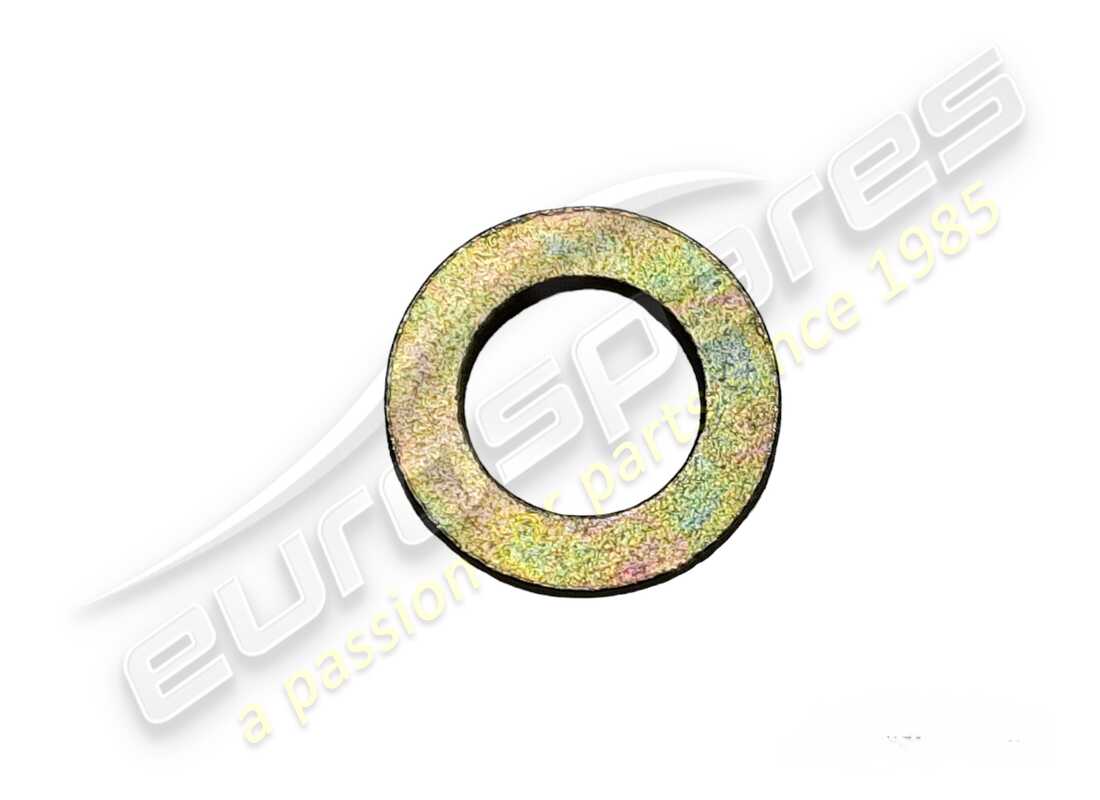

WASHER
from £10.87
from £10.87
# 013
MPN: 008407501
WASHER
from £3.70
from £3.70
# 014
MPN: 008504502

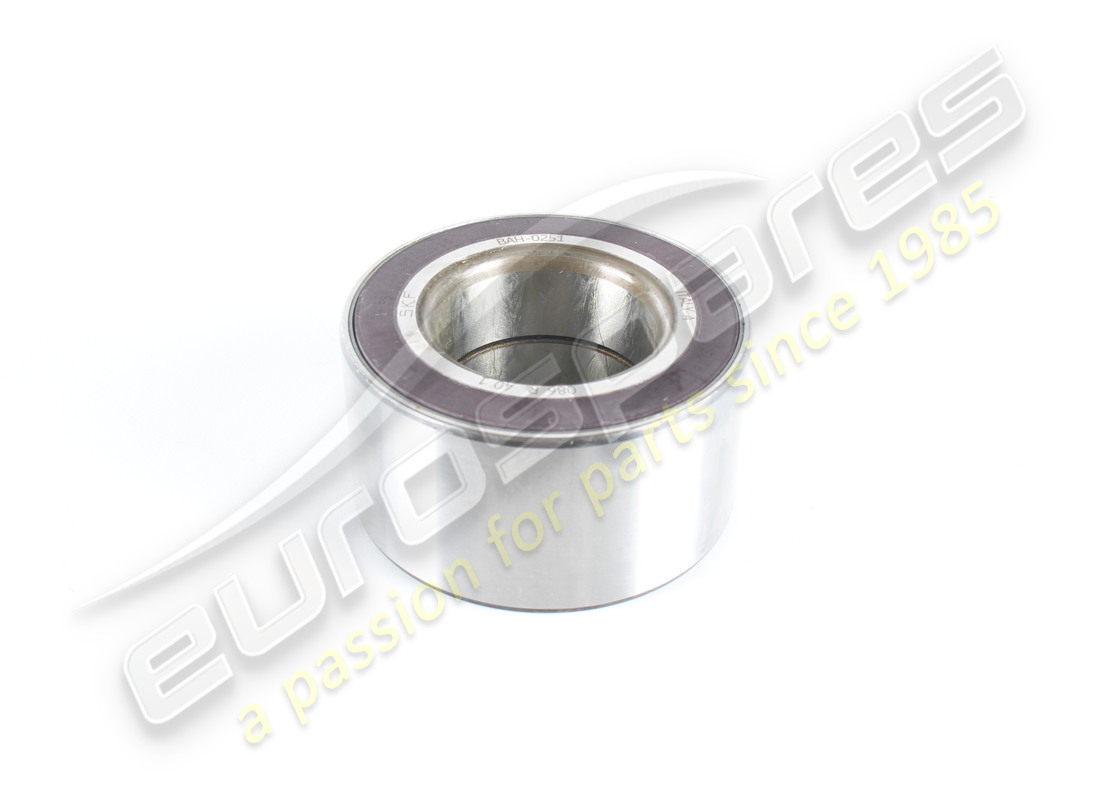

BEARING
from £519.75
from £519.75
# 015
MPN: 005210731
HUB HOLDER
# 016
MPN: 005208235
FLANGIA ATTACCO SEMIASSE
from £271.12
from £271.12
# 017
MPN: 005206915
SUPPORT
from £15.59
from £15.59

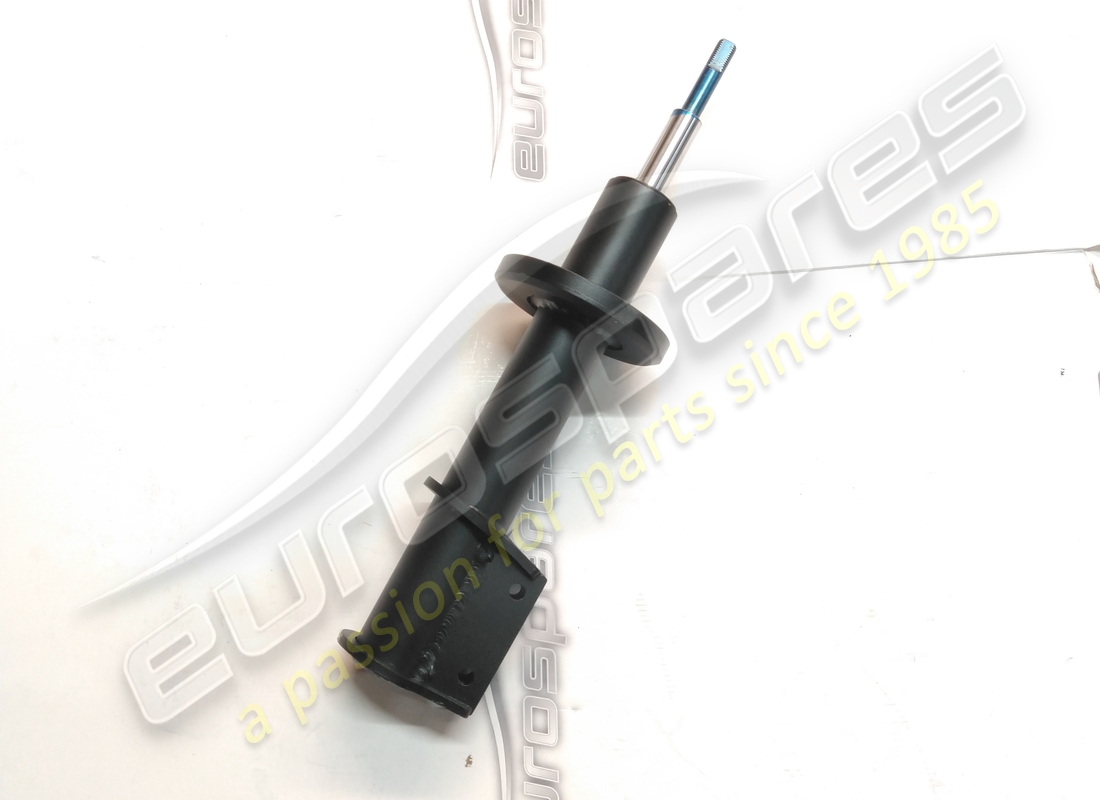

# 018
MPN: 005220589
AMMORTIZZATORE POSTERIORE
from £1,539.76
from £1,539.76
# 019
MPN: 005108120
SHOCK ROD PROTECTION BELLOWS
from £70.39
from £70.39
# 020
MPN: 008201008
NUT
from £0.55
from £0.55
# 021
MPN: 008401006
WASHER
from £0.53
from £0.53
# 022
MPN: 008830119
JUBILEE CLIP
from £17.06
from £17.06
# 023
MPN: 008880601
GREASER
from £0.95
from £0.95
# 024
MPN: N01029315
BOLT
from £0.82
from £0.82
# 025
MPN: 005107110
TORSION BAR CLAMP
from £29.14
from £29.14
# 026
MPN: 008802201

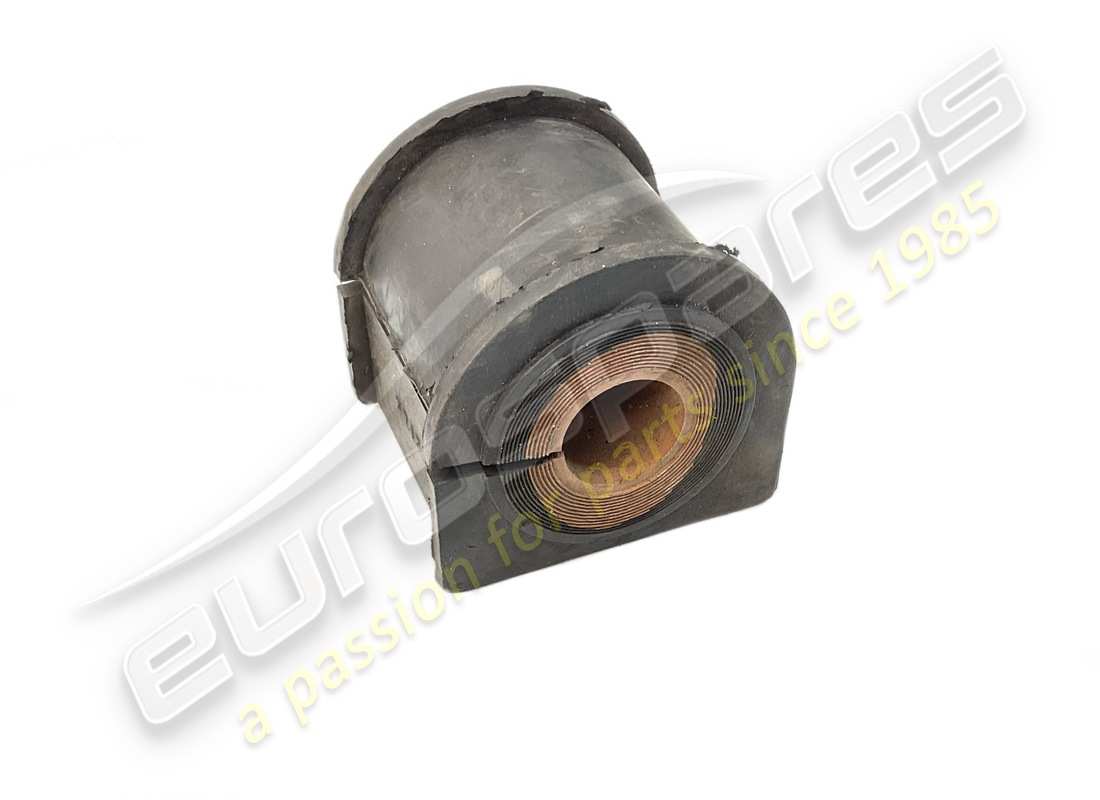

BUSH
Supersession
Supersession
# 027
MPN: 005207696
REAR TORSION BAR
from £115.50
from £115.50
# 028
MPN: 005208662
SPACER FOR SUSPENSION ARM
from £227.41
from £227.41
# 029
MPN: 008850302
LOCATING DOWEL
# 030
MPN: 005208666
SPRING
from £209.77
from £209.77
# 031
MPN: 008101032
BOLT
from £4.73
from £4.73
# 032
MPN: 008402502
WASHER
from £1.45
from £1.45
# 033
MPN: 005209248
BEARING PROTECTION
from £3.94
from £3.94
# 034
MPN: 008200804
NUT
from £0.71
from £0.71
# 035
MPN: 008921501
SUPPORT
from £8.17
from £8.17
# 036
MPN: 008101015
BOLT
from £8.17
from £8.17
# 037
MPN: 005107467
PIVOT
from £5.02
from £5.02
# 038
MPN: 008202502
NUT
from £52.05
from £52.05
# 039
MPN: 005207821
TIE ROD
from £769.42
from £769.42
# 040
MPN: 008402603
WASHER
from £9.05
from £9.05
# 041
MPN: 005208663
WASHER
from £31.95
from £31.95
# 042
MPN: 005208667
DL SEAL RINGS FOR GREASE
from £15.80
from £15.80
# 043
MPN: 008201406
NUT
from £0.59
from £0.59
# 044
MPN: 008401413
WASHER
from £0.63
from £0.63
# 045
MPN: 008410806
WASHER
Supersession
Supersession
# 046
MPN: 008200806
NUT
Supersession
Supersession
# 047
MPN: 005206676
BRACCIO PER SOSPENSIONE POSTERIORE (DESTRO)
from £145.51
from £145.51
# 047
MPN: 005206677
BRACCIO PER SOSPENSIONE POSTERIORE (SINISTROL
from £89.25
from £89.25
# 048
MPN: 008201603
NUT
from £2.25
from £2.25
# 049
MPN: 008401611
WASHER
from £8.84
from £8.84
# 050
MPN: 008921602
ESTENDBLOC
from £72.02
from £72.02
# 051
MPN: 008101619
BOLT
from £12.82
from £12.82
# 052
MPN: 008101415
BOLT
from £25.22
from £25.22
# 053
MPN: 008201008
NUT
from £0.55
from £0.55

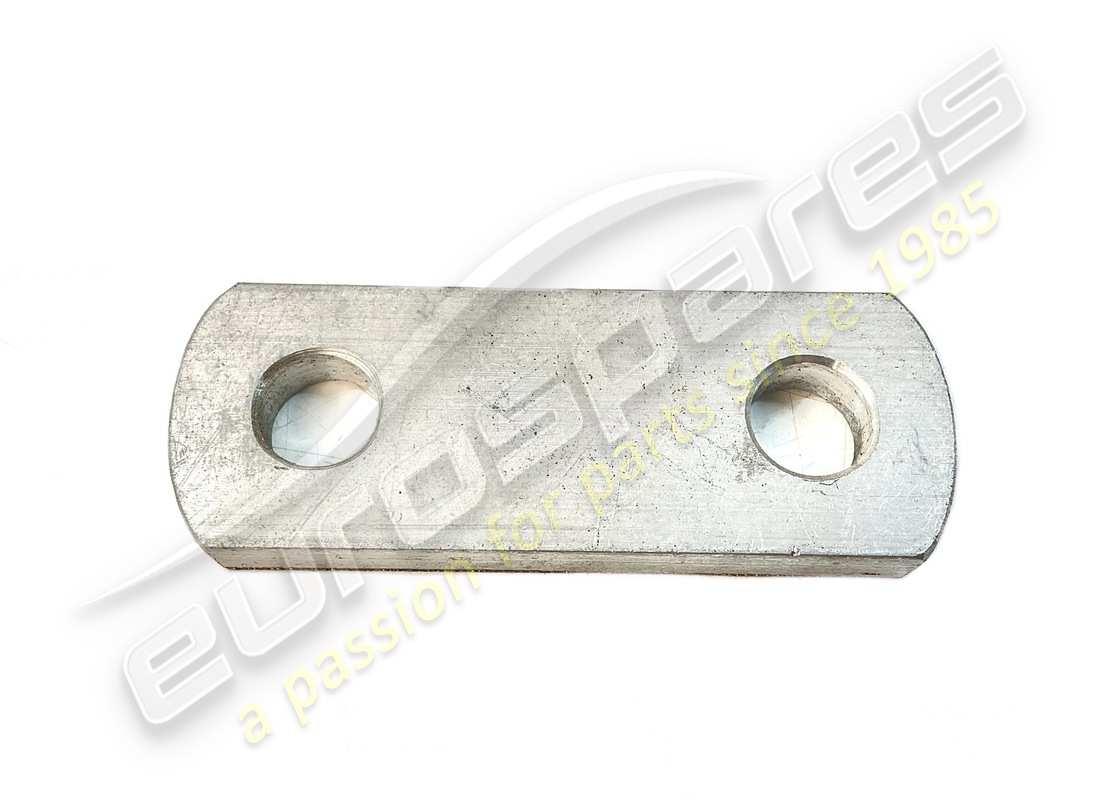

# 054
MPN: 005206679
PLATE
from £14.55
from £14.55
