019 - Heating and Cooling system

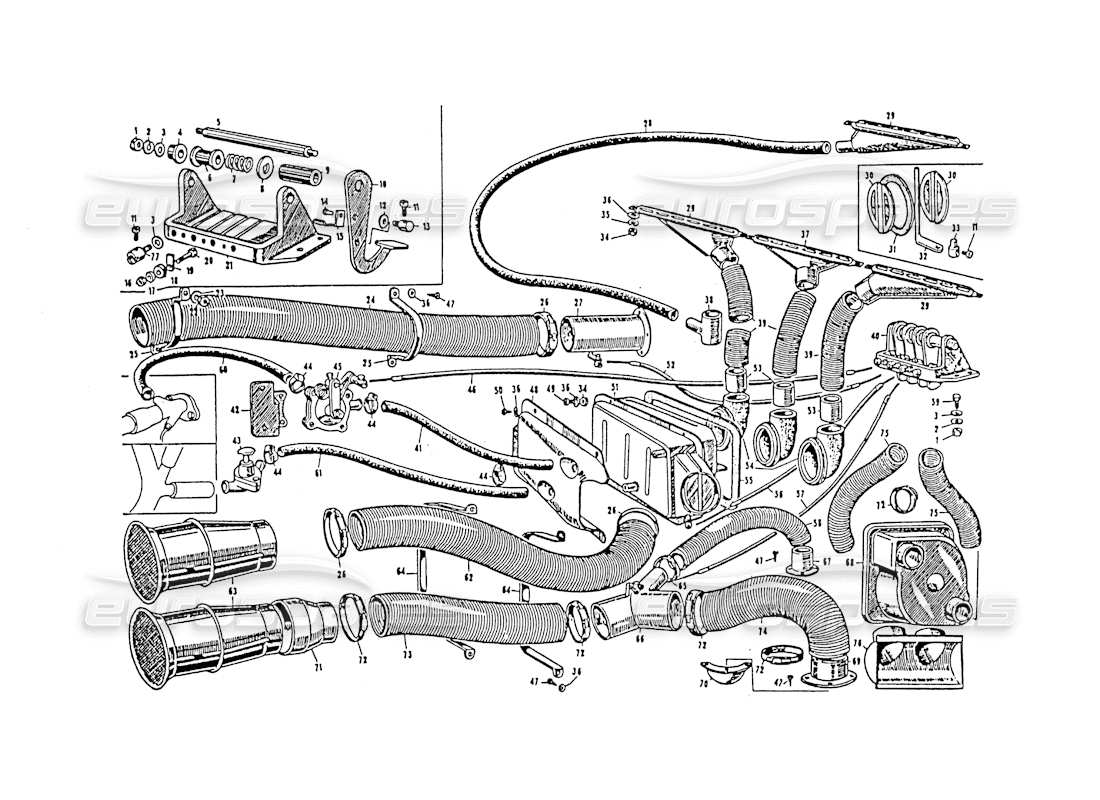

Maserati 3500 GT Heating and Cooling system Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
DNT 47047
NUT
#
002
MPN:
RSN/32690
WASHER
#
003
MPN:
RN/42031
WASHER
#
004
MPN:
20405/48807
BUSH
#
005
MPN:
20403/48806
SHAFT FOR AIR CONDITIONER CONTROL
#
006
MPN:
20413/48811
DISTANZIALE FRA AIBERINO CONDIZIONATORE
#
007
MPN:
20417/48818
SPRING
#
008
MPN:
20411 48810
ANEIIO DI FRIZIONE FRA IA LEVETTA COMANDO CONDIZIONATORE
#
009
MPN:
20418/49785
SPACER FOR AIR CONDITIONER CONTROL SHAFT
#
010
MPN:
20407/48808
AIR CONDITIONER CONTROL LEVER
#
011
MPN:
VNT-48796
SCREW
#
012
MPN:
RNT 47074
RONDEILA PIANA Ø 6X12X1,5 PER MORSETTO TENUTA CAVO
#
013
MPN:
20415/48813
CLAMP FOR AIR CONDITIONING SYSTEM CONTROL CABLE
#
014
MPN:
CHN/33755
Nail Ø 3X6 for fixing the limit switch plate to the control lever
#
015
MPN:
20421/48822
Lam'na for contact up to the stroke on the air conditioner control lever
#
016
MPN:
DN/33200
NUT
#
017
MPN:
20422/48844
WASHER
#
018
MPN:
20425/48824
BUSH
#
019
MPN:
20419/48821
PLATE FOR CONTACT UP TO THE STROKE ON THE AIR CONDITIONER CONTROL SUPPORT
#
020
MPN:
BN/48848
BULLONCINO 3X0,5X20 CH. 6 PER FISSAGGIO ISOLANTI AL SUPPORTO COMANDO CONDIZIONATORE
#
021
MPN:
20401/48805
AIR CONDITIONER CONTROL SUPPORT
#
022
MPN:
DNT. 47031
NUT
#
023
MPN:
RSN 3 2 6 3 5
WASHER
#
024
MPN:
20376/48863
Pipe connecting front air intake to the passenger duct
#
025
MPN:
20363/51051
GRAFFIA SOSTEGNO Tubi CONVOGLIATORI ARIA (LATO DESTRO)
#
026
MPN:
FRN/51056
Fascetta per Tubi convogliatori aria Ø 100
#
027
MPN:
20379/48865
RIGHT SIDE AIR CONVEYOR PIPE (PASSENGER)
#
028
MPN:
Touring 2893
HOT AIR DELIVERY PIPE TO THE REAR GLASS
#
029
MPN:
Touring 2894
DIFFUSER
#
029
MPN:
Touring 2895
DIFFUSER
#
030
MPN:
20382/48866
LANIERINO SEMIVENTOLA PER CONVOGLIATORE ARIA LATO D
#
031
MPN:
20385/48867
GASKET OR SEAL
#
032
MPN:
20388/48868
R SIDE AIR CONVEYOR FAN CONTROL LEVER
#
033
MPN:
20391/48869
NIPLES PER FISSAGGIO COMADO VENTOLA CONVOGLIATORE
#
034
MPN:
DNT/62557
NUT
#
036
MPN:
RN/50346
WASHER
#
037
MPN:
Touring 2894
DIFFUSER
#
038
MPN:
20368/49229
Pirazione aria lunotto posteriore
#
039
MPN:
20396/41873
TUBO CONVOGLIAMENTO ARIA CALDA AL PARABREZZA (DA SPAZZONARE IN TRE PARTI)
#
040
MPN:
20358/51009
AIR CONVEYOR CONTROL ASSEMBLY
#
041
MPN:
MN/48881
Manicotto Ø 18X22X725 collegamento radiatore sul cruscotto alla valvola regolatrica ingressore acqua calda
#
042
MPN:
20374/48862
SUPPORT FOR REGULATING VALVE FOR HOT WATER INLET INTO THE RADIATOR ON THE DASHBOARD
#
043
MPN:
20370/50336
AUXILIARY TAP FOR HEATING CONTROL
#
044
MPN:
FRN 37824
FASCETTA PER MANICOTTI: N. FIGURA 41, 60, 61
#
045
MPN:
20371/48884

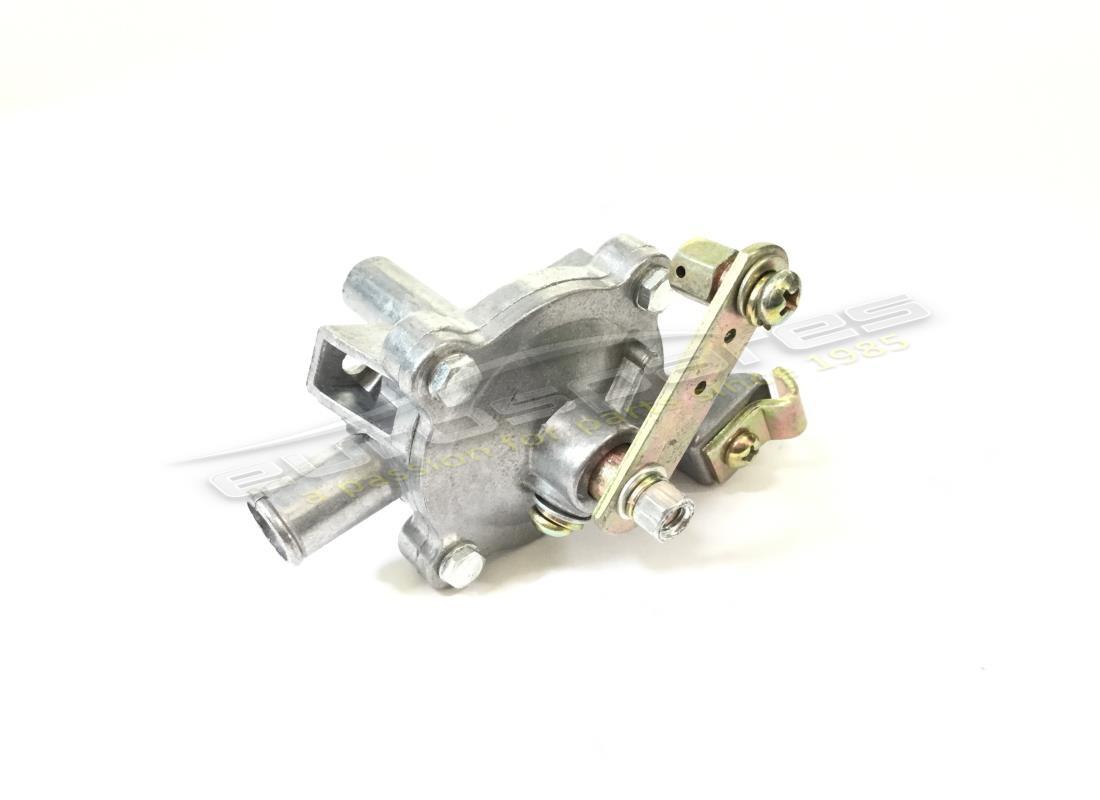

REGULATING VALVE FOR HOT WATER INLET INTO THE DASHBOARD RADIATOR
#
046
MPN:
20435/48913
Hot air inlet regulator valve control cable into the radiator on the dashboard
#
047
MPN:
VNT 47397
SCREW
#
048
MPN:
20430/50329
CAPERCHIO IN PLASTICA PER RISCALDAMENTO
#
049
MPN:
VNT 47389
SCREW
#
050
MPN:
VNT/49513
SCREW
#
051
MPN:
20398/48838
RADIATOR ON THE DASHBOARD FOR AIR CONDITIONING
#
052
MPN:
20433/48912
RIGHT SIDE AIR CONVEYOR FAN CONTROL CABLE
#
053
MPN:
20394/48871
Sleeve on the dashboard radiator to convey hot air to the windscreen
#
054
MPN:
20395/48872
UNION
#
055
MPN:
20397/48874
GASKET OR SEAL
#
056
MPN:
20431/48911
RADIATOR FAN CONTROL CABLE ON THE DASHBOARD
#
057
MPN:
20429/50829
Cavo comendo ventola sullo smistatore aria piedi pilota
#
058
MPN:
20357/50831
HOSE FROM AIR SORTER TO PILOT FEET
#
059
MPN:
BNT/50276
BOLT
#
060
MPN:
MN/48880
SLEEVE Ø 12X22X570 VALVE CONNECTION TO THE ENGINE HEAD
#
061
MPN:
MN/48479
MANICOTTO Ø 12X22X1100 COLLEGAMENTO RADIATORE SUL CRUSCOTTO AL RUBINETTO AUSILIARO
#
062
MPN:
20392/48870
Front air intake connection pipe to the dashboard radiator
#
063
MPN:
20347/48882
FRONT AIR INTAKE
#
064
MPN:
20353/48858
SUPPORT SCRATCH Tubi AIR CONVEYING TO THE DISTRIBUTOR AND THE RADIATOR
#
065
MPN:
FRN/51057
Fascetta per tubo Ø 40
#
066
MPN:
20399/49994
AIR SELECTOR ON THE PILOT'S FEET
#
067
MPN:
20455/51155
Flange for air conveyor tube to accelerator pedal Ø 40
#
068
MPN:
20348/50499
CENTRIFUGAL FAN
#
069
MPN:
20453/51156
Flange for pilot feet air conveyor tube Ø 80
#
070
MPN:
20380/49617
DIVERTER
#
071
MPN:
20360/48949
Reduction on the front air intake for distributor connection pipe
#
072
MPN:
FRN/51055
Fascetta per Tubi convogliatori aria Ø 80
#
073
MPN:
20350/49647
Front air intake connection hose to the pilot feet air distributor
#
074
MPN:
20355/50830
HOSE FROM AIR SORTER TO PILOT FOOT
#
075
MPN:
20451/51153
Pipe from the centrifugal fan to the outside air conveyance
#
076
MPN:
20358/51030
Air intake from the fan. centrifugal for external conveyance
#
077
MPN:
20424/48047
NIPLES SU SUPPORTO COMANDO CONDIZIONATORE
