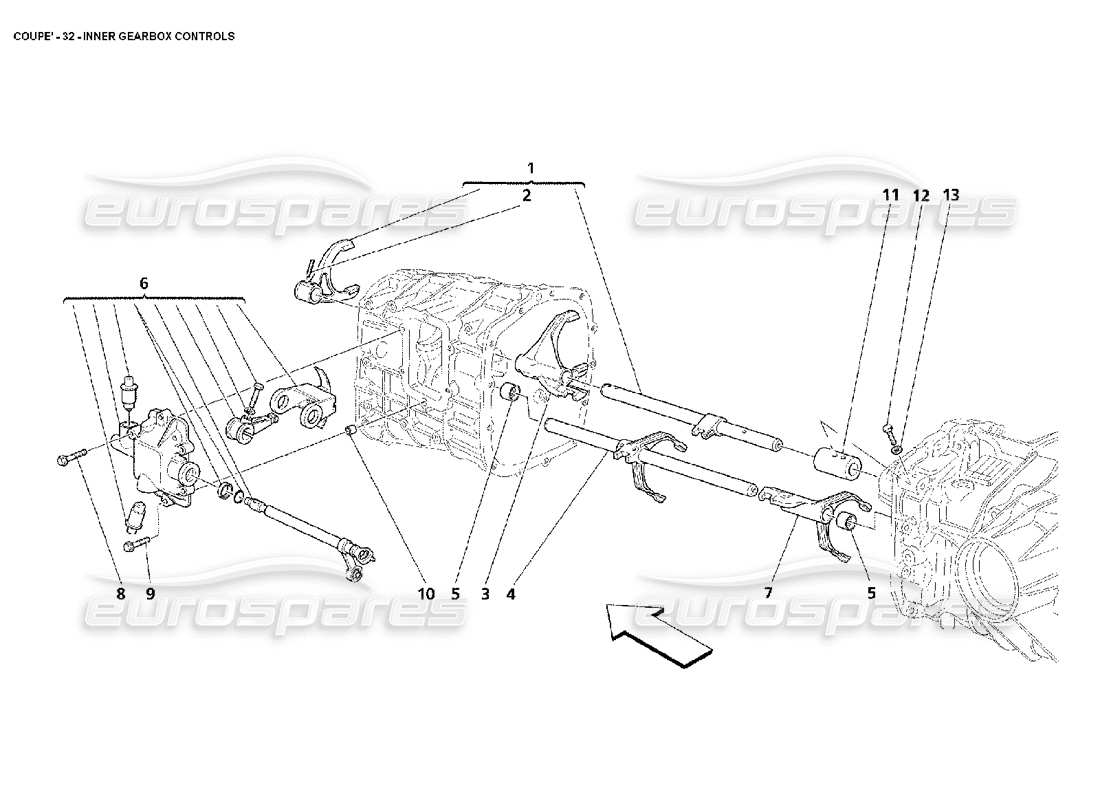

032 - Inner Gearbox Controls
Maserati 4200 Coupe (2002) Inner Gearbox Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 185708

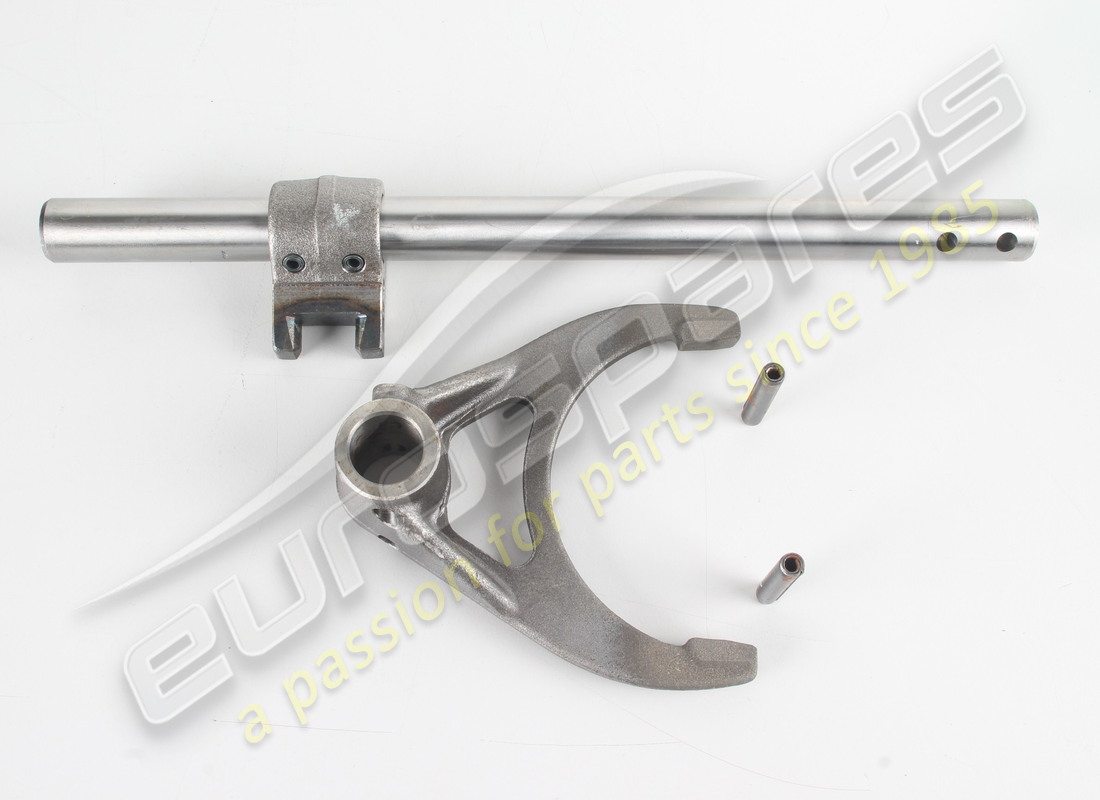

COMPLETE ROD FOR 1ST 2ND GEAR AND REVERSE
from £724.44
from £724.44
# 002
MPN: 13910470
FLEXIBLE PIN
from £1.44
from £1.44
# 003
MPN: 183953
CONTROL FORK FOR 1ST AND 2ND GEAR
- Valid for F1
from £107.59
from £107.59
# 003
MPN: 189369
CONTROL FORK FOR 1ST AND 2ND GEAR
- Not for F1
from £64.47
from £64.47
# 004
MPN: 183955
COMPLETE ROD FOR 5TH AND 6TH GEAR
- Valid for F1
from £224.45
from £224.45
# 004
MPN: 189371
COMPLETE ROD FOR 5TH AND 6TH GEAR
- Not for F1
from £189.68
from £189.68
# 005
MPN: 183982
BEARING BUSH
from £21.73
from £21.73
# 006
MPN: 190667
COMPLETE OUTER CONTROL
- Not for F1 - Valid till car Ass. Nr. 10105 - Valid for cars with complete gearbox cod. 185204
Supersession
Supersession
This part replaces part number 187029
# 006
MPN: 198268
COMPLETE OUTER CONTROL
- Not for F1 - Valid from car Ass. Nr. 10106 - Valid for cars with complete gearbox cod. 198255
Supersession
Supersession
This part replaces part number 190667
# 007
MPN: 189372
CONTROL FORK FOR 3RD AND 4TH GEAR
- Not for F1
from £93.51
from £93.51
# 007
MPN: 211473
CONTROL FORK FOR 3RD AND 4TH GEAR
- Valid for F1
from £213.92
from £213.92
This part replaces part number 184646
# 008
MPN: 16286721
SCREW
- Not for F1
from £0.79
from £0.79
# 009
MPN: 16286321
SCREW
- Not for F1
from £0.51
from £0.51
# 010
MPN: 145992
CENTERING DOWEL
from £40.80
from £40.80
# 011
MPN: 185707
BUSHING
from £67.86
from £67.86
# 012
MPN: 10902224
SCREW
from £0.53
from £0.53
# 013
MPN: 11194377
WASHER
from £0.71
from £0.71
